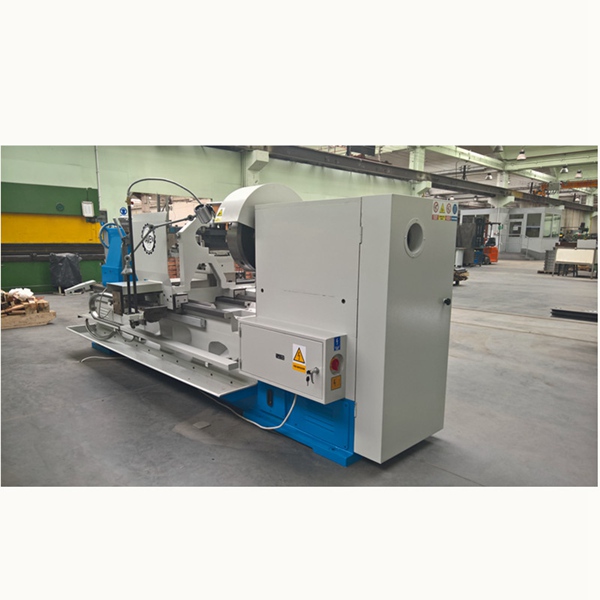

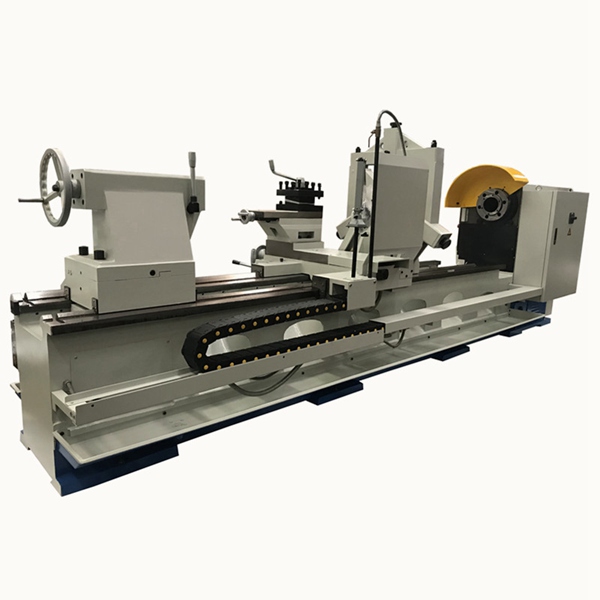

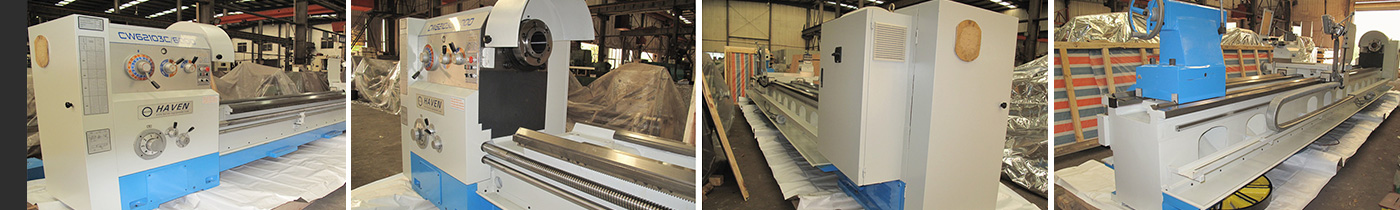

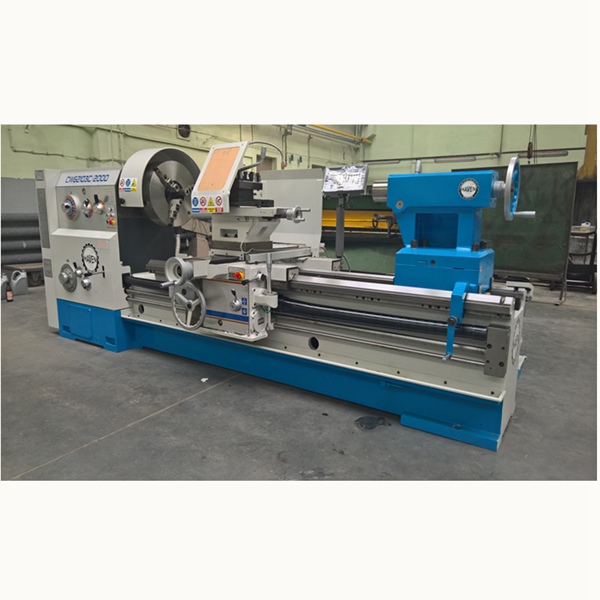

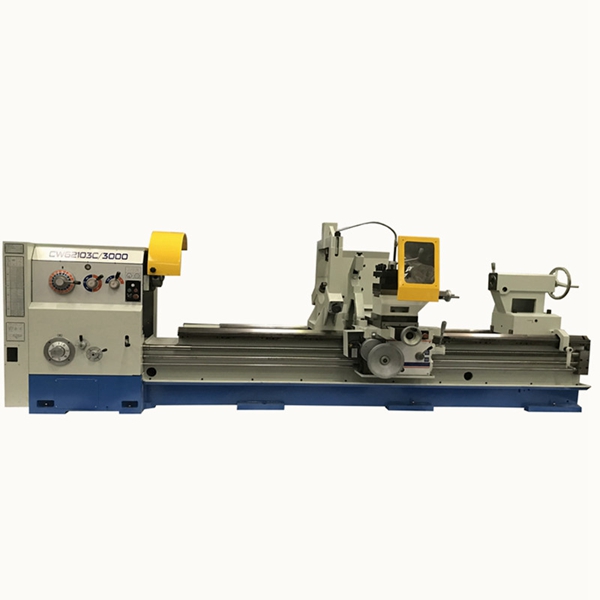

Universal Horizontal Lathe Machine


Main Features:

This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including CW61(2)103C, CW61(2)123C, CW61(2)143C, CW61(2) 163C, CW61(2)183C distance between centers are 1500mm,2000mm,3000mm,4500mm,6000mm.

The roughness of the parts, which are finished by the lathe, are up to 3.2μm, the accuracy of the dimension can reach IT7.

Product Description

Standard Accessories:

4 jaw chuck; 3 jaw chuck ;steady rest; follow rest; dead center; reduction sleeve; working lamp; coolant system; tools; foundation bolt; level blocks; maintenance kits; english manual;

Note: less than 2000mm (including 2000mm) lathe steady rest and follow rest are optional.

Optional Accessories:

CE standard including chuck guard, turret guard, big electric box; SINO DRO for 2 axis or 3 axis;

Lead screw cover; Chasing dial; Live center; Face plate; Foot brake;

Universal Horizontal Lathe Machine

Products Specification

Swing over bedmm10301230143016301830
Swing in gapmm12901490169018902090
Swing over cross slidemm700900110012401440
Distance between centersmm1500,2000,3000,4500,6000
Length in gap from face platemm380
Spindle nose
C11or D11
Spindle boremm105,130 (optional)
Spindle speeds/stepsrpm/steps10-800/187-531/186-480/18
Cross slide travelmm615715815815
Top rest travelmm300
Rapid traversemm/minZ:3240; X:1870
Quill diametermm120
Quill travelmm270
Quill taper
Bed widthmm610
Metric threadsmm/kinds1—240/53
Inch threadstpi/kinds30—2/31
Module threadsmm/kinds0.25—60/42
Diametral pitch threadsLpi/kinds60—0.5/47
Main motor powerkw11
