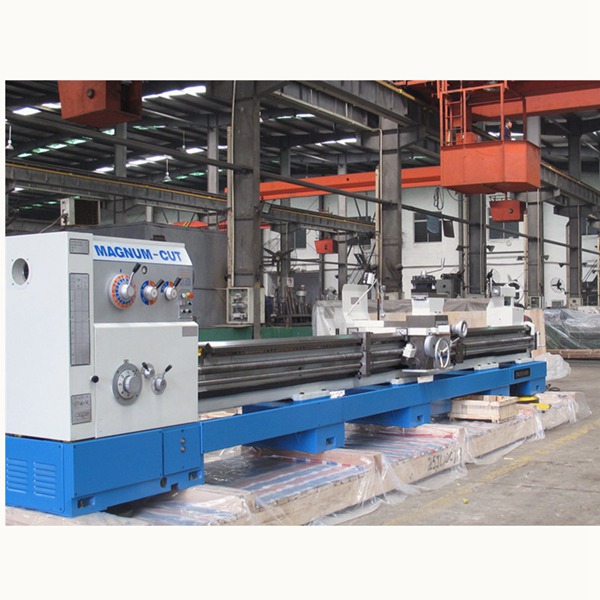

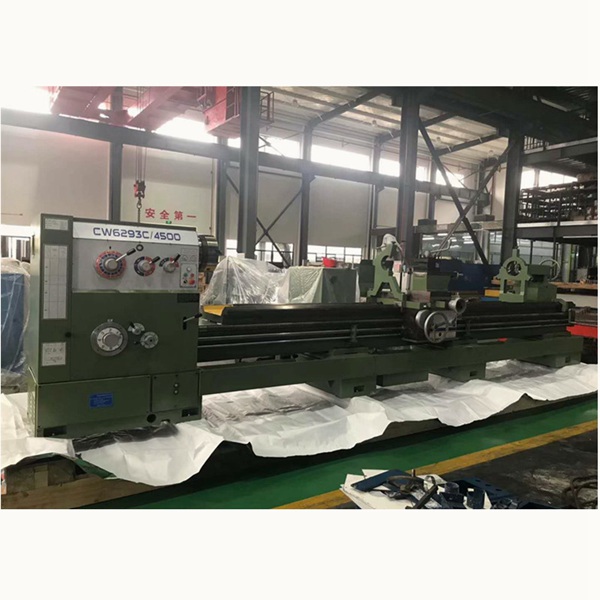

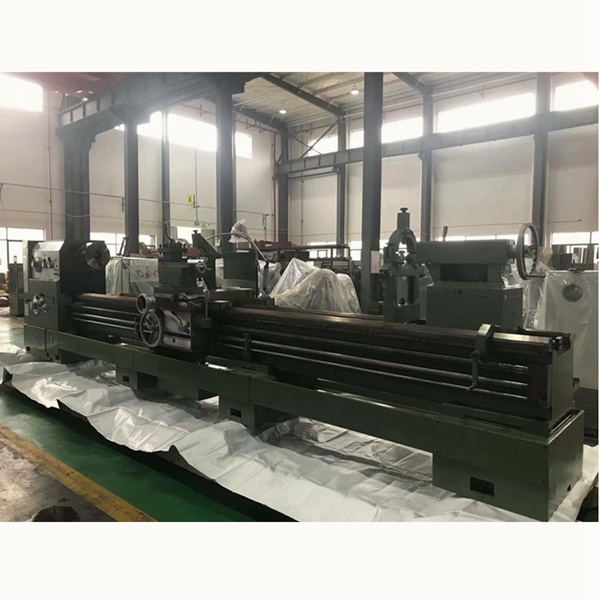

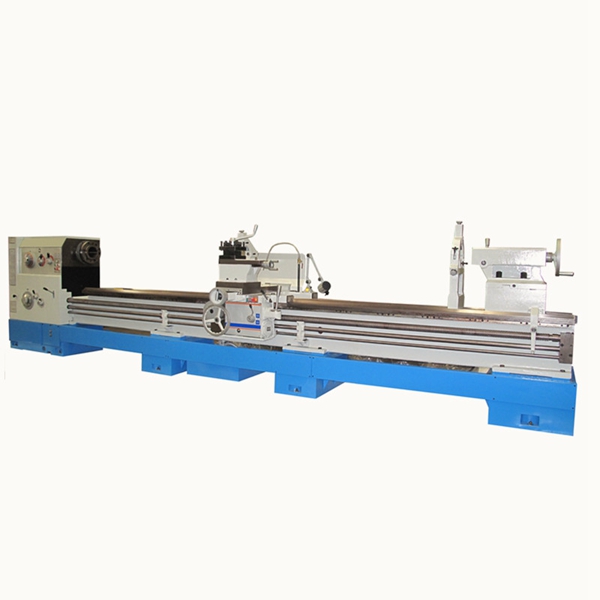

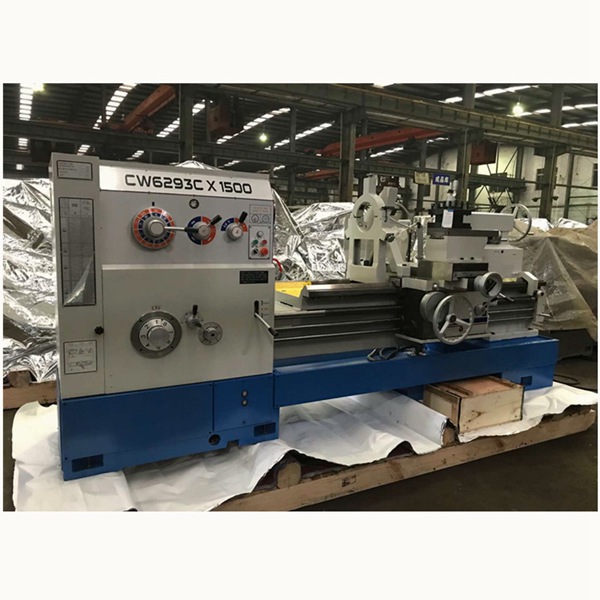

Engine Horizontal Metal Lathe Machine


Main Features:

This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad, suitable for turning internal, external and cylindrical surfaces as well as other rotary surfaces. They can be used for turning different metric, inch, module and diametrical threads and can also be used for performing drilling, reaming and broaching oil grooves etc.

Product Description

Standard Accessories:

4 jaw chuck; 3 jaw chuck ;steady rest; follow rest; dead center; reduction sleeve; working lamp; coolant system; tools; foundation bolt; level blocks; maintenance kits; english manual;

Note: less than 2000mm (including 2000mm) lathe steady rest and follow rest are optional.

Optional Accessories:

CE standard including chuck guard, turret guard, big electric box; SINO DRO for 2 axis or 3 axis;

Lead screw cover; Chasing dial; Live center; Face plate; Foot brake;

Welcome to contact us!

Engine Horizontal Metal Lathe Machine

Products Specification

Swing over bedmm630830930
Swing in gapmm89010901190
Swing over cross slidemm350550650
Distance between centersmm1000,1500,2000,3000,4500,6000
Length in gap from face platemm300
Spindle nose
C11or D11
Spindle boremm105,130 (optional)
Spindle speeds/stepsrpm/steps10—800/18
Cross slide travelmm480
Top rest travelmm225
Rapid traversemm/minZ:3200, X:1870
Quill diametermm100
Quill travelmm260
Quill taper
Bed widthmm550
Metric threadsmm/kinds1—240/53
Inch threadstpi/kinds30—2/31
Module threadsmm/kinds0.25—60/42
Diametral pitch threadsLpi/kinds60—0.5/47
Main motor powerkw11
