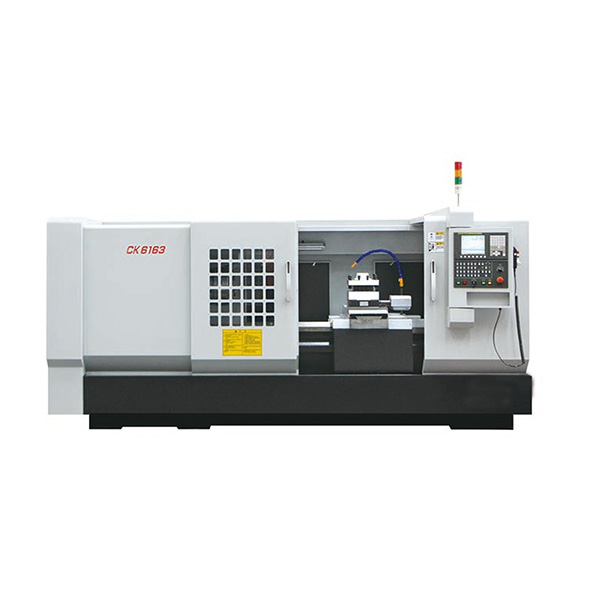

1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
|Capacity||Swing over bed||800||1000|
|Swing over cross slide||480||680|
|Distance between centers||1000-8000||1000-8000|
|Max. load capacity||4||4|
|Spindle bore taper||Metric φ120/MT5||Metric φ120/MT5|
|Spindle nose type||C11||C11|
|Spindle speed steps||VF. 3 steps||HYD. 4 steps||VF. 3 steps||/HYD. 4 steps|
|Spindle speed range||10-800||17-800||10-800||17-800|
|Chuck||φ400 3-jaw manual||φ400 3-jaw manual|
|Turret||Turret/tool post||NC turret 4 position||NC turret 4 position|
|Tool shank size||32 x 32||32 x 32|
|Feed||X axis travel||420||520|
|Z axis travel||850/1350/1850/2850/3850/4850/5850/6850/7850||850/1350/1850/2850/3850/4850/5850/6850/7850|
|X axis rapid traverse||10000||10000|
|Z axis rapid traverse||8000||8000|
|Tailstock||Tailstock quill diameter||φ120||φ120|
|Tailstock quill taper||MT6||MT6|
|Tailstock quill travel||250||250|
|Motor||Main spindle motor||15||15|
|Coolant pump motor||0.125||0.125|
|Dimension||Width x Height||1950 x 1900||2000 x 2100|
|Please note: machine bed length can customize according to real work demand, CNC machine can choose servo motor direct driving structure turning center with C axis.|

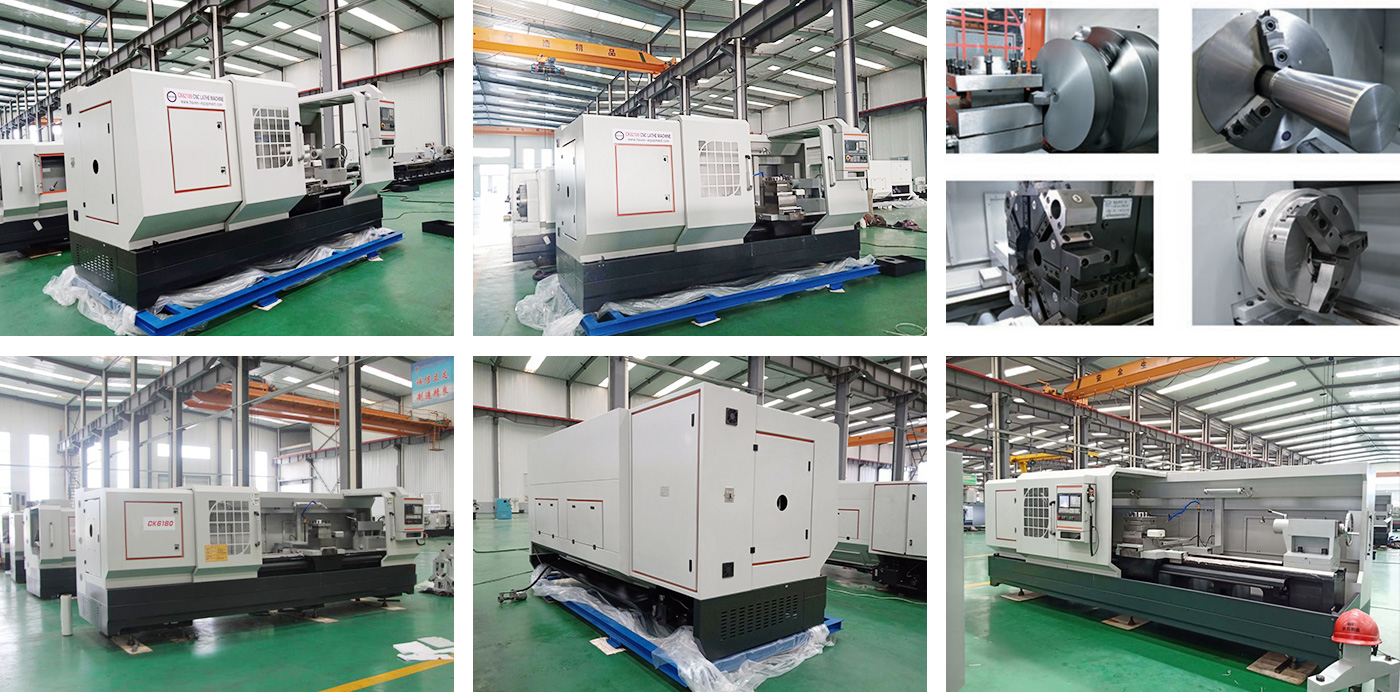

Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving super rigidity, the spindle is high rigidity and accuracy, the design of the main drive is optimized and the gears in the headstock are precision ground, the noise of the machine is low.
This series of lathe has high power, strong rigidity and wide range of spindle speed adjustment. It is suitable for powerful or high-speed cutting. It can turn end face, outer circle, inner hole, metric, British, module, diametral pitch and other threads, and can undertake drilling, nesting, boring and other processes.
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods.
