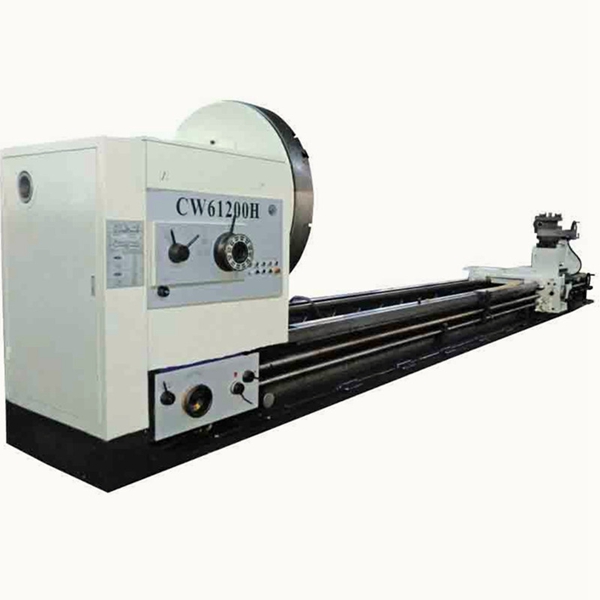

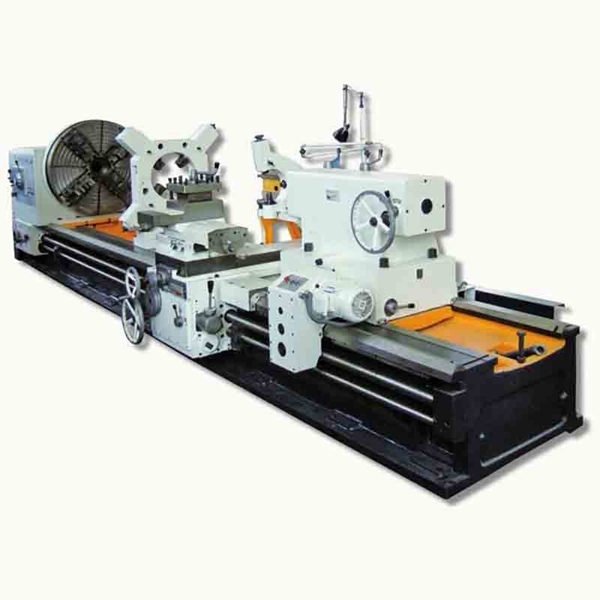

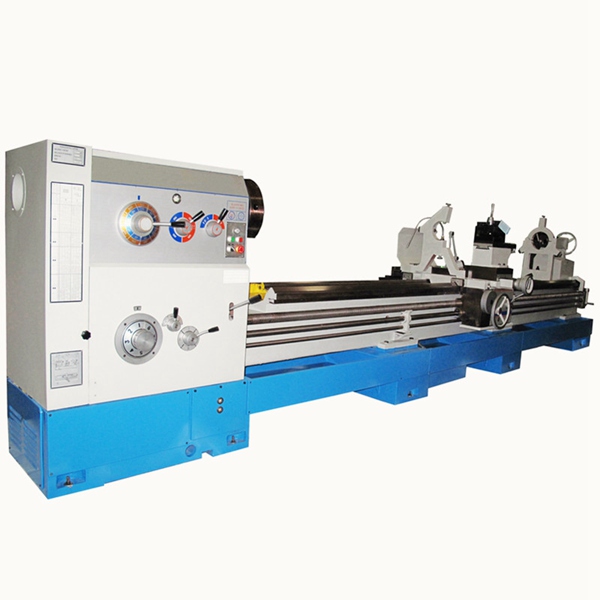

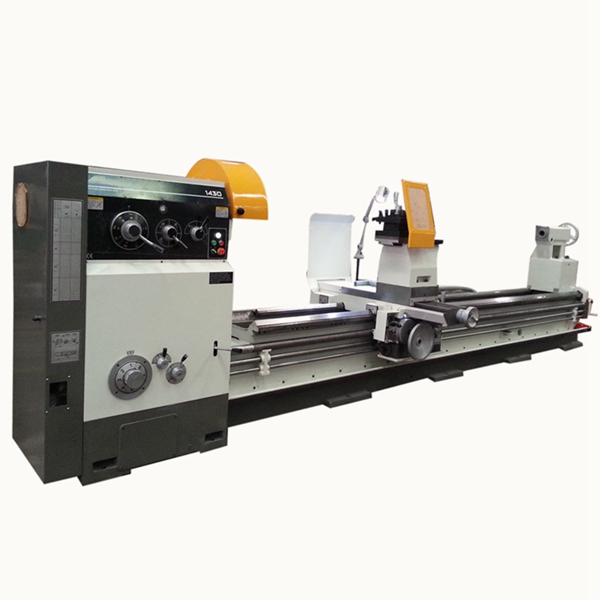

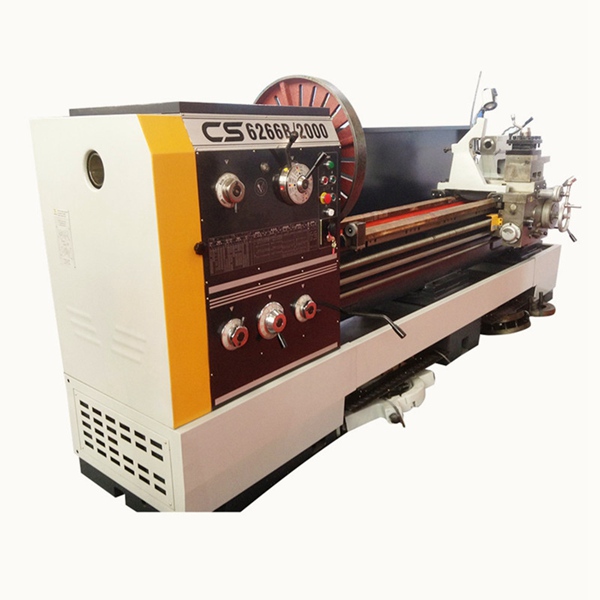

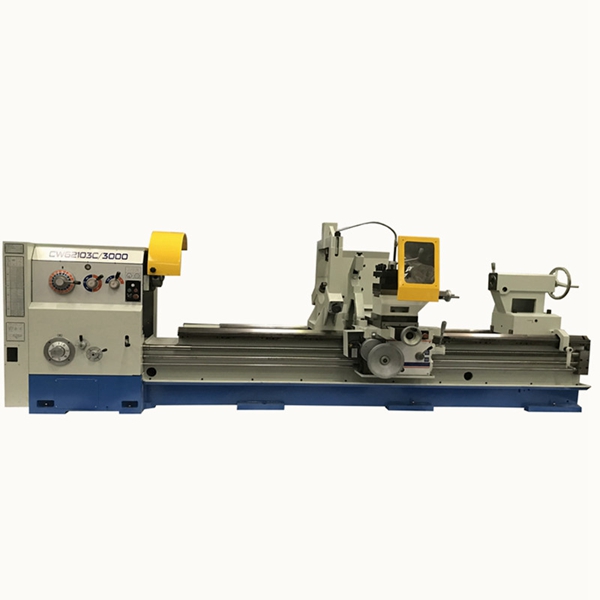

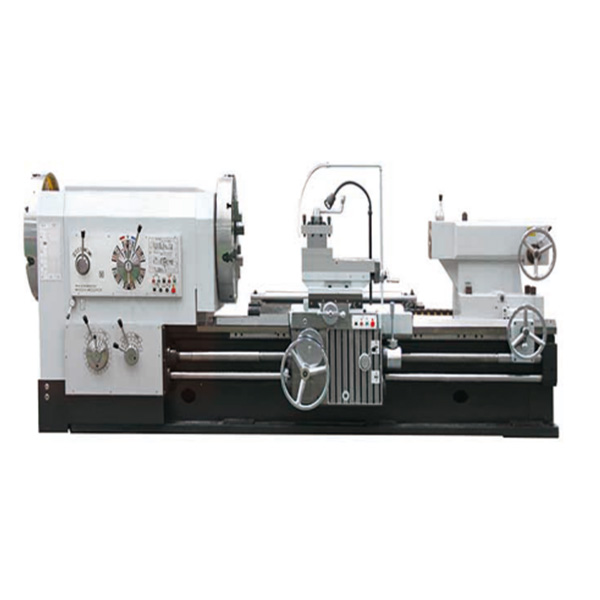

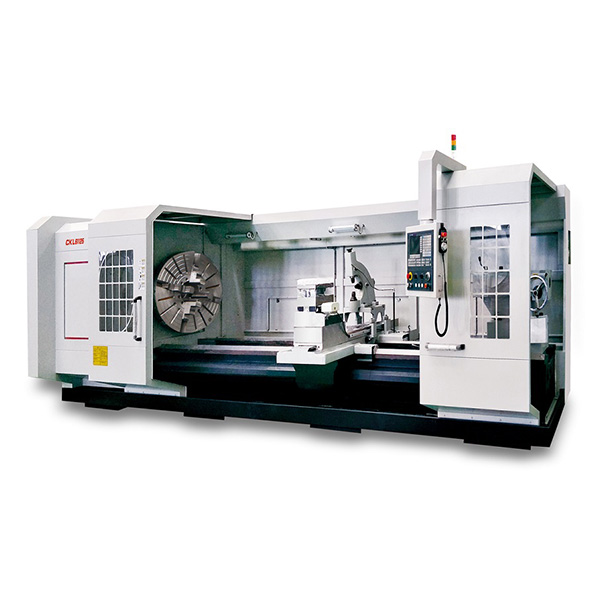

Large Swing Horizontal Lathe Machine


Main Features:

This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad.

This machine tool is widely applied to the cutting operations of various spare parts, including end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread, diametrical pitch thread, etc. In addition, it is applicable to the technologies such as drilling, hole-reaming, jacketing, boring, groove-cutting, etc. Hard alloy tools may be utilized to cut the screw threads and machine various ferrous metals and nonferrous metals. The size precision of spare parts machined via this machine tool can be IT8 and the surface coarseness may be 6.3μm.

Product Description

Standard Accessories:

4 jaw chuck; 3 jaw chuck ;steady rest; follow rest; dead center; reduction sleeve; working lamp; coolant system; tools; foundation bolt; level blocks; maintenance kits; english manual;

Note: less than 2000mm (including 2000mm) lathe steady rest and follow rest are optional.

Optional Accessories:

CE standard including chuck guard, turret guard, big electric box; SINO DRO for 2 axis or 3 axis;

Lead screw cover; Chasing dial; Live center; Face plate; Foot brake;

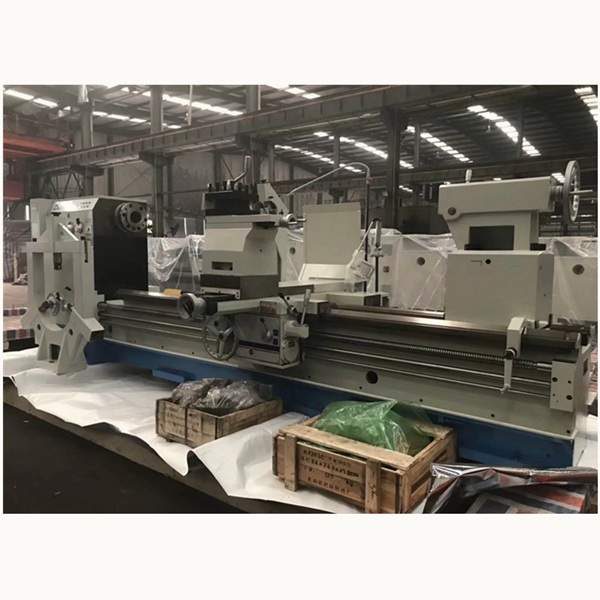

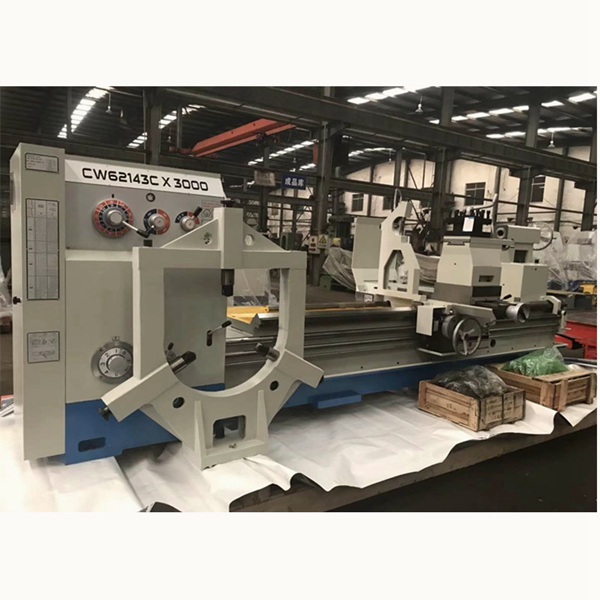

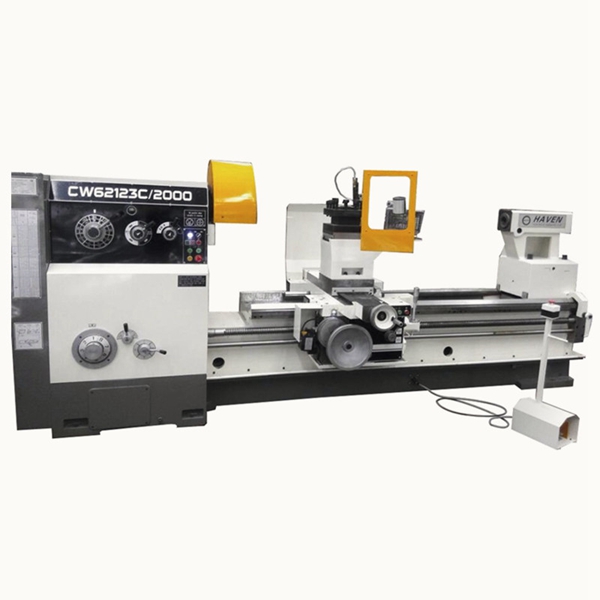

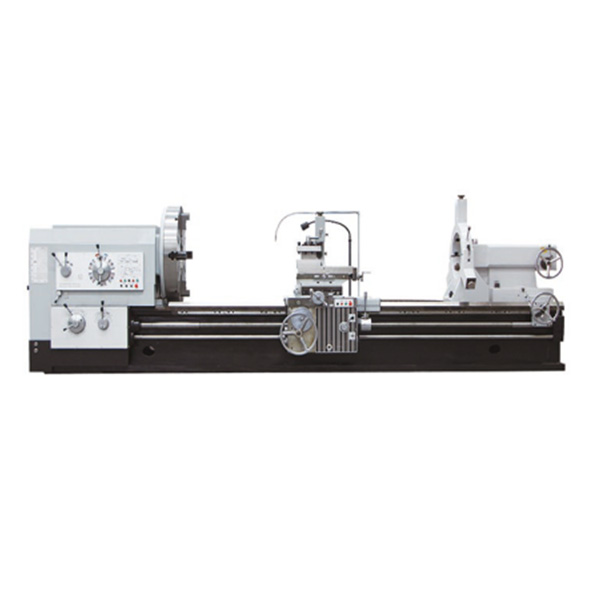

Large Swing Horizontal Lathe Machine

Products Specification












Swing over bedmm10301230143016301830
Swing in gapmm12901490169018902090
Swing over cross slidemm700900110012401440
Distance between centersmm1500,2000,3000,4500,6000
Length in gap from face platemm380
Spindle nose
C11or D11
Spindle boremm105,130 (optional)
Spindle speeds/stepsrpm/steps10-800/187-531/186-480/18
Cross slide travelmm615715815815
Top rest travelmm300
Rapid traversemm/minZ:3240; X:1870
Quill diametermm120
Quill travelmm270
Quill taper
Bed widthmm610
Metric threadsmm/kinds1—240/53
Inch threadstpi/kinds30—2/31
Module threadsmm/kinds0.25—60/42
Diametral pitch threadsLpi/kinds60—0.5/47
Main motor powerkw11
