Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving super rigidity, the spindle is high rigidity and accuracy, the design of the main drive is optimized and the gears in the headstock are precision ground, the noise of the machine is low.
There is no need for change gear, the machine can turn about 200 kinds of metric, module and D.P. threads, an automatic stopping device is used to realize automatic stop for the machine of a certain length work piece, which is safe.

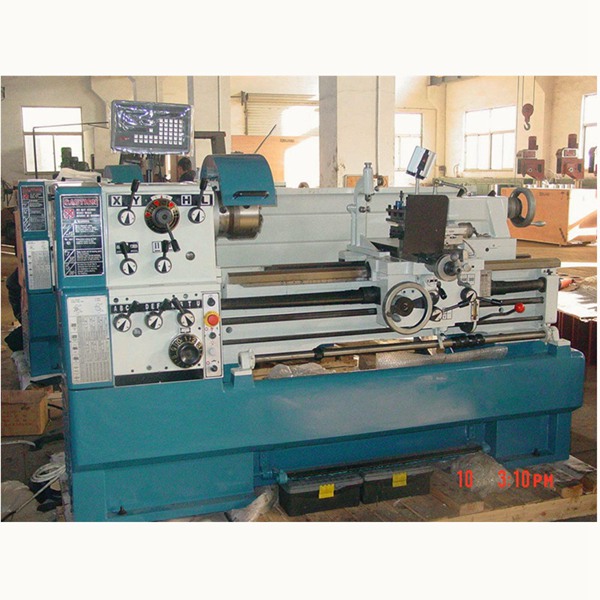

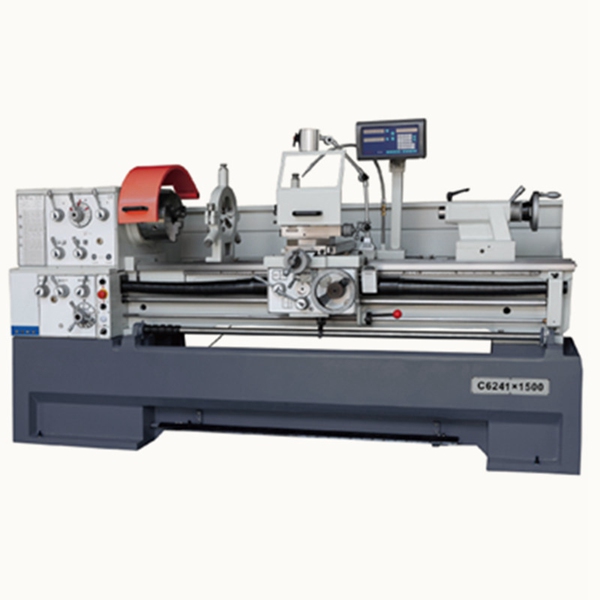

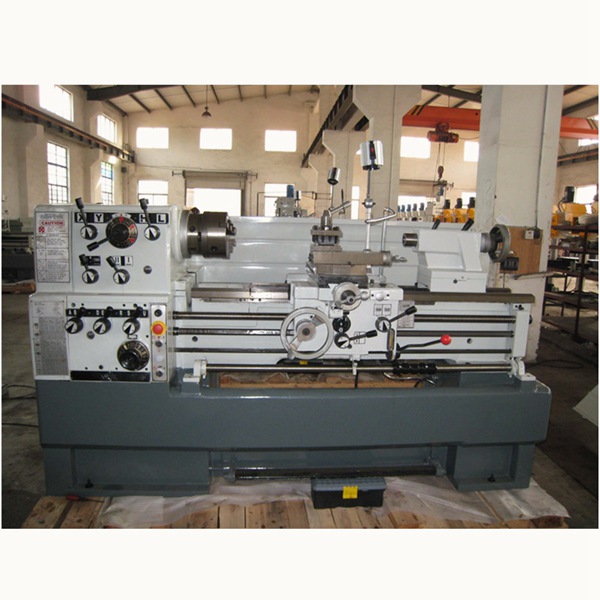

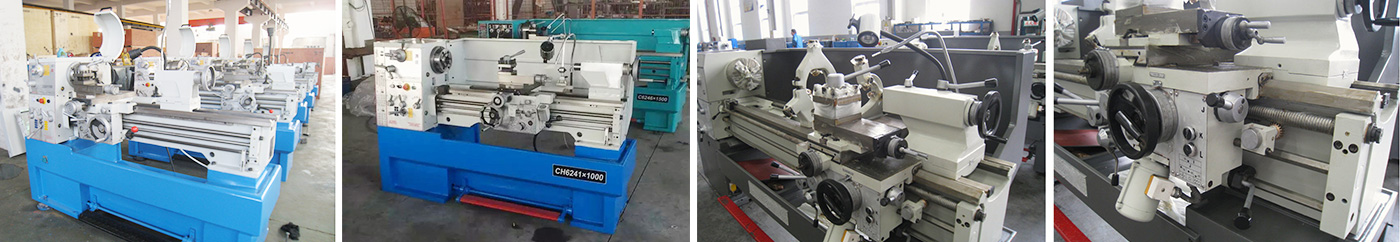

Gap Bed Lathe Machines are rigidly constructed and designed to make big cuts in hard materials. With many options available in chucks, steadies, digital readout, taper turning, tool posts, tool post grinders these machines can undertake any job. CE & CA Marked.
Haven supplies a wide range of heavy duty gap bed centre lathe machines in bed lengths up to 10 meters and diameters up to 1,600mm which gives us the ability to supply you the lathe you need for your job. Give one or our engineers a call to discuss your turning needs.
Our Gap Bed Lathe Machines are very cost effective and efficient, Haven features a compact design, giving super rigidity, the spindle is high rigidity and accuracy, the design of the main drive is optimized and the gears in the headstock are precision ground, the noise of the machine is low. Each Gap Bed Lathe Machine is rigorously inspected for seamless installation in your shop.
To learn more about our Gap Bed Lathe Machine, please contact us.
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
The lathe is suitable for performing a wide variety of cutting operations. such as international and external Turning, facing, slotting, and manual machining.
A lathe consists of a bed to provide support, a headstock, a cross slide to traverse the tool, and a tool post mounted on the cross slide. The spindle is driven by a motor through a gearbox to obtain a range of speeds. The guideway and all gears in the headstock are hardened and precision ground. The spindle system is high rigidity and accuracy. A gap bed lathe has a gap in the bed near the head, so a larger workpiece can be turned. the gap lathes can be adjusted to machine larger diameter and longer workplaces.
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring Systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
Here at Haven we still believe that quality counts. So that means we work hard to supply machines that are high quality and to give you super precision. But we don’t stop there, because accuracy is more important every day we check and double check our machines.
3-jaw chuck; 4-jaw chuck; steady rest; follow rest; face plate; coolant system; brake system; chasing dial indicator; reduction sleeve; dead centers; full length splash guard; tool and tool box; english manual;
Taper turning attachment; live centers; work light; lead screw guard; digital readout; quick change tool post; chuck guard;
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.

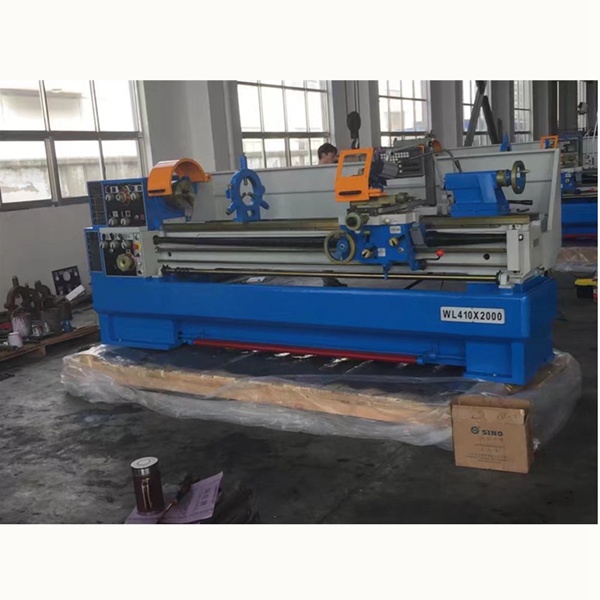

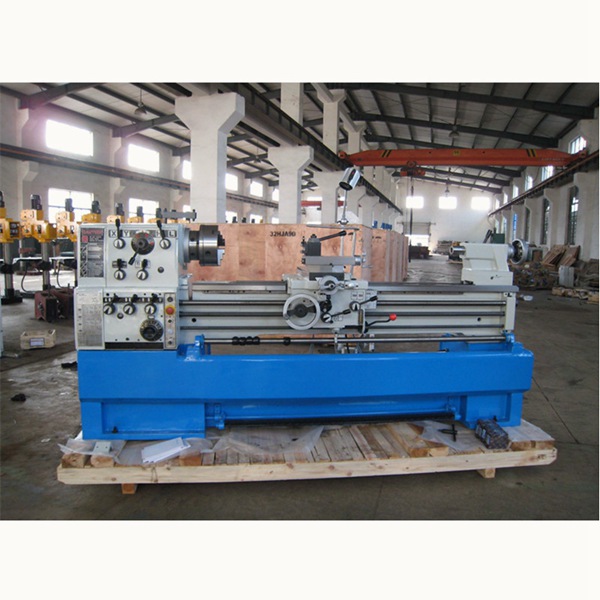

For packing :Free fumigation plywood packaging steel base
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours.
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
|Max. swing over bed||410mm||460mm|
|Max. swing in gap||640mm||690mm|
|Max. swing over cross slide||224mm||274mm|
|Distance between centers||1000mm/1500mm|
|Width of bed||300mm|
|Taper of spindle bore||MT6|
|Spindle bore diameter||58mm / 82mm (optional)|
|Max. travel of cross slide||290mm|
|Max. section of tool||25x25mm|
|Range of spindle speed||12 changes 25-2000r/min|
|Range of longitudinal feeds||42 kinds 0.031-1.7mm/rev|
|Range of cross feeds||42 kinds 0.014-0.784mm/rev|
|Metric threads range||41 kinds 0.1-14mm|
|Inch threads range||60 kinds 2-112 T.P.I.|
|Diametrical pitches range||50 kinds 4-112 D.P.|
|Module pitches range||34 kinds 0.1-7 M.P.|
|Tailstock quill diameter||60mm|
|Tailstock quill travel||120mm|
|Taper of tailstock quill||MT4|
|Main motor||5.5 KW|
This series of lathe has high power, strong rigidity and wide range of spindle speed adjustment. It is suitable for powerful or high-speed cutting. It can turn end face, outer circle, inner hole, metric, British, module, diametral pitch and other threads, and can undertake drilling, nesting, boring and other processes.
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods.
