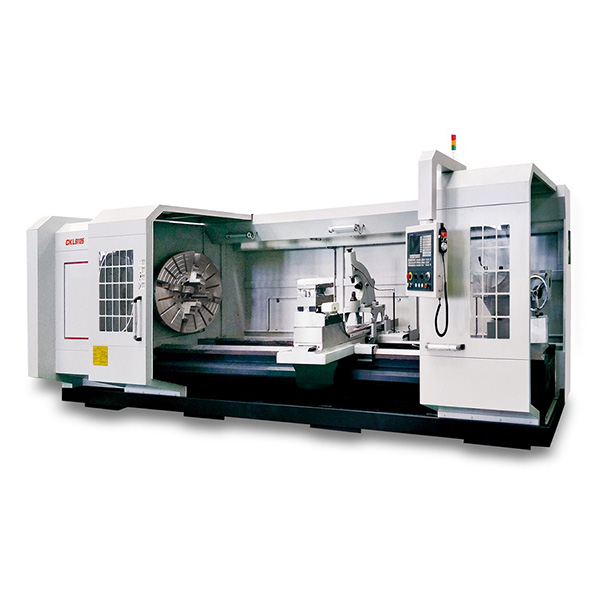

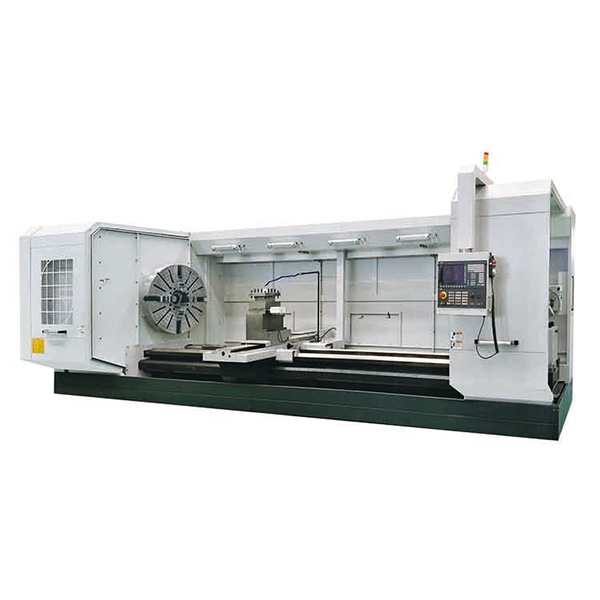

Lathe Machine
Model: CKL61125
1.One-piece bed adopts high strength iron to ensure rigidity and precision
2.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
3.Carriage and guide-way contact surface use Turcite B to maintain accuracy

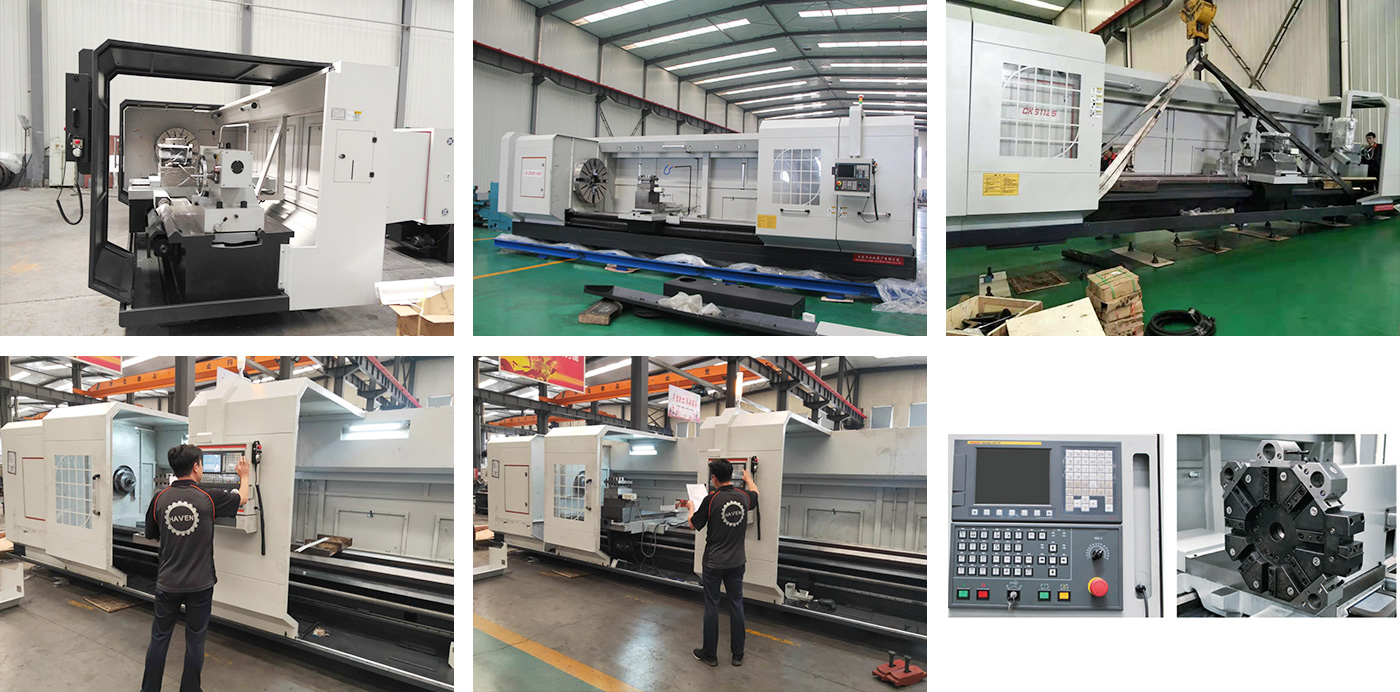

Product Description
This series CNC Lathe Machine is universal standard heavy duty automatic machining equipment for metal processing, suitable to process big size shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
A heavy-duty lathe machine can rotate the workpiece along its axis for grinding, cutting, drilling and other operations just like a normal CNC lathe machine . However, traditional CNC lathe machines are only for general use, heavy duty lathe machines are designed with special turning spindles that are different from other machines.
Heavy-duty CNC lathe machine is not an independent machine. Heavy duty CNC lathe machine is a unique kind of CNC lathe. If you want a very advanced lathe that does not need to be upgraded in the future, then a heavy-duty lathe machine is certainly a good investment.
1. Shipbuilding
Haven's heavy-duty CNC lathe machines are indispensable in shipbuilding for machining large components like shafts and propellers. Their ability to handle significant weight and size makes them ideal for this sector.
2. Automotive Industry
In automotive manufacturing, our machines are utilized to produce critical parts such as engine components and transmission shafts. The precision of Haven's lathes ensures that every part meets the industry's rigorous standards.
3. Aerospace
Aerospace applications require exceptional accuracy, and Haven's heavy-duty CNC lathe machines deliver just that. They are used to manufacture complex components that must withstand extreme conditions.
4. Energy Sector
Our machines play a crucial role in power plants, where they are used to manufacture turbine parts and other large components that need to endure high stress and extreme environments.
5. Oil and Gas Industry
In the oil and gas sector, Haven's heavy-duty CNC lathe machines are employed for producing drilling equipment and pipeline components. Their capability to handle tough materials with high precision is vital in this field.
6. Heavy Machinery Manufacturing
For industries involved in constructing heavy machinery like earth-moving equipment, our lathes are key to producing robust parts that can endure harsh working conditions.
7. Railway Industry
Haven's heavy-duty CNC lathes are also utilized in the railway industry for manufacturing axles, wheels, and braking components, ensuring safety and reliability in transportation.
Haven's Heavy-Duty CNC Lathe Machines are designed to meet the rigorous demands of modern manufacturing across various industries. With a focus on durability, precision, and versatility, our machines provide the perfect solution for businesses looking to enhance their machining capabilities.
Our main products are CNC lathe machine,hydraulic swing beam shear and hydraulic bending machine. According to the material of hydraulic swing beam shear, choose different CNC lathe machines.
Our CNC lathe machines are very cost effective and efficient, Haven features a compact design, hydraulically driven, with a variety of length. Each CNC lathe machine is rigorously inspected for seamless installation in your shop.
To learn more about our CNC lathe machine , please contact us.
Products Specification
CKL Series CNC lathe (1100 rail) | |||||||
SPECIFICATION | UNIT | CKL61125 | CKL61140 | CKL61160 | CKL61180 | CKL61200 | |
Capacity | Swing over bed | mm | 1250 | 1440 | 1640 | 1840 | 2020 |
Swing over cross slide | mm | 710 | 820 | 1020 | 1220 | 1420 | |
Distance between centers | mm | 3000-10000 | 3000-10000 | 3000-10000 | 3000-10000 | 3000-10000 | |
Guideway width | mm | 1100 | 1100 | 1100 | 1100 | 1100 | |
Max. load capacity | T | 10--20 | 10--20 | 10--20 | 10--20 | 10--20 | |
Spindle | Spindle bore | mm | 100 | 100 | 100 | 100 | 100 |
Spindle bore taper | - | /Metric 120 | Metric 120 | Metric 120 | Metric 120 | Metric 120 | |
Spindle nose type | - | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 | |
Spindle speed steps | - | VF. 4steps | VF. 4 steps | VF. 4steps | VF. 24steps | VF. 4 steps | |
Spindle speed range | rpm | 10-300 | 10-300 | 10-300 | 10-200 | 10-200 | |
Chuck | mm | φ1250 4-jaw manual | φ1400 4-jaw manual | ||||
Turret | Turret/tool post | - | NC turret 4 position | NC turret 4 position | |||
Tool shank size | mm | 50 x 50 | 50 x 50 | 50 x 50 | 50 x 50 | 50 x 50 | |
Feed | X axis travel | mm | 700 | 750 | 830 | 930 | 1020 |
Z axis travel | mm | 2850-9850 | 2850-9850 | 2850-9850 | 2850-9850 | 2850-9850 | |
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | |
Z axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 | 6000 | |
Tailstock | Tailstock quill diameter | mm | φ220 | φ220 | φ220 | φ220 | φ220 |
Tailstock quill taper | - | Metric 80 | Metric 80 | Metric 80 | Metric 80 | Metric 80 | |
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | 300 | |
Motor | Main spindle motor | kW | 37 | 37 | 37 | 37 | 37 |
Coolant pump motor | kW | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | |
Dimension | Width x Height | mm | 2550 x 2350 | 2600 x 2400 | 2700 x 2560 | 2800 x 2760 | 2900 x 2900 |
Length | mm | 6700-13700 | 6700-13700 | 6700-13700 | 6700-13700 | 6700-13700 | |
Weight | Net weight | T | 22.6-28.9 | 23.6-29.9 | 24.6-30.9 | 25.6-31.9 | 26.6-32.9 |
Please note: machine bed length of heavy duty cnc lathe can customize according to real work demand. |
