Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads.

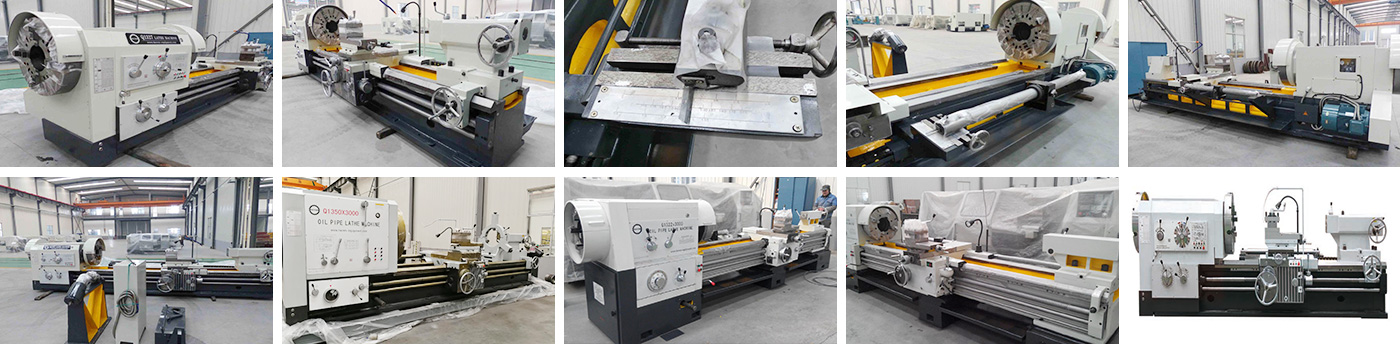

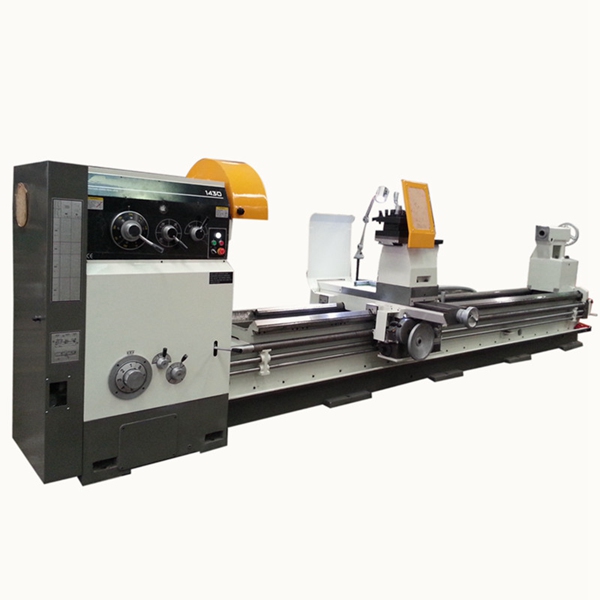

Introducing our state-of-the-art Pipe Threading Lathe Machine, the perfect solution for all your pipe threading needs. With a big spindle bore and double chuck, our machine allows for easy clamping and processing of big diameter pipes, saving you time and effort on the job.
Our pipe threading lathe machine features an integral machine bed made of high-strength iron, providing exceptional rigidity and precision, ensuring that every threading project is completed to perfection. Additionally, our machine is equipped with ultrasonic frequency quenched guide-ways, which are incredibly durable and resistant to wear and tear, ensuring that your machine lasts for years to come.
What sets our machine apart is its unique taper guide bar device, which enables it to process taper threads with ease. This feature ensures that your threading projects are completed with precision and accuracy, no matter what kind of threading job you need to do.
Our Pipe Threading Lathe Machine is perfect for plumbing and construction professionals who need a reliable and efficient way to thread pipes of all sizes and materials. With its advanced features and durable construction, this machine is a must-have for any professional looking to streamline their pipe threading processes and take their work to the next level.
This pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread. Invest in our Pipe Threading Lathe Machine today and experience the difference in your workflow and efficiency!
1. Versatile: The Pipe Threading Lathe Machine is capable of cutting both internal and external threads, including metric and inch threads. Additionally, it can perform other standard lathe operations such as processing the inner bore and end face of shafts and disks. This versatility makes it a valuable addition to any machine shop.
2. Taper threading capability: The machine is equipped with a taper guide bar device that enables it to process taper threads. This capability makes it ideal for applications where tapered threads are required.
3. Precision: The lathe machine is designed to provide precise and accurate cuts, ensuring that threads are produced to the desired specifications.
4. Durable: The machine is constructed from high-quality materials and is designed to withstand heavy usage, making it a reliable and long-lasting addition to any workshop.
5. Easy to use: The machine is user-friendly and easy to operate, with simple controls and intuitive design.
1. Pipe threading: The machine is ideal for cutting threads on pipes of various sizes and materials, including steel, aluminum, and plastic.
2. Manufacturing: The lathe machine can be used for manufacturing parts with threaded features, such as bolts, nuts, and screws.
3. Repair and maintenance: The machine is useful for repairing and maintaining threaded components, such as nuts and bolts.
4. Metalworking: The machine is suitable for a variety of metalworking applications, including turning, drilling, and milling.
5. Automotive and aerospace industries: The machine is commonly used in the automotive and aerospace industries for manufacturing and repairing threaded components.
Choosing the right pipe threading lathe machine depends on several factors, including the type and size of the pipes you'll be working with, the level of precision and complexity needed for your threading projects, and your budget. Here are some factors to consider when choosing a pipe threading lathe machine:
1. Pipe Size: The pipe threading lathe machine you choose should be capable of handling the size of the pipes you will be working with. Determine the maximum and minimum pipe sizes you will need to thread, and choose a machine that can accommodate those sizes.
2. Type of Pipe: Different materials such as steel, copper, and PVC require different threading methods, tools, and equipment. Ensure that the lathe machine you select is designed to work with the type of pipe material you'll be threading.
3. Threading Accuracy: If you require high levels of accuracy and precision in your threading projects, look for a machine that offers precise adjustments and control over the threading process. Some machines offer digital displays and other features that help ensure consistent and accurate results.
4. Machine Capacity: The capacity of the pipe threading lathe machine is an essential factor to consider. Check the motor power, spindle speed, and other features that affect the machine's performance and capacity.
5. Budget: Finally, consider your budget when choosing a pipe threading lathe machine. Look for a machine that offers the features you need at a price you can afford.
By considering these factors, you can select a pipe threading lathe machine that meets your needs and provides reliable performance for your threading projects.
Are you tired of slow and inefficient pipe threading processes that cost you time and money? Say goodbye to those problems with our top-of-the-line pipe threading lathe machine!
Our machine is designed to handle even the toughest pipe threading jobs, with precision and efficiency that will save you time and increase your productivity. With our state-of-the-art features, including digital displays, precise adjustments, and high-speed threading capabilities, you can easily thread pipes of all sizes and materials, with perfect accuracy and consistency.
Our pipe threading lathe machine is built to last, with durable materials and advanced technology that ensures long-lasting performance and reliability. Plus, our machine is easy to operate and maintain, with user-friendly controls and intuitive features that make threading pipes a breeze.
With our pipe threading lathe machine, you'll be able to complete your projects faster and with higher quality results, giving you a competitive edge in the industry. Don't let slow and inefficient threading processes hold you back - upgrade to our top-of-the-line machine today and experience the difference for yourself!

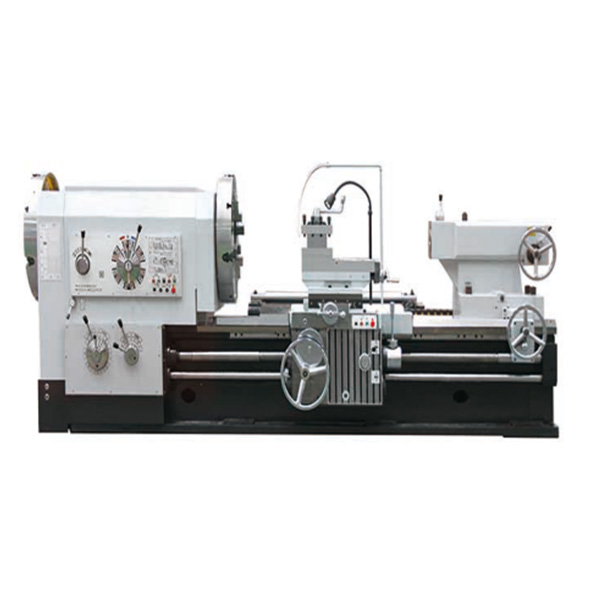

|Q13 Series Pipe threading lathe machine|
|Capacity||Swing over bed||mm||1000||1000||1000||1000||1200|
|Swing over cross slide||mm||610||610||610||610||710|
|Distance between centers||mm||1500/3000||1500/3000||1500/3000||1500/3000||1500/3000|
|Pipe threading range||mm||130-270||190-320||190-380||270-430||330-510|
|Max. load capacity||T||6||6||6||6||6|
|Spindle speed steps||-||FWD. 12 steps||FWD. 9 steps||FWD. 9 steps||FWD. 9 steps||FWD. 9 steps|
|Spindle speed range||rpm||16-380||7.5-280||6-205||4.9-180||4.9-180|
|Chuck||mm||4-jaw manual||4-jaw electric||4-jaw electric||4-jaw electric||4-jaw electric|
|Turret||Turret/tool post||-||Manual 4 position||Manual 4 position||Manual 4 position||Manual 4 position||Manual 4 position|
|Tool shank size||mm||45 x 45||45 x 45||45 x 45||45 x 45||45 x 45|
|Feed||X axis travel||mm||520||520||520||520||520|
|Z axis travel||mm||1350/2850||1350/2850||1350/2850||1350/2850||1350/2850|
|X axis feed grade/range||mm/r||40/0.05-1.5||32/0.05-0.75||32/0.05-0.75||32/0.05-0.75||32/0.05-0.75|
|Z axis feed grade/range||mm/r||40/0.1-3||32/0.1-1.5||32/0.1-1.5||32/0.1-1.5||32/0.1-1.5|
|X axis rapid traverse||mm/min||1870||1870||1870||1870||1870|
|Z axis rapid traverse||mm/min||3740||3740||3740||3740||3740|
|Metric thread grade/range||mm||30/1-30||23/1-15||23/1-15||23/1-15||23/1-15|
|Inch thread grade/range||T.P.I||27/28-1||22/28-2||22/28-2||22/28-2||22/28-2|
|Tailstock||Tailstock quill diameter||mm||φ160||φ160||φ160||φ160||φ160|
|Tailstock quill taper||-||MT6||MT6||MT6||MT6||MT6|
|Tailstock quill travel||mm||300||300||300||300||300|
|Motor||Main spindle motor||kW||22||22||22||22||22|
|Rapid traverse motor||kW||1.5||1.5||1.5||1.5||1.5|
|Coolant pump motor||kW||0.125||0.125||0.125||0.125||0.125|
|Dimension||Width x Height||mm||2100 x 1600||2100 x 1650||2100 x 1700||2100 x 1700||2100 x 1850|
|Please note: machine bed length can customize according to real work demand.|
As a leading manufacturer and exporter in the industry, Shaanxi Haven Equipment Co., Ltd. offers a range of high-quality pipe threading lathe machines that are designed to meet the specific needs of our customers. Our CNC pipe threading lathe machines, pipe threading lathe machines, and automatic pipe threading machines are designed to deliver exceptional performance and reliability, making them ideal for use in a variety of industrial applications.
Our pipe threading lathe machines are available in a range of sizes and configurations to suit different needs and budgets. Our CNC pipe threading lathe machines, in particular, are designed to provide precise and accurate thread cutting for pipes of different sizes and materials. With advanced control systems, these machines can be programmed to perform a range of threading operations, including internal and external threading, taper threading, and more.
Our pipe cutting and threading machines are designed to provide fast and efficient cutting and threading of pipes of different sizes and materials. With advanced cutting and threading capabilities, these machines can handle a range of pipe cutting and threading tasks, making them ideal for use in industrial and construction applications.
At Shaanxi Haven, we pride ourselves on providing high-quality products at competitive prices. With more than 25 years of export experience, we have successfully exported our products to more than 50 countries worldwide, and have set up branch companies in Poland, Russia, Malaysia, and UAE to provide better service for our customers. Contact us today to learn more about our pipe threading lathe machines and other products.
This series of lathe has high power, strong rigidity and wide range of spindle speed adjustment. It is suitable for powerful or high-speed cutting. It can turn end face, outer circle, inner hole, metric, British, module, diametral pitch and other threads, and can undertake drilling, nesting, boring and other processes.
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving super rigidity, the spindle is high rigidity and accuracy, the design of the main drive is optimized and the gears in the headstock are precision ground, the noise of the machine is low.
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods.
