Lathe Machine

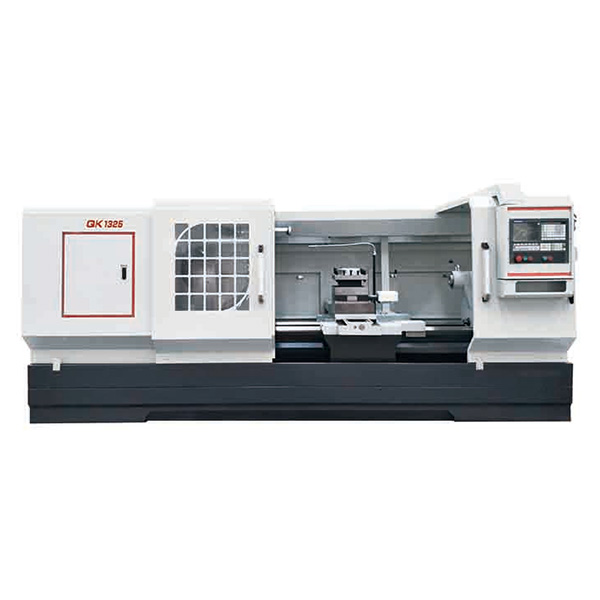

Model: QK1325
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal and external taper surfaces, and planes, etc. in lathes. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration. Other departments deal with the machining of drill pipes, drill boats, and casings.
Product Description
This series CNC pipe threading lathe is mainly designed for processing intemal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shatfts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-fficiency equipment in processing and repairing drilling pipe, driling rod, thread coupling and so on.
Haven's CNC pipe thread lathe is a new type of CNC machine tool specially designed and manufactured for the thread processing requirements of oil pipelines, drill pipes and casings in petroleum, chemical and metallurgical industries. The machine tool adopts double chuck clamping workpiece, three-speed inverter and CNC system automatic control. It can accurately process various internal and external threads and has the function of ordinary CNC lathe.
If you are intersted in our products,welcome to CONTACT US for more information!
1. High Precision: The CNC Pipe Threading Lathe Machine has high precision, which ensures that the threads are machined to the required specifications.
2. High Efficiency: The machine has a high-speed rotation spindle and a powerful motor that allows for efficient turning of large-diameter pipes and rods.
3. Versatility: The CNC pipe thread lathe can turn metric, imperial cylindrical, tapered pipe threads, and can also replace outer lathes, boring holes, internal and external taper surfaces, and planes, making it a versatile machine tool.
4. Automation: The CNC system automates the machine, reducing the need for manual intervention, which leads to improved accuracy and speed.
5. Easy Operation: The machine is easy to operate and can be programmed with various types of threading operations.
1. Large Spindle Bore: The spindle bore is relatively large, which allows for the clamping and processing of large-diameter pipes and rods.
2. Dual Chuck: The spindle box has chucks before and after, making it easier to clamp and process the workpiece.
3. CNC System: The CNC system ensures that the machine is accurate and efficient, and reduces the need for manual intervention.
4. High-Power Motor: The high-power motor allows for efficient turning of large-diameter pipes and rods.
1. Petroleum Sector: The machine is widely used in the petroleum sector for the machining of drill pipes, drill boats, and casings.
2. Gold Manufacturing Department: The CNC pipe thread lathe is used in the gold manufacturing department for the machining of gold mining equipment.
3. Chemical Industry: The machine is used in the chemical industry for the machining of pipes and valves.
4. Hydropower: The machine is used in the hydropower sector for the machining of turbine components.
5. Geological Exploration: The CNC pipe thread lathe is used in geological exploration for the machining of core drilling equipment.
In summary, the advantages of a CNC pipe thread lathe include high precision, high efficiency, versatility, automation, and easy operation. The characteristics of the machine include a large spindle bore, dual chuck, CNC system, and high-power motor. The machine is widely used in the petroleum sector, gold manufacturing department, chemical industry, hydropower, and geological exploration for the machining of various components.

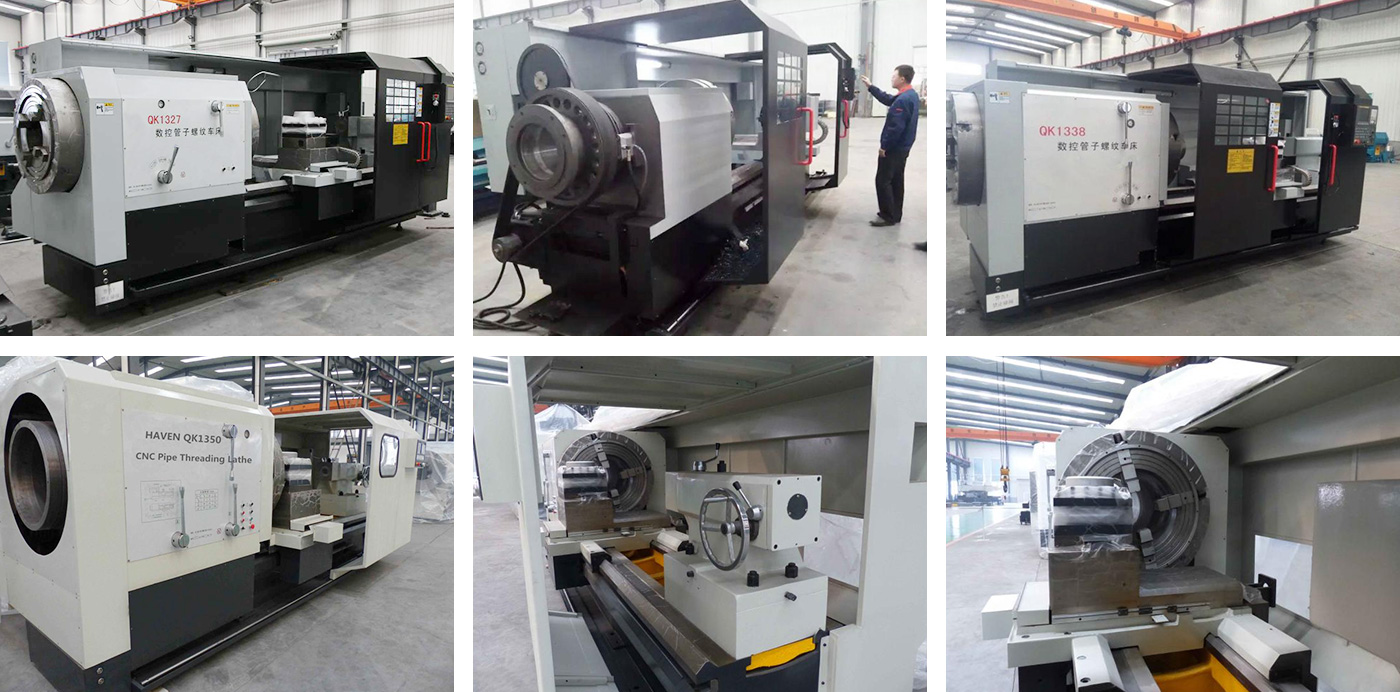

QK series CNC Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting, coal and minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
1. Big spindle bore and double chuck to ensure process big diameter pipe.
2. One-piece bed adopts high strength iron to ensure rigidity and precision.
3. Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
4. Carriage and guide way contact surface use Turcite B to maintain accuracy.
If you're in the market for a high-quality CNC pipe threading lathe machine, then look no further! Our CNC pipe threading lathe machine is the perfect solution for your pipe threading needs.
One of the standout features of our CNC pipe threading lathe machine is its advanced CNC control system, which allows for precise and accurate cutting of threads on pipes of various diameters. This means you can produce high-quality threads with ease, without the need for extensive operator training.
Our CNC pipe threading lathe machine is also highly efficient, with a fast processing speed and the ability to process large volumes of pipes in a short amount of time. This makes it an excellent choice for high-volume production environments.
In addition to its impressive performance, our CNC pipe threading lathe machine is also highly durable, with a robust and reliable construction that is built to withstand heavy use. It is also easy to maintain, with a simple and straightforward design that makes it easy to access and replace any worn parts.
So why wait? Invest in our CNC pipe threading lathe machine today and take your pipe threading capabilities to the next level! Welcome to contact us!
Products Specification
QK13 SERIES CNC Pipe Threading Lathe Machine | ||||||||
SPECIFICATION | UNIT | QK1327 | QK1332 | QK1338 | QK1343 | QK1350 | QK1363 | |
Capacity | Swing over bed | mm | 1000 | 1000 | 1000 | 1000 | 1200 | 1400 |
Swing over cross slide | mm | 610 | 610 | 610 | 610 | 710 | 800 | |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
Pipe threading range | mm | 130-270 | 190-320 | 190-380 | 270-430 | 330-510 | 330-630 | |
Guideway width | mm | 755 | 755 | 755 | 755 | 755 | 1100 | |
Max. load capacity | T | 6 | 6 | 6 | 6 | 6 | 10 | |
Spindle | Spindle bore | mm | 280 | 330 | 390 | 440 | 520 | 640 |
Spindle speed steps | - | VF. 4 steps | VF. 3 steps | VF. 3 steps | VF. 3 steps | VF. 3 steps | VF. 3 steps | |
Spindle speed range | rpm | 10-320 | 10-280 | 8-205 | 8-205 | 8-190 | 2-120 | |
Chuck | mm | 4-jaw manual | 4-jaw electric | 4-jaw electric | 4-jaw electric | 4-jaw electric | 4-jaw electric | |
Turret | Turret/tool post | - | NC turret 4 position | |||||
Tool shank size | mm | 40 x 40 | 40 x 40 | 40 x 40 | 40 x 40 | 50 x 50 | 50 x 50 | |
Feed | X axis travel | mm | 520 | 520 | 520 | 520 | 620 | 750 |
Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | |
X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Z axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
Tailstock | Tailstock quill diameter | mm | φ160 | φ160 | φ160 | φ160 | φ160 | φ220 |
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 | MT6 | Metric 80 | |
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | 300 | 300 | |
Motor | Main spindle motor | kW | 22 | 22 | 22 | 22 | 22 | 37 |
Coolant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |
Dimension | Width x Height | mm | 2050 x 2050 | 2080 x 2080 | 2220 x 2120 | 2220 x 2120 | 2300 x 2200 | 2500 x 2500 |
Length | mm | 4950/6450 | 5000/6500 | 5000/6500 | 5000/6500 | 5000/6500 | 5600/7100 | |
Weight | Net weight | T | 10.5/11.5 | 11.5/12.5 | 12.0/13.0 | 13.0/14.0 | 15.0/16.0 | 18.0/19.3 |
Please note: machine bed length can customize according to real work demand, extra-long bed heavy duty lathe can customize simplified CNC pipe threading lathe without protective cover. |
As a leading manufacturer and exporter of Hydraulic machine tools, Laser equipment and Lathe machines, Shaanxi Haven Equipment Co., Ltd. takes pride in introducing our latest product offering, the CNC Pipe Threading Lathe Machine.
Our CNC Pipe Threading Machine is designed to meet the demands of modern-day pipe threading applications. With its cutting-edge CNC technology, this machine is capable of delivering precise and efficient thread cutting on pipes of different sizes and materials.
Our CNC Pipe Threading Machines are equipped with advanced control systems that ensure consistent and reliable performance. This feature, coupled with its heavy-duty build and high-speed capabilities, make it an ideal choice for large-scale pipe threading operations. The CNC Pipe Threading System is also easy to maintain and service, ensuring minimal downtime and maximum productivity.
With over 25 years of export experience, we have successfully supplied our CNC Pipe Threading Lathe Machine to customers in more than 50 countries worldwide. To further enhance our customer service, we have set up branch companies in Poland, Russia, Malaysia and the UAE. We are proud to offer our products at competitive prices without compromising on quality.
In summary, if you're looking for a reliable and efficient CNC Pipe Threading Lathe Machine, Shaanxi Haven has got you covered. With our state-of-the-art technology and extensive experience in the industry, you can trust us to deliver the best pipe threading solutions for your business. For more information about our CNC pipe threading machines, please get in touch with us!
