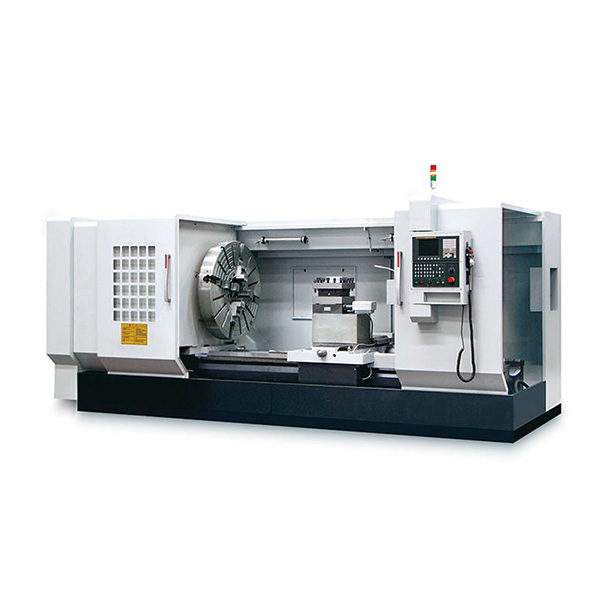

This series of CNC lathes is an economical CNC machining machine. It is an automatic metal processing equipment controlled by a CNC system. It can perform semi-finishing and finishing of workpieces. It has the characteristics of simple programming, reliable structure, convenient operation and high degree of automation. It is suitable for turning various internal and external cylindrical surfaces, conical surfaces, arc surfaces and other rotating surfaces, and for turning various threads. It is a commonly used CNC processing equipment in the machining field.
|Capacity||Swing over bed||mm||1000||1250||1400||1600|
|Swing over cross slide||mm||610||850||1000||1200|
|Distance between centers||mm||1500-8000||1500-8000||1500-8000||1500-8000|
|Max. load capacity||T||6/10||6/10||6/10||6/10|
|Spindle bore taper||-||Metric φ160/MT6||Metric φ160/MT6||Metric φ160/MT6||Metric φ160/MT6|
|Spindle nose type||-||A2-15||A2-15||A2-15||A2-15|
|Spindle speed steps||-||VF. 4 steps||VF. 4 steps||VF. 4steps||VF. 4steps|
|Spindle speed range||rpm||4-300||4-300||4-300||4-300|
|Chuck||mm||φ1000 4-jaw manual||φ1000 4-jaw manual|
|Turret||Turret/tool post||-||NC turret 4 position||NC turret 4 position|
|Tool shank size||mm||40 x 40||40 x 40||40 x 40||40 x 40|
|Feed||X axis travel||mm||520||620||720||720|
|Z axis travel||mm||1350/2850/3850/4850/5850||1350/2850/3850/4850/5850||1350/2850/3850/4850/5850||1350/2850/3850/4850/5850|
|X axis rapid traverse||mm/min||4000||4000||4000||4000|
|Z axis rapid traverse||mm/min||6000||6000||6000||6000|
|Tailstock||Tailstock quill diameter||mm||φ160||φ160||φ160||φ160|
|Tailstock quill taper||-||MT6||MT6||MT6||MT6|
|Tailstock quill travel||mm||300||300||300||300|
|Motor||Main spindle motor||kW||22||22||22||22|
|Coolant pump motor||kW||0.25||0.25||0.25||0.25|
|Dimension||Width x Height||mm||2100 x 2100||2250 x 2300||2350 x 2450||2350 x 2600|
|Please note: machine bed length of heavy duty cnc lathe can customize according to real work demand.|
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving super rigidity, the spindle is high rigidity and accuracy, the design of the main drive is optimized and the gears in the headstock are precision ground, the noise of the machine is low.
This series of lathe has high power, strong rigidity and wide range of spindle speed adjustment. It is suitable for powerful or high-speed cutting. It can turn end face, outer circle, inner hole, metric, British, module, diametral pitch and other threads, and can undertake drilling, nesting, boring and other processes.
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods.
