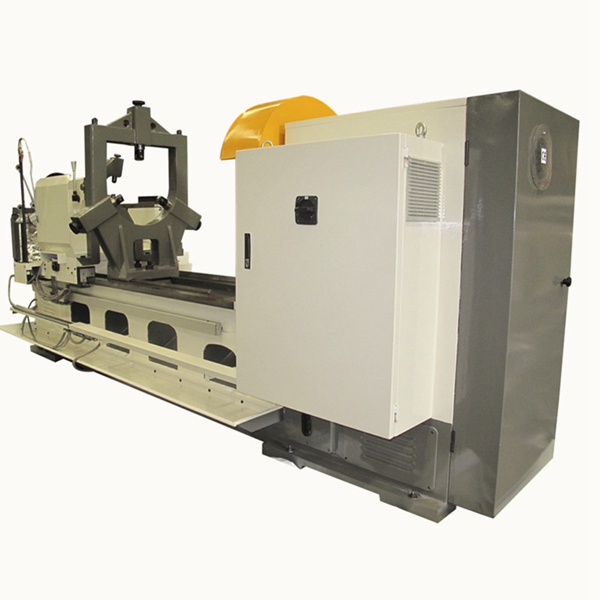

CE Standard Horizontal Lathe Machine Hot Sale in Europe

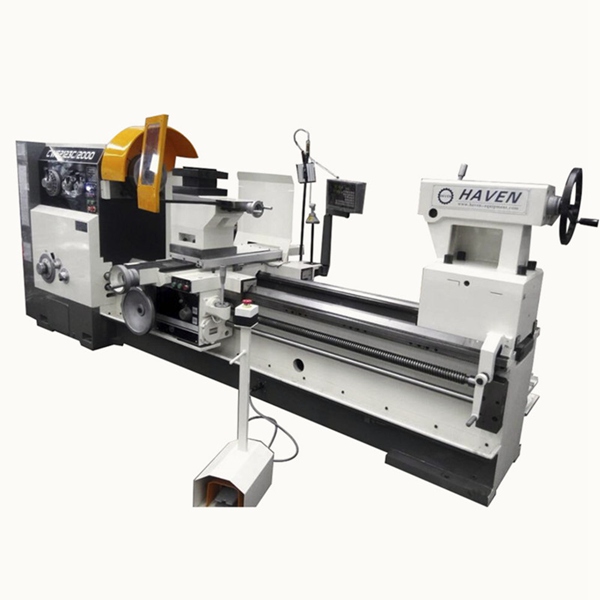

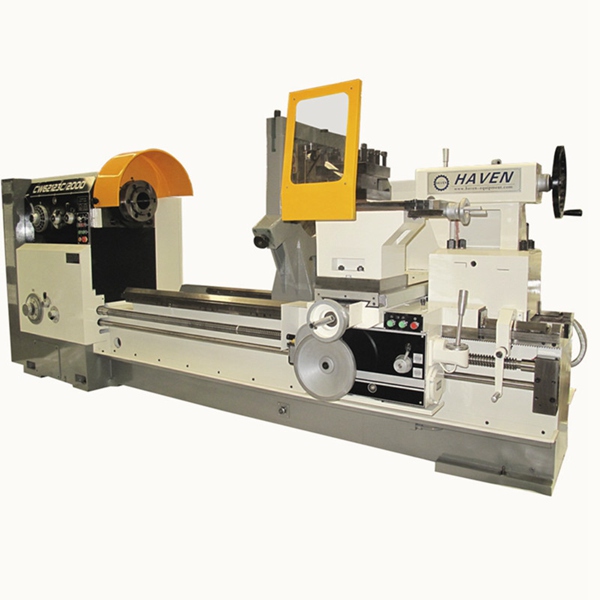

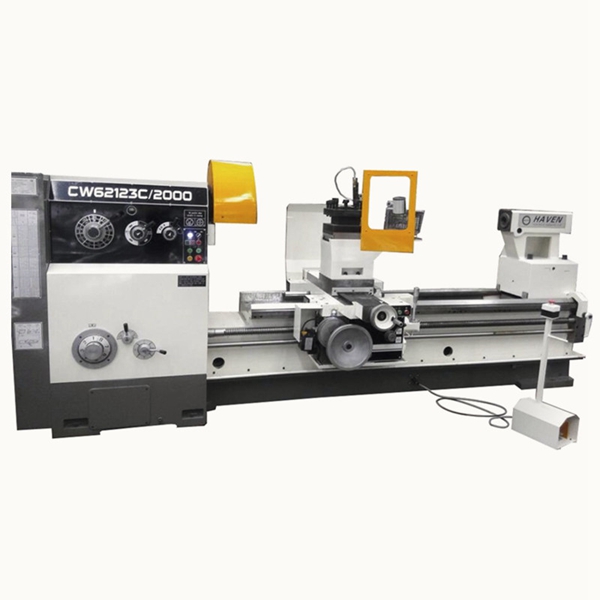

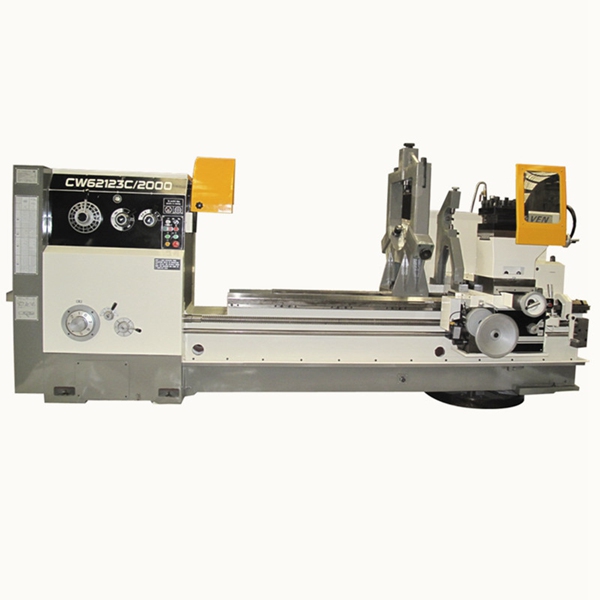

CW62123C/2000

Main Features:

This machine tool is widely applied to the cutting operations of various spare parts, including end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread, diametrical pitch thread, etc. In addition, it is applicable to the technologies such as drilling, hole-reaming, jacketing, boring, groove-cutting, etc. Hard alloy tools may be utilized to cut the screw threads and machine various ferrous metals and nonferrous metals. The size precision of spare parts machined via this machine tool can be IT8 and the surface coarseness may be 6.3μm.

Product Description

Standard Accessories:

4 jaw chuck; 3 jaw chuck; steady rest; follow rest; dead center; reduction sleeve; working lamp; coolant system; tools; foundation bolt; level blocks; maintenance kits; english manual;

Note: less than 2000mm (including 2000mm) lathe steady rest and follow rest are optional.


Optional Accessories:

CE standard including chuck guard, turret guard, big electric box; SINO DRO for 2 axis or 3 axis;

Lead screw cover; Chasing dial; Live center; Face plate; Foot brake;


CE Standard Horizontal Lathe Machine Hot Sale in Europe

Products Specification

ModelUnit

CW61103

CCW62103C

CW61123C

CW62123C

CW61143C

CW62143C

CW61163C

CW62163C

CW61183C

CW62183C

Swing over bedmm10301230143016301830
Swing in gapmm12901490169018902090
Swing over cross slidemm700900110012401440
Distance between centersmm1500,2000,3000,4500,6000
Length in gap from face platemm380
Spindle nose
C11or D11
Spindle boremm105,130 (optional)
Spindle speeds/stepsrpm/steps10-800/187-531/186-480/18
Cross slide travelmm615715815815
Top rest travelmm300
Rapid traversemm/minZ:3240; X:1870
Quill diametermm120
Quill travelmm270
Quill taper
MT6
Bed widthmm610
Metric threadsmm/kinds1—240/53
Inch threadstpi/kinds30—2/31
Module threadsmm/kinds0.25—60/42
Diametral pitch threadsLpi/kinds60—0.5/47
Main motor powerkw11
