3 jaw chuck; 4 jaw chuck; steady rest; follow rest; face plate; drive plate; coolant system;
working light; dead sleeve centers, foundation bolts, tools and tool box; english manual;

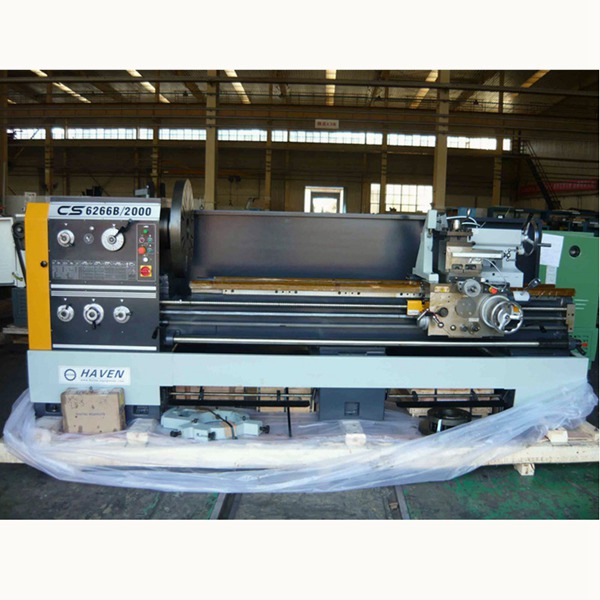

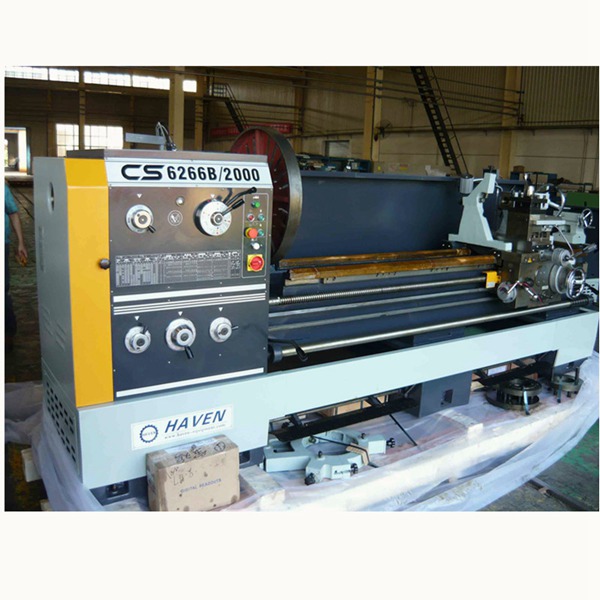

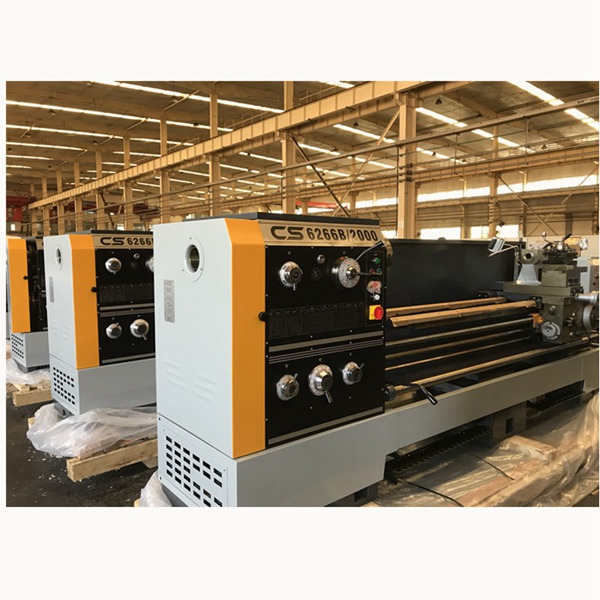

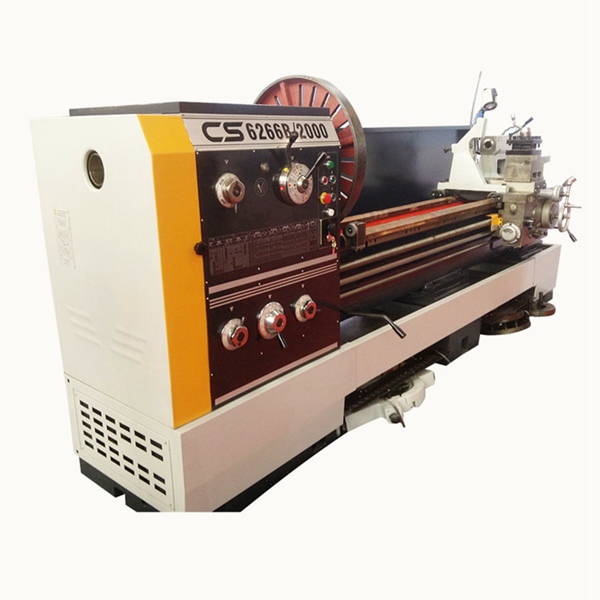

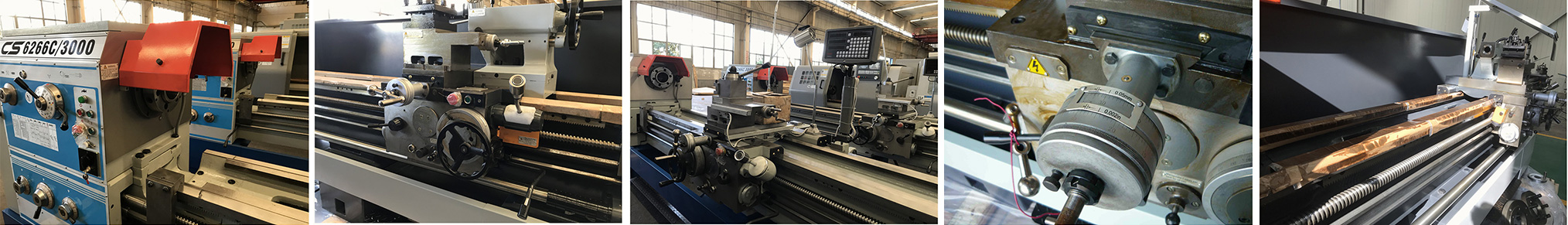

1. CS series lathe machine, B type spindle bore 82mm,C type spindle bore 105mm.
2. Can perform internal and external turning, taper turning, end facing, and rotary parts turning.
3. Threading Inch, Metric, Module and D.P.
4. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters.
5. Inch and Metric system are used on this series lathe, easy for people from different measuring systems countries.
6. Power supply of different voltages and different frequencies as per user's demand.
|Capacity||Max. swing dia. over bed||mm||Φ500||Φ660||Φ800|
|Max. swing dia.in gap||mm||Φ710||Φ870||Φ1000|
|Max. swing dia. over slide||mm||Φ300||Φ420||Φ560|
|Max. workpiece length||mm||1000/1500/2000/3000||2000/300|
|Spindle||Spindle bore diameter||mm||B type 82mm, C type 105mm|
|Type of spindle nose||no||ISO 702/II NO.8 com-lock type|
|Spindle speed||rpm||24 steps 9-1600C type ：12 steps 36-1600||B type: 24 steps 8-1400C type:12 steps 30-1400|
|Spindle motor power||KW||7.5|
|Tailstock||Diameter of quill||mm||Φ75||Φ90|
|Max. travel of quill||mm||150|
|Taper of quill (Morse)||MT||5|
|Turret||Tool O.D. size||mm||25X25|
|Feed||Max. X travel||mm||145|
|Max. Z travel||mm||310|
|Z feed range||mm/r||0.012-2.37mm/rev, 93kinds; C series0.027-1.07mm/rev, 65kinds|
|X feed range||mm/r||0.028-6.43mm/rev, 93kinds; C series0.063-2.52mm/rev, 65kinds|
|Metric threads||mm||0.5 - 224 mm, 48 kinds; C series1 - 14 mm, 22 kinds|
|Inch threads||t.p.i||72 - 1/4 TPI, 48 kinds; C series 28 - 2 TPI, 25 kinds|
|Module threads||πmm||0.5 - 112 π mm, 42 kinds; C series0.5 - 7 π mm, 18 kinds|
|Diametric pitch threads||t.p.i.π||56 - 1/4 DP, 42 kinds; C series 56 - 4 DP, 24 kinds|
|Other||Cooling pump motor power||kW||0.12|
This series of lathe has high power, strong rigidity and wide range of spindle speed adjustment. It is suitable for powerful or high-speed cutting. It can turn end face, outer circle, inner hole, metric, British, module, diametral pitch and other threads, and can undertake drilling, nesting, boring and other processes.
High precision Gap Bed Lathe Machine C6241/C6246
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving super rigidity, the spindle is high rigidity and accuracy, the design of the main drive is optimized and the gears in the headstock are precision ground, the noise of the machine is low.
QK13 Series CNC Pipe Threading Lathe Machine
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods.
