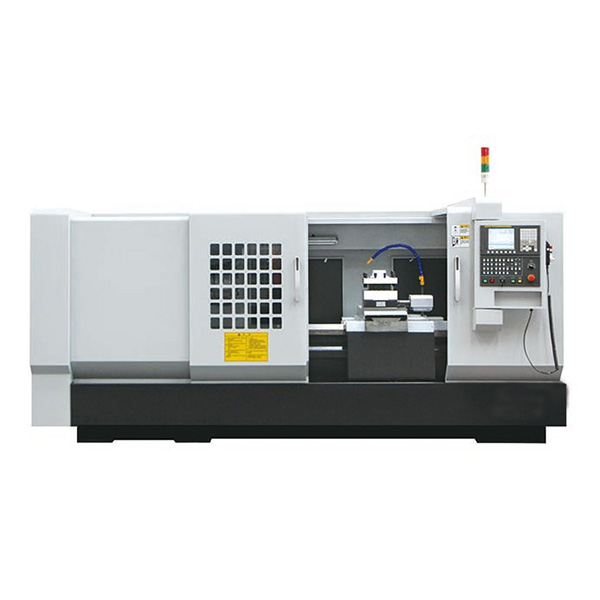

CNC High Quality Lathe

Model: CKJ6150

Features

1, Spindle adopts HRB high precision double ball bearing, low noise, high precision, good stability.

2, The ultrasonic frequency quenched guide ways have a good wear-resistance.

3, Electric four position turret adopts precision gear position, high repetitive positioning accuracy.

4, The tail frame has the advantages of fast cam clamping device, high work efficiency.

5, Can choose the hybrid stepping motor or AC servo motor drive.

Share:

Product Description

Products Specification

CK Series CNC LATHE MACHINE
SPECIFICATIONUNITCKJ6150CKJ6156
ManualManualManualManual
CapacitySwing over bedmm500500500560
Swing over cross slidemm270270270300
Distance between centersmm1000/1500/20001000/1500/20001000/1500/20001000/1500/2000
Guideway widthmm400400400460
Max. load capacityT1112
SpindleSpindle boremm8210516082
Spindle bore taper-Metric φ90/MT5
-Metric φ90/MT5
Spindle nose type-C8
-C8
Spindle speed steps-VF. 3 stepsVF. 3 stepsVF. 3 stepsVF. 3 steps
Spindle speed rangerpm80-150080-100080-80080-1500
Chuckmmφ250 3-jaw manualφ320 3-jaw manualφ400 3-jaw manualφ250 3-jaw manual
TurretTurret/tool post-NC turret 4 positionNC turret 4 positionNC turret 4 position/NC turret 4 position
Tool shank sizemm25x2525x2525x2525x25
FeedX axis travelmm270270270320
Z axis travelmm850/1350/1850850/1301850850/1350/1850850/1350/1850
X axis rapid traversemm/min40004000400010000
Z axis rapid traversemm/min6000600060008000
TailstockTailstock quill diametermmφ75φ75φ75φ75
Tailstock quill taper-MT5MT5MT5MT5
Tailstock quill travelmm150150150150
MotorMain spindle motorkW7.57.57.57.5
Coolant pump motorkW0.1250.1250.1250.125
DimensionWidth x Heightmm1600 x 16001650X17001650 x 17001750 x 1850
Lengthmm2700/3200/37002950/3200/37002950/3450/39503000/3500/4000
WeightNet weightT2.7/3.0/3.42.7/3.0/3.42.7/3.0/3.43.1/3.4/3.8
Please note: machine bed length can customize according to real work demand, CNC machine can choose servo motor direct driving structure turning center with C axis.
