Press brake machine hydraulic

The machine features hi-accuracy,hi-speed and energy saving by 40% The servo motor drives the hydraulic pump.Electro-hydraulic servo valves control double cylinders synchronization.Hydraulic crowning compensation device ensures bending straightness.The machine frame is of steel welding structure with annealing treatment,which ensures the machine frame rigidity and accuracy stability.Digital controller is DELEM DA52s.Holland (Optional DA56s,DA66T).Multi backgauge axes are available.The machine is of quick punch clamping device.

Inquire Now Next Product

Product Description

Machine introduction:

Basic features

Total steel welded structure and stress elimination by vibration

High mechanical strength and strong rigidity

Ram stroke hydraulic approaching downward, stable and reliable

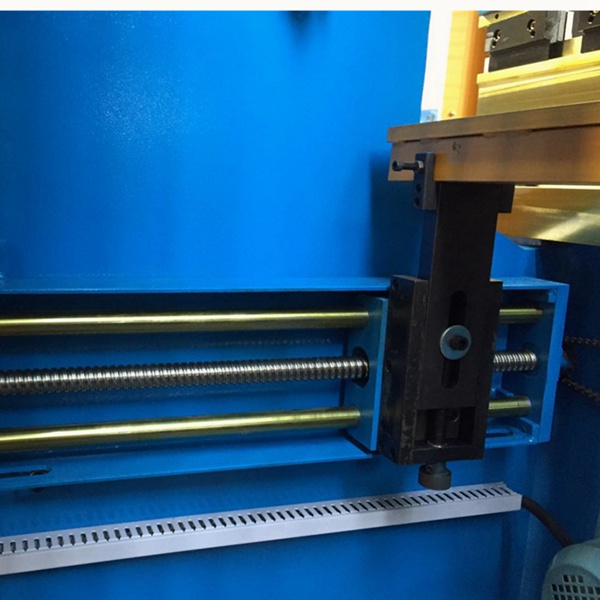

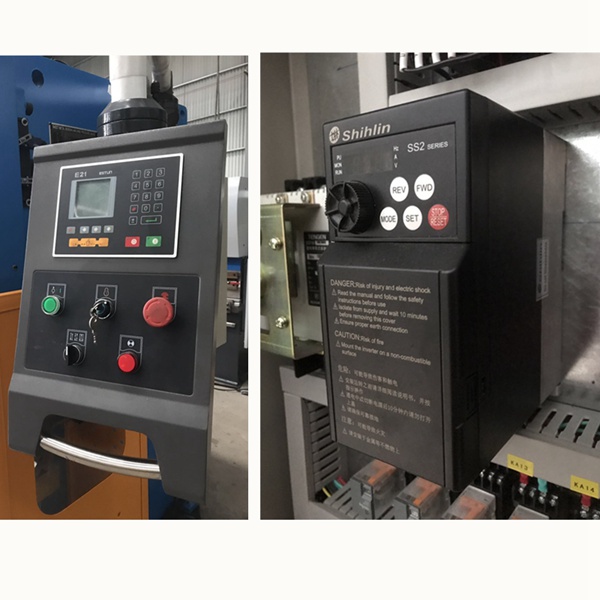

E21 can control the movement of ram stroke and back gauge, achieving efficient and highly precise positioning

Wedge compensation on top punch clamping;

Simplified top blades clamping with micro-adjustment wedges, for easy operation and high precision;

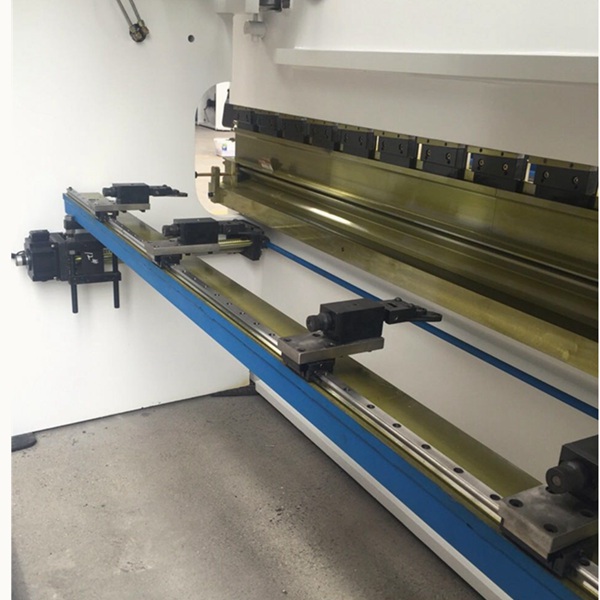

Two Sliding front sheet support arms mounted onto T slot of the bed;

Segmented 88° top blade;

Solid one block four face multi V die;

Approved stable and reliable hydraulics;

Emergency stop buttons placed on control panel and foot switch, ensuring safety;

Metal safety guard around the whole machine ensuring operator safety;

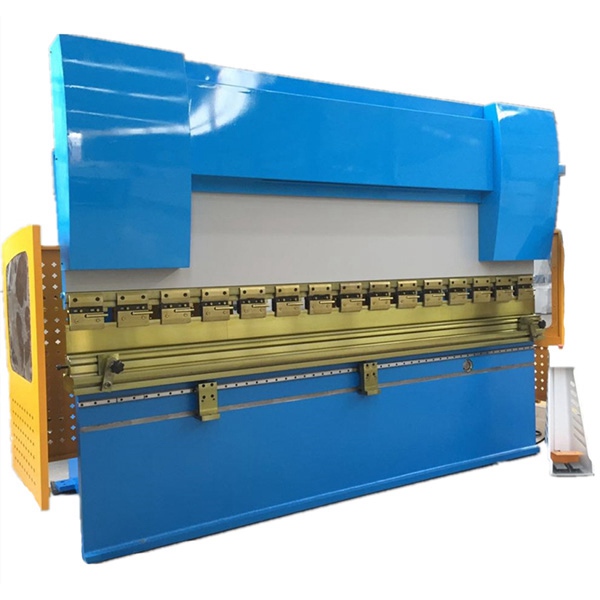

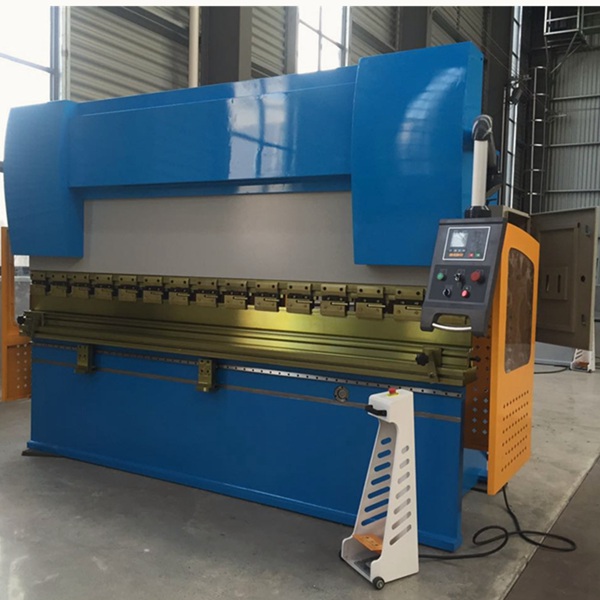

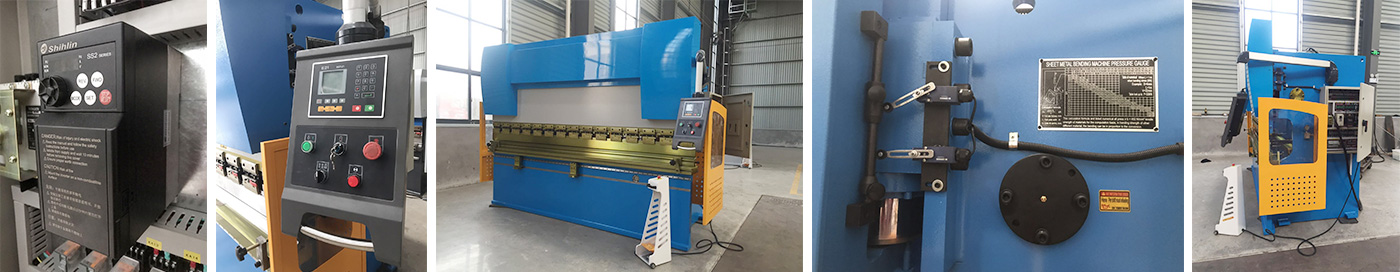

Machine photos.

Press brake machine hydraulic

Products Specification

Model No.	NormalPressure(KN)	Length Of table(mm)	DistanceBetween Housing(mm)	Stroke(mm)	Throat Depth (mm)	Motor Power(Kw)
WC67Y/K-40/2000	400	2000	1590	100	200	5.5
WC67Y/K-40/2200	400	2200	1590	100	200	5.5
WC67Y/K-40/2500	400	2500	2090	100	200	5.5
WC67Y/K-50/2500	500	2500	1901	120	250	5.5
WC67Y/K-50/3200	500	3200	2600	120	250	5.5
WC67Y/K-63/2500	630	2500	2050	100	250	5.5
WC67Y/K-63/3200	630	3200	2600	100	250	5.5
WC67Y/K-80/3200	800	3200	2600	120	320	7.5
WC67Y/K-80/4000	800	4000	3200	120	320	7.5
WC67Y/K-100/2500	1000	2500	1900	120	320	7.5
WC67Y/K-100/3200	1000	3200	2600	120	320	7.5
WC67Y/K-100/4000	1000	4000	3200	120	320	7.5
WC67Y/K-100/5000	1000	5000	4000	120	320	7.5
WC67Y/K-125/2500	1250	2500	2050	120	320	7.5
WC67Y/K-125/3200	1250	3200	2600	120	320	7.5
WC67Y/K-125/4000	1250	4000	3200	120	320	7.5
WC67Y/K-125/5000	1250	5000	4000	120	320	7.5
WC67Y/K-160/3200	1600	3200	2600	200	320	11
WC67Y/K-160/4000	1600	4000	3200	200	320	11
WC67Y/K-160/5000	1600	5000	4000	200	320	11
WC67Y/K-160/6000	1600	6000	4900	200	320	11
WC67Y/K-200/3200	2000	3200	2600	200	320	15
WC67Y/K-200/4000	2000	4000	3200	200	320	15
WC67Y/K-200/5000	2000	5000	4000	200	320	15
WC67Y/K-200/6000	2000	6000	4800	200	320	15
WC67Y/K-250/3200	2500	3200	2600	200	400	18.5
WC67Y/K-250/4000	2500	4000	3200	250	400	18.5
WC67Y/K-250/5000	2500	5000	4000	250	400	18.5
WC67Y/K-250/6000	2500	6000	4800	250	400	18.5
WC67Y/K-300/3200	3000	3200	2600	250	400	22
WC67Y/K-300/4000	3000	4000	3200	250	400	22
WC67Y/K-300/5000	3000	5000	4000	250	400	22
WC67Y/K-300/6000	3000	6000	4800	250	400	22
WC67Y/K-400/4000	4000	4000	3200	320	400	22
WC67Y/K-400/5000	4000	5000	4000	320	400	22
WC67Y/K-400/6000	4000	6000	4800	320	400	22
WC67Y/K-500/6000	5000	6000	4800	320	400	37
WC67Y/K-600/7000	6000	7000	5600	320	400	37
WC67Y/K-700/7000	7000	7000	5600	320	400	45
WC67Y/K-800/6000	8000	6000	4800	400	500	55
WC67Y/K-1000/6000	10000	6000	4800	400	600	75
