Machine introduction:

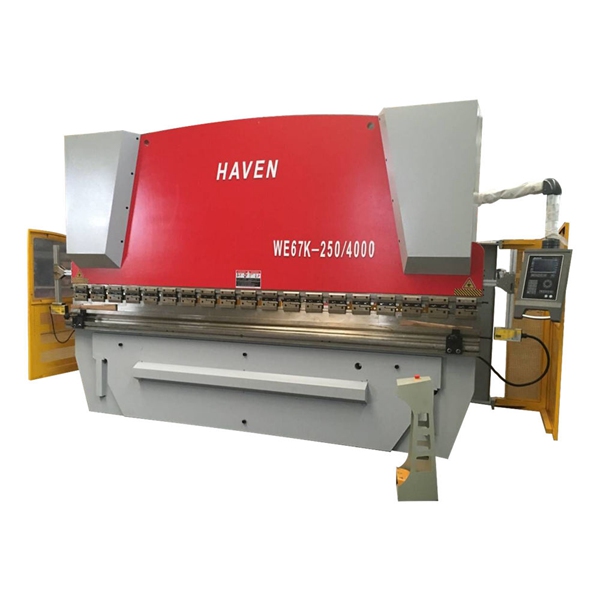

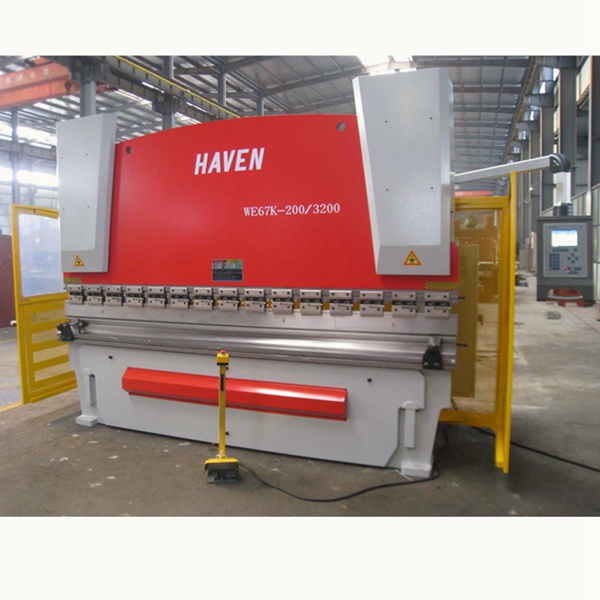

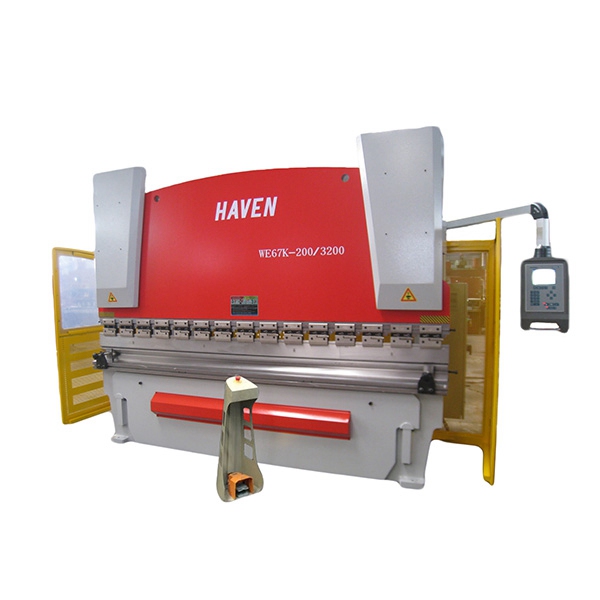

WE67K-300/3200 Servo Motor Used Hydraulic Press Brake Machine Price

WE67K series CNC servo drive electrical-hydraulic press brake is the most advanced press brake now, the machine has lots of advantages for the normal type. First of all, WE67K series press brake with much higher working speed, more efficient to use, and can help operator make more product, secondly, WE67K series press brake will save power, because with servo drive motor, the bending machine can save about 30%-70% power, it means our customer will save lots of cost. Thirdly, the WE67K series press brake will with less noise, PLSON WE67K series CNC press brake will make your workshop very quietly and comfortable for all workers.

Share:

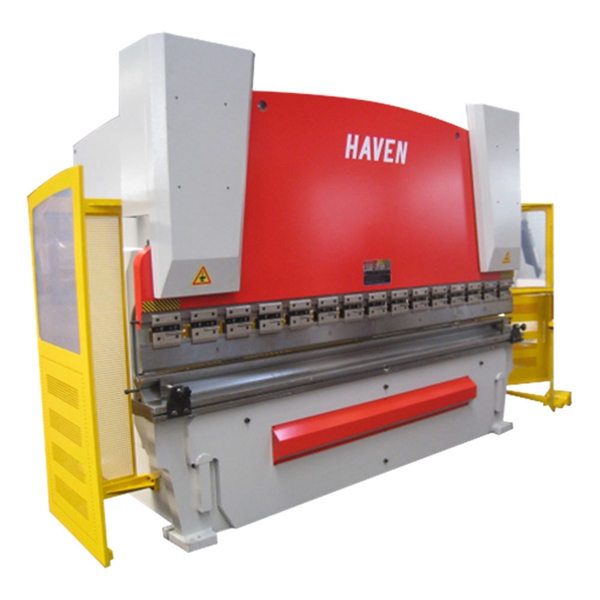

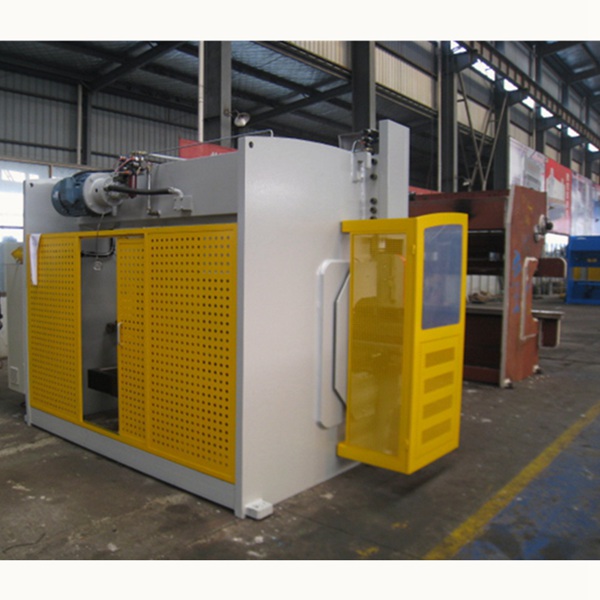

Product Description

Main Features:

1. Brand-new industry design integrated with modern aesthetic concept, high-quality fabrication technology with simple and elegant appearance.

2. Latest high-frequency responding hydraulic control technology, higher speed, more efficient, higher precision.

3. Heat treatment of the rack, rigidity optimization verification of entire machine, research and application of hydraulic compensation mechanism jointly guarantee bending precision of MB8 series Press Brakes.

4. Optimal ratio of parameters and top-level core configuration ensure stable performance, easy operation.

5. MB8 standard 2 axis backgauge system,as to complex shape work pieces, 4 or 5 axes back gauge system and corresponding dies are available for bending of complicated shaped workpieces.

6. Press Brake using closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider (Y1,Y2) running with same frequency, maintaining the parallel state of the worktable.

7. As for different plate, CNC system can automatically control the table deflection compensation resulting in uniform length of all workpiece angles.

8. The use of hydraulic deflection compensation gives access to uniform full length workpieces.Hydraulic deflection compensation consists of a set of oil cylinders, which can make the table occurs relative movement and form an ideal convex curve ensuring the relative position relationship with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.


Standard Equipment:

1. Delem DA52S CNC control System

2. Powered Depth Y1-axis; Y2-axis;X-axis; V-axis; Back gauge X-axis (X-axis 0.01mm/Y1/Y2-axis 0.01mm)

3. Servo motor control block

4. HIWIN Ball screws & Polished rod with 0,01mm accuracy

5. Plate Support Arms

6. Germany Bosch-Rexroth Hydraulic

7. Germany EMB Tubing connector

8. Germany Siemens Main Motor

9. Tele mecanique/Schneider Electrics

10. Hydraulic &Electrical overload protection

11. Top and Bottom Tooling (86°, R0.6mm)

12. Safety Standards (2006/42/EC).


Safety Equipment:

EN 12622:2009 +A1:2013 / EN ISO 12100:2010 /EN 60204-1:2006+A1:2009

1. Front finger Protection(Safety light curtain)

2. South Korea Kacon Foot Switch(Level 4 of safetv)

3. Back metal safe fence with CE standards

4. Safety relay with Monitor the pedal switch and safety protection

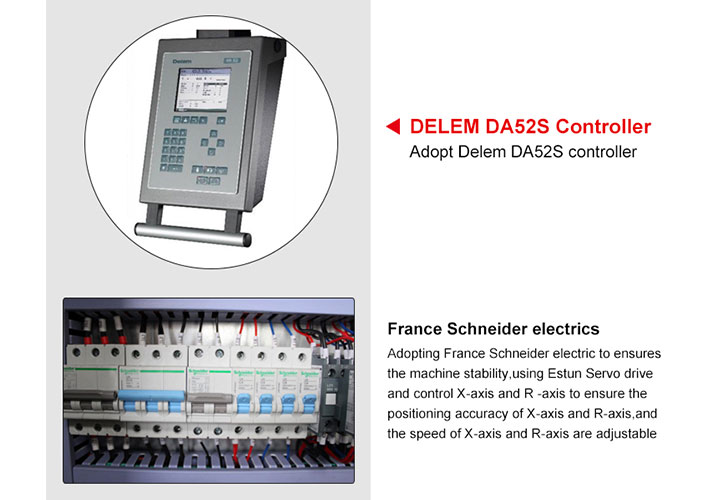

Delem DA52S CNC Control system:

1. The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.

2. The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.

3. Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.

4. The unique 'hotkey' navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.

5. Angle programming of the Y-axis, crowning function and pressure control are standard on board.

6. USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

DA-52S features

DA-52S features

1. Quick, one page programming

2. Hotkey navigation

3. 7” VGA colour TFT

4. Up to4axes (Y1Y2, and 2auxiliary axes)

5. Crowning control

6. Tool/material/product library

7. USB, peripheral interfacing

8. Advanced Y-axis control algorithms for closed loop as well as open loop valves

Y1, Y2 Axis control

Y1, Y2 Axis control

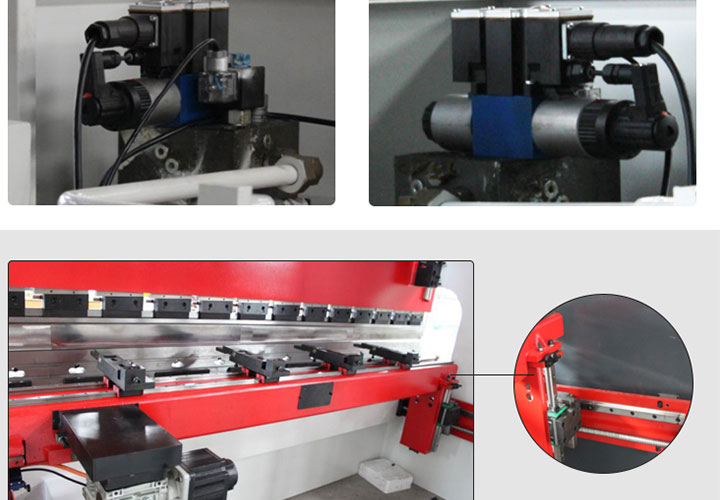

Press brake use Germany Bosch Rexroth fully-closed-loop electro-hydraulic serve control technology. slider position signal is feedbacked to controller by spain FAGOR grating ruler, then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size,hereby controlling the slider (Y1, Y2)running on the same frequency. maintaining the parallet state of the worktable.

Servo motor controlled X, R-axis

Servo motor controlled X, R-axis

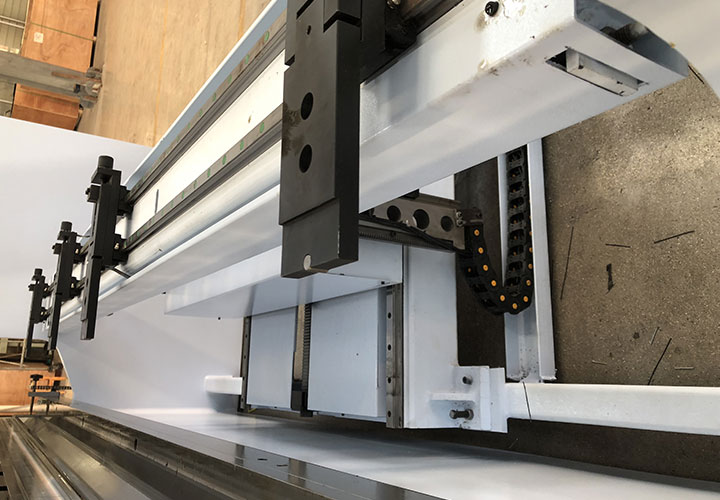

1. Standard backgauge X-axis and R-axis are controlled by servo motor, high precise backgauge, stop finger travels along the double guide rail in left and right

2. Manually adjust Z, R axis, stop finger travels along the double guide rail

Products Specification

Model No.NormalPressure(KN)Length Of table(mm)DistanceBetween Housing(mm)Stroke(mm)Throat Depth (mm)Motor Power(Kw)
WC67Y/K-40/2000400200015901002005.5
WC67Y/K-40/2200400220015901002005.5
WC67Y/K-40/2500400250020901002005.5
WC67Y/K-50/2500500250019011202505.5
WC67Y/K-50/3200500320026001202505.5
WC67Y/K-63/2500630250020501002505.5
WC67Y/K-63/3200630320026001002505.5
WC67Y/K-80/3200800320026001203207.5
WC67Y/K-80/4000800400032001203207.5
WC67Y/K-100/25001000250019001203207.5
WC67Y/K-100/32001000320026001203207.5
WC67Y/K-100/40001000400032001203207.5
WC67Y/K-100/50001000500040001203207.5
WC67Y/K-125/25001250250020501203207.5
WC67Y/K-125/32001250320026001203207.5
WC67Y/K-125/40001250400032001203207.5
WC67Y/K-125/50001250500040001203207.5
WC67Y/K-160/320016003200260020032011
WC67Y/K-160/400016004000320020032011
WC67Y/K-160/500016005000400020032011
WC67Y/K-160/600016006000490020032011
WC67Y/K-200/320020003200260020032015
WC67Y/K-200/400020004000320020032015
WC67Y/K-200/500020005000400020032015
WC67Y/K-200/600020006000480020032015
WC67Y/K-250/320025003200260020040018.5
WC67Y/K-250/400025004000320025040018.5
WC67Y/K-250/500025005000400025040018.5
WC67Y/K-250/600025006000480025040018.5
WC67Y/K-300/320030003200260025040022
WC67Y/K-300/400030004000320025040022
WC67Y/K-300/500030005000400025040022
WC67Y/K-300/600030006000480025040022
WC67Y/K-400/400040004000320032040022
WC67Y/K-400/500040005000400032040022
WC67Y/K-400/600040006000480032040022
WC67Y/K-500/600050006000480032040037
WC67Y/K-600/700060007000560032040037
WC67Y/K-700/700070007000560032040045
WC67Y/K-800/600080006000480040050055
WC67Y/K-1000/6000100006000480040060075
