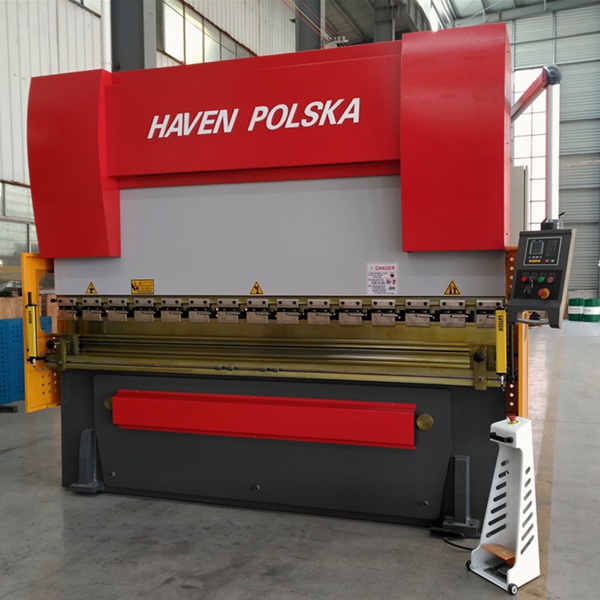

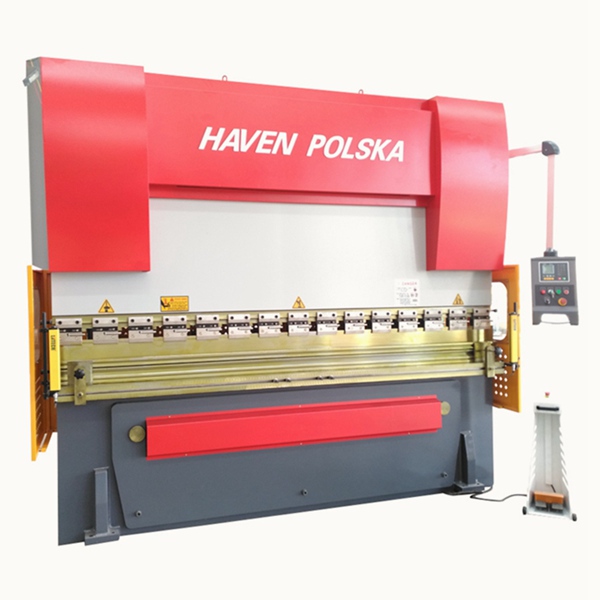

WC67Y hydraulic press brake WC67Y-300/3200

Our main products are CNC hydraulic press brakes, shearing machines and laser cutting machines. According to the material of the plate you do bending, choose different tonnage of bending machine, we can provide 70ton-2000 ton of Wc67y hydraulic press brake.

Inquire Now Next Product

Product Description

WC67Y Hydraulic Press Brake Introduction

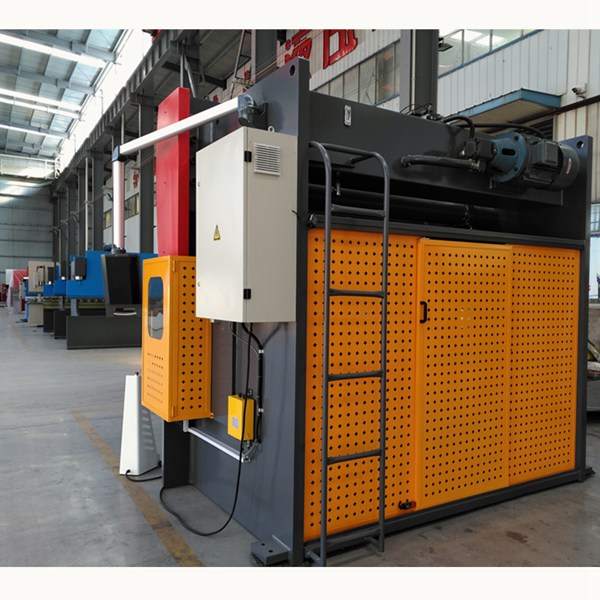

1. High quality Wc67y hydraulic press brakes adopt an all-steel welded structure with sufficient strength and rigidity.
2. It is hydraulically driven. The cylinders at both ends of the machine tool are placed on the sliding block to directly drive the sliding work.
3. The slider synchronization mechanism adopts a torsion shaft for forced synchronization.
4. Using a mechanical stop block structure, stable and reliable.
5. The stroke of the slider can be adjusted quickly and manually, and the counter is displayed.
6. Oblique wedge-type deflection compensation mechanism to ensure higher bending accuracy.

Features of WC67Y hydraulic press brake CNC

1. Direct angle programming with angle compensation function.

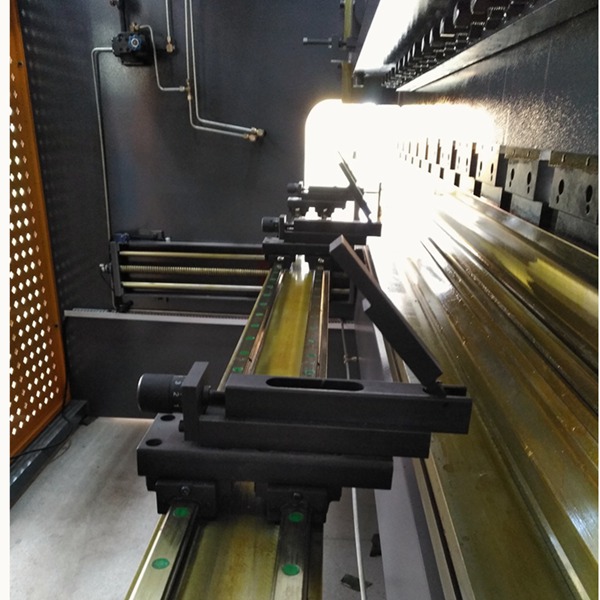

2. The grating ruler real-time detection feedback, copy correction, full closed-loop control, back gauge, and slider dead-gauge positioning accuracy is ±0.02mm.
3. The upper mold adopts a quick clamping device, and the lower mold adopts a wedge deformation compensation mechanism.
4. With a multi-step programming function, it can realize multiple automatic operation, complete multi-step parts one-time processing, and improve production efficiency.

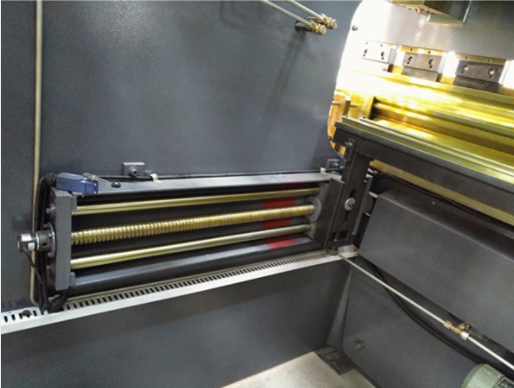

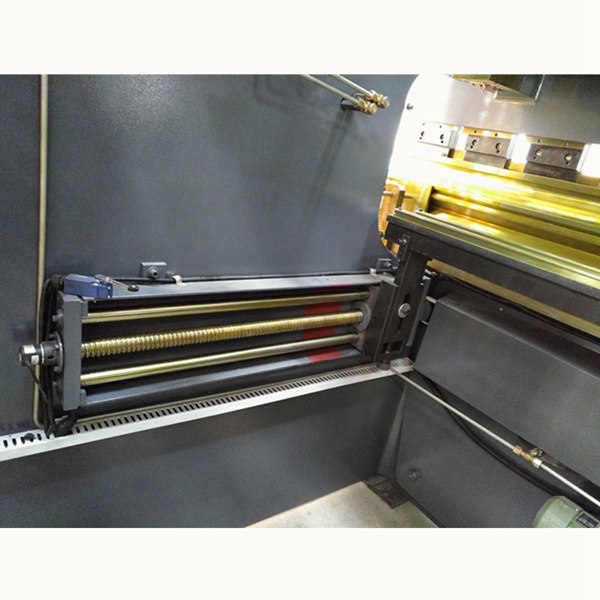

5. The imported hydraulic system with stable performance and compact structure can be selected according to user requirements, and the back gauge can be driven by the ball screw and timing belt.

If you can't find the hydraulic press brake you need, please contact us.

Haven Equipment-Wc67y Hydraulic Press Brake Supplier

Shaanxi Haven Equipment Co., Ltd., established in 2003, is a specialized manufacturer and exporter of hydraulic machine tools, laser equipment, and lathe machines. With over 35 years of export experience, we have successfully distributed our products to more than 50 countries worldwide, including the USA, Germany, Russia, Chile, Peru, and many others.

As a WC67Y hydraulic press brake supplier, we uphold our commitment to providing high-quality products and excellent service to every customer. We welcome you to visit our website and contact us for any inquiries or assistance, and we assure you of a prompt response to your needs.

Products Specification

Model No.	NormalPressure(KN)	Length Of table(mm)	DistanceBetween Housing(mm)	Stroke(mm)	Throat Depth (mm)	Motor Power(Kw)
WC67Y/K-40/2000	400	2000	1590	100	200	5.5
WC67Y/K-40/2200	400	2200	1590	100	200	5.5
WC67Y/K-40/2500	400	2500	2090	100	200	5.5
WC67Y/K-50/2500	500	2500	1901	120	250	5.5
WC67Y/K-50/3200	500	3200	2600	120	250	5.5
WC67Y/K-63/2500	630	2500	2050	100	250	5.5
WC67Y/K-63/3200	630	3200	2600	100	250	5.5
WC67Y/K-80/3200	800	3200	2600	120	320	7.5
WC67Y/K-80/4000	800	4000	3200	120	320	7.5
WC67Y/K-100/2500	1000	2500	1900	120	320	7.5
WC67Y/K-100/3200	1000	3200	2600	120	320	7.5
WC67Y/K-100/4000	1000	4000	3200	120	320	7.5
WC67Y/K-100/5000	1000	5000	4000	120	320	7.5
WC67Y/K-125/2500	1250	2500	2050	120	320	7.5
WC67Y/K-125/3200	1250	3200	2600	120	320	7.5
WC67Y/K-125/4000	1250	4000	3200	120	320	7.5
WC67Y/K-125/5000	1250	5000	4000	120	320	7.5
WC67Y/K-160/3200	1600	3200	2600	200	320	11
WC67Y/K-160/4000	1600	4000	3200	200	320	11
WC67Y/K-160/5000	1600	5000	4000	200	320	11
WC67Y/K-160/6000	1600	6000	4900	200	320	11
WC67Y/K-200/3200	2000	3200	2600	200	320	15
WC67Y/K-200/4000	2000	4000	3200	200	320	15
WC67Y/K-200/5000	2000	5000	4000	200	320	15
WC67Y/K-200/6000	2000	6000	4800	200	320	15
WC67Y/K-250/3200	2500	3200	2600	200	400	18.5
WC67Y/K-250/4000	2500	4000	3200	250	400	18.5
WC67Y/K-250/5000	2500	5000	4000	250	400	18.5
WC67Y/K-250/6000	2500	6000	4800	250	400	18.5
WC67Y/K-300/3200	3000	3200	2600	250	400	22
WC67Y/K-300/4000	3000	4000	3200	250	400	22
WC67Y/K-300/5000	3000	5000	4000	250	400	22
WC67Y/K-300/6000	3000	6000	4800	250	400	22
WC67Y/K-400/4000	4000	4000	3200	320	400	22
WC67Y/K-400/5000	4000	5000	4000	320	400	22
WC67Y/K-400/6000	4000	6000	4800	320	400	22
WC67Y/K-500/6000	5000	6000	4800	320	400	37
WC67Y/K-600/7000	6000	7000	5600	320	400	37
WC67Y/K-700/7000	7000	7000	5600	320	400	45
WC67Y/K-800/6000	8000	6000	4800	400	500	55
WC67Y/K-1000/6000	10000	6000	4800	400	600	75
