Machine introduction:

WE67K-100/3200 DA66T Servo Motor hydraulic press brake machine for sale

WE67K series CNC servo drive electrical-hydraulic press brake is the most advanced press brake now, the machine has lots of advantages for the normal type. First of all, WE67K series press brake with much higher working speed, more efficient to use, and can help operator make more product, secondly, WE67K series press brake will save power, because with servo drive motor, the bending machine can save about 30%-70% power, it means our customer will save lots of cost. Thirdly, the WE67K series press brake will with less noise, PLSON WE67K series CNC press brake will make your workshop very quietly and comfortable for all workers.

Share:

Product Description

Main Features:

Totally European design, streamlined looking

Taking off inner-stress of welded parts by tempering, good stability

Remove rust with sand-blast and coated with anti-rust paint

Once clamping can finish all working surfaces which will guarantee dimension precision and position precision.

The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.

Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.


Main Configuration of cnc hydraulic press brake bending machine.

No.NameProducer
1CNC SystemDELEM, DA-66T
2Valve block for pressureBOSCH/HOERBIGER
3Valve block for synchronizationBOSCH, GERMANY
4Main sealers in cylinderNOK or SKF
5Gear PumpBOSCH
6Linear ScaleHEIDENHAIN
7Servo MotorYASKAWA, JAPAN


Safety Equipment:

EN 12622:2009 +A1:2013 / EN ISO 12100:2010 /EN 60204-1:2006+A1:2009

1. Front finger Protection(Safety light curtain)

2. South Korea Kacon Foot Switch(Level 4 of safetv)

3. Back metal safe fence with CE standards

4. Safety relay with Monitor the pedal switch and safety protection


Inspection Criterion:

Inspection criterion: According to China standard criterion GB-T14349-93《Precession of hydraulic press brake》and JB2257.1《Technology requirements of hydraulic press brake》.


Delem CNC Control system:

1. The compact Delem CNC system is a complete CNC solution for conventional as well as synchronised press brakes.

2. The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.

3. Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.

4. The unique 'hotkey' navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.

5. Angle programming of the Y-axis, crowning function and pressure control are standard on board.

6. USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

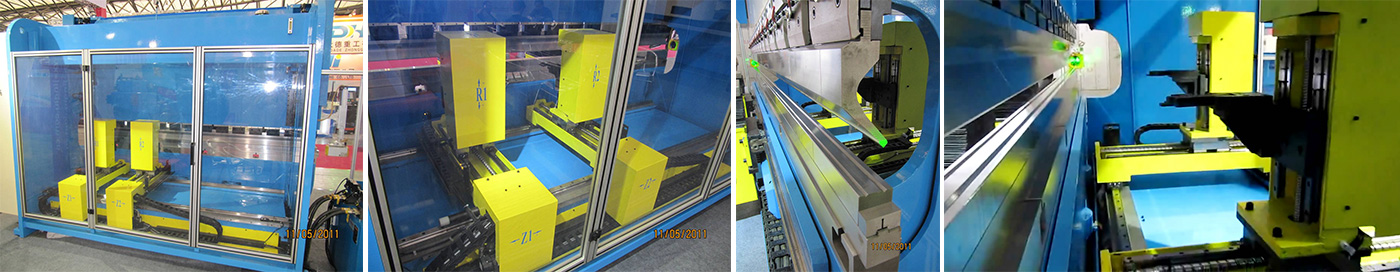

Reference machine photos:

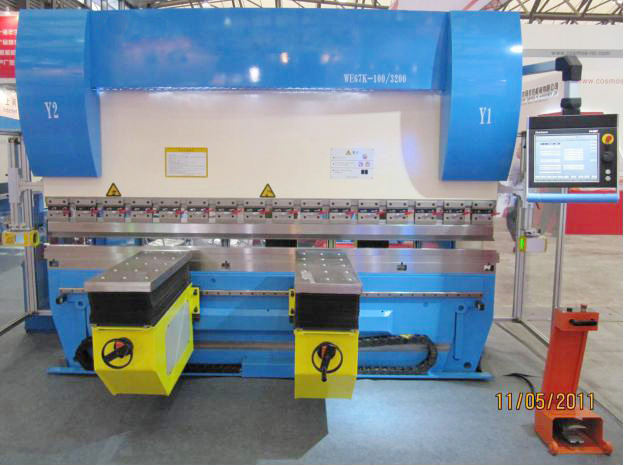

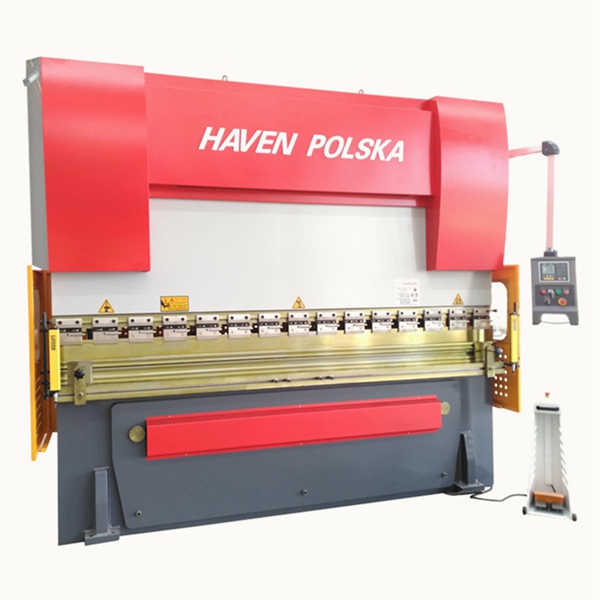

Front

Hydraulic CNC Press Brake WE67K-100/3200 DA66T

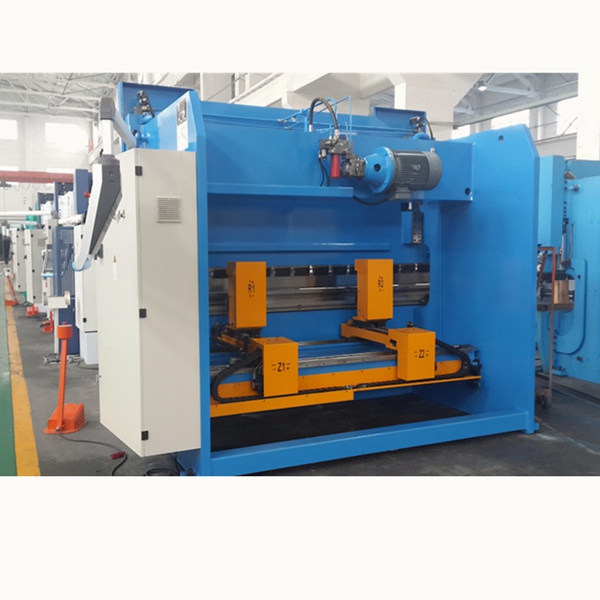

Back:

Hydraulic CNC Press Brake WE67K-100/3200 DA66T

Products Specification

Model No.NormalPressure(KN)Length Of table(mm)DistanceBetween Housing(mm)Stroke(mm)Throat Depth (mm)Motor Power(Kw)
WC67Y/K-40/2000400200015901002005.5
WC67Y/K-40/2200400220015901002005.5
WC67Y/K-40/2500400250020901002005.5
WC67Y/K-50/2500500250019011202505.5
WC67Y/K-50/3200500320026001202505.5
WC67Y/K-63/2500630250020501002505.5
WC67Y/K-63/3200630320026001002505.5
WC67Y/K-80/3200800320026001203207.5
WC67Y/K-80/4000800400032001203207.5
WC67Y/K-100/25001000250019001203207.5
WC67Y/K-100/32001000320026001203207.5
WC67Y/K-100/40001000400032001203207.5
WC67Y/K-100/50001000500040001203207.5
WC67Y/K-125/25001250250020501203207.5
WC67Y/K-125/32001250320026001203207.5
WC67Y/K-125/40001250400032001203207.5
WC67Y/K-125/50001250500040001203207.5
WC67Y/K-160/320016003200260020032011
WC67Y/K-160/400016004000320020032011
WC67Y/K-160/500016005000400020032011
WC67Y/K-160/600016006000490020032011
WC67Y/K-200/320020003200260020032015
WC67Y/K-200/400020004000320020032015
WC67Y/K-200/500020005000400020032015
WC67Y/K-200/600020006000480020032015
WC67Y/K-250/320025003200260020040018.5
WC67Y/K-250/400025004000320025040018.5
WC67Y/K-250/500025005000400025040018.5
WC67Y/K-250/600025006000480025040018.5
WC67Y/K-300/320030003200260025040022
WC67Y/K-300/400030004000320025040022
WC67Y/K-300/500030005000400025040022
WC67Y/K-300/600030006000480025040022
WC67Y/K-400/400040004000320032040022
WC67Y/K-400/500040005000400032040022
WC67Y/K-400/600040006000480032040022
WC67Y/K-500/600050006000480032040037
WC67Y/K-600/700060007000560032040037
WC67Y/K-700/700070007000560032040045
WC67Y/K-800/600080006000480040050055
WC67Y/K-1000/6000100006000480040060075
