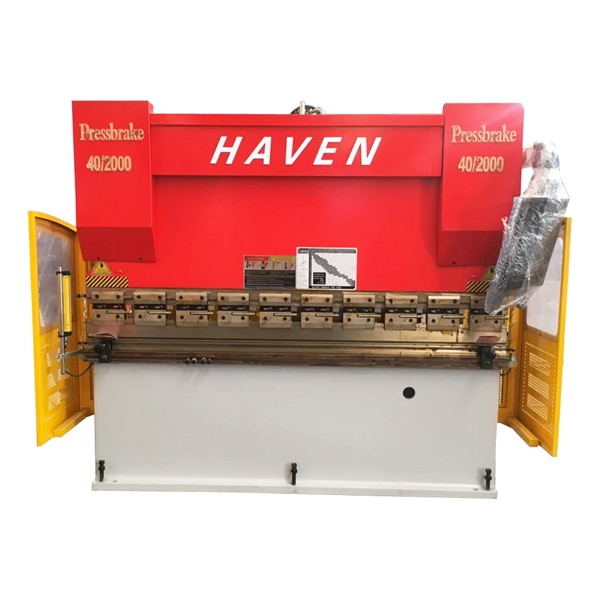

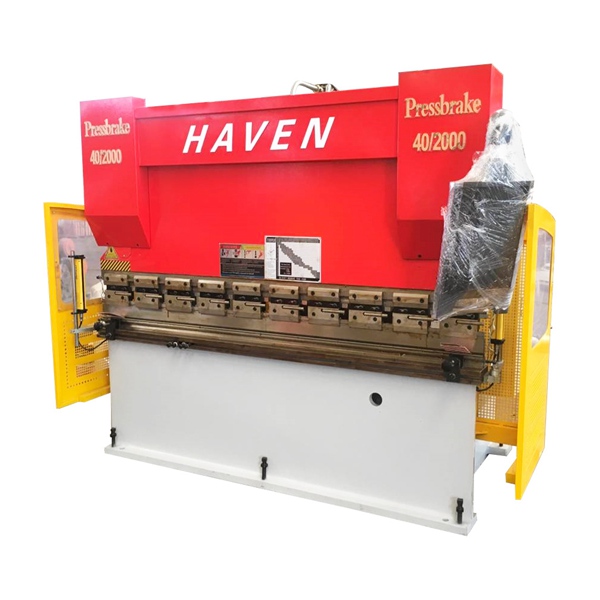

Hydraulic press brake price WC67Y-40/2000

Hydraulic press brake price WC67Y-40/2000

Machine introduction:

WC67Y Series Hydraulic Press Brake CNC Plate Bending Machine, the whole machine adopts steel plate welding structure, vibration aging eliminates internal stress, the machine has high strength and good rigidity; Hydraulic double cylinder drive, mechanical block, torsion shaft synchronization, smooth and reliable operation, national standard precision;Rear stopper interval and slider stroke adopt electric conditioning and manual fine tuning, and equipped with digital display installation, easy to use;

Share:

Product Description

Performance Features

Performance Features

1. Stanard two axis control (X.Y)

2. Mechancial torque synchronization(torsion bar)

3. The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, ensure machine high strength and good rigity

3Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of slidder, and installed with digital display device, easy and quick for operator

4. Quick clamping is equipped,it is convenient for operator to install and get offer punch

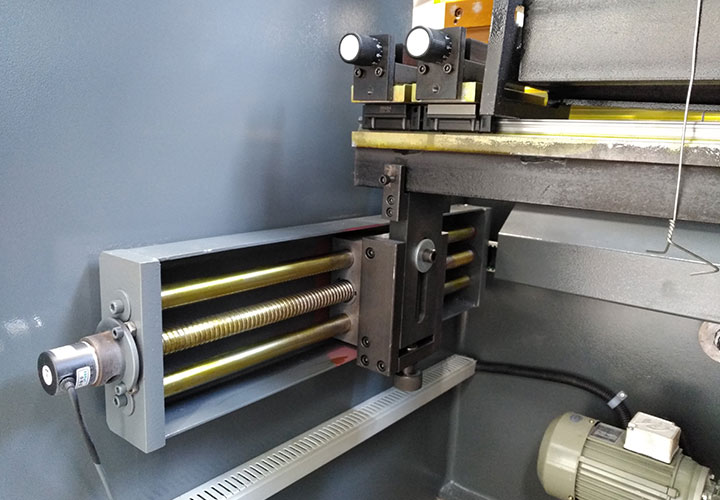

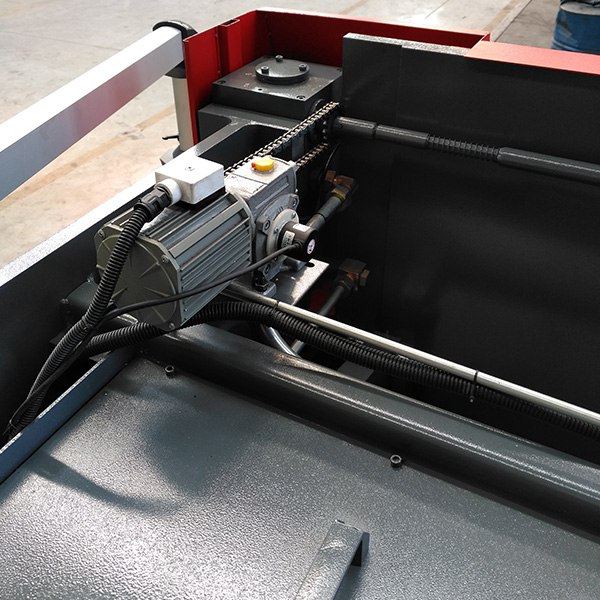

Press Brake Backgauge

Press Brake Backgauge

Press Brake Backgauge Hiwin Ball Screw and Linear Guide Rail

Adopts HIWIN Ball Screw,linear guide rail, improve machine backgauge accuracy

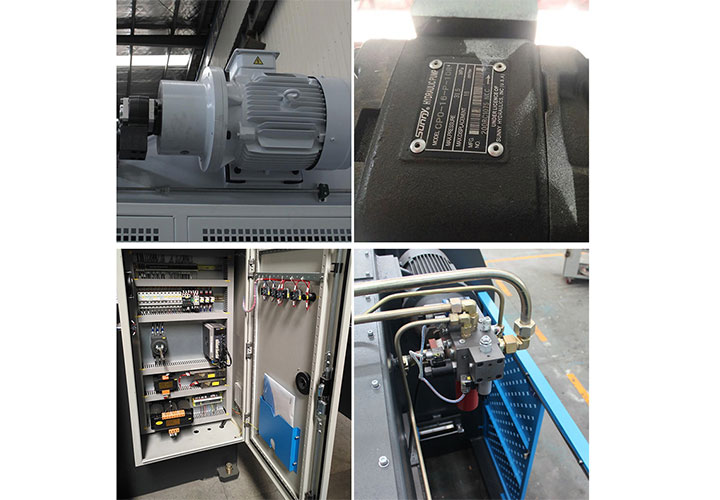

Siemens main moor

Siemens main moor

Siemens main motor, Germany Bosch Rexroth hydraulic system/Germany EMB tube connector/schneider electrics/ HIWIN linear guide and ball screw/SUNNY Pump

Products Specification

Model No.NormalPressure(KN)Length Of table(mm)DistanceBetween Housing(mm)Stroke(mm)Throat Depth (mm)Motor Power(Kw)
WC67Y/K-40/2000400200015901002005.5
WC67Y/K-40/2200400220015901002005.5
WC67Y/K-40/2500400250020901002005.5
WC67Y/K-50/2500500250019011202505.5
WC67Y/K-50/3200500320026001202505.5
WC67Y/K-63/2500630250020501002505.5
WC67Y/K-63/3200630320026001002505.5
WC67Y/K-80/3200800320026001203207.5
WC67Y/K-80/4000800400032001203207.5
WC67Y/K-100/25001000250019001203207.5
WC67Y/K-100/32001000320026001203207.5
WC67Y/K-100/40001000400032001203207.5
WC67Y/K-100/50001000500040001203207.5
WC67Y/K-125/25001250250020501203207.5
WC67Y/K-125/32001250320026001203207.5
WC67Y/K-125/40001250400032001203207.5
WC67Y/K-125/50001250500040001203207.5
WC67Y/K-160/320016003200260020032011
WC67Y/K-160/400016004000320020032011
WC67Y/K-160/500016005000400020032011
WC67Y/K-160/600016006000490020032011
WC67Y/K-200/320020003200260020032015
WC67Y/K-200/400020004000320020032015
WC67Y/K-200/500020005000400020032015
WC67Y/K-200/600020006000480020032015
WC67Y/K-250/320025003200260020040018.5
WC67Y/K-250/400025004000320025040018.5
WC67Y/K-250/500025005000400025040018.5
WC67Y/K-250/600025006000480025040018.5
WC67Y/K-300/320030003200260025040022
WC67Y/K-300/400030004000320025040022
WC67Y/K-300/500030005000400025040022
WC67Y/K-300/600030006000480025040022
WC67Y/K-400/400040004000320032040022
WC67Y/K-400/500040005000400032040022
WC67Y/K-400/600040006000480032040022
WC67Y/K-500/600050006000480032040037
WC67Y/K-600/700060007000560032040037
WC67Y/K-700/700070007000560032040045
WC67Y/K-800/600080006000480040050055
WC67Y/K-1000/6000100006000480040060075
