Hydraulic Press Brake
The machine features hi-accuracy,hi-speed and energy saving by 40% The servo motor drives the hydraulic pump.Electro-hydraulic servo valves control double cylinders synchronization.Hydraulic crowning compensation device ensures bending straightness.The machine frame is of steel welding structure with annealing treatment,which ensures the machine frame rigidity and accuracy stability.Digital controller is DELEM DA52s.Holland (Optional DA56s,DA66T).Multi backgauge axes are available.The machine is of quick punch clamping device.
Product Description
CNC HYDRAULIC PRESS BRAKE MODEL: WE67K-160/3200
(DA52 SYSTEM)
| TECHNICAL FEATURES | ||
| 1 | Type | Hydraulic CNC electro-hydraulic synchro |
| 2 | Working force | 160 T |
| 3 | Length of table | 32 00 mm |
| 4 | distance between frames | 2650 mm |
| 5 | Throat depth | 320 mm |
| 6 | Open height | 500 mm |
| 7 | Stroke | 200mm |
| 8 | Approaching speed | 100mm/s |
| Working speed | 10mm/s | |
| Return speed | 90mm/s | |
| 9 | Main motor | 11kw |
| 10 | CNC system | Type: DELEM DA66T or DA65W Delem Co., Netherlands 8 Axis(Y1,Y2,X1, X2, R1 ,R 2, Z1, Z2 ) +A utomatic hydraulic compensation system |
| 11 | Tool | With 1 punching (with quick clamping) and 1 bottom die |
| 12 | Main Electric Elements in cabinet | Schneider |
| 13 | Seal in the cylinders | NOK or SKF |
| 14 | Gross weight | 12500 kg |
| 15 | Packing size(mm) LxWxH | 3450 x 215 0x3000 |
| 16 | Packing: | With plastic cover Transportation: 1x20' OPEN TOP CONTAINER |
| Hydraulic cooling system | Optional | |
Main Performance:
1. Equipped with DELEM CNC system made in Holland and other key parts such as linear scale, hydraulic valve, servo motor are all importing products.
2. There are two linear scales installed on "C" plates on both sides, which is fixed on worktable to eliminate the effect ion of deflection when working. The linear scale will inspect the both end positions of ram (Y1, Y2) and send signal. After amplified by CNC amplifier, the signal will be fed back to computer. Then the computer will control the volume of oil, which is going to enter into cylinders. So the parallelism of ram and worktable could be controlled under ±0.01mm.
3. DELEM system has automatic testing and self-diagnosis functions. Also, Programming is simply composed of putting in sizes of plate to bend, dimensions of work piece and choosing tools. Then CNC system could calculate the bending force and position of back gauge and ram automatically. Also the ram penetrating and pressing time relay could be calculated.
4. Good quality electro-hydraulic proportional valve is adopted to ensure the synchronization of both cylinders as well good capacity to deal eccentric load.
5. The stroke of ram and back gauge are all controlled by CNC system with good precision.
6. Main sliding parts such as cylinders, piston rod, guide way, are all treated with wear-resistance.
7. Back gauge adopts rolling ball screw and rolling guide way, so the repeat positioning precision of X axis could reach ±0.1mm.
8. Full machine is guarded with safety guard and interlocker to protect the operator from injured.
CNC system:
Computer: DELEM DA66T CNC system and its performance
Main Configuration:
| No. | Name | Producer | Remark |
| 1 | CNC System | DELEM, DA66T | |
| 2 | Valve block for pressure | BOSCH Rexroth /HOERBIGER | |
| 3 | Valve block for synchronization | BOSCH, GERMANY | |
| 4 | Main sealers in cylinder | NOK or SKF | |
| 5 | Gear Pump | BOSCH Rexroth | |
| 6 | Linear Scale | HEIDENHAIN | |
| 7 | Servo Motor | YASKAWA, JAPAN |

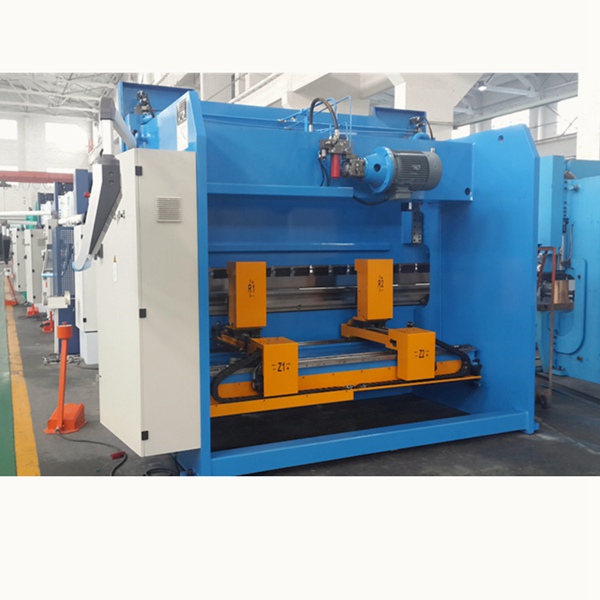

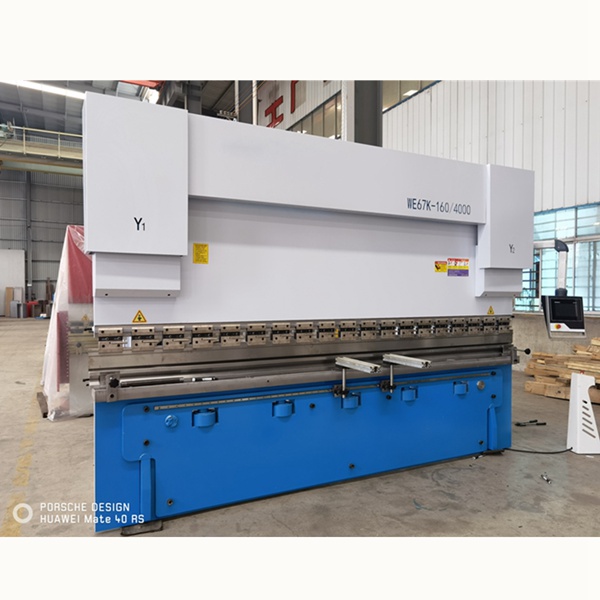

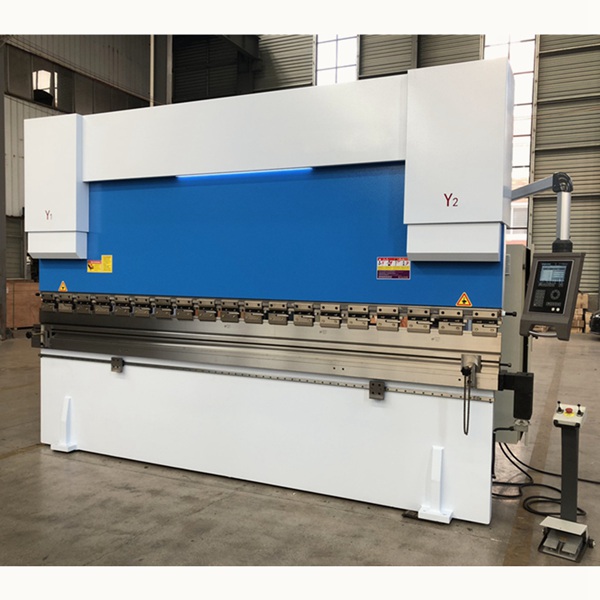

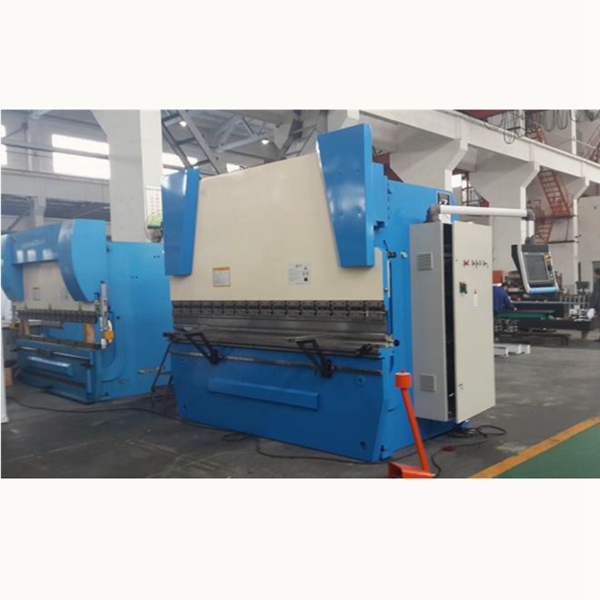

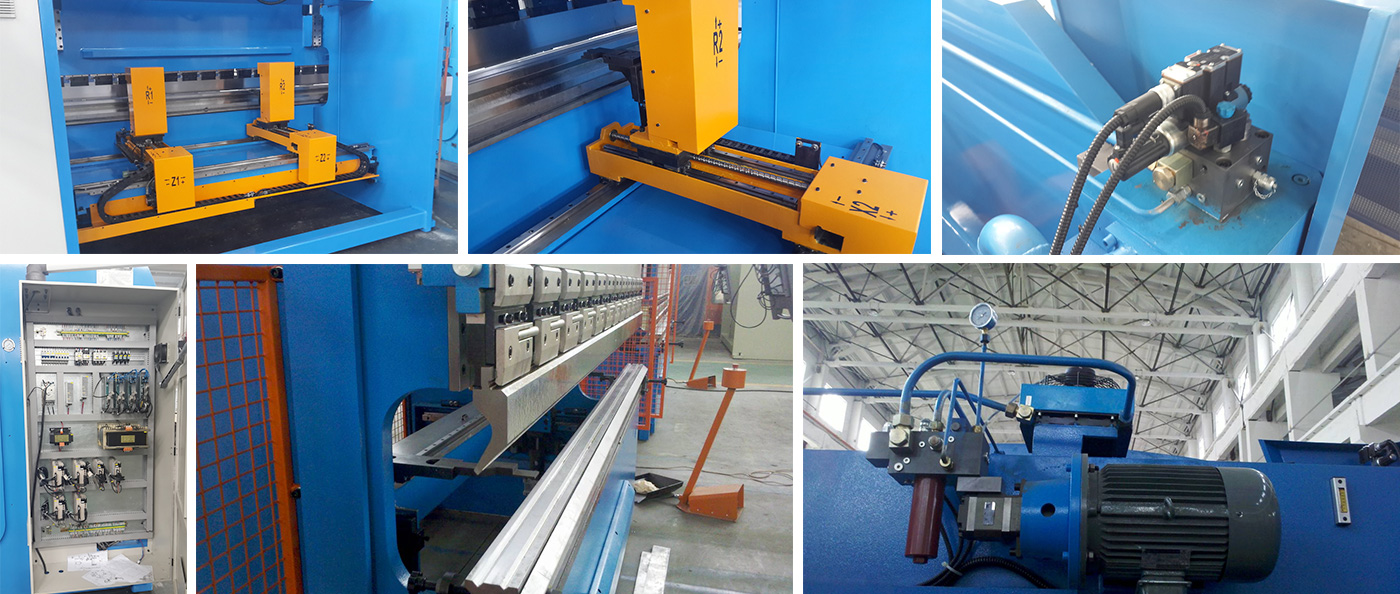

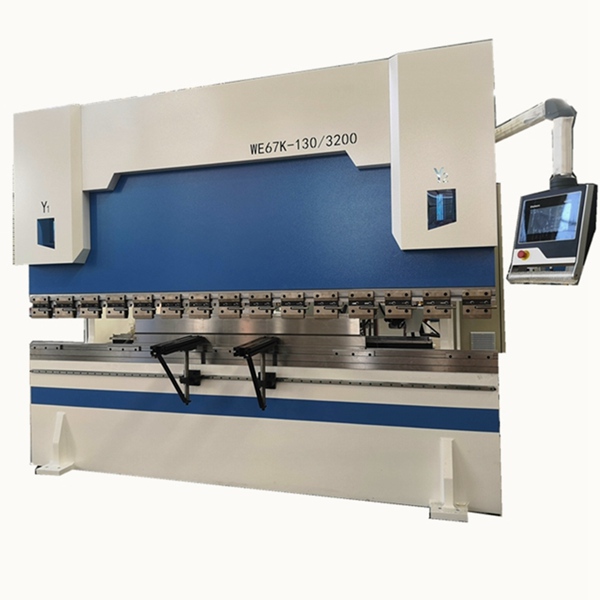

Attachment: similar machine's photo
