Hydraulic Press Brake
Machine introduction:

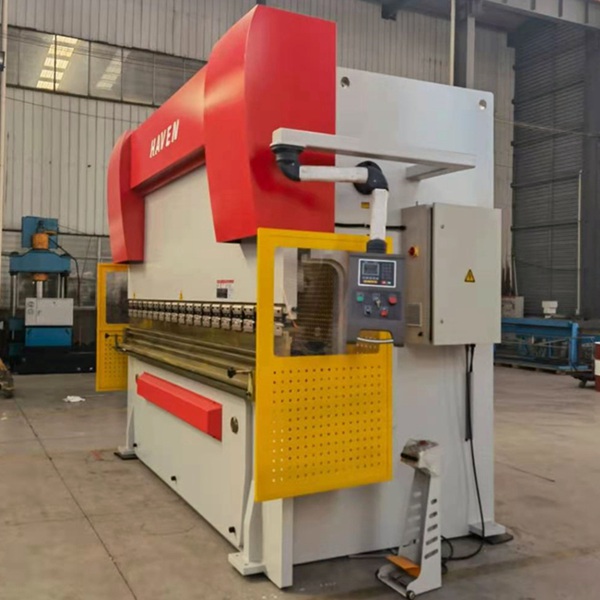

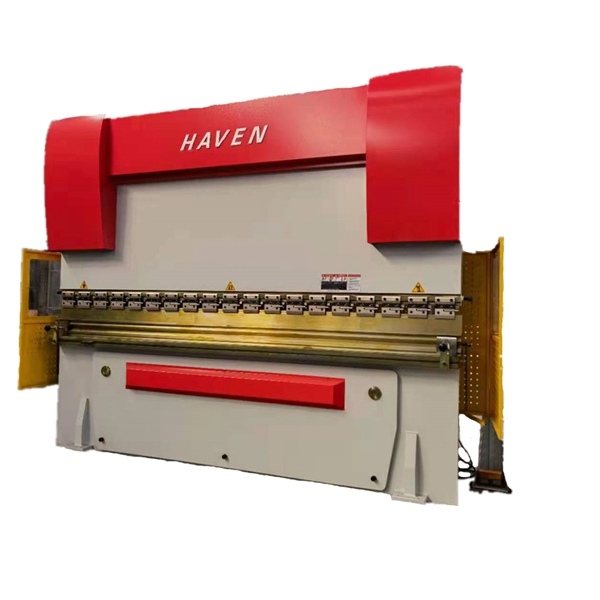

WC67Y Series Hydraulic Press Brake CNC Plate Bending Machine, the whole machine adopts steel plate welding structure, vibration aging eliminates internal stress, the machine has high strength and good rigidity; Hydraulic double cylinder drive, mechanical block, torsion shaft synchronization, smooth and reliable operation, national standard precision;Rear stopper interval and slider stroke adopt electric conditioning and manual fine tuning, and equipped with digital display installation, easy to use;
Product Description
The upper die is equipped with deflection compensation device;WC67Y machine options appeared special digital system E21, E200, etc., have appeared after block and slider position digital, X/Y axis soft limit, one way to tip clearance function, after the block and the slide block with encoder, appeared with digital system makes the block and the slide block after location value accurately, thus further progress work precision of the machine.
High-precision control system: CNC plate bending machine adopts advanced CNC system, supports multi-axis control and precise angle adjustment, ensuring the accuracy and consistency of each bending angle.

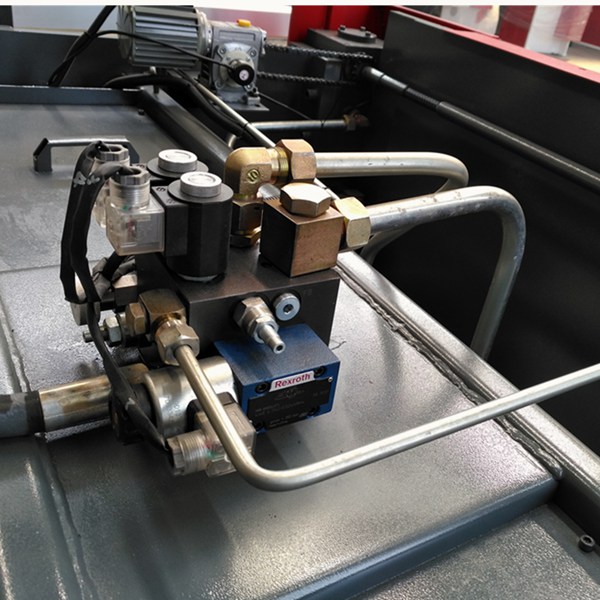

Powerful bending ability: Equipped with high-performance hydraulic system and high-rigidity mechanical structure, CNC plate bending machine can handle plates of various thicknesses and materials, providing strong bending force and stable working performance.
Intelligent operation interface: CNC plate bending machine is equipped with intuitive touch screen operation interface and intelligent control software, users can easily set and adjust bending parameters, improve the convenience and efficiency of operation.
Versatile design: Supporting multiple bending modes and custom programming, CNC plate bending machine is suitable for various complex bending tasks to meet the needs of different industries and applications.
High efficiency and energy saving: Adopting advanced hydraulic control technology and high-efficiency motor system, it reduces energy consumption, improves work efficiency, and reduces operation and maintenance costs.
Products Specification
Model No. | NormalPressure(KN) | Length Of table(mm) | DistanceBetween Housing(mm) | Stroke(mm) | Throat Depth (mm) | Motor Power(Kw) |
WC67Y/K-40/2000 | 400 | 2000 | 1590 | 100 | 200 | 5.5 |
WC67Y/K-40/2200 | 400 | 2200 | 1590 | 100 | 200 | 5.5 |
WC67Y/K-40/2500 | 400 | 2500 | 2090 | 100 | 200 | 5.5 |
WC67Y/K-50/2500 | 500 | 2500 | 1901 | 120 | 250 | 5.5 |
WC67Y/K-50/3200 | 500 | 3200 | 2600 | 120 | 250 | 5.5 |
WC67Y/K-63/2500 | 630 | 2500 | 2050 | 100 | 250 | 5.5 |
WC67Y/K-63/3200 | 630 | 3200 | 2600 | 100 | 250 | 5.5 |
WC67Y/K-80/3200 | 800 | 3200 | 2600 | 120 | 320 | 7.5 |
WC67Y/K-80/4000 | 800 | 4000 | 3200 | 120 | 320 | 7.5 |
WC67Y/K-100/2500 | 1000 | 2500 | 1900 | 120 | 320 | 7.5 |
WC67Y/K-100/3200 | 1000 | 3200 | 2600 | 120 | 320 | 7.5 |
WC67Y/K-100/4000 | 1000 | 4000 | 3200 | 120 | 320 | 7.5 |
WC67Y/K-100/5000 | 1000 | 5000 | 4000 | 120 | 320 | 7.5 |
WC67Y/K-125/2500 | 1250 | 2500 | 2050 | 120 | 320 | 7.5 |
WC67Y/K-125/3200 | 1250 | 3200 | 2600 | 120 | 320 | 7.5 |
WC67Y/K-125/4000 | 1250 | 4000 | 3200 | 120 | 320 | 7.5 |
WC67Y/K-125/5000 | 1250 | 5000 | 4000 | 120 | 320 | 7.5 |
WC67Y/K-160/3200 | 1600 | 3200 | 2600 | 200 | 320 | 11 |
WC67Y/K-160/4000 | 1600 | 4000 | 3200 | 200 | 320 | 11 |
WC67Y/K-160/5000 | 1600 | 5000 | 4000 | 200 | 320 | 11 |
WC67Y/K-160/6000 | 1600 | 6000 | 4900 | 200 | 320 | 11 |
WC67Y/K-200/3200 | 2000 | 3200 | 2600 | 200 | 320 | 15 |
WC67Y/K-200/4000 | 2000 | 4000 | 3200 | 200 | 320 | 15 |
WC67Y/K-200/5000 | 2000 | 5000 | 4000 | 200 | 320 | 15 |
WC67Y/K-200/6000 | 2000 | 6000 | 4800 | 200 | 320 | 15 |
WC67Y/K-250/3200 | 2500 | 3200 | 2600 | 200 | 400 | 18.5 |
WC67Y/K-250/4000 | 2500 | 4000 | 3200 | 250 | 400 | 18.5 |
WC67Y/K-250/5000 | 2500 | 5000 | 4000 | 250 | 400 | 18.5 |
WC67Y/K-250/6000 | 2500 | 6000 | 4800 | 250 | 400 | 18.5 |
WC67Y/K-300/3200 | 3000 | 3200 | 2600 | 250 | 400 | 22 |
WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 250 | 400 | 22 |
WC67Y/K-300/5000 | 3000 | 5000 | 4000 | 250 | 400 | 22 |
WC67Y/K-300/6000 | 3000 | 6000 | 4800 | 250 | 400 | 22 |
WC67Y/K-400/4000 | 4000 | 4000 | 3200 | 320 | 400 | 22 |
WC67Y/K-400/5000 | 4000 | 5000 | 4000 | 320 | 400 | 22 |
WC67Y/K-400/6000 | 4000 | 6000 | 4800 | 320 | 400 | 22 |
WC67Y/K-500/6000 | 5000 | 6000 | 4800 | 320 | 400 | 37 |
WC67Y/K-600/7000 | 6000 | 7000 | 5600 | 320 | 400 | 37 |
WC67Y/K-700/7000 | 7000 | 7000 | 5600 | 320 | 400 | 45 |
WC67Y/K-800/6000 | 8000 | 6000 | 4800 | 400 | 500 | 55 |
WC67Y/K-1000/6000 | 10000 | 6000 | 4800 | 400 | 600 | 75 |
Choose our CNC plate bending machine, you will get efficient and precise plate bending solutions, improve production efficiency and product quality. Contact us now to learn more and get professional technical support and solutions!
