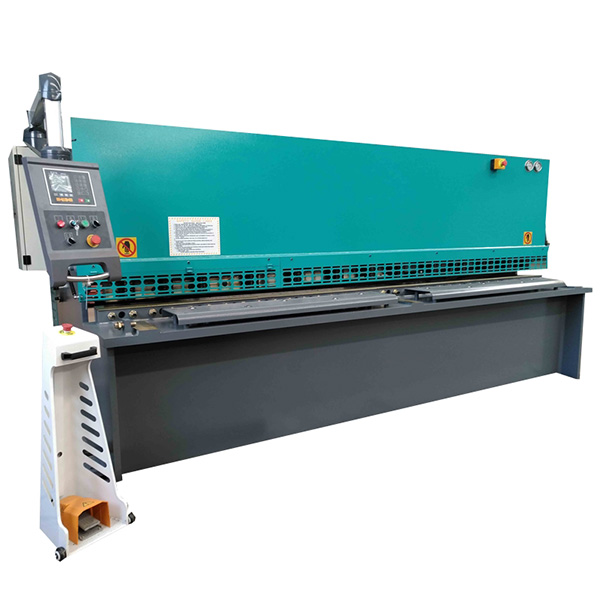

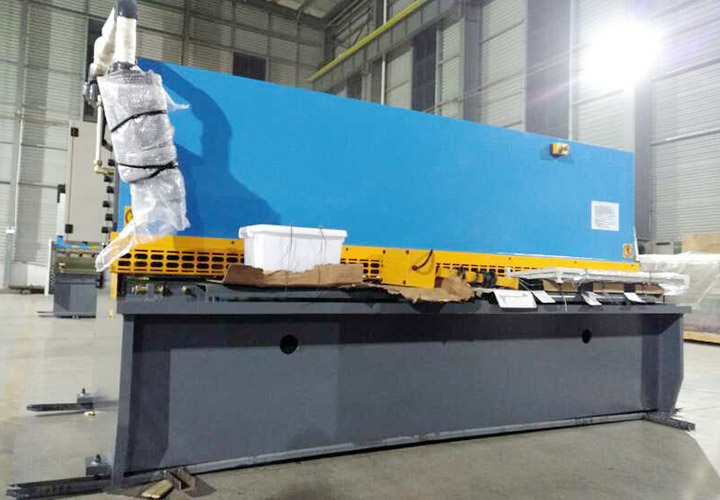

Steel Plate Bend And Cutting Machine QC11K-20x3200

Shearing machine
The frame structure of the shearing machine adopts all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision, good rigidity and hydraulic preloading. The hydraulic system adopts two-way plug-in integrated valve, and can be equipped with stroke digital display, photoelectric protection device and mobile workbench. The shearing machine has double-action function of upper slider and lower hydraulic pad, and the working pressure stroke can be pressed within the specified range. The process requires adjustment, and the operation is simple and centralized using buttons.

Inquire Now Next Product

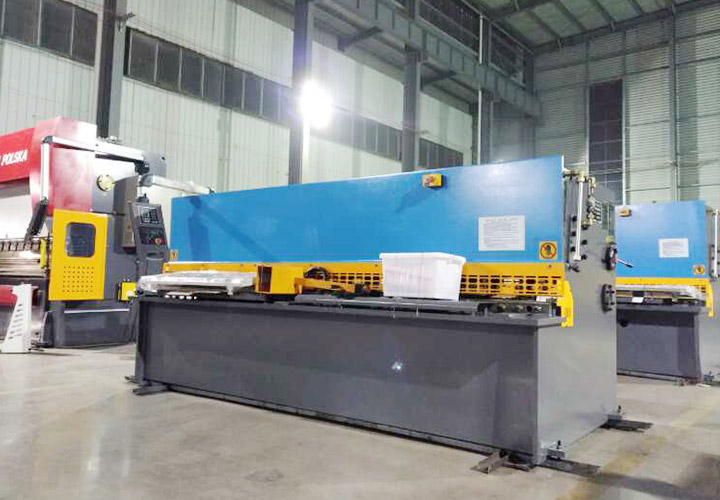

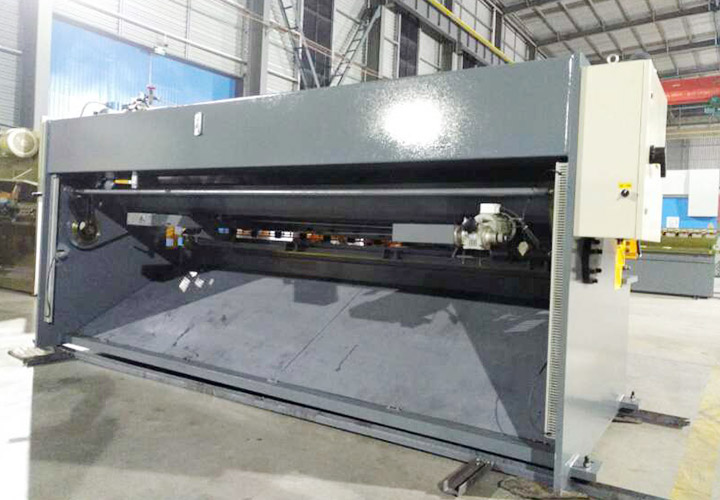

Product Description

1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).

Shearing machine performance characteristics

1. The shearing machine adopts the overall welded frame structure and is subjected to vibration aging treatment. The machine tool has good rigidity, high precision and good precision retention.
2. The shearing machine adopts a three-point support shaft rolling guide rail. The upper tool holder performs rolling without gaps between the rolling guide rails, and the handwheel can be rotated to adjust the service life of the blade.
3. Movable blade support and four-blade long blade, easy to adjust the blade gap uniformity, improve the cutting quality and extend the blade life.
4. The shearing machine adopts the serial type cylinder synchronous system. The machine is evenly stressed. By adjusting the flow of the series cylinder, the shear angle can be easily adjusted to meet the needs of different shearing plates.
5. The shearing machine adopts a motorized back gauge device and an electronic counter to facilitate adjustment of the position of the back gauge.

Standard Accessories

1. E21S-Estun: digital monitor to display the position of the back gauge
2. REXROTH, Germany hydraulic system
3. SUNNY, USA oil pump with slide-in pipes joints
4. Back gauge is moved with T-screw shaft, guided by rod-shaft and driven by AC motor
5. Motorized adjustment of blade gap and shearing angle
6. Hydraulic hold downs with sequential operation
7. Moveable foot switch
8. Finger guard
9. Interchangeable blades with four cutting edges
10. One set of standard blade (upper and lower) materials is 6CrW2Si
11. Front support arms with length 1000mm (at least 3pcs)
12. Ball worktable ,reduce the contact between sheet plate and machine work table
13. Often-used internal hexagonal key spanner for adjusting blades
14. Comprehensive instruction & maintenance manual

Optional Accessories

1. DAC360, Netherlands CNC controller
2. Backgauge with ball screw and linear guideway, drive by AC Servo motor
3. Automatic cutting angle and blade gap
4. 6CrW2Si blade changed to Cr12MoV blade (for cutting stainless steel)
5. Pneumatic out table device for cutting piece falling smooth.

Products Specification

Main Specification and Feature

Type	Cutting Thickness (mm)	Cutting Width (mm)	Stroke Number (/min)	Travel of Back gauge (mm)	Shearing Angle (0)	Working table height (mm)	Power ofMain motor (kw)
QC11Y/K-6x2500	6	2500	8-16	20-600	0.5-1.5	800	7.5
QC11Y/K-6x3200	6	3200	8-16	20-600	0.5-1.5	800	7.5
QC11Y/K-6x4000	6	4000	8-16	20-600	0.5-1.5	800	7.5
QC11Y/K-6x5000	6	5000	8-16	20-800	0.5-1.5	900	11
QC11Y/K-6x6000	6	6000	8-16	20-800	0.5-1.5	1000	11
QC11Y/K-8x2500	8	2500	8-16	20-600	0.5-1.75	800	11
QC11Y/K-8x3200	8	3200	8-16	20-600	0.5-1.75	850	11
QC11Y/K-8x4000	8	4000	8-16	20-600	0.5-1.75	900	11
QC11Y/K-8x5000	8	5000	8-16	20-800	0.5-2.0	1000	15
QC11Y/K-8x6000	8	6000	8-16	20-800	0.5-2.0	1050	15
QC11Y/K-10x2500	10	2500	8-16	20-600	0.5-2.5	800	11
QC11Y/K-10x3200	10	3200	8-16	20-600	0.5-2.5	800	11
QC11Y/K-10x4000	10	4000	8-16	20-600	0.5-2.5	900	15
QC11Y/K-10x5000	10	5000	8-12	20-600	0.5-2.5	1000	15
QC11Y/K-12x2500	12	2500	8-12	20-800	0.5-2.0	840	15
QC11Y/K-12x3200	12	3200	8-12	20-800	0.5-2.0	900	15
QC11Y/K--12x4000	12	4000	8-12	20-800	0.5-2.0	940	15
QC11Y/K-12x5000	12	5000	8-12	20-1000	0.5-2.0	1000	22
QC11Y/K-12x6000	12	6000	8-12	20-1000	0.5-2.0	1060	30
QC11Y/K-16x2500	16	2500	8-12	20-800	0.5-2.5	840	22
QC11Y/K-16x3200	16	3200	7-10	20-800	0.5-2.5	900	22
QC11Y/K-16x4000	16	4000	7-10	20-800	0.5-2.5	940	22
QC11Y/K-16x5000	16	5000	7-10	20-1000	0.5-2.5	1000	30
QC11Y/K-16x6000	16	6000	7-10	20-1000	0.5-2.5	1100	37
QC11Y/K-20x2500	20	2500	7-10	20-800	1.5-3.0	900	30
QC11Y/K-20x3200	20	3200	6-10	20-800	1.5-3.0	950	30
QC11Y/K-20x4000	20	4000	6-10	20-800	1.5-3.0	1100	30
QC11Y/K-20x5000	20	5000	6-10	20-1000	1.5-3.0	1100	37
QC11Y/K-20x6000	20	6000	6-9	20-1000	1.5-3.0	1200	37
QC11Y/K-25x2500	25	2500	6-9	20-800	1.5-3.5	900	37
QC11Y/K-25x3200	25	3200	6-9	20-800	1.5-3.5	950	37
QC11Y/K-25x4000	25	4000	6-8	20-1000	1.5-3.5	1100	37
QC11Y/K-32x2500	32	2500	6-8	20-1000	1.5-4.0	1000	55
QC11Y/K-32x3200	32	3200	6-8	20-1000	1.5-4.0	1100	55
QC11Y/K-40x2500	40	2500	4-6	20-1000	1.5-4.0	1200	55
QC11Y/K-40x3200	40	3200	4-6	20-1000	1.5-4.0	1200	55
