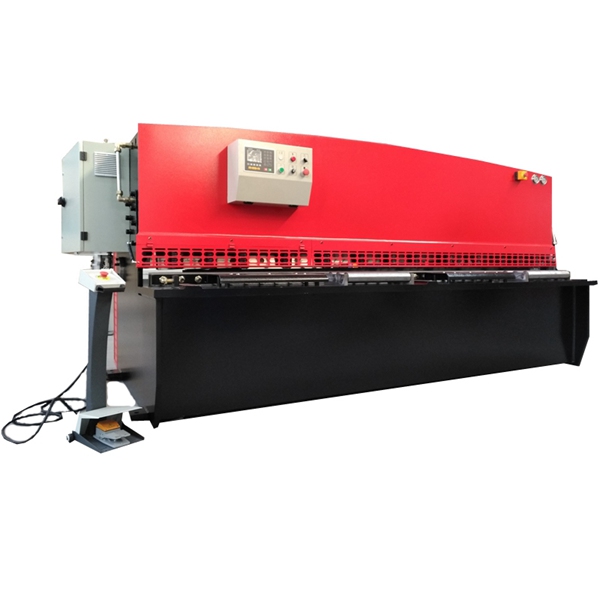

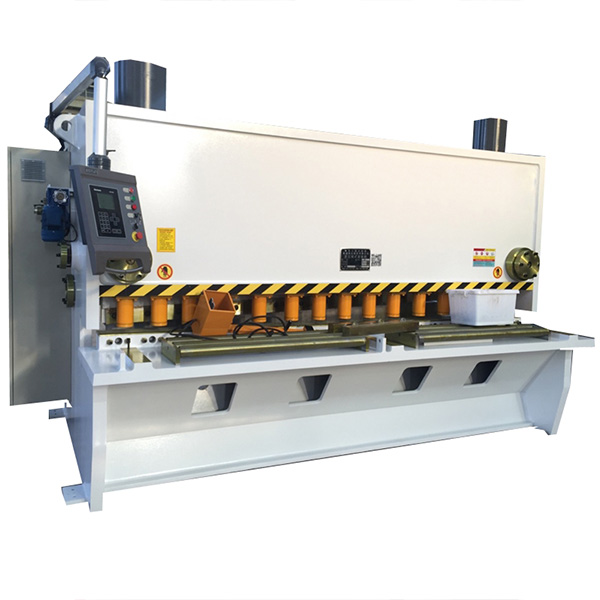

Steel Plate Bend And Cutting Machine QC11K-20x3200

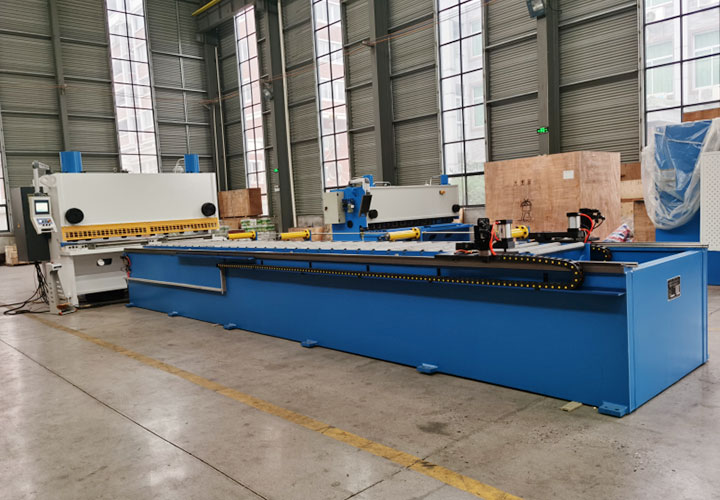

Shearing machine
The frame structure of the shearing machine adopts all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision, good rigidity and hydraulic preloading. The hydraulic system adopts two-way plug-in integrated valve, and can be equipped with stroke digital display, photoelectric protection device and mobile workbench. The shearing machine has double-action function of upper slider and lower hydraulic pad, and the working pressure stroke can be pressed within the specified range. The process requires adjustment, and the operation is simple and centralized using buttons.

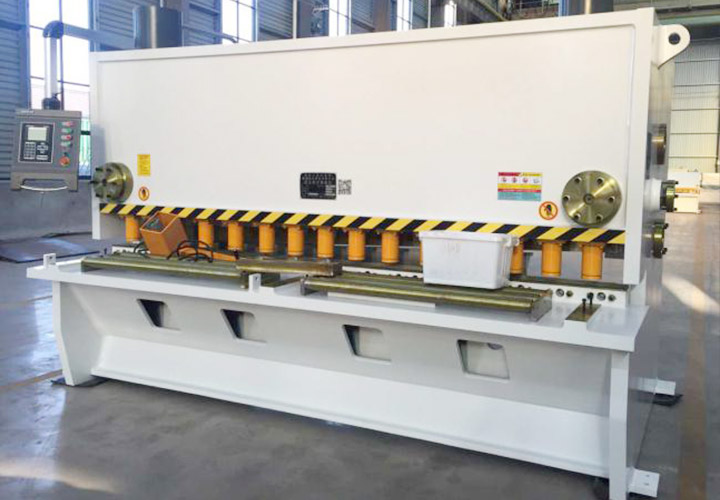

Product Description

1.The second generation of shear.
 2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
 3.Advanced integrated hydraulic system with and excellent reliabitity quality.
 4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
 5.The adjustable rake angle can minimize plate deformation.
 6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
 7.Shearing in sections,shadow-line cutting.
 8.Counter for the motorized back gauge.
 9.Back support device (optional).

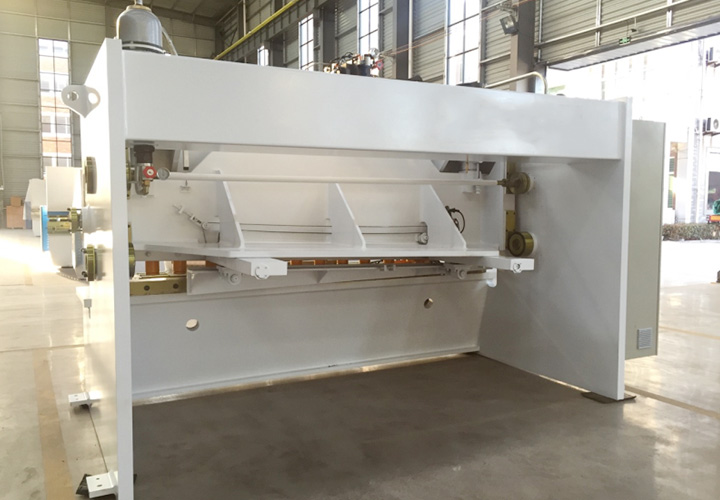

Shearing machine performance characteristics

Shearing machine performance characteristics

1. The shearing machine adopts the overall welded frame structure and is subjected to vibration aging treatment. The machine tool has good rigidity, high precision and good precision retention.
2. The shearing machine adopts a three-point support shaft rolling guide rail. The upper tool holder performs rolling without gaps between the rolling guide rails, and the handwheel can be rotated to adjust the service life of the blade.
3. Movable blade support and four-blade long blade, easy to adjust the blade gap uniformity, improve the cutting quality and extend the blade life.
4. The shearing machine adopts the serial type cylinder synchronous system. The machine is evenly stressed. By adjusting the flow of the series cylinder, the shear angle can be easily adjusted to meet the needs of different shearing plates.
5. The shearing machine adopts a motorized back gauge device and an electronic counter to facilitate adjustment of the position of the back gauge.

Standard Accessories

Standard Accessories

1. E21S-Estun: digital monitor to display the position of the back gauge
2. REXROTH, Germany hydraulic system
3. SUNNY, USA oil pump with slide-in pipes joints
4. Back gauge is moved with T-screw shaft, guided by rod-shaft and driven by AC motor
5. Motorized adjustment of blade gap and shearing angle
6. Hydraulic hold downs with sequential operation
7. Moveable foot switch
8. Finger guard
9. Interchangeable blades with four cutting edges
10. One set of standard blade (upper and lower) materials is 6CrW2Si
11. Front support arms with length 1000mm (at least 3pcs)
12. Ball worktable ,reduce the contact between sheet plate and machine work table
13. Often-used internal hexagonal key spanner for adjusting blades
14. Comprehensive instruction & maintenance manual

Optional Accessories

Optional Accessories

1. DAC360, Netherlands CNC controller
2. Backgauge with ball screw and linear guideway ,drive by AC Servo motor
3. Automatic cutting angle and blade gap
4. 6CrW2Si blade changed to Cr12MoV blade (for cutting stainless steel)
5. Pneumatic out table device for cutting piece falling smooth.

Products Specification

Main Specification and Feature

TypeCutting Thickness (mm)Cutting Width (mm)Stroke Number (/min)Travel of Back gauge (mm)Shearing Angle (0)Working table height (mm)Power ofMain motor (kw)
QC11Y/K-6x2500625008-1620-6000.5-1.58007.5
QC11Y/K-6x3200632008-1620-6000.5-1.58007.5
QC11Y/K-6x4000640008-1620-6000.5-1.58007.5
QC11Y/K-6x5000650008-1620-8000.5-1.590011
QC11Y/K-6x6000660008-1620-8000.5-1.5100011
QC11Y/K-8x2500825008-1620-6000.5-1.7580011
QC11Y/K-8x3200832008-1620-6000.5-1.7585011
QC11Y/K-8x4000840008-1620-6000.5-1.7590011
QC11Y/K-8x5000850008-1620-8000.5-2.0100015
QC11Y/K-8x6000860008-1620-8000.5-2.0105015
QC11Y/K-10x25001025008-1620-6000.5-2.580011
QC11Y/K-10x32001032008-1620-6000.5-2.580011
QC11Y/K-10x40001040008-1620-6000.5-2.590015
QC11Y/K-10x50001050008-1220-6000.5-2.5100015
QC11Y/K-12x25001225008-1220-8000.5-2.084015
QC11Y/K-12x32001232008-1220-8000.5-2.090015
QC11Y/K--12x40001240008-1220-8000.5-2.094015
QC11Y/K-12x50001250008-1220-10000.5-2.0100022
QC11Y/K-12x60001260008-1220-10000.5-2.0106030
QC11Y/K-16x25001625008-1220-8000.5-2.584022
QC11Y/K-16x32001632007-1020-8000.5-2.590022
QC11Y/K-16x40001640007-1020-8000.5-2.594022
QC11Y/K-16x50001650007-1020-10000.5-2.5100030
QC11Y/K-16x60001660007-1020-10000.5-2.5110037
QC11Y/K-20x25002025007-1020-8001.5-3.090030
QC11Y/K-20x32002032006-1020-8001.5-3.095030
QC11Y/K-20x40002040006-1020-8001.5-3.0110030
QC11Y/K-20x50002050006-1020-10001.5-3.0110037
QC11Y/K-20x60002060006-920-10001.5-3.0120037
QC11Y/K-25x25002525006-920-8001.5-3.590037
QC11Y/K-25x32002532006-920-8001.5-3.595037
QC11Y/K-25x40002540006-820-10001.5-3.5110037
QC11Y/K-32x25003225006-820-10001.5-4.0100055
QC11Y/K-32x32003232006-820-10001.5-4.0110055
QC11Y/K-40x25004025004-620-10001.5-4.0120055
QC11Y/K-40x32004032004-620-10001.5-4.0120055
