Hydraulic Shearing Machine
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).
Product Description
Character of Hydraulic Guillotine Shearing Machine For Sheet Metal Plate
1.The whole machine adopts full steel welding structure, vibration eliminate stress, has the very good rigidity and stability
2. Adopts advanced hydraulic integrated manifold, compact structure, reduce the pipeline connection, improve the reliability of system and easy maintainability
3. Frame and cutting beam offer maximum rigidity and resistance to deflection and tensional force for accurate shearing of mild steel up to 40mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life.
4. Advanced integrated hydraulic system with excellent reliability quality.
5. Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
6. The shear angle does not change when the tandem cylinder is sheared and adjustable rake angle can minimize plate deformation.
7. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also guaranteed.

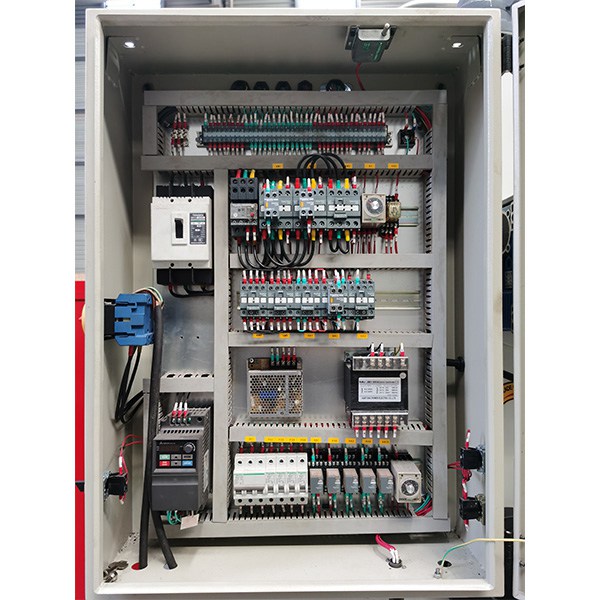

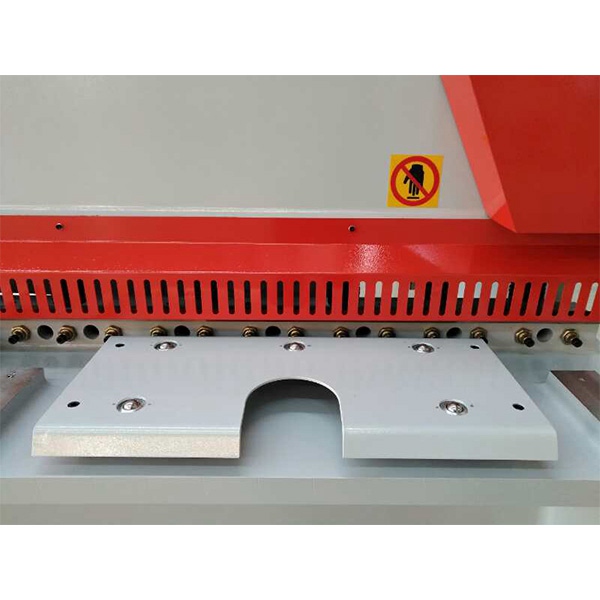

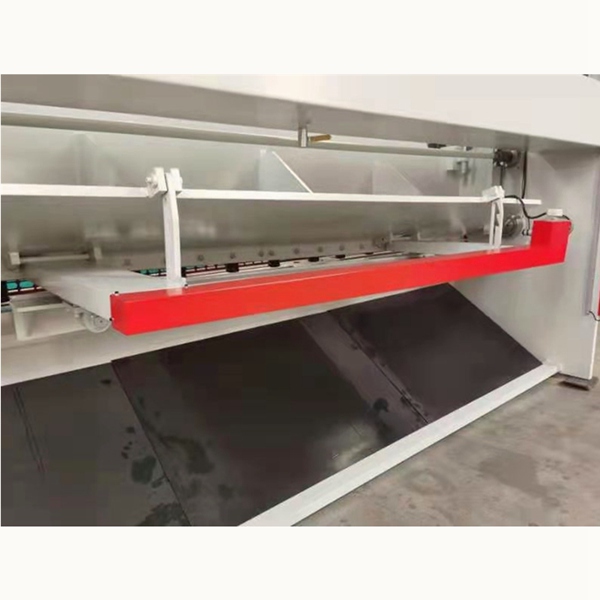

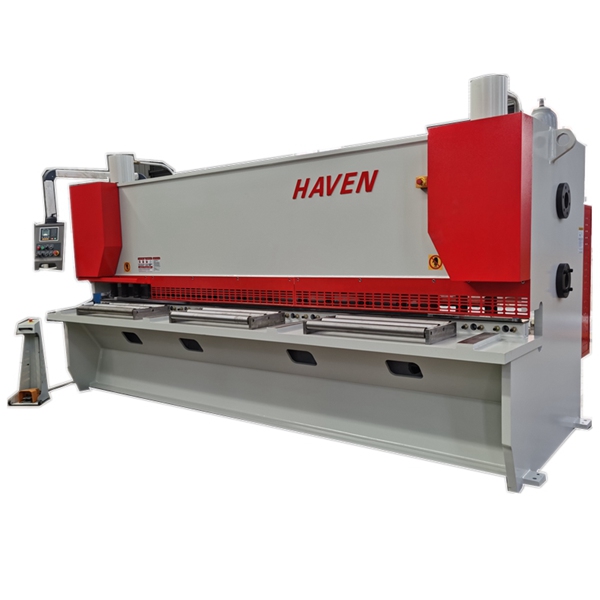

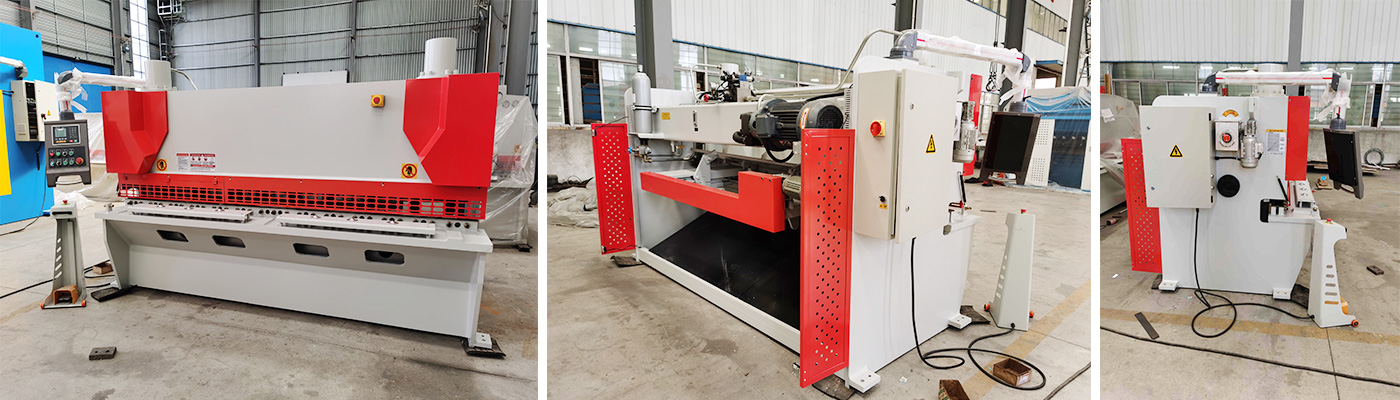

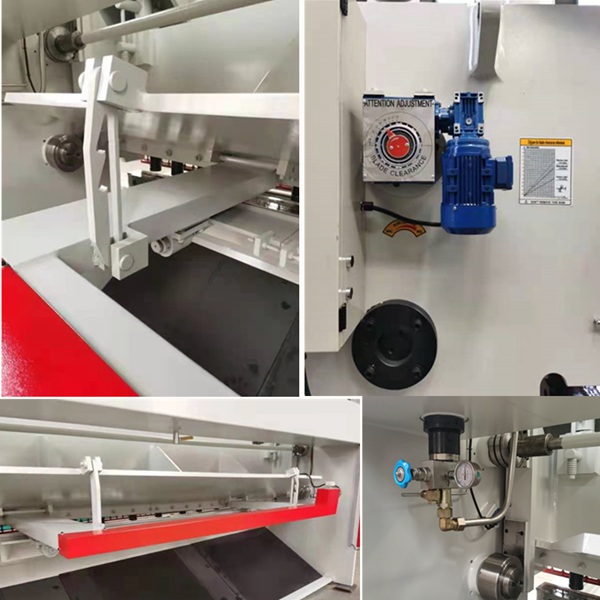

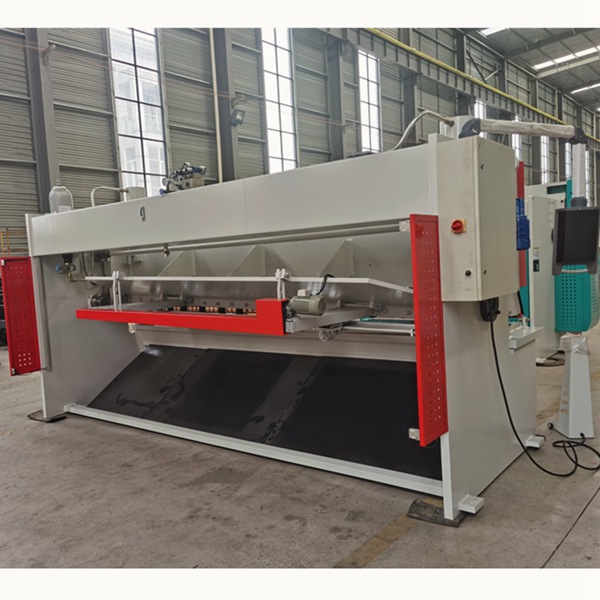

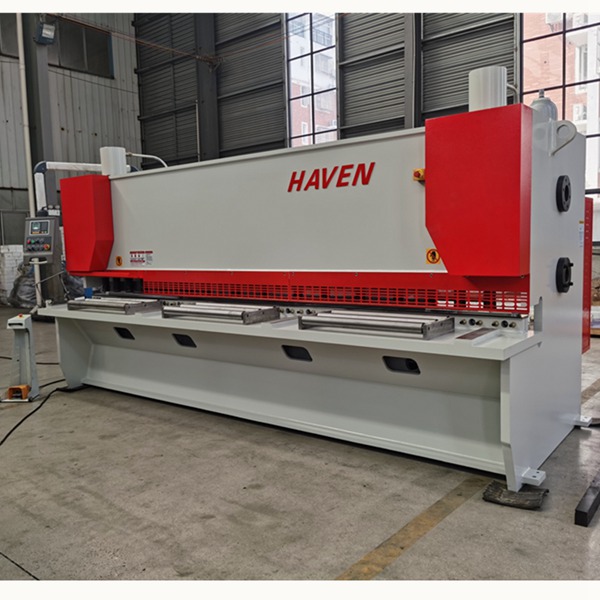

Machine reference photos:
Products Specification
Main Specification and Feature
| Type | Cutting Thickness (mm) | Cutting Width (mm) | Stroke Number (/min) | Travel of Back gauge (mm) | Shearing Angle (0) | Working table height (mm) | Power ofMain motor (kw) |
| QC11Y/K-6x2500 | 6 | 2500 | 8-16 | 20-600 | 0.5-1.5 | 800 | 7.5 |
| QC11Y/K-6x3200 | 6 | 3200 | 8-16 | 20-600 | 0.5-1.5 | 800 | 7.5 |
| QC11Y/K-6x4000 | 6 | 4000 | 8-16 | 20-600 | 0.5-1.5 | 800 | 7.5 |
| QC11Y/K-6x5000 | 6 | 5000 | 8-16 | 20-800 | 0.5-1.5 | 900 | 11 |
| QC11Y/K-6x6000 | 6 | 6000 | 8-16 | 20-800 | 0.5-1.5 | 1000 | 11 |
| QC11Y/K-8x2500 | 8 | 2500 | 8-16 | 20-600 | 0.5-1.75 | 800 | 11 |
| QC11Y/K-8x3200 | 8 | 3200 | 8-16 | 20-600 | 0.5-1.75 | 850 | 11 |
| QC11Y/K-8x4000 | 8 | 4000 | 8-16 | 20-600 | 0.5-1.75 | 900 | 11 |
| QC11Y/K-8x5000 | 8 | 5000 | 8-16 | 20-800 | 0.5-2.0 | 1000 | 15 |
| QC11Y/K-8x6000 | 8 | 6000 | 8-16 | 20-800 | 0.5-2.0 | 1050 | 15 |
| QC11Y/K-10x2500 | 10 | 2500 | 8-16 | 20-600 | 0.5-2.5 | 800 | 11 |
| QC11Y/K-10x3200 | 10 | 3200 | 8-16 | 20-600 | 0.5-2.5 | 800 | 11 |
| QC11Y/K-10x4000 | 10 | 4000 | 8-16 | 20-600 | 0.5-2.5 | 900 | 15 |
| QC11Y/K-10x5000 | 10 | 5000 | 8-12 | 20-600 | 0.5-2.5 | 1000 | 15 |
| QC11Y/K-12x2500 | 12 | 2500 | 8-12 | 20-800 | 0.5-2.0 | 840 | 15 |
| QC11Y/K-12x3200 | 12 | 3200 | 8-12 | 20-800 | 0.5-2.0 | 900 | 15 |
| QC11Y/K--12x4000 | 12 | 4000 | 8-12 | 20-800 | 0.5-2.0 | 940 | 15 |
| QC11Y/K-12x5000 | 12 | 5000 | 8-12 | 20-1000 | 0.5-2.0 | 1000 | 22 |
| QC11Y/K-12x6000 | 12 | 6000 | 8-12 | 20-1000 | 0.5-2.0 | 1060 | 30 |
| QC11Y/K-16x2500 | 16 | 2500 | 8-12 | 20-800 | 0.5-2.5 | 840 | 22 |
| QC11Y/K-16x3200 | 16 | 3200 | 7-10 | 20-800 | 0.5-2.5 | 900 | 22 |
| QC11Y/K-16x4000 | 16 | 4000 | 7-10 | 20-800 | 0.5-2.5 | 940 | 22 |
| QC11Y/K-16x5000 | 16 | 5000 | 7-10 | 20-1000 | 0.5-2.5 | 1000 | 30 |
| QC11Y/K-16x6000 | 16 | 6000 | 7-10 | 20-1000 | 0.5-2.5 | 1100 | 37 |
| QC11Y/K-20x2500 | 20 | 2500 | 7-10 | 20-800 | 1.5-3.0 | 900 | 30 |
| QC11Y/K-20x3200 | 20 | 3200 | 6-10 | 20-800 | 1.5-3.0 | 950 | 30 |
| QC11Y/K-20x4000 | 20 | 4000 | 6-10 | 20-800 | 1.5-3.0 | 1100 | 30 |
| QC11Y/K-20x5000 | 20 | 5000 | 6-10 | 20-1000 | 1.5-3.0 | 1100 | 37 |
| QC11Y/K-20x6000 | 20 | 6000 | 6-9 | 20-1000 | 1.5-3.0 | 1200 | 37 |
| QC11Y/K-25x2500 | 25 | 2500 | 6-9 | 20-800 | 1.5-3.5 | 900 | 37 |
| QC11Y/K-25x3200 | 25 | 3200 | 6-9 | 20-800 | 1.5-3.5 | 950 | 37 |
| QC11Y/K-25x4000 | 25 | 4000 | 6-8 | 20-1000 | 1.5-3.5 | 1100 | 37 |
| QC11Y/K-32x2500 | 32 | 2500 | 6-8 | 20-1000 | 1.5-4.0 | 1000 | 55 |
| QC11Y/K-32x3200 | 32 | 3200 | 6-8 | 20-1000 | 1.5-4.0 | 1100 | 55 |
| QC11Y/K-40x2500 | 40 | 2500 | 4-6 | 20-1000 | 1.5-4.0 | 1200 | 55 |
| QC11Y/K-40x3200 | 40 | 3200 | 4-6 | 20-1000 | 1.5-4.0 | 1200 | 55 |
