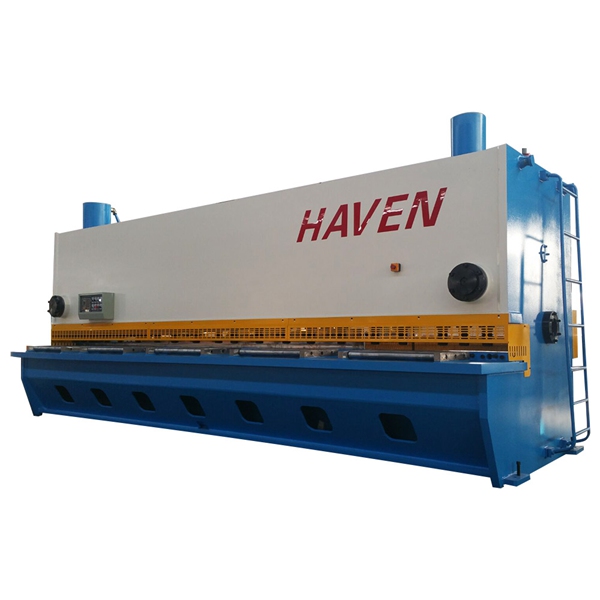

Hydraulic NC Metal Sheet Guillotine Shearing Machine

Main features of Hydraulic Shearing Machine:
The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.

Inquire Now Next Product

Product Description

1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).

Products Specification

Main Specification and Feature

Type	Cutting Thickness (mm)	Cutting Width (mm)	Stroke Number (/min)	Travel of Back gauge (mm)	Shearing Angle (0)	Working table height (mm)	Power of Main motor (kw)
QC11Y/K-6x2500	6	2500	8-16	20-600	0.5-1.5	800	7.5
QC11Y/K-6x3200	6	3200	8-16	20-600	0.5-1.5	800	7.5
QC11Y/K-6x4000	6	4000	8-16	20-600	0.5-1.5	800	7.5
QC11Y/K-6x5000	6	5000	8-16	20-800	0.5-1.5	900	11
QC11Y/K-6x6000	6	6000	8-16	20-800	0.5-1.5	1000	11
QC11Y/K-8x2500	8	2500	8-16	20-600	0.5-1.75	800	11
QC11Y/K-8x3200	8	3200	8-16	20-600	0.5-1.75	850	11
QC11Y/K-8x4000	8	4000	8-16	20-600	0.5-1.75	900	11
QC11Y/K-8x5000	8	5000	8-16	20-800	0.5-2.0	1000	15
QC11Y/K-8x6000	8	6000	8-16	20-800	0.5-2.0	1050	15
QC11Y/K-10x2500	10	2500	8-16	20-600	0.5-2.5	800	11
QC11Y/K-10x3200	10	3200	8-16	20-600	0.5-2.5	800	11
QC11Y/K-10x4000	10	4000	8-16	20-600	0.5-2.5	900	15
QC11Y/K-10x5000	10	5000	8-12	20-600	0.5-2.5	1000	15
QC11Y/K-12x2500	12	2500	8-12	20-800	0.5-2.0	840	15
QC11Y/K-12x3200	12	3200	8-12	20-800	0.5-2.0	900	15
QC11Y/K--12x4000	12	4000	8-12	20-800	0.5-2.0	940	15
QC11Y/K-12x5000	12	5000	8-12	20-1000	0.5-2.0	1000	22
QC11Y/K-12x6000	12	6000	8-12	20-1000	0.5-2.0	1060	30
QC11Y/K-16x2500	16	2500	8-12	20-800	0.5-2.5	840	22

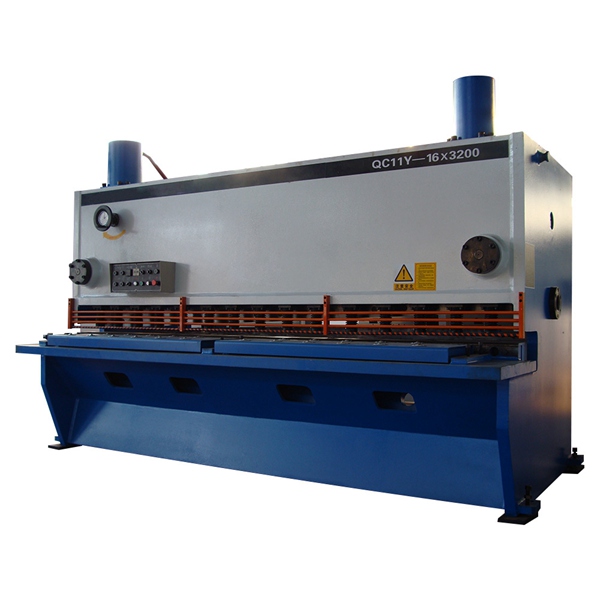

QC11Y/K-16x3200	16	3200	7-10	20-800	0.5-2.5	900	22
QC11Y/K-16x4000	16	4000	7-10	20-800	0.5-2.5	940	22
QC11Y/K-16x5000	16	5000	7-10	20-1000	0.5-2.5	1000	30
QC11Y/K-16x6000	16	6000	7-10	20-1000	0.5-2.5	1100	37
QC11Y/K-20x2500	20	2500	7-10	20-800	1.5-3.0	900	30
QC11Y/K-20x3200	20	3200	6-10	20-800	1.5-3.0	950	30
QC11Y/K-20x4000	20	4000	6-10	20-800	1.5-3.0	1100	30
QC11Y/K-20x5000	20	5000	6-10	20-1000	1.5-3.0	1100	37
QC11Y/K-20x6000	20	6000	6-9	20-1000	1.5-3.0	1200	37
QC11Y/K-25x2500	25	2500	6-9	20-800	1.5-3.5	900	37
QC11Y/K-25x3200	25	3200	6-9	20-800	1.5-3.5	950	37
QC11Y/K-25x4000	25	4000	6-8	20-1000	1.5-3.5	1100	37
QC11Y/K-32x2500	32	2500	6-8	20-1000	1.5-4.0	1000	55
QC11Y/K-32x3200	32	3200	6-8	20-1000	1.5-4.0	1100	55
QC11Y/K-40x2500	40	2500	4-6	20-1000	1.5-4.0	1200	55
QC11Y/K-40x3200	40	3200	4-6	20-1000	1.5-4.0	1200	55

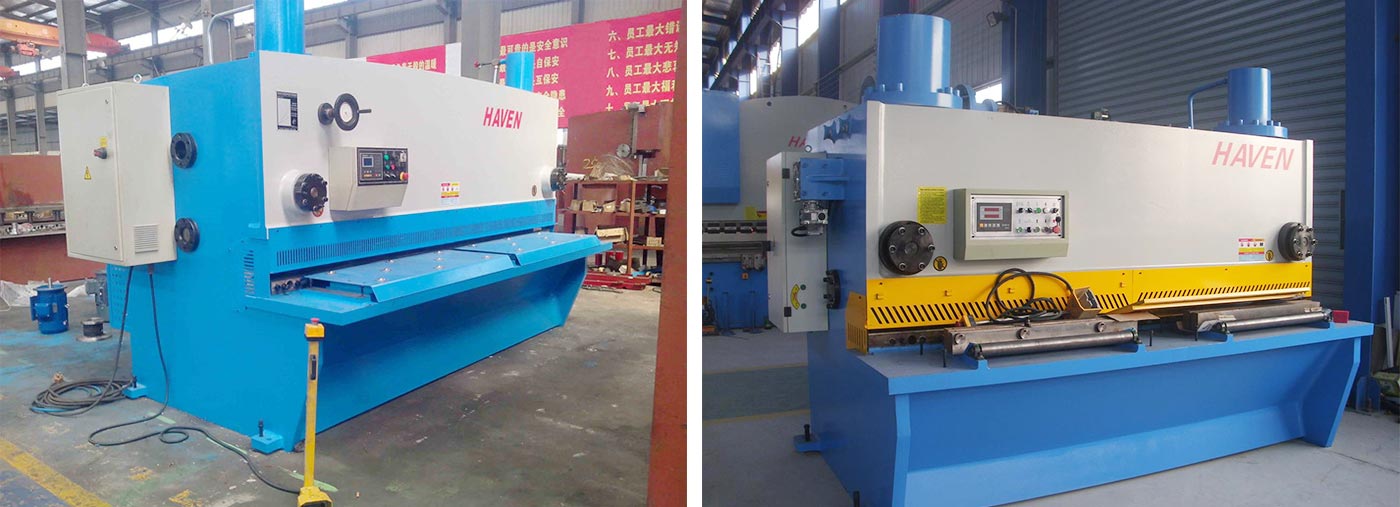

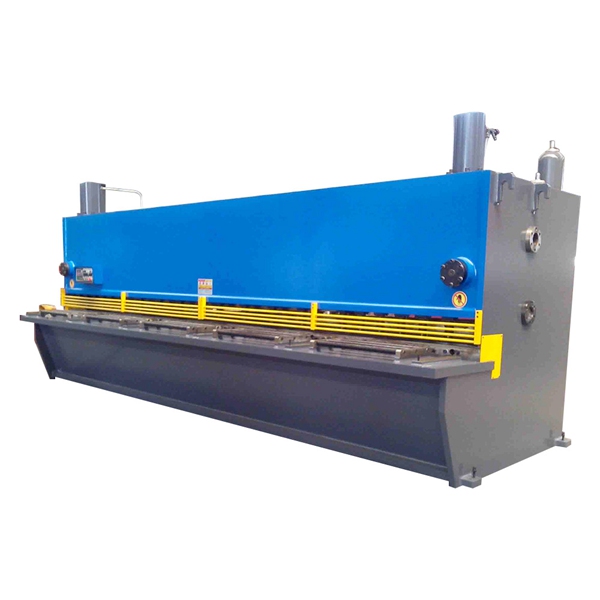

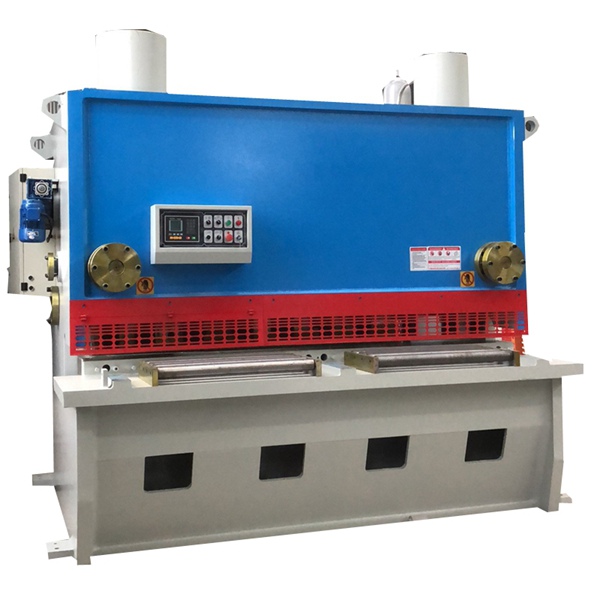

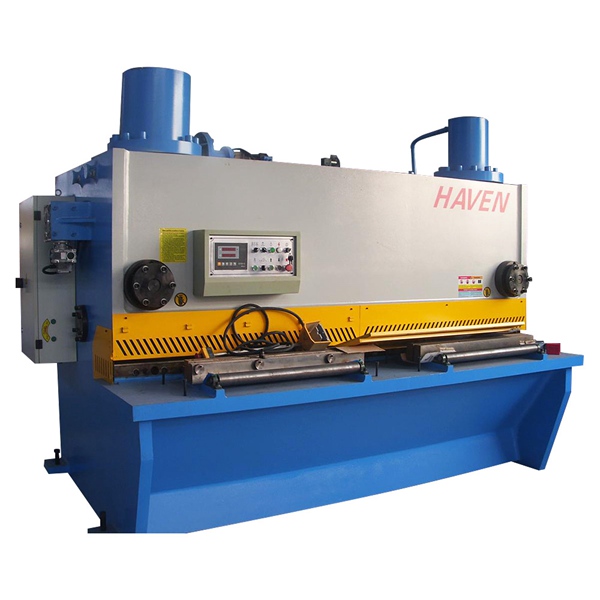

Machine reference photos:

Hydraulic NC Metal Sheet Guillotine Shearing Machine
