Fiber laser Sheet Metal cutting machine LF3015GA

Fiber laser Sheet Metal cutting machine LF3015GA


Fiber laser cutting machine is used in sheet metal processing, advertising sign production, cabinet electrical cabinets, mechanical parts, kitchenware, sanitary ware, auto parts, machinery manufacturing, metal crafts, saw blades, electrical parts, glasses industry, spring sheets, circuit boards, electrical Kettles, medical microelectronics, hardware, doors and windows and other industries.

Product Description

The advantages of CNC fiber laser cutting machine:

1. Extremely high cutting speed: twice as much as the Co2 laser cutting machine with the same power, and at the same time meeting the cutting requirements of plate and pipe

2. Extremely high stability: The service life of key components can reach 100,000 hours, which greatly saves costs;

3. Extremely low use cost: The power consumption of the whole machine is only 20% -30% of the similar CO2 laser cutting machine;

4. extremely low maintenance costs: fiber optic transmission, no need for reflective lenses, saving a lot of maintenance costs;

5. The product is easy to operate and maintain, with optical fiber transmission,no need to adjust the circuit

Main Configuration:

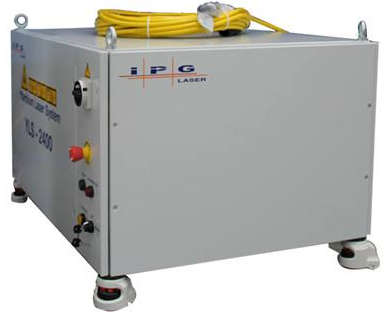

* Fiber laser source

Details:100000 hours life time,more stable,

cost-efficient,free maintenance.

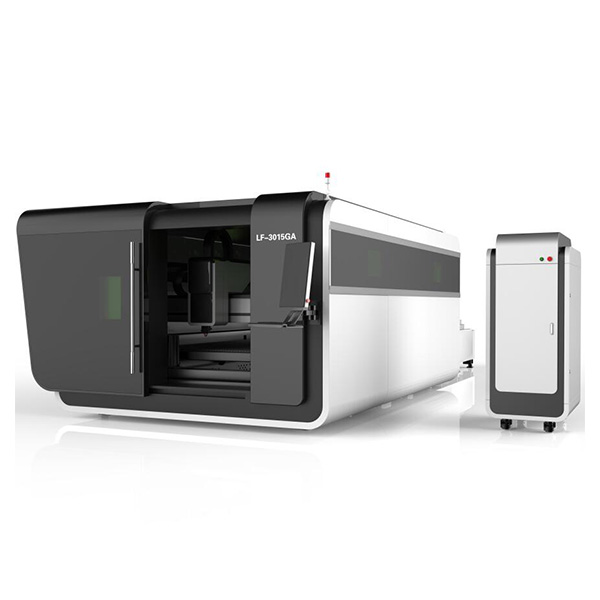

Fiber laser cutting machine LF3015GA

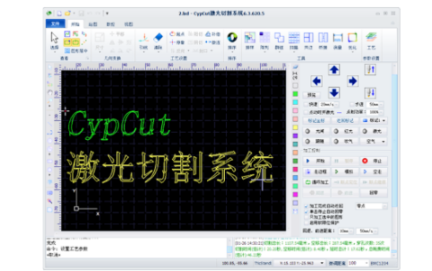

* Control System- CYPCUT

Auto edge seeking function, flying cutting function and nesting function.

Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...More flexible to operate---after finishing making design by drawing software such as Solidworks, CAD, Then operator can put the design into CYPCUT control system for cutting directly and no need any programming, and transfer to code.

Fiber laser cutting machine LF3015GA

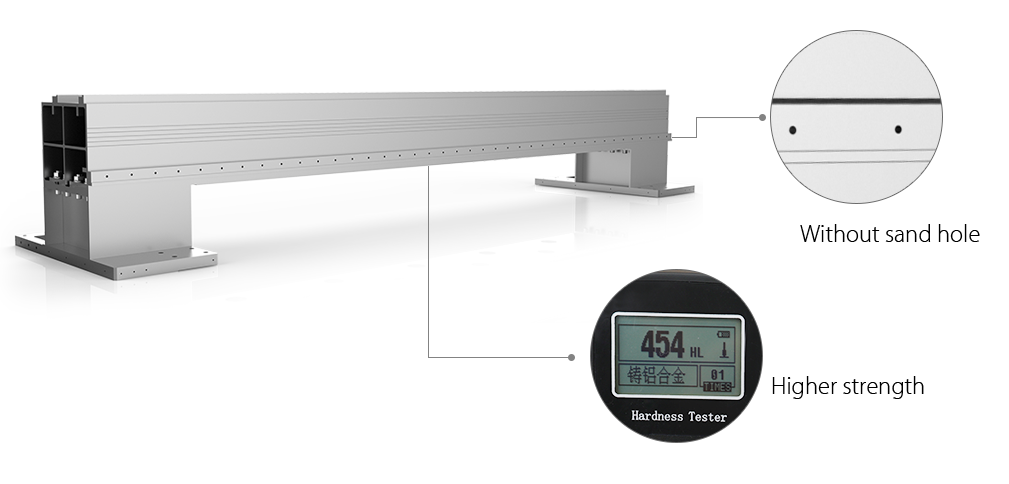

* Aviation Aluminum Gantry

* It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

* Advantages: Good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

* Comparison:

--Steel Gantry: 280kg;

--Cast aluminum Gantry: 180kg;

--Aviation aluminum Gantry: 138kg.

With a light weight, it will greatly increase the processing speed.

Fiber laser cutting machine LF3015GA

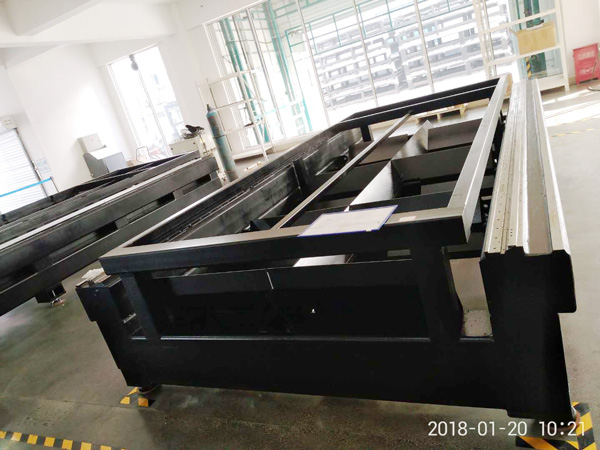

* The Segmented Rectangular Tube Welded Bed

*Structure advantage:

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

* For material : Through 600℃ heat treatment to keep stronger and more solid

* Feature: High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular sheet wall is 18mm and weights 9000kg.

Fiber laser cutting machine LF3015GA

WIFI Remote Control System

By this function, we could remote control your computer and machine to guide you install/operate or find/solve problem once you meet difficulty in several min.

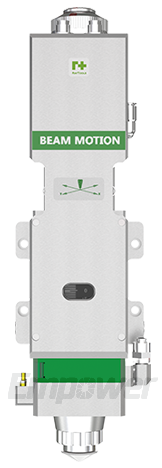

Laser Head:

* Brand: Swiss Raytools auto-focus laser head

* Advantages:

--High Presicion: Without manuel, zero fault.

--High Effectiveness: Without manuel,Save time

--High Safty: Anti-collision design, height adjustment high sensitivity

Fiber laser cutting machine LF3015GA

Gear and Rack - Taiwan YYC

* High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.

Servo Motor-Japan YASKAWA

* Y axis: two sets 1.8kw Japan YASKAWA servo motor and driver.

* X axis: one set 850w Japan YASKAWA servo motor and driver.

* Z axis: one set 750w Japan PANASONIC servo motor and driver.

Higher power of motor and drive makes higher moving speed for laser head.

Reducer - France Motor Reducer

Effectively decrease the speed of beam, make cutting and machine more stable to keep machine life long work.

Electronic Components - France SCHNEIDER

* Circuit protection against short-circuit currents, Circuit protection against overload currents,Breaking and industrial disconnection as per standards IEC/EN 60947-2.
* Overvoltage resistance, High performance limitation to fast closing independent of the speed of actuation of the toggle.

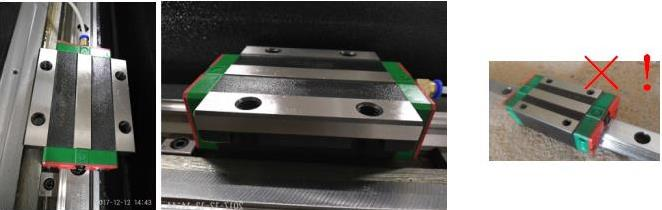

Square Rail-Taiwan HIWIN (flange type)

* Low noise, wear-resistant, smooth to keep fast Moving speed of laser head.

* 35mm width and 165 four pieces stock on every table to decrease the pressure of rail.

Fiber laser cutting machine LF3015GA

Pneumatic Components - Japan SMC

* Stepless control of air pressure proportional to an electrical signal.

* Serial communications specifications.
* Compact/lightweight (Integrated communication parts).

Bearing - Japan NSK

* These bearing housings have square flange which can be easily attached to a machine with four bolts.
* With its simple mounting face, this bearing unit is widely used.

Automatic Rail Lubrication System

We can set the adding oil's frequency and quantity by adjusting the relevant parameters on computer, so it largely improve the machine's lifetime, save manpower.

Automatic Exhaust System

* Remove the smoke and dust caused by metal cutting .

* The exhaust frequency and quantity can be set by adjusting the parameters on computer.

Water Cooling System

Dual cooling function:

Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.

Air Conditioner

Effectively decrease the temperature in the circuit and laser source in electric cabinet to keep normal work when it's too hot in summer.

Products Specification

Technical Parameters

Max Working Area3000*1500mm
X-axis Stroke1500mm
Y-axis Stroke3000mm
Z-axis Stroke290mm
X/Y Positioning Accuracy±0.03mm
X/Y Reposition Accuracy±0.02mm
Max Moving Speed120m/min
X/Y Max Cutting Speed35m/min
Max. Acceleration1.5G
Exchanging time of the 2 working tableWithin 15s
TransmissionPrecision dual -gear rack drive
Max. Loading Capacity1000kg
Specified voltage and frequency220V/Three phase/ 60HZ
Available Laser Souse500W-15000W
Total power34kw
Overall Dimension(length×width×height)10742*3348*2456mm
Total Weight11 tons

Gas Requirement to User

Gas TypePressurePurity
Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be.

Working Temperature

The Best Working Temperature10-35℃
≤0℃:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller's volume



1. Our specialist would recommend you suitable model and solution according to customers requirements.

2. Customers could send us graphic in DXF, AI, PLT format. We could test material and make sample for checking.

3. Warmly welcome customers to visit our company, check machine on spot.

4. Our specialists are usually 24 hours online to reply inquiries as soon as possible.

After sale:

1. Shipment: we could help customers to arrange shipment and customs clearance. Since 2004 year our company has stable shipping partners by sea, by land, by air.

2. Set-up work: We could send technician to you. Or you could receive training in our factory.

3. Trouble shooting:

(1). We offer machine 3 - years warranty.

Any part except quick-wear parts could be replaced or fixed without charge during warranty time.

(2). We offer free updating of software and technical support long life time.

(3). For small problems machine, our technician could online solve it.

For large problems, we could send technician to customers.

(4). We have service in many foreign countries.
