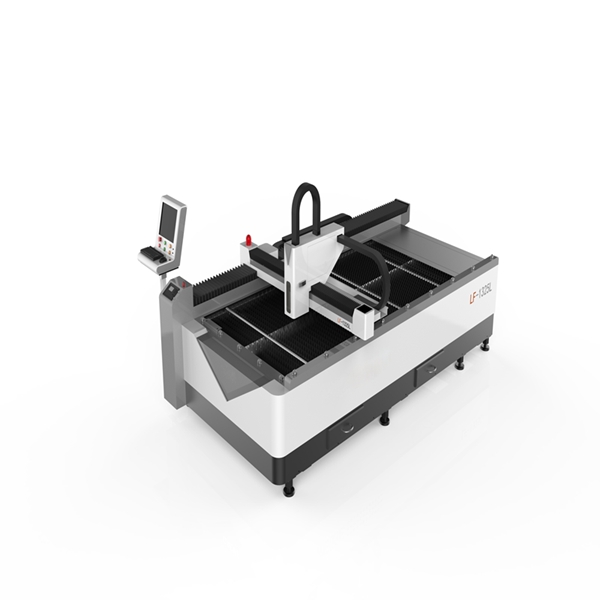

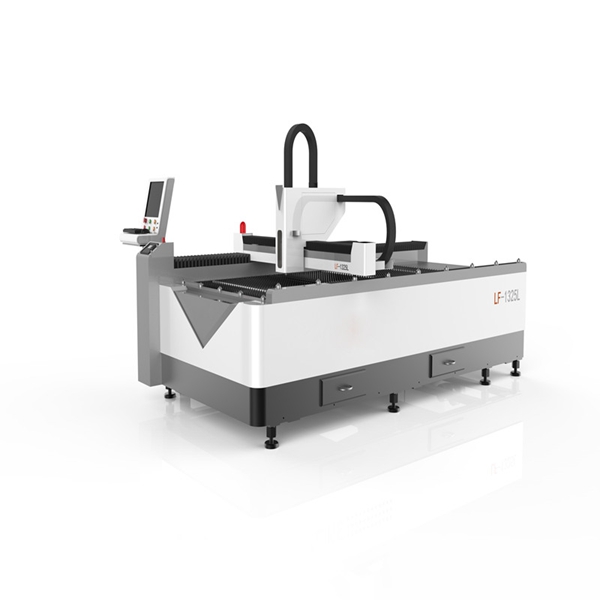

Fiber Laser Cutting Machine
F1325L fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Combined blade working table with advaned Cypcut control system, an unmatched design for fiber laser cutting industry, just a few clicks can solve all the problems for workpiece drawing, nesting and cutting.
Applications:
Industy: Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Material: Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
Product Description
F1325L fiber laser cutting machine from Haven is ideal for various metal cutting, it can provide users with powerful cutting efficiency and capacity with cutting speed(max) of 20m/Min and positioning accuracy of ±0.02mm. With lower electricity consumption, the laser cutting machine is eco-friendly and more ecnomic to save cutting cost. For more detailed cutting solutions, welcome to contact us!
Features:
High speed and cutting efficiency: With cutting speed of 20m/Min, the fiber laser cutting machine can obviously improve your work efficiency and save labor cost.
Perfect cutting performance: Easy to get nice cutting edge for positioning accuracy of ±0.02mm. It can help to turn your imagined artistic work into reality.
Super easy to operate: Controlled by Cypcut control system, an unmatched design for fiber laser cutting industry, just a few clicks can solve all the problems for workpiece drawing, nesting and cutting.
Wide range of applications: The machine is good at processing on common metal items such as advertising metal letter, kitchenware, environmental protection equipment.

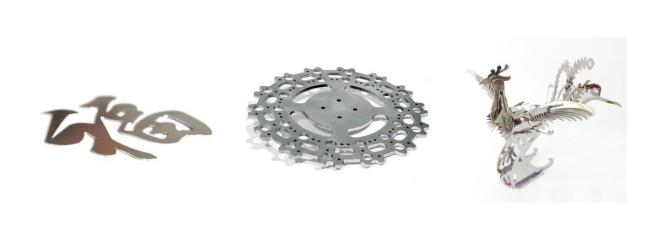

Samples:
Products Specification
Standard Equipment
| Model | LF1325L |
| Working Table | 1300*2500mm blade working table |
| Laser power | 1000W |
| Fiber laser generator | Raycus Laser Source |
| Laser head | SWISS Raytools Autofocus laser head |
| Control system | Cypcut control system |
| Software | Cypcut |
| Servo Motor | Delta servo |
| Ball screw | Imported TBI Ball Screw |
| Linear guide | Imported HIWIN 25mm |
| Pneumatic components | Air TEC |
| Water Cooling System | TF Chiller |
| Exhaust System | Exhaust |
| Remote controller | WIFI Remote control |
Technique parameters
| Model | LF1325L |
| Working Surface | 1300*2500mm |
| Laser Power | 1000w |
| Total Weight | 2500KG |
| Machine Size | 3800*1850*1300mm |
| X-axis stroke | 1300mm |
| Y-axis stroke | 2500mm |
| Z-axis stroke | 100mm |
| Positioning accuracy | ±0.02mm |
| Cutting Speed(max) | 20m/Min |
| Cooling Model | Water Cooling & 1kw |
| Laser input power | <4KW |
| Length of laser power | 1080nm |
| Specified voltage & frequency | 380V / 220V 50Hz / 60Hz |
| Format supported | PLT, DXF, AI etc |
| Continuous Operating Hours | 24h |
| Life of Generator | 100,000h |
Electricity consumption
| Each part | General electricity consumption (kw/h) | Total (kw/h) |
| fiber laser source | ≦2 | ≦12.25 |
| Machinery | ≦7 | |
| Cooling chiller | ≦2.25 | |
| Dust exhaust | ≦1 |
