CNC Fiber Laser Cutting Machine

A CNC laser cutter is a piece of computer numerical control (CNC) equipment that uses a focused, high-powered laser beam to mark, cut, or engrave a material to form custom shapes. Its unique design and operation make it highly accurate, especially when cutting intricate shapes and small holes.Metal fabrication shops and companies that manufacture customized metal parts can drastically improve their efficiency of production with our fiber laser cutting machines.

Our CNC Fiber Laser Cutting Machines are capable of cutting steel, brass, aluminum and stainless steel without fear of back reflections damaging the machine. By using these fiber laser machines, you’ll reduce your maintenance requirements and cut your operating costs considerably.

Product Description

What Is Fiber Laser Cutter?

Fiber laser cutter is a type of CNC laser metal cutting system with high quality, high speed, high precision and high efficiency. It is suitable for all kinds of metal cutting which will be your good metal working partner.  CNC Fiber Laser Cutting Machine is equipped with different powers (1000W to 40000W) for cutting sheet metals and metal tubes of stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy, copper, brass, iron and other metal materials with different thicknesses. Fiber laser cutter is also known as fiber laser metal cutting machine, fiber laser cutting machine, fiber laser cutting system,  CNC Fiber Laser Cutting Machines.

However, CNC laser cutters differ slightly from conventional CNC machines in their design and method of cutting operation.CNC laser cutting is a non-contact, thermal-based process. A CNC laser cutter features a laser head containing a laser focusing lens and a nozzle. Through the nozzle, this head and lens assembly focuses a laser beam — a column of very high-intensity light ㅡ on the workpiece, melting and cutting the workpiece to form the desired shape. CNC lasers employ compressed gas (also flowing through the nozzle that ejects the laser beam) to cool the focusing lens and expel the vaporized metal out of the workpiece.Look at it this way. When you focus a high-powered laser beam at a point on a metallic surface, the heat density at that point becomes high, resulting in rapid heating and partial (or complete) vaporization of that point on the metal. CNC technology then controls the sequence of movements of this laser head and laser beam on the work surface to form the desired custom shapes and features.

Find The Right  CNC Fiber Laser Cutting Machines

We offer laser power options of 1000W, 1500W, 2000W, 2500W and 3000W. With a maximum cutting speed of 35 m/min, these  CNC Fiber Laser Cutting Machines complete jobs quickly with high-level precision. Haven Equipment also offers machines with an enclosed working area to eliminate light pollution.

Advantages of CNC Laser Cutting

1. CNC Fiber Laser Cutting Machine produces more intricate designs and holes as small as 2 mm with a high degree of accuracy and precision.

2. CNC Fiber Laser Cutting Machine produces cleaner cuts, eliminating the need for additional post-processing (or finishing ) operations.

3. CNC laser cutters eliminate the need for several cutting tools or custom tools, such as in conventional CNC routers and milling machines.

4. The non-contact nature of the laser cutting process decreases the risk of material distortion and material contamination, making them ideal for machining components that will be used in the medical industry.

Learn More About Our  CNC Fiber Laser Cutting Machines From Our Experts?

Trying to figure out which  CNC Fiber Laser Cutting Machine is right for you? Contact our team to learn more about how our tools can craft anything you have in mind.

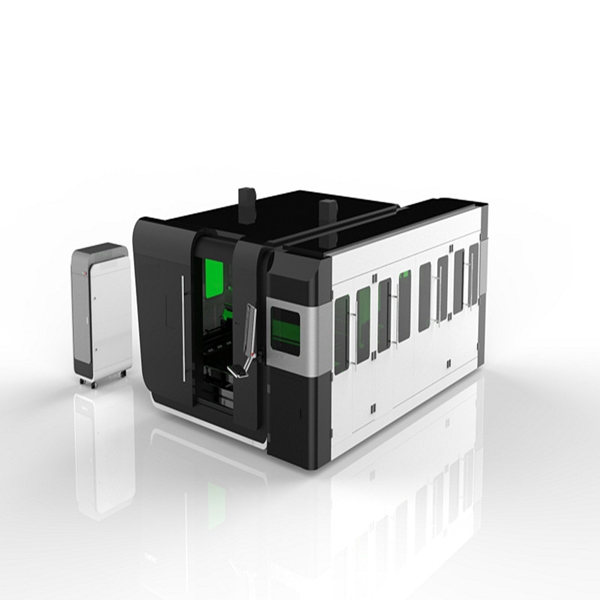

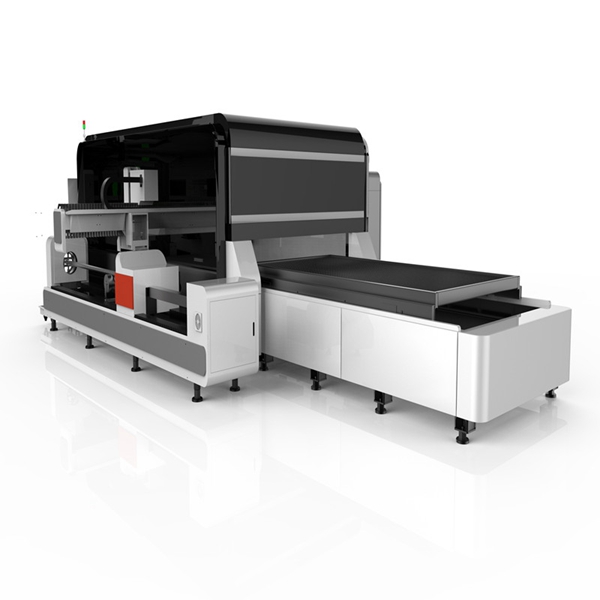

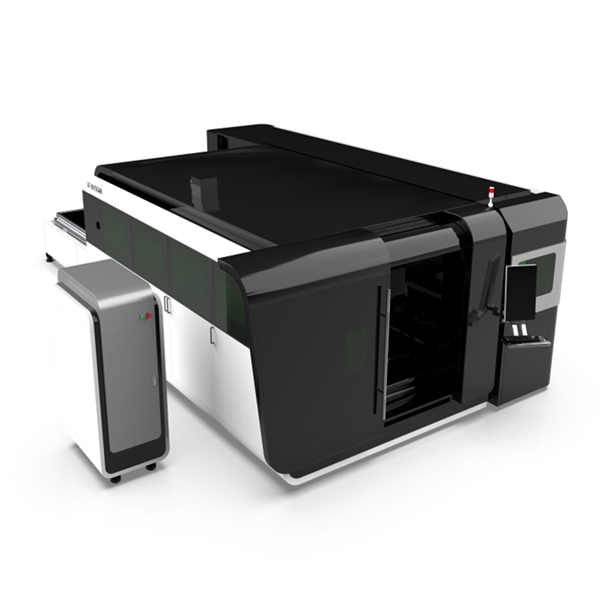

CNC Fiber laser cutting machine LF3015GAR

Main Configuration

Fiber Laser Source

* Details: 100,000 hours life time,more stable, cost-efficient, free maintenance.

Control System- CYPCUT

* Auto edge seeking function, flying cutting function and nesting function.

* Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...

* More flexible to operate---after finishing making design by drawing software such as Solidworks, CAD, Then operator can put the design into CYPCUT control system for cutting directly and no need any programming, and transfer to code.

Double Air Chuck

Quick change pipes, auto finding center of gravity.

Large diameter:φ15-220

Laser Head:

* Brand: Swiss Raytools auto-focus laser head

* Advantages:

--High Presicion: Without manuel, zero fault.

--High Effectiveness: Without manuel,Save time

--High Safty: Anti-collision design, height adjustment high sensitivity

Aviation Aluminum Gantry

* It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

* Advantages: Good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

* Comparison:

--Steel Gantry: 280kg;

--Cast aluminum Gantry: 180kg;

--Aviation aluminum Gantry: 138kg.

With a light weight, it will greatly increase the processing speed.

The Segmented Rectangular Tube Welded Bed

* Structure advantage:

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

* For material : Through 600℃ heat treatment to keep stronger and more solid

* Feature: High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular sheet wall is 14mm;weights 8000kg.

WIFI Remote Control System

By this function, we could remote control your computer and machine to guide you install/operate or find/solve problem once you meet difficulty in several min.

Gear and Rack - Taiwan YYC

* High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.

Servo Motor-Japan YASKAWA

* Y axis: two sets 1.8kw Japan YASKAWA servo motor and driver.

* X axis: one set 850w Japan YASKAWA servo motor and driver.

* Z axis: one set 750w Japan PANASONIC servo motor and driver.

Higher power of motor and drive makes higher moving speed for laser head.

Reducer - France Motor Reducer

Effectively decrease the speed of beam, make cutting and machine more stable to keep machine life long work.

Electronic Components - France SCHNEIDER

* Circuit protection against short-circuit currents, Circuit protection against overload currents,Breaking and industrial disconnection as per standards IEC/EN 60947-2.
* Overvoltage resistance, High performance limitation to fast closing independent of the speed of actuation of the toggle.

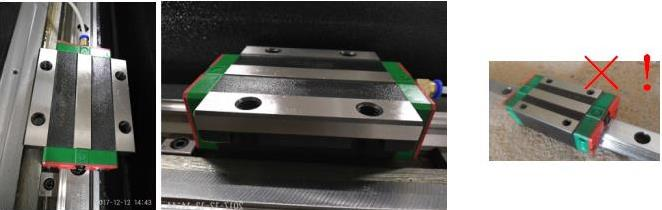

Square Rail-Taiwan HIWIN (flange type)

* Low noise, wear-resistant, smooth to keep fast Moving speed of laser head.

* 35mm width and 165 four pieces stock on every table to decrease the pressure of rail.

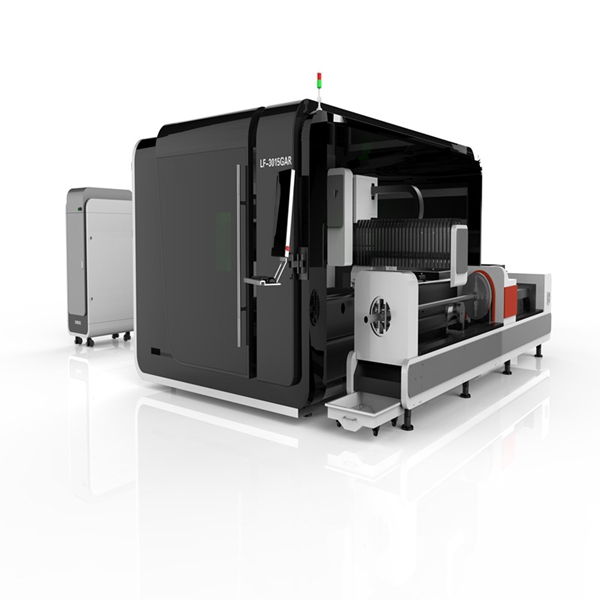

CNC Fiber Laser Cutting Machine LF3015GAR

Pneumatic Components - Japan SMC

* Stepless control of air pressure proportional to an electrical signal.

* Serial communications specifications.
* Compact/lightweight (Integrated communication parts).

Bearing - Japan NSK

* These bearing housings have square flange which can be easily attached to a machine with four bolts.
* With its simple mounting face, this bearing unit is widely used.

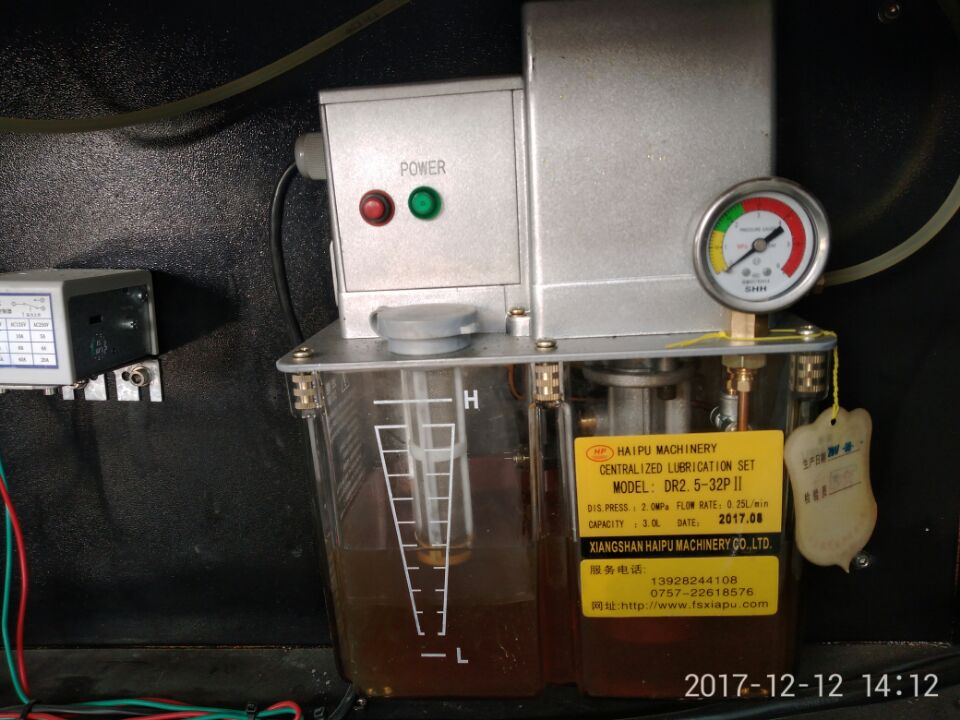

Automatic Rail Lubrication System

We can set the adding oil's frequency and quantity by adjusting the relevant parameters on computer, so it largely improve the machine's lifetime, save manpower.

CNC Fiber Laser Cutting Machine LF3015GAR

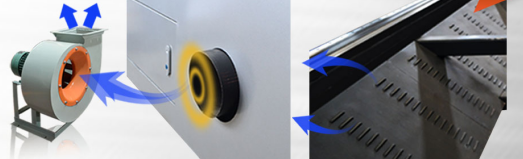

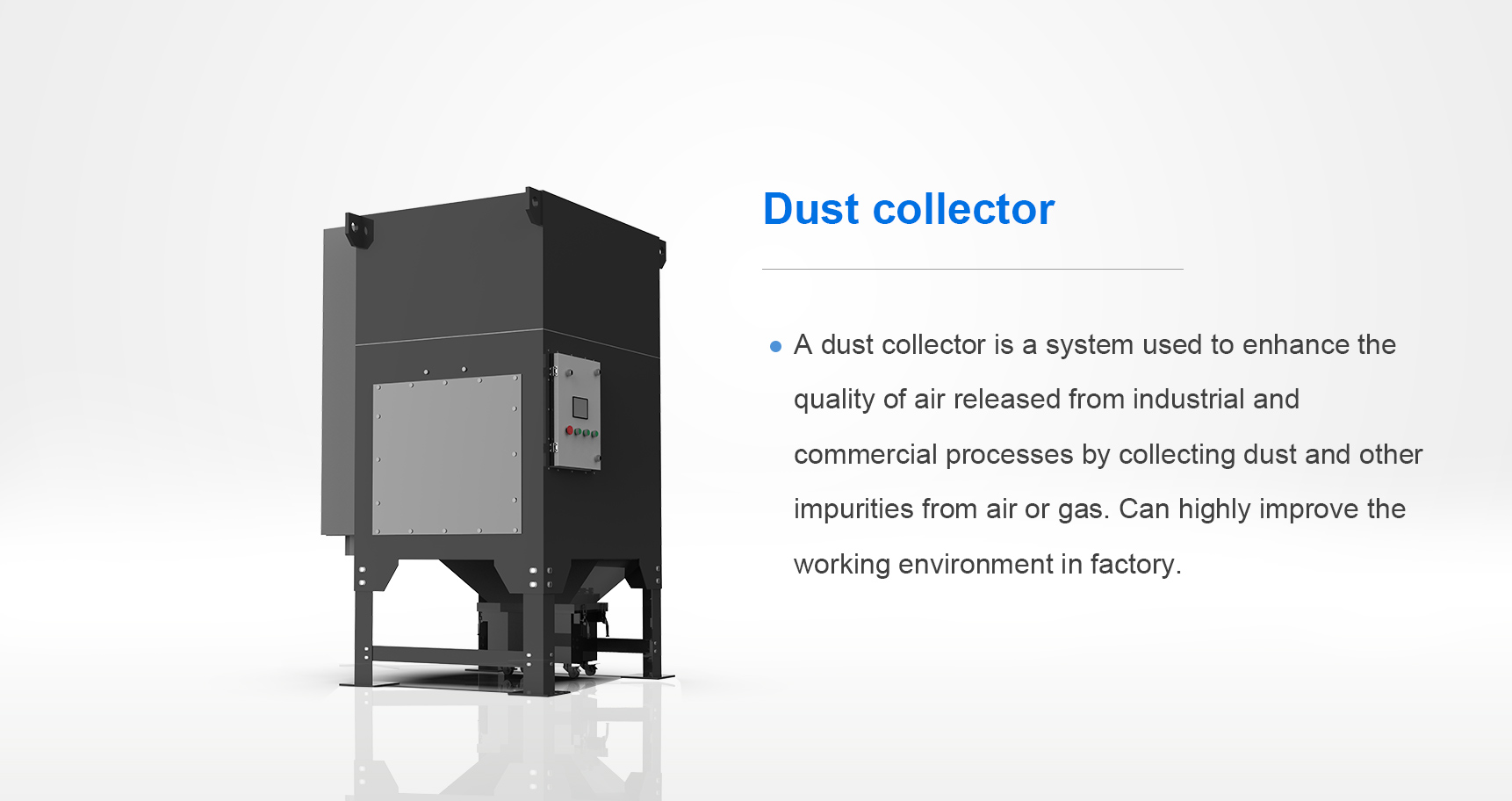

Automatic Exhaust System

* Remove the smoke and dust caused by metal cutting .

* The exhaust frequency and quantity can be set by adjusting the parameters on computer.

CNC Fiber Laser Cutting Machine LF3015GAR

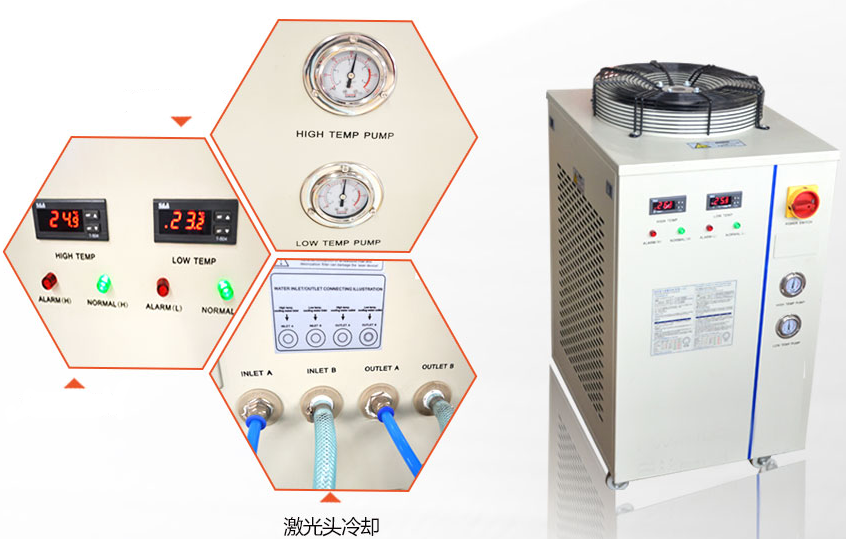

Water Cooling System

Dual cooling function:

Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.

CNC Fiber Laser Cutting Machine LF3015GAR

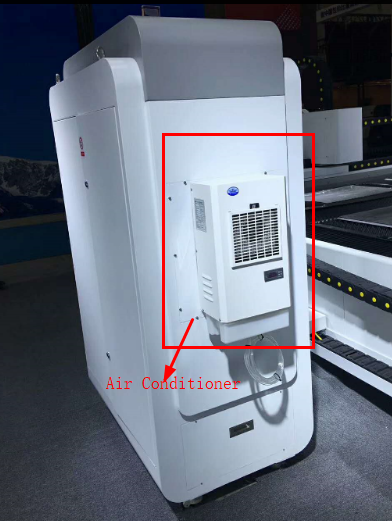

Air Conditioner

Effectively decrease the temperature in the circuit and laser source in electric cabinet to keep normal work when it's too hot in summer.

CNC Fiber Laser Cutting Machine LF3015GAR

CNC Fiber Laser Cutting Machine LF3015GAR

Products Specification

Technical Parameters

Max Working Area3000*1500mm
X-axis Stroke1500mm
Y-axis Stroke3000mm
Z-axis Stroke290mm
X/Y Positioning Accuracy±0.03mm
X/Y Reposition Accuracy±0.02mm
Max Moving Speed120m/min
X/Y Max Cutting Speed35m/min
Max. Acceleration1.5G
Exchanging time of the 2 working tableWithin 15s
TransmissionPrecision dual -gear rack drive
Max. Loading Capacity1000kg
Specified voltage and frequency220V/Three phase/ 60HZ
Available Laser Souse1000W-6000W
Total power34kw
Overall Dimension(length×width×height)8950*3760*2375mm
Total Weight9 tons

Gas Requirement to User

Gas TypePressurePurity
Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be.

Working Temperature

The Best Working Temperature10-35℃
≤0℃:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller's volume
