Fiber Laser Machine Laser Metal Sheet Processing Equipment LF3015CNR

Fiber Laser Machine Laser Metal Sheet Processing Equipment LF3015CNR


This high precision laser cutting machine,widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries;

Specialized in fast speed cutting of a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal

Product Description

Configuration Details:

Fiber Laser Source

* Brand: IPG

* Details: 100,000 hours life time,more stable, cost-efficient, free maintenance.

Control System- CYPCUT

* Auto edge seeking function, flying cutting function and nesting function.

* Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...

* More flexible to operate---after finishing making design by drawing software such as Solidworks, CAD, Then operator can put the design into CYPCUT control system for cutting directly and no need any programming, and transfer to code.

Double Pneumatic clamp

Quick change pipes, auto finding center of gravity.

Large diameter:φ15-220

Aviation Aluminum Gantry

* It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

* Advantages: Good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

* Comparison:

--Steel Gantry: 280kg;

--Cast aluminum Gantry: 180kg;

--Aviation aluminum Gantry: 138kg.

With a light weight, it will greatly increase the processing speed.

The Segmented Rectangular Tube Welded Bed

* Structure advantage:

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

* For material : Through 600℃ heat treatment to keep stronger and more solid

* Feature: High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 16mm and weights 5000kg.

WIFI Remote Control System

By this function, we could remote control your computer and machine to guide you install/operate or find/solve problem once you meet difficulty in several min.

Auto focus laser head

* Auto following function and almost zero fault.

* Anti-collision design, height adjustment high sensitivity.

Gear and Rack - Taiwan YYC gear rack

* High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.

Servo Motor-Japan YASKAWA

* Y axis: two sets 1.8kw Japan YASKAWA servo motor and driver.

* X axis: one set 850w Japan YASKAWA servo motor and driver.

* Z axis: one set 750w Japan PANASONIC servo motor and driver.

Higher power of motor and drive makes higher moving speed for laser head.

Reducer - France MOTOREDUCER

Effectively decrease the speed of beam, make cutting and machine more stable to keep machine life long work.

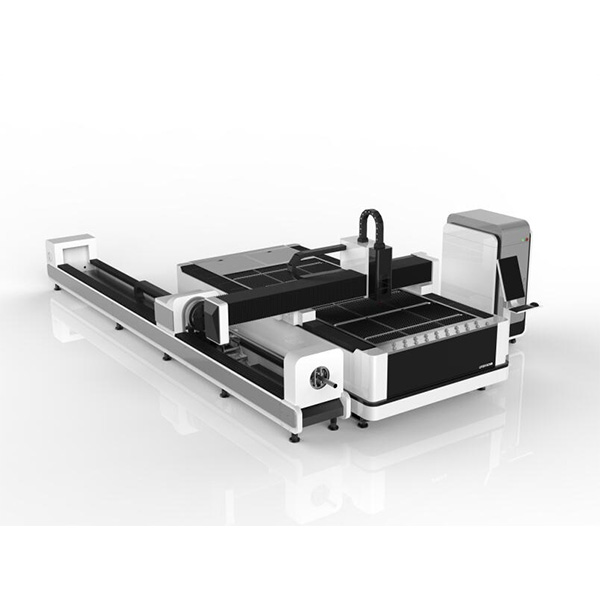

Fiber laser cutting machine LF3015CNR

Electronic Components - France SCHNEIDER

* Circuit protection against short-circuit currents, Circuit protection against overload currents,Breaking and industrial disconnection as per standards IEC/EN 60947-2.
* Overvoltage resistance, High performance limitation to fast closing independent of the speed of actuation of the toggle.

Square Rail-Taiwan HIWIN(flange type)

* Low noise, wear-resistant, smooth to keep fast Moving speed of laser head.

* 35mm width and 165 four pieces stock on every table to decrease the pressure of rail.

Pneumatic Components - Japan SMC

* Stepless control of air pressure proportional to an electrical signal.

* Serial communications specifications.
* Compact/lightweight (Integrated communication parts).

Bearing - Japan NSK

* These bearing housings have square flange which can be easily attached to a machine with four bolts.
* With its simple mounting face, this bearing unit is widely used.

Automatic Rail Lubrication System

We can set the adding oil's frequency and quantity by adjusting the relevant parameters on computer, so it largely improve the machine's lifetime, save manpower.

Automatic Exhaust System

* Remove the smoke and dust caused by metal cutting .

* The exhaust frequency and quantity can be set by adjusting the parameters on computer.

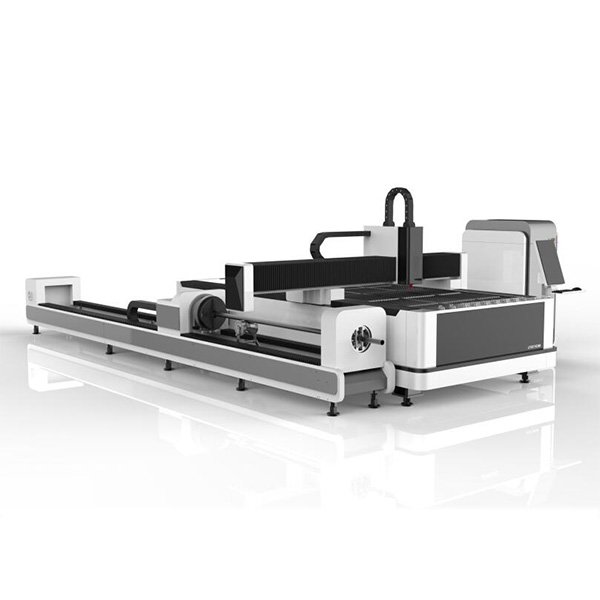

Fiber laser cutting machine LF3015CNR

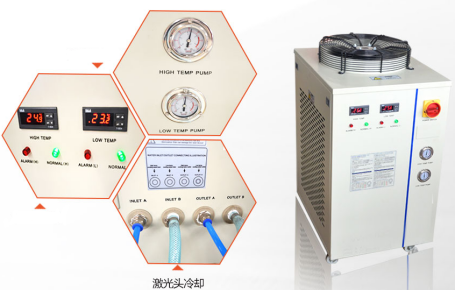

Water Cooling System

Dual cooling function:

Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.

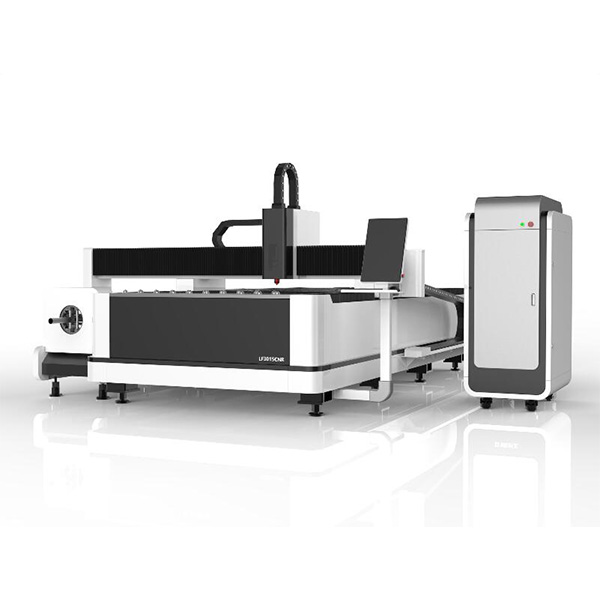

Fiber laser cutting machine LF3015CNR

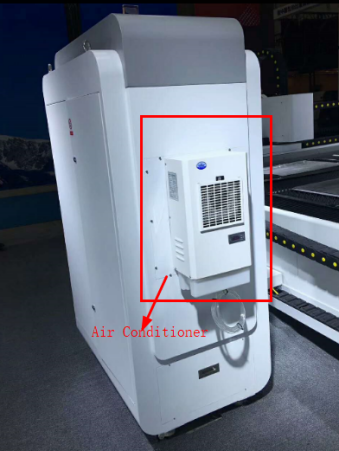

Air Conditioner

Effectively decrease the temperature in the circuit and laser source in electric cabinet to keep normal work when it's too hot in summer.

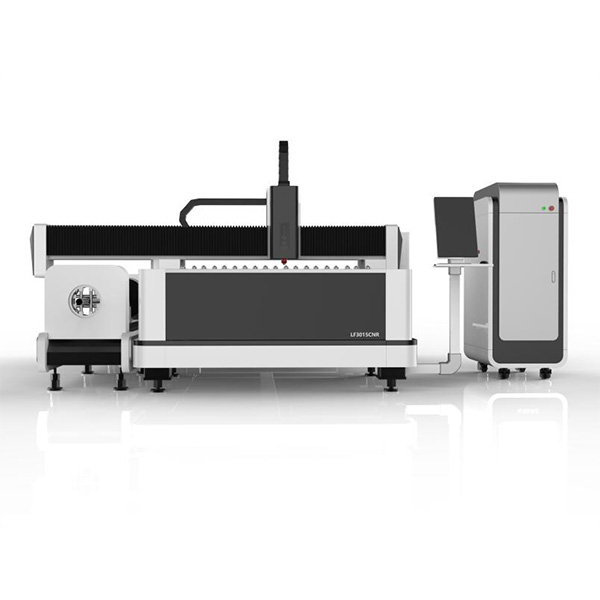

Fiber laser cutting machine LF3015CNR

Using and Maintainence cost

1. Electricity consumption: 9KW/hour.

2. Gas is needed to help cutting metals.

There are 3 choice of gas.

(1). Compressed air. Most cheapest choice.

(2). liquid nitrogen or nitrogen gas. it could keep color of original materials. Consumption of nitrogen gas: 80L/hour.

(3). Oxygen. It helps cutting fast.

3. List of quick-wear parts:

NameLife timeunit price
Protector mirror600 hours$20
Collimating lensHalf year$250
Focus lensHalf year$260
Ceramic ring600hours$50

Our service


1. Our specialist would recommend you suitable model and solution accroding to customers requirements.

2. Customers could send us graphic in DXF, AI, PLT format. We could test material and make sample for checking.

3. Warmly welcome customers to visit our company, check machine on spot.

4. Our specialists are usually 24 hours online to reply inquiries as soon as possible.

After sale:

1. Shipment: we could help customers to arrange shipment and customs clearance. Since 2004 year our company has stable shipping partners by sea, by land, by air.

2. Set-up work: We could send technician to you. Or you could receive training in our factory.

3. Trouble shooting:

(1). We offer machine 3 - years warranty.

Any part except quick-wear parts could be replaced or fixed without charge during warranty time.

(2). We offer free updating of software and technical support long life time.

(3). For small problems machine, our technician could online solve it.

For large problems, we could send technician to customers.

(4). We have service in many foreign countries.
