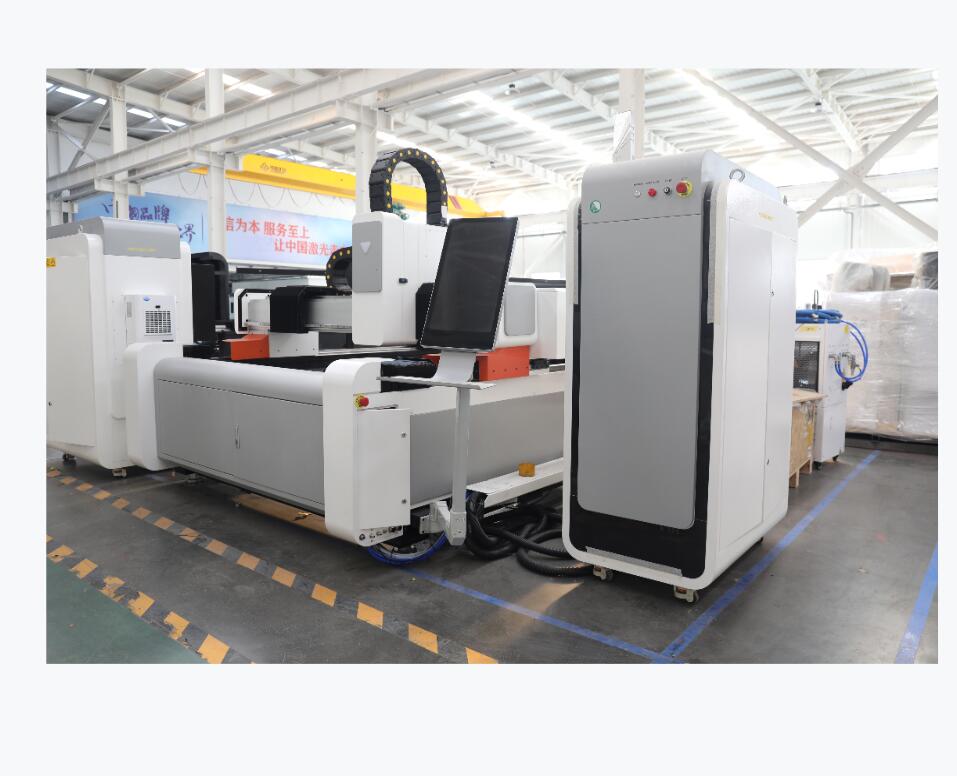

CNC fiber laser cutting machine

CNC fiber laser cutting machine

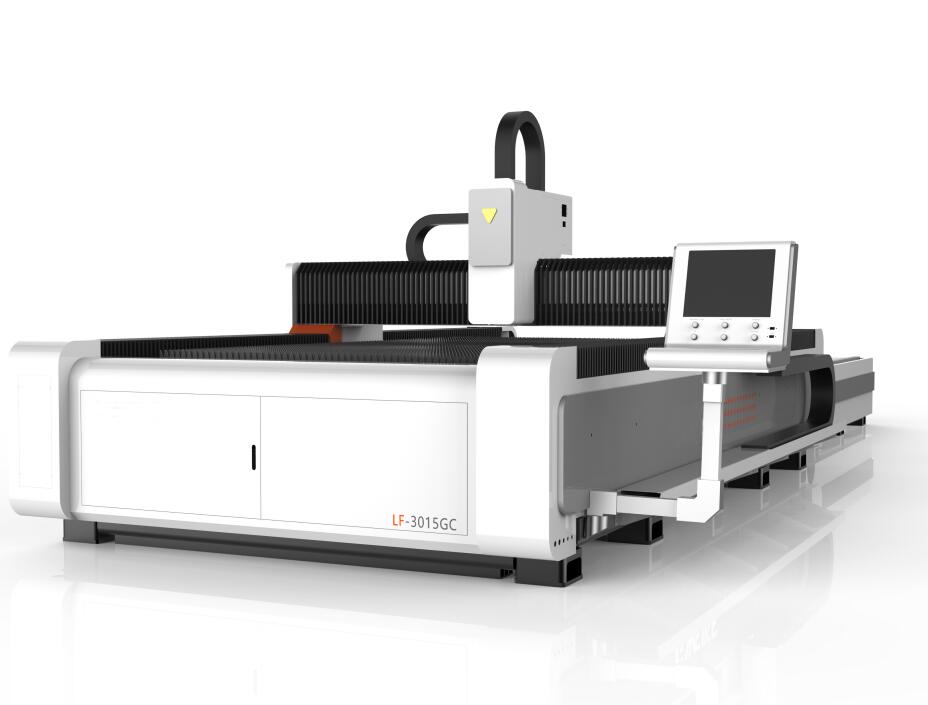

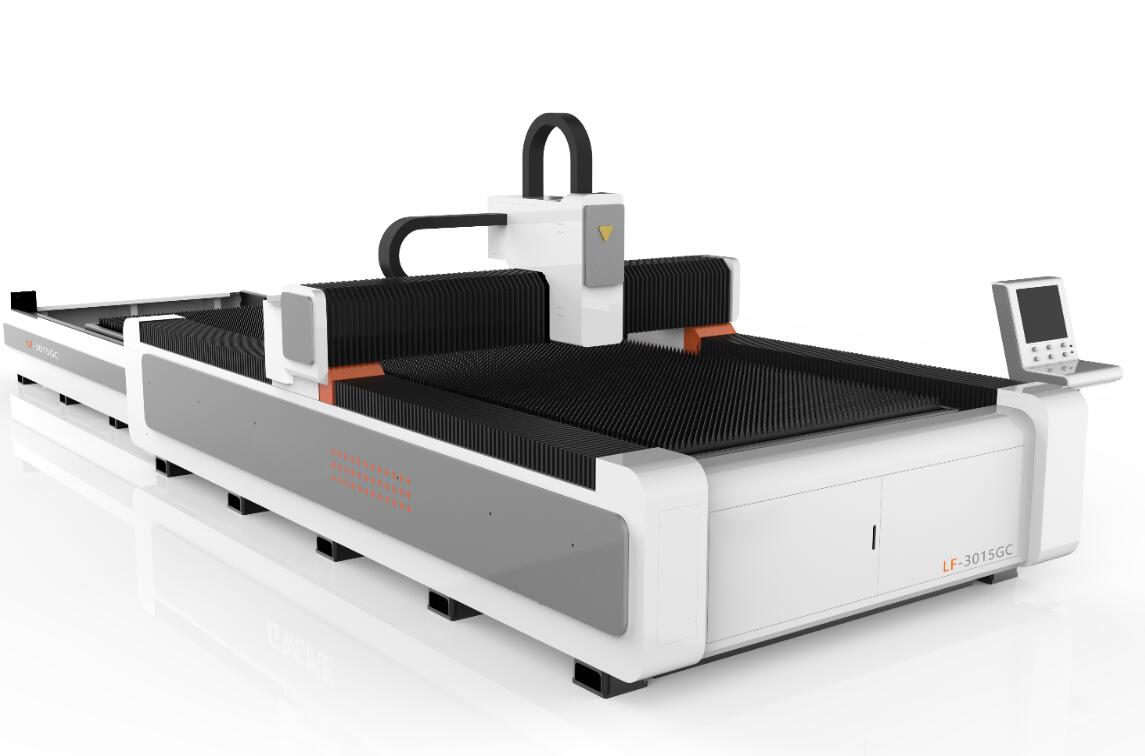

Model: LF3015GC

---3 Years Warranty, Aviation Aluminum beam, WIFI Remote Control

It is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Product Description

Configuration Details

Fiber Laser Source

--Brand: IPG

--100,000 hours life time, more stable, cost-efficient, free maintenance.

--The best brand in the World, quality has assurance.


CNC fiber laser cutting machine


Control System

* Brand: CYPCUT

* Details: Auto edge seeking function and flying cutting function.

* Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...


The Beam of Machine

* Type: Aviation aluminum Beam

* Structure: Manufactured with aerospace standards and formed by 4300 tons Press extrusion molding. After aging treatment, its hardness can reach 6061 T6, which is the strongest hardness of all beams.

* Advantages: Good toughness, light weight, stronger corrosion resistance, anti-oxidation, low density to increase the moving speed of laser head.

* Comparison:

--Steel Gantry: 280kg;

--Cast aluminum Gantry: 180kg;

--Aviation aluminum Gantry: 138kg.

With a light weight, it will greatly increase the processing speed.

PS: We are the first manufacturer to adopt aviation aluminum gantry.


Machine Bed

* Type: The Segmented Rectangular Tube Welded Bed

* Structure advantage:

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

* For material :

Through 600℃ heat treatment to keep stronger and more solid.

* Feature:

High strength, stability, tensile strength, ensuring 20 years of use without distortion; Thickness of rectangular pipe wall is 10mm and weights 6000 kg.


Laser Head:

* Brand: Swiss Raytools auto-focus laser head

* Advantages:

--High Presicion: Without manuel, zero fault.

--High Effectiveness: Without manuel,Save time

--High Safty: Anti-collision design, height adjustment high sensitivity


CNC fiber laser cutting machine


Gear and Rack - Taiwan YYC/APEX

* High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.


CNC fiber laser cutting machine


Transmission for Z axis

* Brand: Taiwan TBI Ball Screw

* Details: High efficiency, pre-tightening and high rigidity, long life,  high-speed feed.


CNC fiber laser cutting machine


Servo Motor

* Brand: Japan YASKAWA & PANASONIC

* Details:

--X axis: one set 850W Japanese YASKAWA servo motor and driver.

--Y axis: TWO set 1800W Japanese YASKAWA servo motor and driver.

--Z axis: one set 400W Japan PANASONIC servo motor and driver.

Higher power of motor and drive makes higher moving speed for laser head.


CNC fiber laser cutting machine


Electronic Component

* Brand: France SCHNEIDER

* Details:

--Circuit protection against short-circuit currents,Circuit protection against overload currents,Breaking and industrial disconnection as per standards IEC/EN 60947-2.

--Overvoltage resistance, High performance limitation to fast closing independent of the speed of actuation of the toggle.

Pneumatic Components

* Brand: Japan SMC

* Details:

--Stepless control of air pressure proportional to an electrical signal.

--Serial communications specifications.

--Compact/lightweight (Integrated communication parts).


Bearing

* Brand: Japan NSK

* Details:

--These bearing housings have square flange which can be easily attached to a machine with four bolts.

--With its simple mounting face, this bearing unit is widely used.

Automatic Exhaust System

* Details:

--Remove the smoke and dust caused by metal cutting .

--The exhaust frequency and quantity can be set by adjusting the parameters on computer.

Water Cooling System

* Brand: 500w TF Chiller

* Details: Dual cooling function,Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.

* Environmentally coal added, more environmentally and friendly for the workers.


CNC fiber laser cutting machine

Products Specification

Technical Parameters

ModelLF3015GC
Max Working Area3000*1500mm
X-axis Stroke1500mm
Y-axis Stroke3000mm
Z-axis Stroke290mm
X/Y Positioning Accuracy±0.03mm
X/Y Reposition Accuracy±0.02mm
Max Moving Speed120m/min
X/Y Max Cutting Speed35m/min
Max. Acceleration1.5G
Exchanging time of the 2 working tableWithin 15s
TransmissionPrecision dual -gear rack drive
Max. Loading Capacity1000kg
Specified voltage and frequency220V/Three phase/ 60HZ
Available Laser Souse500W-8000W
Total power34kw
Total Weight10 tons


Gas Requirement to User

Gas TypePressurePurity
O21MPA99.9%
N22.5MPA99.9%
Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be.


Working Temperature

The Best Working Temperature10-35℃
≤0℃:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller's volume


Service

Pre-sale:

1. Our specialist would recommend you suitable model and solution accroding to customers requirements.

2. Customers could send us graphic in DXF, AI, PLT format. We could test material and make sample for checking.

3. Warmly welcome customers to visit our company, check machine on spot.

4. Our specialists are usually 24 hours online to reply inquiries as soon as possible.


After sale:

1. Shipment: we could help customers to arrange shipment and customs clearance. Since 2004 year our company has stable shipping partners by sea, by land, by air.

2. Set-up work: We could send technician to you. Or you could receive training in our factory.

3. Trouble shooting:

(1). We offer machine 3 - years warranty.

Any part except quick-wear parts could be replaced or fixed without charge during warranty time.

(2). We offer free updating of software and technical support long life time.

(3). For small problems machine, our technician could online solve it.

For large problems, we could send technician to customers.

(4). We have service in many foreign countries.
