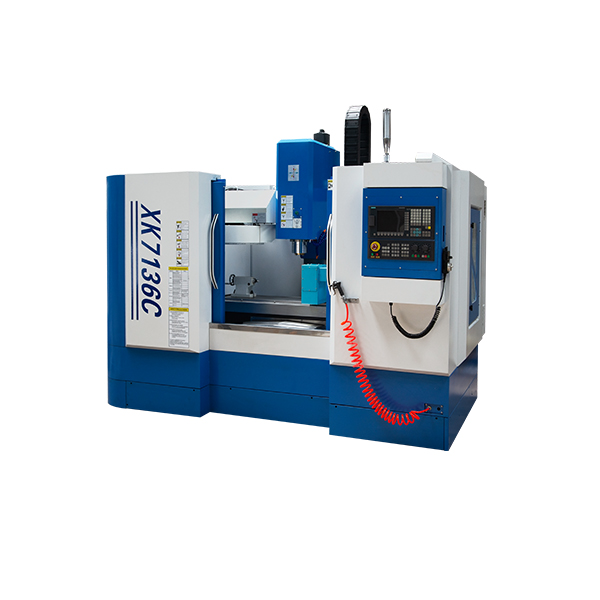

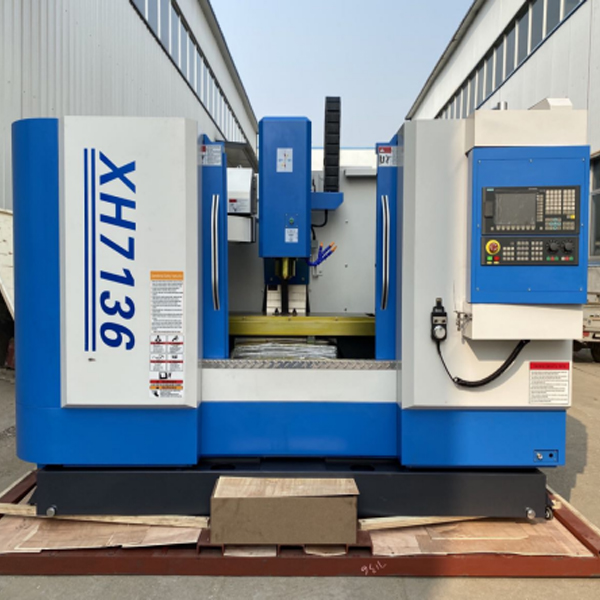

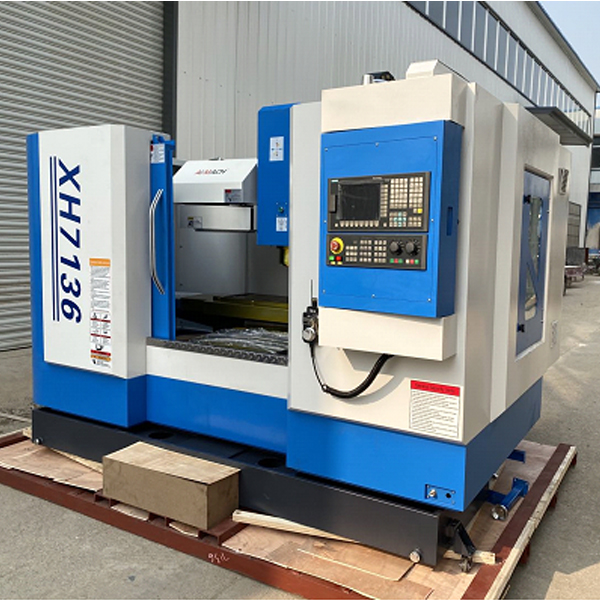

CNC Machine Center
Introduction and Application
With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components’ machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.
Product Description
Introduction and Application
With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components’ machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.
Major Structural Characteristics
1. Base, column, worktable, middle slide, lifting slide and etc. all major components are casted and formed by high-strength materials and disposed by artificial seasoning treatment to ensure long-term stability of machine tool and provide guarantee for machine tool stable performance.
2. This machine adopts hi-speed, hi-precision and hi-rigidity spindle units, suggesting strong carriage capacity with Max. rotating speed up to 6000rpm;

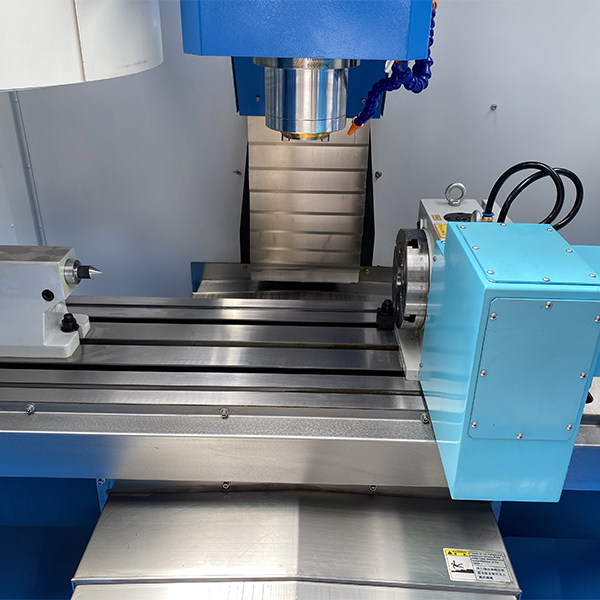

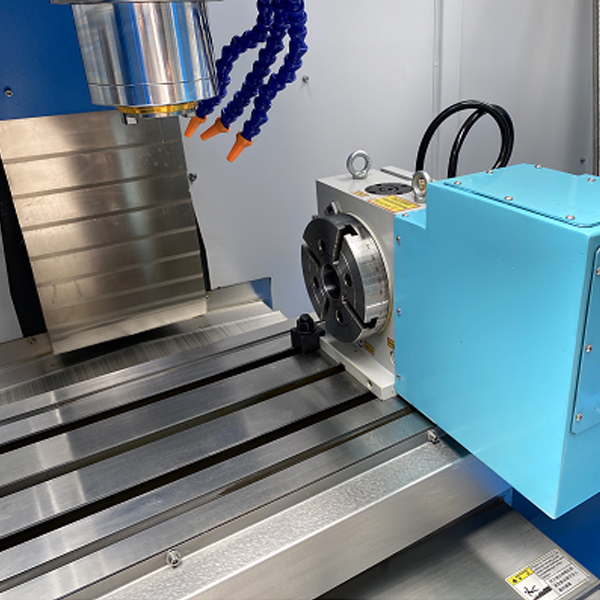

3. X travel of worktable reaches 950mm, Y & Z guideways all adopts 950 mm,both Y & Z guideways are rectangular rails with supersonic frequency induction hardening & precision grinding. slide guideway has experience precision scraping and pasted compound PTFE materials; equipped with automatic obliged lubrication, frictional resistance of feeding motion declines and reduces low-speed creeping, which improves accuracy life of machine tools.

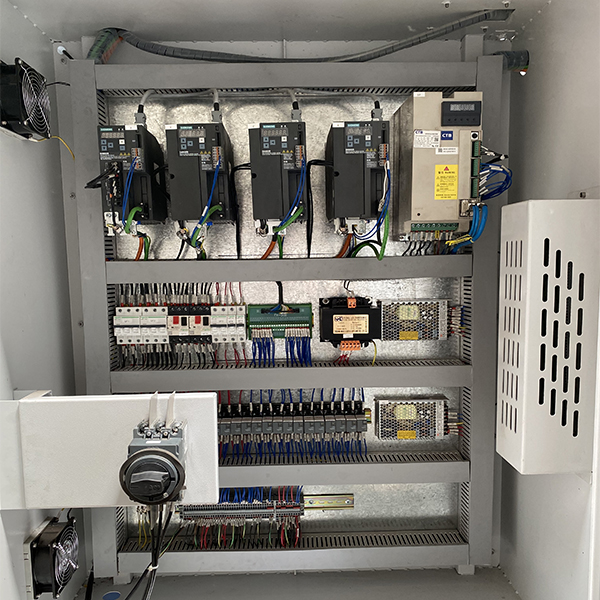

4. X, Y and Z three axis adopts high-precision & high-strength ball screw and servo motor to ensure positioning accuracy of machine tools.
5. Guideway and ball screw adopts protection devices to ensure cleaning of ball screw and rails as well as machine transmission & operation accuracy.
6. Z axis adds clump weight balancing devices to ensure spindle motion stable and smooth.
7. Power-driven lubrication devices could have forced-feed lubrication upon longitudinal, horizontal, vertical lead screws and guideways to diminish abrasion and ensure machine high-efficiency operation; meanwhile, cooling system could change amount of flow by adjusting spray nozzle to satisfy different processing demands.
8. Machine operation system could suspend on the top right of machine through suspension arm; this machine conforms to human engineering principle; the spindle box could rotate certain angel, much more convenient & reliable.
Products Specification
Major technical parameter
1 | Main motor | 5.5KW (Standard Accessories:Frequency Conversion Motor) | |
2 | Spindle taper | BT40 | |
3 | Spindle speed | 200-8000rpm | |
4 | Distance of spindle end to worktable plane | 100~600 mm | |
5 | Distance of spindle hole center to column plane | 460 mm | |
6 | Worktable size | 1250×360 mm | |
7 | Worktable travel (L/H) | 900/350 mm | |
8 | Max. load of worktable | 400kg | |
9 | Worktable T Slot: No./Width/Interval | 3/18/80 | |
10 | Max. Movement | X Axis | 10 m/min |
Y Axis | 10m/min | ||
Z Axis | 8 m/min | ||
11 | Positioning Accuracy | 0.02mm | |
12 | Repeatable Positioning Accuracy | 0.01mm | |
13 | Machine Dimension (L*W*H) | 3300×2280×2550 mm | |
14 | Machine Weight | 3800 kg |
Machine Accessories
XK7136 Packing List
No. | Name | Specification | Qty. |
1 | Spring Clamp Handle | BT40-ER32-100(3-4, 5-6, 7-8, 9-10, 11-12, 13-14, 15-16) | 1 |
2 | Foundation Bolt | 6 | |
3 | Screw Nut | 6 | |
4 | Washer | 6 | |
5 | Operation Manual | 1 | |
6 | Qualified Certificate | 1 | |
7 | Packing List | 1 | |
8 | 《KND1000MI USER Manual》 | 1 | |
9 | Communication Software(Soft Disk) | 1 | |
10 | Communication Cable | 1 |
Sourcing List of Major Parts
No. | Name | Specification or Mark No. | Origin | Qty. | Note |
1 | Spindle | Taiwan | 1 Set | ||
2 | Pressure Boost Cylinder | Taiwan | 1 Set | ||
3 | X Ball Screw Pair | Jiansuqijian | 1 Pair | ||
4 | Y Ball Screw Pair | Jiansuqijian | 1 Pair | ||
5 | Z Ball Screw Pair | Jiansuqijian | 1 Pair |

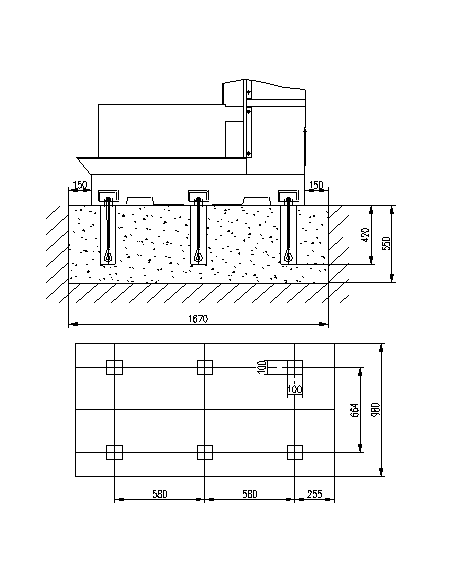

Foundation Drawing
Standard Configuration:
1. KND-1000M CNC System;
2. Taiwan BT40 Spindle Unit;
3. Semi-protection
Optional Devices:
1. Bamboo Hat Magazine with Twelve Tool
2.GSK980MDC System
3.Siemens 808D System
Introduction: due to different configuration, special orders and CNC systems as well as constantly improving products, partial technical parameters will get influenced; thus check the machine according to the actual situation, any inconvenience, hope understand.
