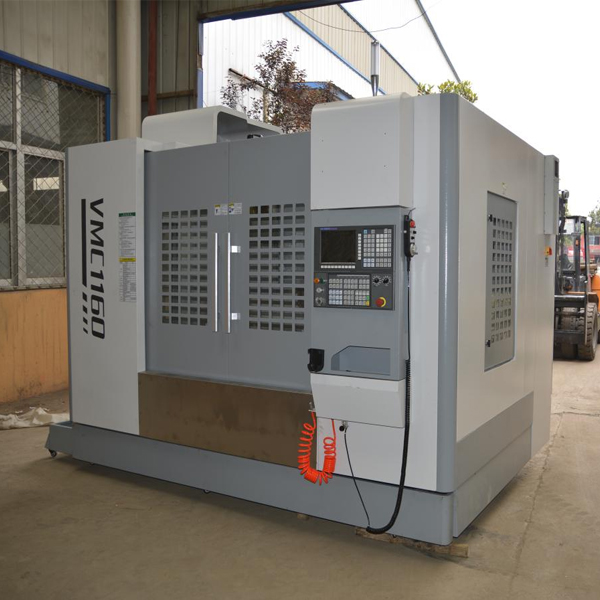

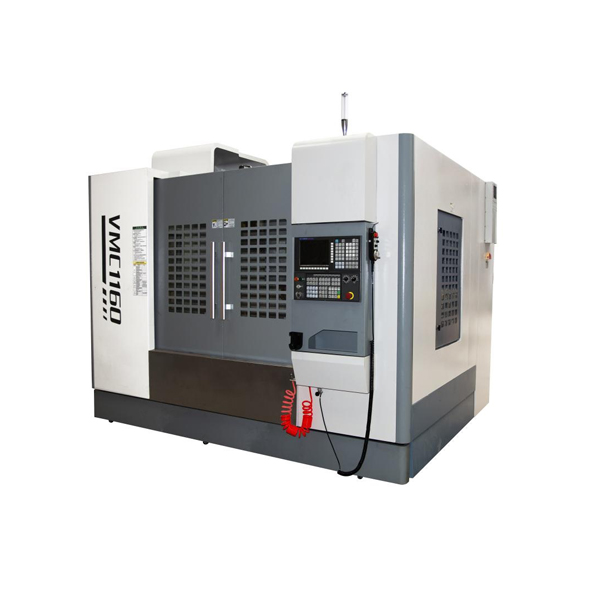

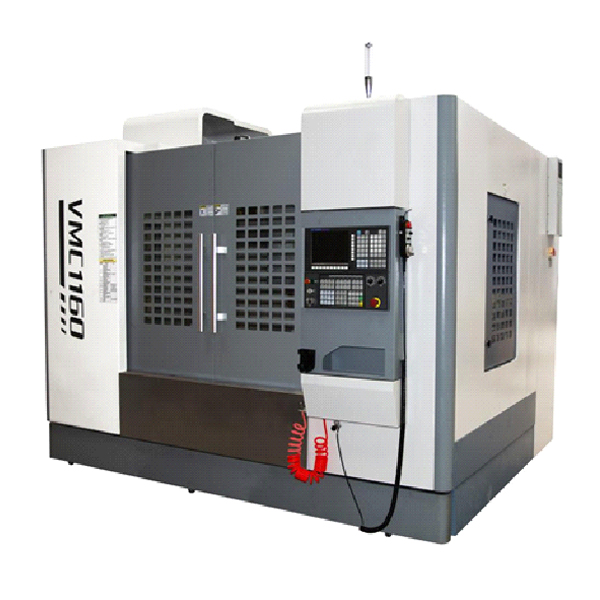

CNC Machine Center
CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
Product Description
CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
Products Specification
一、The main technical parameters
1.Travel X-axis:1100mm Y-axis:600mm Z-axis:600mm spindle nose to table surface:120-720mm spindle axis to column surface: 650mm 2.Worktable Table size:1200×600mm Max.loading:800kg T-slot width: 18 T-slot quantity :5 3.Spindle Spindle taper:BT40Spindle speed:8000rpm Spindle motor:11kw | 4.Tool 5.Rapid movement 6.Accuracy |
●Motor
X/Y/Z axis AC servo motor (torque N.m 22/22/22)
1.Power device
Form:3-phase AC 380V±10% 50Hz±10%
Capacity:20KVA
2.Coolant system
Capacity:200L
Cooling pump power:440W
Cooling pump flow:67L/min
Rated head:16m
3.Air supply
Using air pressure:0.6MPa
4.Dimension and weight
Dimensions:3350×2300×2550mm
Net weight:6200Kg
二、Accessories
