CNC Machine Center
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
Product Description
CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
| Machine main specification: 1.Trave X-axis:800mm Y-axis:500mm Z-axis:500mm Spindle nose to table surface:150-650mm Spindle center to column surface:550mm 2.Worktable Table size:1000×500mm Max.loading:500kg T-slot width:18 T-slot quantity: 5 3.Spindle Spindle taper:BT40 Spindle speed:8000rpm Spindle motor:7.5kw 4.Tool Max.tool dia.:φ80/φ150mm Max.tool length:200mm Max.tool weight:8kg | 5.Rapid movement X、Y axis rapid feed:24000mm Z axis rapid feed:20000mm Cutting feed:1-10000mm/min 6.Accuracy Position accuracy:±0.01mm Repeat positioning accuracy :±0.003/300mm ●Motor X/Y/Z axis AC servo motor （torque N.m 15/15/22） 1.Power device Power form:3-phase AC 380V±10% 50Hz±10% Capacity:15KVA 2.Coolant system Capacity:200L Cooling pump power:120W Cooling pump flow:50L/min Rated head:10m 3.Air supply Using air pressure:0.6MPa 4.Dimension and weight Dimensions:2750×2300×2300mm Net weight:5200Kg |
Main parts and Accessories
Accessories
| No. | Name | Specification or marking | Quantity | Remarks |
| 1 | Adjustable block and bolt | created by self | 8 sets | |
| 2 | Milling chuck | BT40 | 1 set | |
| 3 | Allen wrench | 1 set |
List of main purchased parts
| No. | Name | Specification | Quantity | Remarks | |
| 1 | spindle unit | BT40（φ150） | Taiwan Yucheng | 1 set | Standard accessories |
| 2 | Pressurized knife cylinder | 4500 | Taiwan | 1set | Standard accessories |
| 4 | disc magazine | BT40-24T | Taiwan Desu | 1set | Standard accessories |
| 5 | X direction ball screw | 4010/C3 | Taiwan HIWIN | 1pair | Standard accessories |
| 6 | Y direction ball screw | 4010 /C3 | Taiwan HIWIN | 1pair | Standard accessories |
| 7 | Z direction ball screw | 4010/C3 | Taiwan HIWIN | 1pair | Standard accessories |
| 8 | Screw bearing | NSK or FAG | 15 | Standard accessories | |
| 9 | Coupling | Import | 3 | Standard accessories | |
| 10 | Coolant pump | Domestic | 1 | Standard accessories | |
| 11 | lubrication system | Ruiqing | Domestic | 1set | Standard accessories |
| 12 | Pneumatic system | Yadeke | 1set | Standard accessories | |
| 13 | X-direction roller liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
| 14 | Y-direction roller liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
| 15 | Z-direction roller liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
Standard accessories：

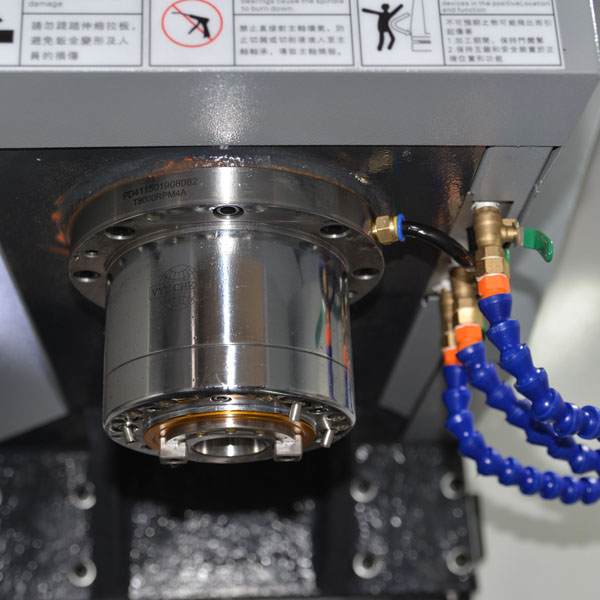

1、Spindle unit 8000rpm
2、Spindle servo motor：speed 8000rpm，power7.5Kw，torque35.8Nm；

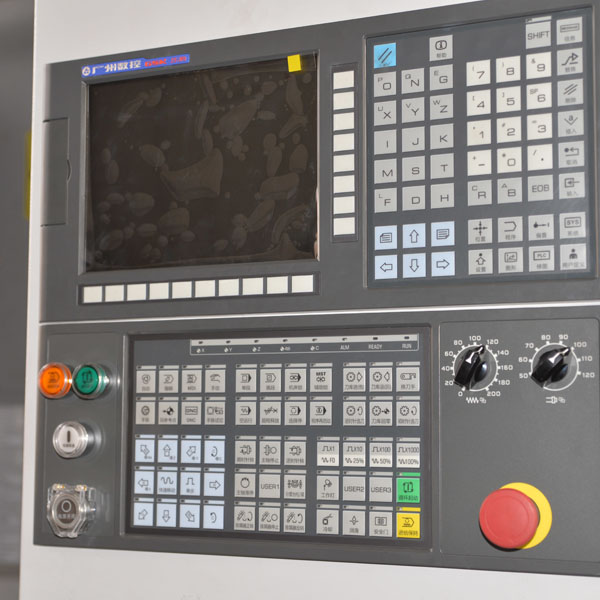

3、GSK 218 control system
4、24tools ATC from Taiwan；
5、Taiwan HIWIN screw；
6、Taiwan HIWIN linear guideway
7、Move the hand vein；
8、Centralized automatic oil lubrication；
9、Z axis counterweight system
10、External cooling system and water tank；
12、Simple oil-water separation device；
13、Full protection sheet metal shield and rail shield；
14、Adjustable block ；
15、Tubular work lights, warning lights；
16、Rigid tapping

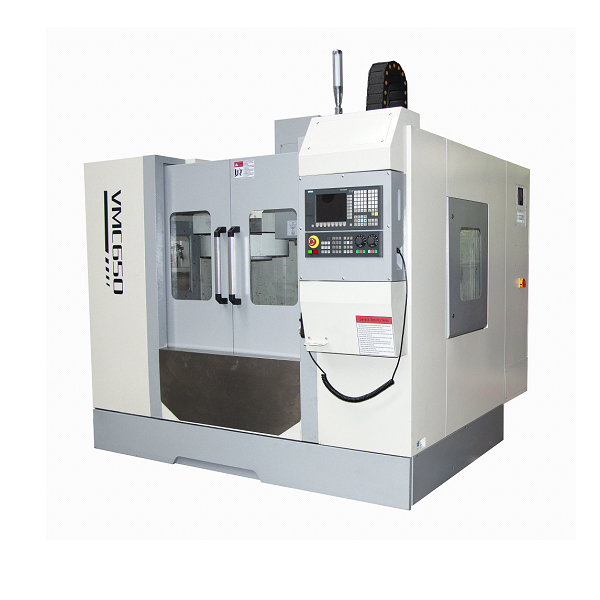

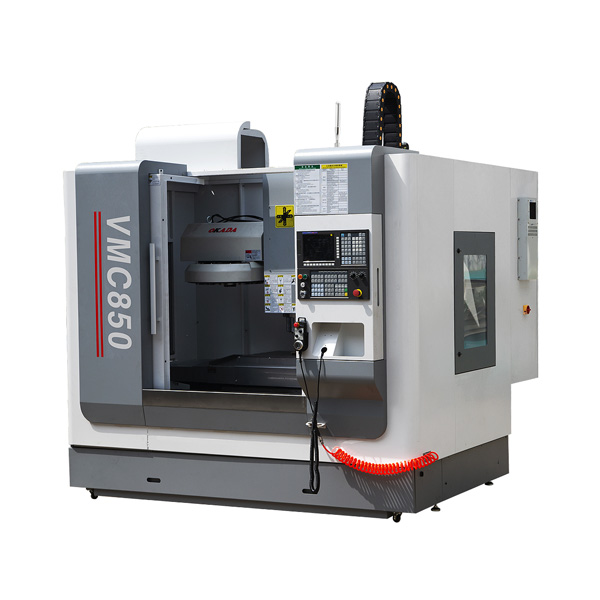

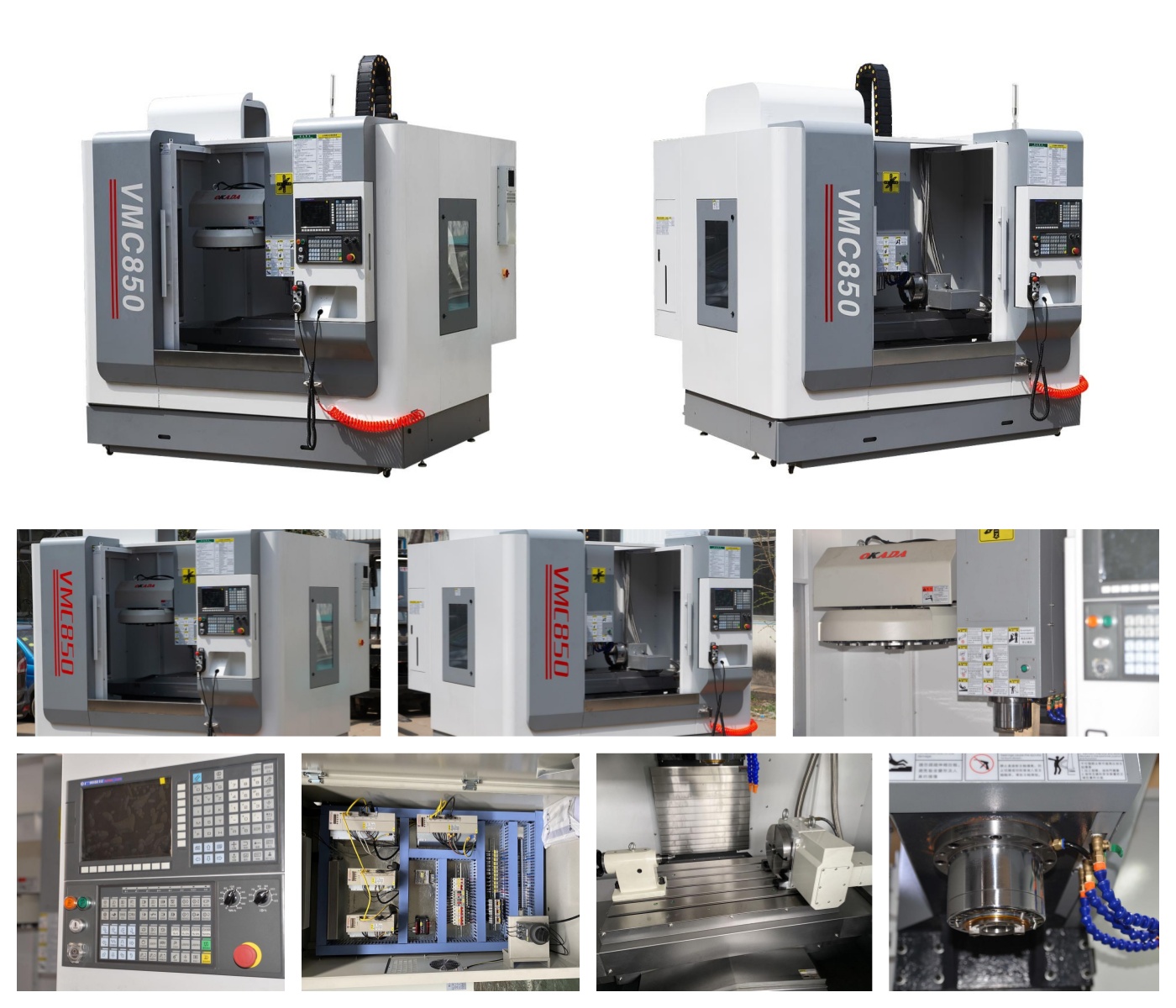

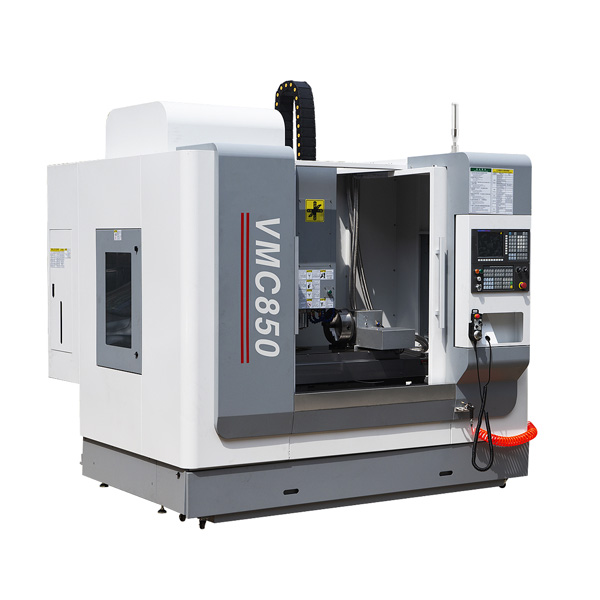

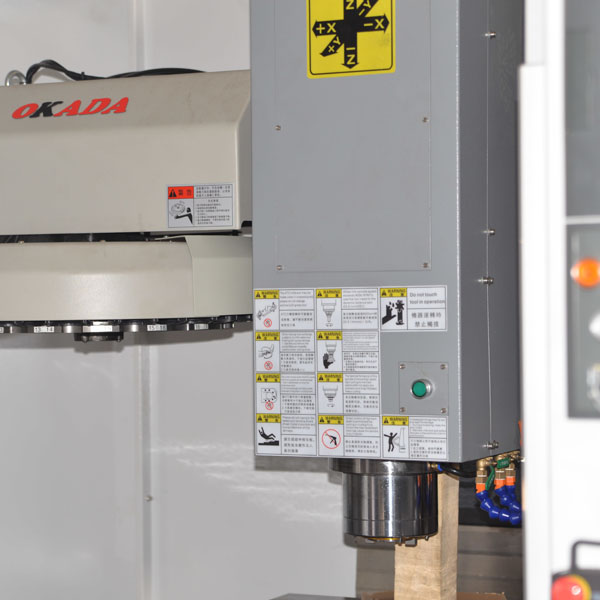

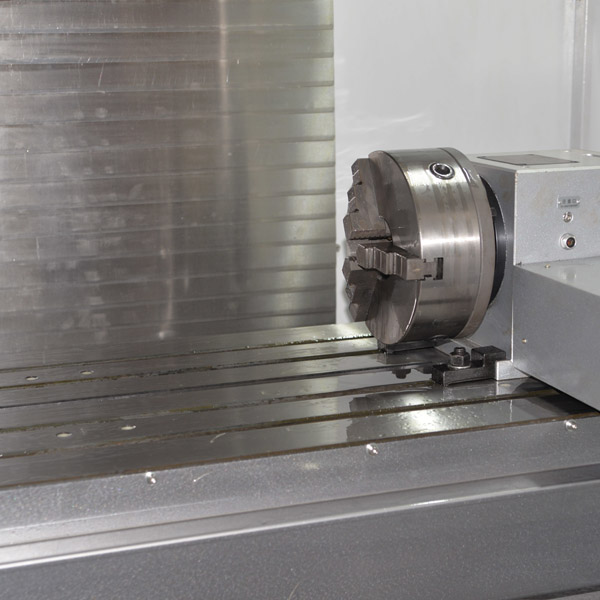

machine photo：

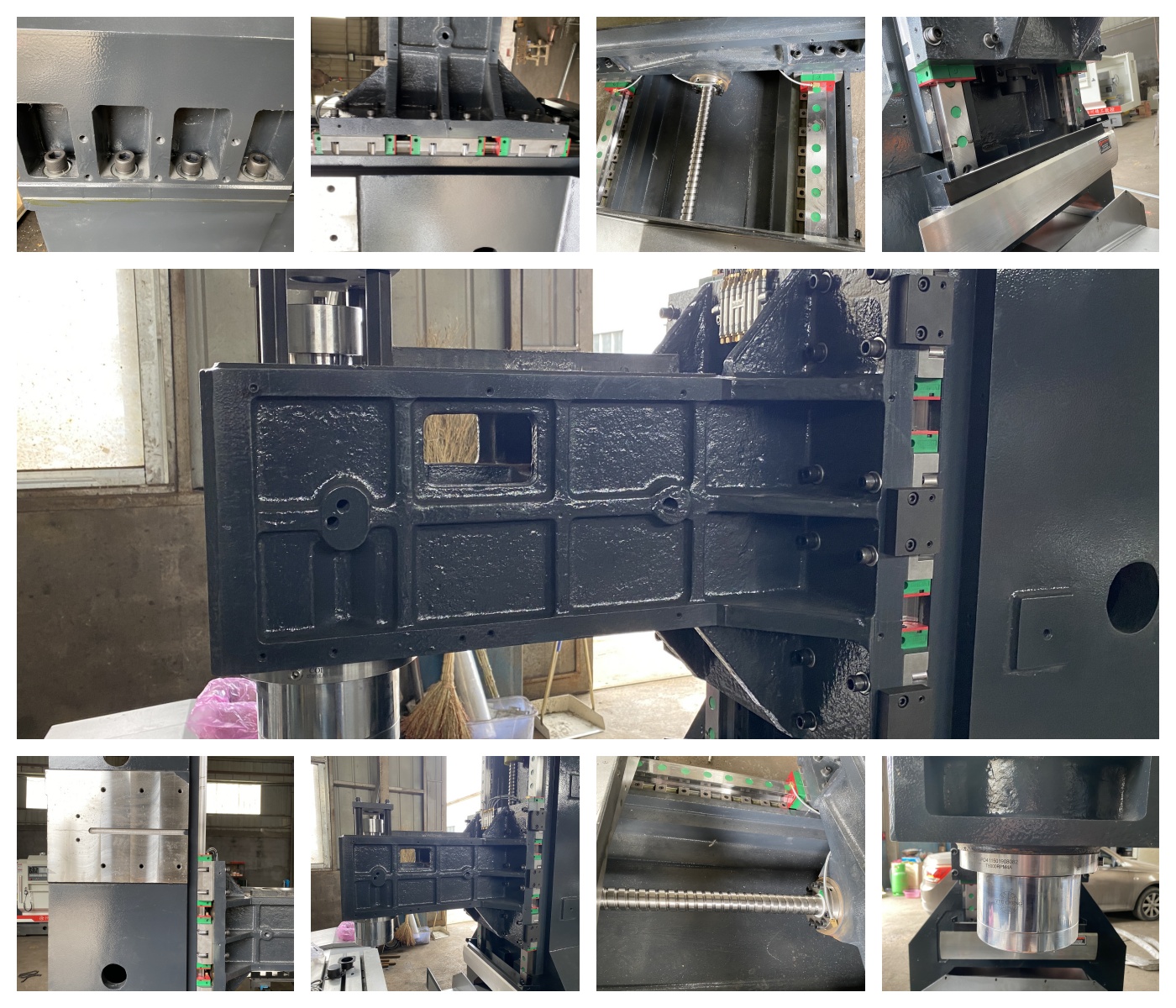

machina base frame：

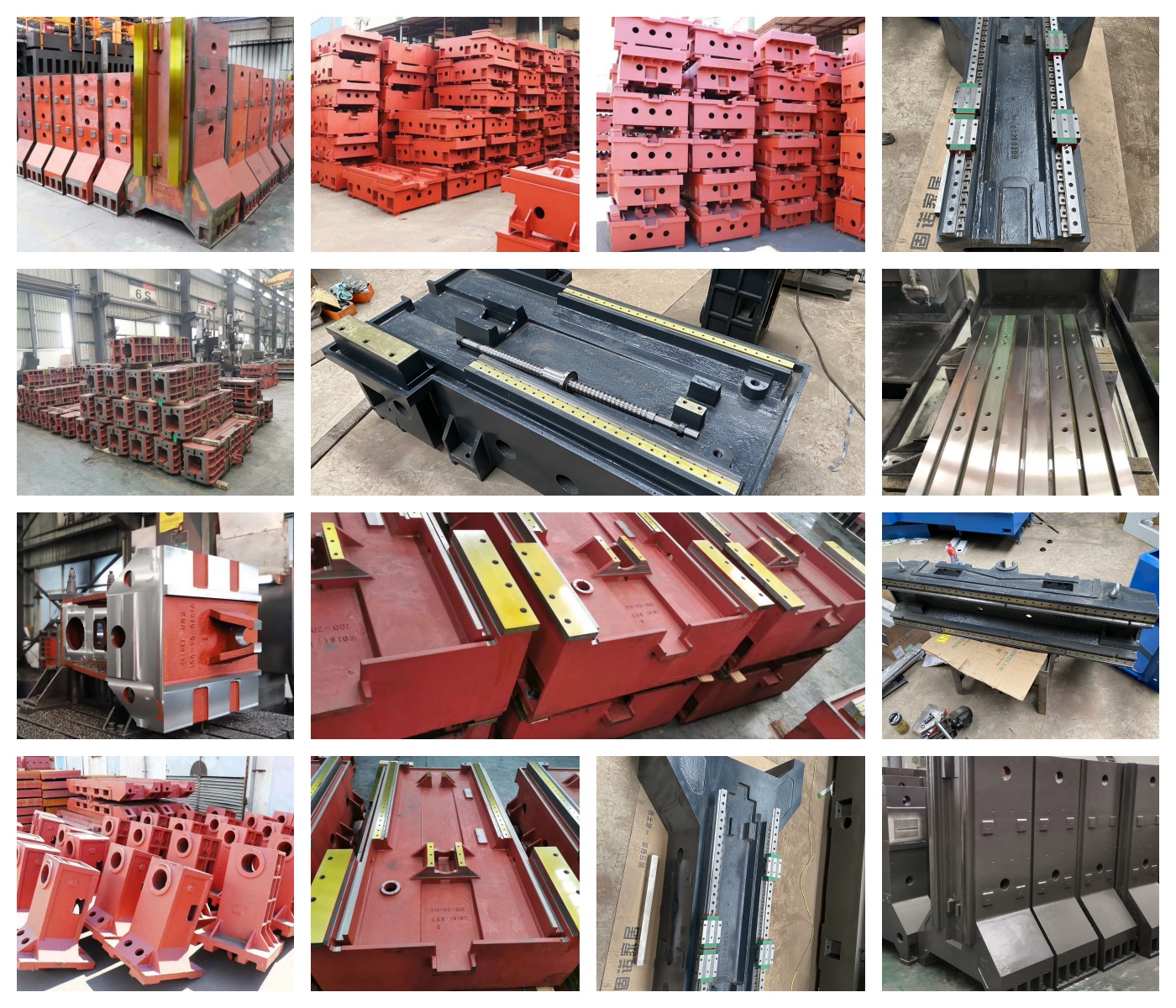

Casting Parts photo:
