CNC Machine Center

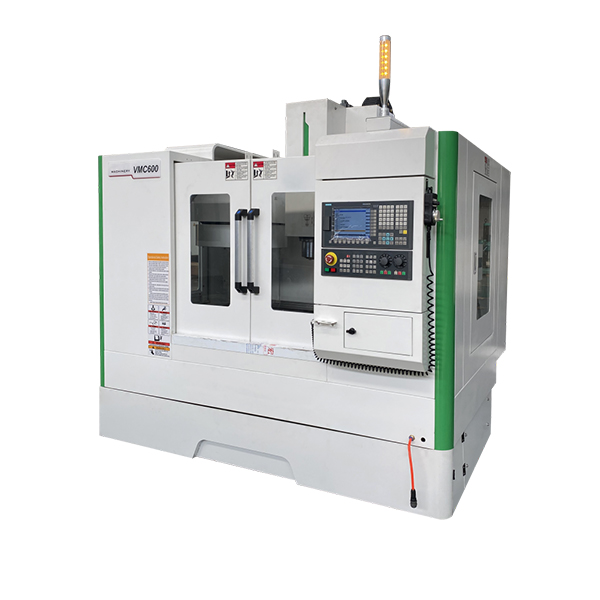

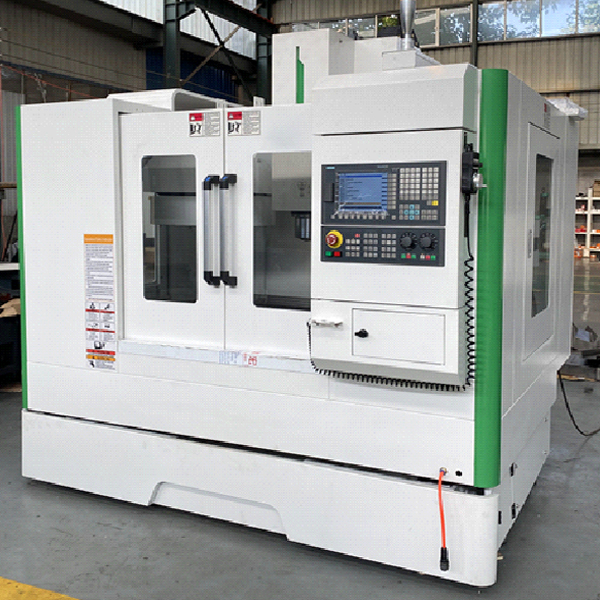

As one new product of independent design & development, VMC600 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
Product Description
As one new product of independent design & development, VMC600 is a multi-purpose machine which could mill surface & drill holes. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
This machine could process holes below ∮16, milling plane below 18 and milling depth below 3mm.
Products Specification
Major technical parameter
| Model | VMC600 |
| Main Motor Power KW | 5.5KW |
| Spindle Max. Rotating Speed | Servo Spindle 8000rpm |
| Z Motor Torque | 15N.m |
| X Motor Torque | 6N.m |
| Y Motor Torque | 6N.m |
| Spindle Taper | BT40 |
| Worktable Size | 800X320mm |
| Travel（Longitudinal X/Horizontal Y/Vertical Z） | 600X400X450mm |
| Distance of Spindle Axis to Guideway Plane | 350mm |
| Distance of Spindle End to Worktable | 80-530mm |
| The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
| Positioning Accuracy | 0.02mm |
| Repeated Positioning Accuracy | 0.01mm |
| Machine Overall Dimension (L*W*H) mm | 2600*1950*2400 |
| Machine Net Weight KG | 2800 |
| System Configuration | Siemens 808D |
| External Protection Level | Full Closed |
VMC600 Packing List
| No. | Name | Specification | Qty. |
| 1 | Qualified Certificate | VMC600 | 1 |
| 2 | Accuracy Inspection List | VMC600 | 1 |
| 3 | Connection & Test Manual | 1 | |
| 4 | User Manual | 1 | |
| 5 | Packing List | VMC600 | 1 |
| 6 | Spanner | 1 | |
| 7 | Allen Wrench | Set | 1 |
| 8 | Timing Belt | 1 | |
| 9 | Milling Chuck | BT40 | 1 |
| 10 | Drawbar | 1 | |
| 11 | Oil Gun | 1 | |
| 12 | Iron Cushion | 4 |
List of Partial Sourcing List
| No. | Name | Standard Configuration |
| 1 | Ball Screw | Jiangsu qijian |
| 2 | Spindle Unit (Optional Accessories) | Taiwan Danquan |
| 3 | Electric System | Chang’an Electric |
| 4 | Oil Pump | China South Pump |
| 5 | Working Lamp | Tengzhou Sanying Electric |
| 6 | System | Siemens,Great, Huazhong, GSK and KND |
| 7 | Cylinder (Optional Accessories) | Wuxi Xieqing |
| 8 | Flange Bearings (P5) | Haerbin |
| 9 | Tool Magazine | Taiwan DYSO |
| 10 | Line guide rail | Taiwan HIWIN |
