CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).

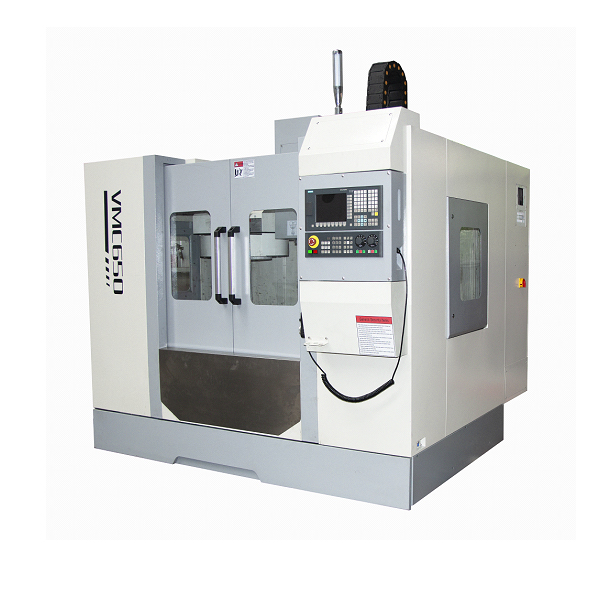

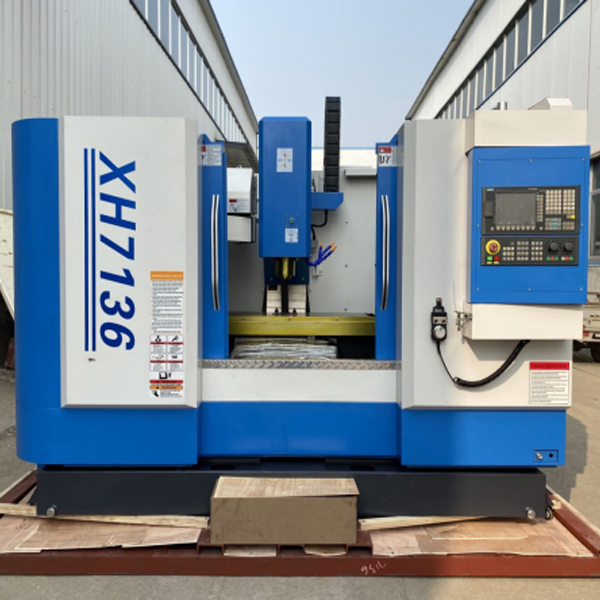

Product Description
The main technical parameters

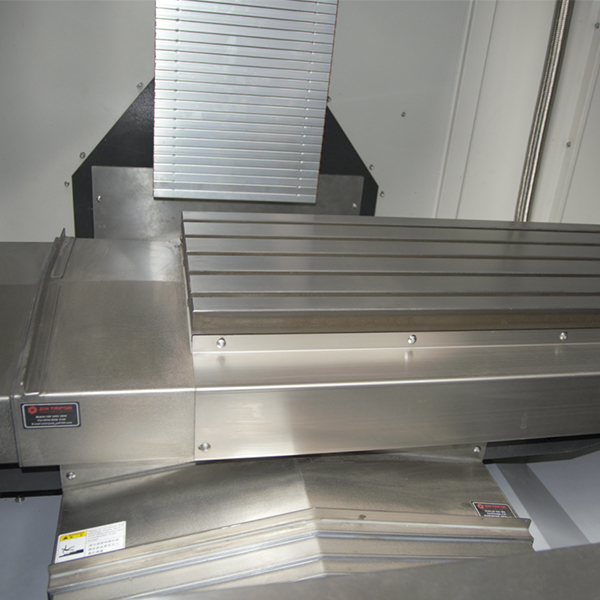

1.Travel X-axis:650mm Y-axis:450mm Z-axis:500mm Spindle nose to table surface:120-620mm Spindle center to column surface:500mm 2.Worktable Table size:900×400mm Max.loading:400kg T-slot width:18 T-slot quantity: 3 3.Spindle Spindle taper:BT40 Spindle speed:8000rpm Spindle motor:5.5kw | 4.Tool Max.tool dia.:φ80/φ100mm Max.tool length:150mm Max.tool weight:7kg 5.Rapid movement X、Y axis rapid feed:20000mm Z axis rapid feed:18000mm Cutting feed:1-10000mm/min6.Accuracy Position accuracy:±0.01mm Repeat positioning accuracy :±0.005/300mm |
Products Specification

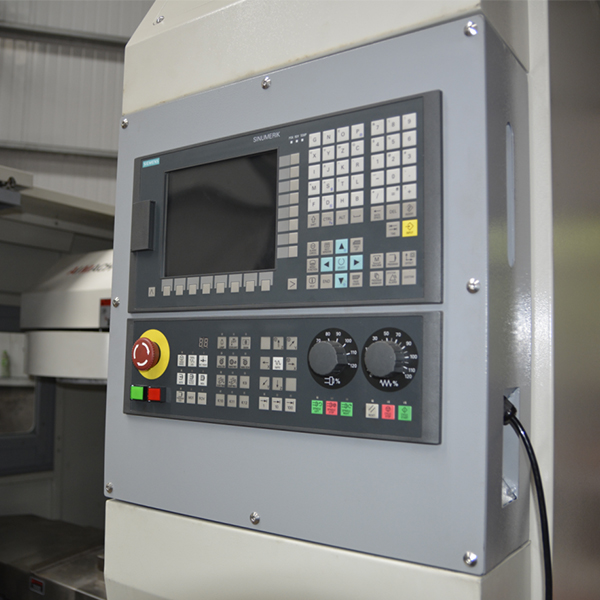

CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
●Motor
X/Y/Z axis AC servo motor (torque N.m 11/11/15)
1.Power device
Power form:3-phase AC 380V±10% 50Hz±10%
Capacity:10KVA
2.Coolant system
Capacity:200L
Cooling pump power:120W
Cooling pump flow:50L/min
Rated head:10m
3.Air supply
Using air pressure:0.6MPa
4.Dimension and weight
Dimensions:2300×2200×2400mm
Net weight:3800Kg
Accessories
No. | Name | Specification or marking | Quantity | Remarks |
1 | Adjustable block and bolt | created by self | 6 sets | |
2 | Milling chuck | BT40 | 1 set | |
3 | Allen wrench | 1 set |
List of main purchased parts
No. | Name | Specification | Quantity | Remarks | |
1 | spindle unit | BT40(φ120) | Taiwan VOLIS | 1 set | Standard accessories |
2 | Pressurized knife cylinder | 4500 | Taiwan | 1set | Standard accessories |

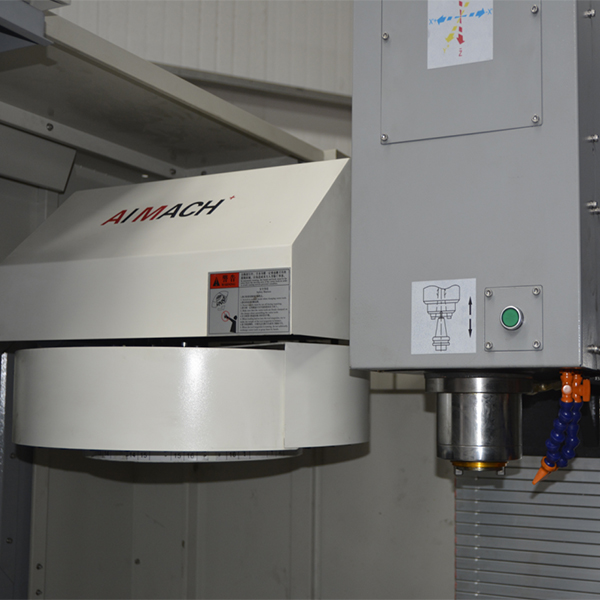

4 | magazine | BT40-16T | Taiwan Desu | 1set | Standard accessories |
5 | X direction ball screw | 4010/C3 | JIANGSUQIJIAN | 1pair | Standard accessories |
6 | Y direction ball screw | 4010 /C3 | JIANGSUQIJIAN | 1pair | Standard accessories |
7 | Z direction ball screw | 4010/C3 | JIANGSUQIJIAN | 1pair | Standard accessories |
8 | Screw bearing | NSK or FAG | 15 | Standard accessories | |
9 | Coupling | Import | 3 | Standard accessories | |
10 | Coolant pump | Domestic | 1 | Standard accessories | |
11 | lubrication system | Ruiqing | Domestic | 1set | Standard accessories |
12 | Pneumatic system | Yadeke | 1set | Standard accessories | |
13 | X-direction liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
14 | Y-direction liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
15 | Z-direction liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
Standard accessories:

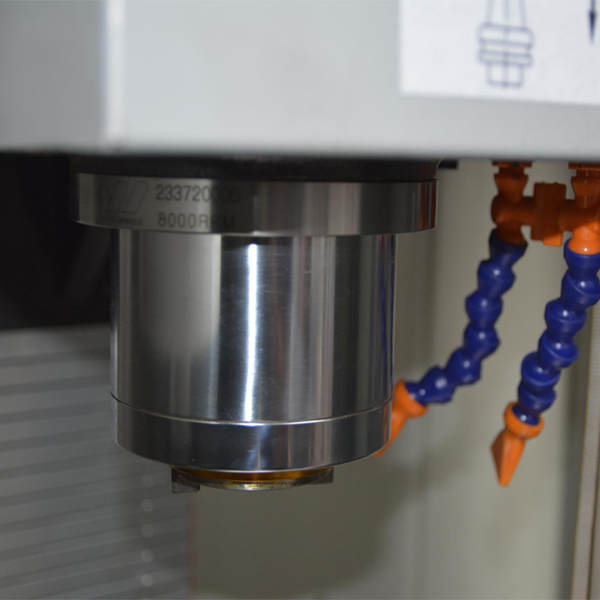

1、Spindle unit 8000rpm
2、Spindle servo motor:speed 8000rpm,power5.5Kw,torque25.8Nm;
3、GSK 218 control system
4、16tools ATC from Taiwan;
5、Jiangsu qijian screw;
6、Taiwan HIWIN linear guideway
7、Move the hand vein;
8、Centralized automatic oil lubrication;
10、External cooling system and water tank;
12、Simple oil-water separation device;
13、Full protection sheet metal shield and rail shield;
14、Adjustable block ;
15、Tubular work lights, warning lights;
16、Rigid tapping
Optional accessories:
SYSTEM:Siemens 808D/828D/Fanuc 0i-mf/Mitsubishi M80B
Note: Due to the difference in configuration, special ordering, numerical control system and continuous improvement of products, some technical parameters will be affected. Please check according to the actual situation when ordering, inconvenience, please understand!
