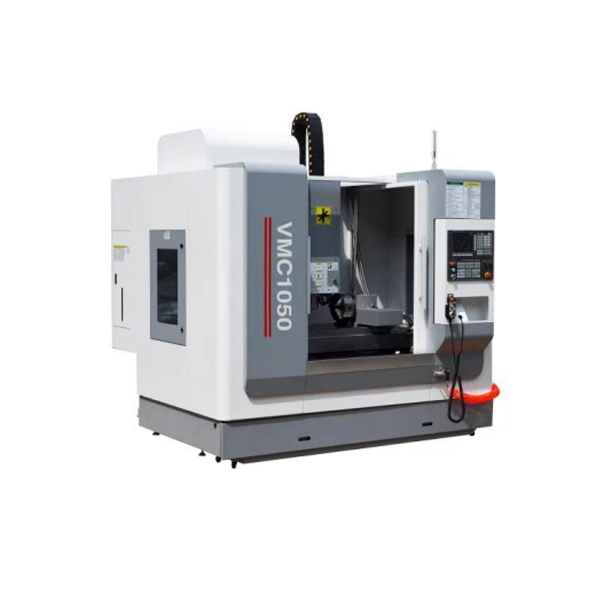

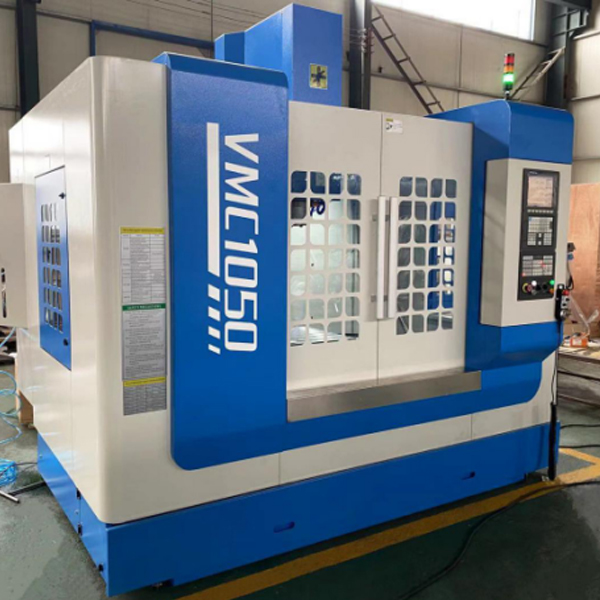

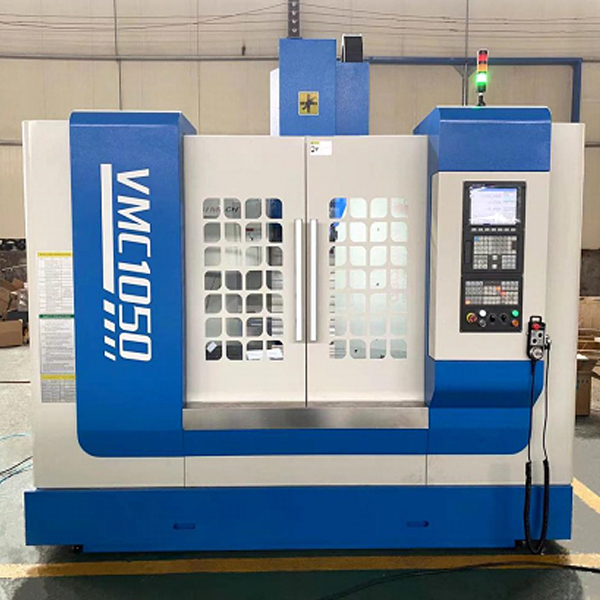

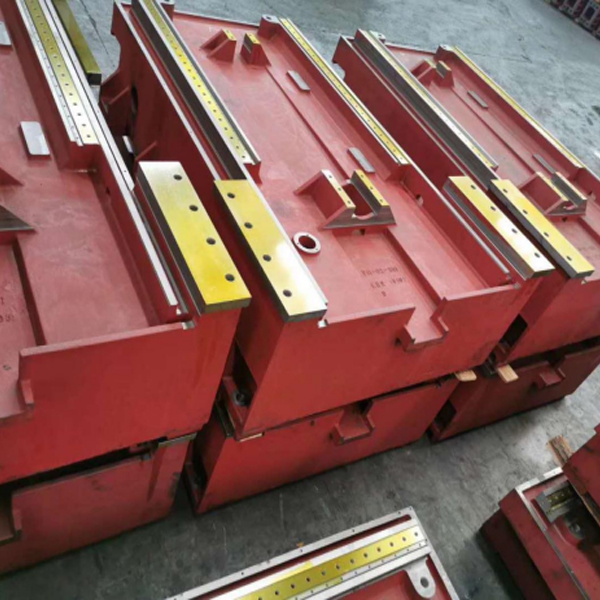

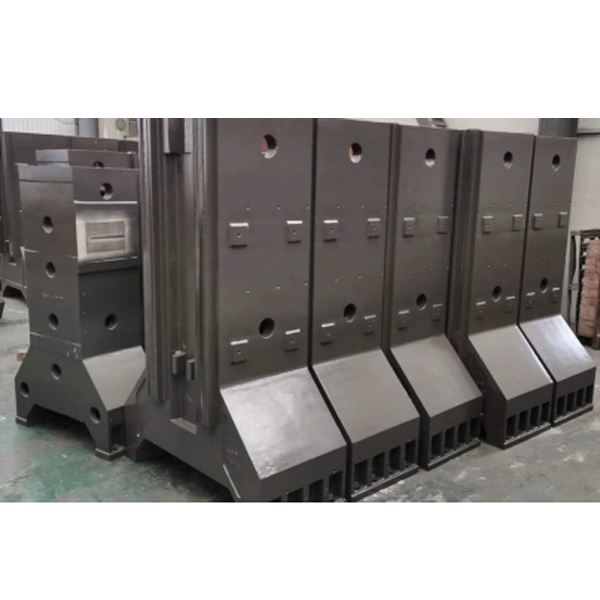

CNC Machine Center

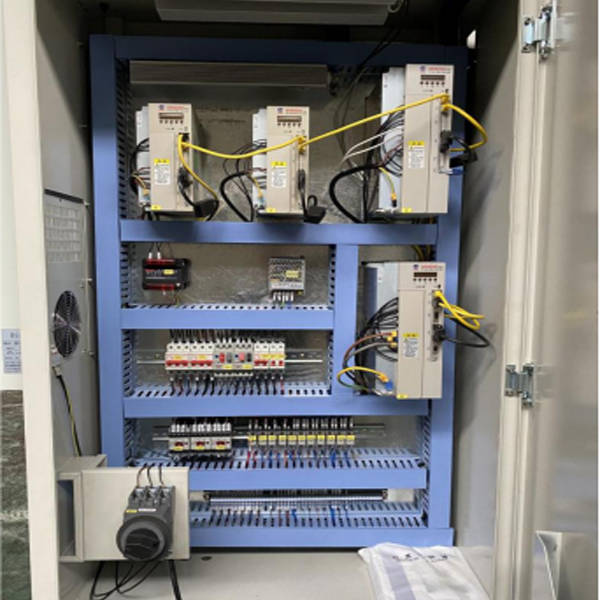

CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
Product Description
The main technical parameters

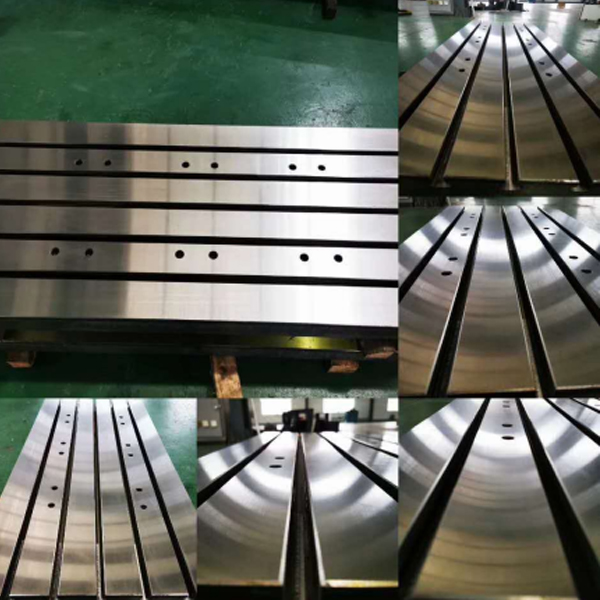

1.Travel X-axis:1000mm Y-axis:500mm Z-axis:500mm Spindle nose to table surface:120-620mm Spindle center to column surface:550mm2.Worktable Table size:1000×500mm Max.loading:500kg T-slot width:18 T-slot quantity: 53.Spindle Spindle taper:BT40 Spindle speed:8000rpm Spindle motor:7.5kw | 4.Tool Max.tool dia.:φ80/φ150mm Max.tool length:200mm Max.tool weight:8kg 5.Rapid movement X、Y axis rapid feed:20000mm Z axis rapid feed:18000mm Cutting feed:1-10000mm/min6.Accuracy Position accuracy:±0.01mm Repeat positioning accuracy :±0.003/300mm |
Products Specification
CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, can achieve DNC processing (according to the system has differences).
●Motor
X/Y/Z axis AC servo motor (torque N.m 15/15/22)
1.Power device
Power form:3-phase AC 380V±10% 50Hz±10%
Capacity:15KVA
2.Coolant system
Capacity:200L
Cooling pump power:120W
Cooling pump flow:50L/min
Rated head:10m
3.Air supply
Using air pressure:0.6MPa
4.Dimension and weight
Dimensions:2750×2300×2300mm
Net weight:5200Kg
Accessories
No. | Name | Specification or marking | Quantity | Remarks |
1 | Adjustable block and bolt | created by self | 8 sets | |
2 | Milling chuck | BT40 | 1 set | |
3 | Allen wrench | 1 set |
List of main purchased parts
No. | Name | Specification | Quantity | Remarks | |

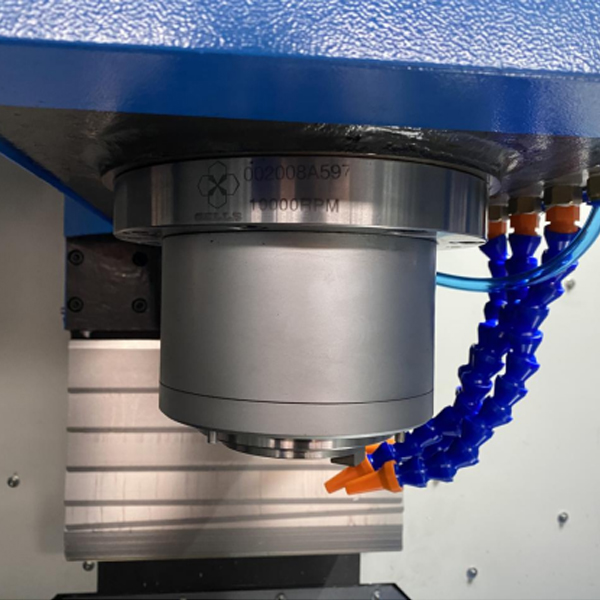

1 | spindle unit | BT40(φ140) | Taiwan Yucheng | 1 set | Standard accessories |
2 | Pressurized knife cylinder | 4500 | Taiwan | 1set | Standard accessories |
4 | disc magazine | BT40-16T | Taiwan Desu | 1set | Standard accessories |
5 | X direction ball screw | 4010/C3 | Taiwan HIWIN | 1pair | Standard accessories |
6 | Y direction ball screw | 4010 /C3 | Taiwan HIWIN | 1pair | Standard accessories |
7 | Z direction ball screw | 4010/C3 | Taiwan HIWIN | 1pair | Standard accessories |
8 | Screw bearing | HBB or HRB | 15 | Standard accessories | |
9 | Coupling | Import | 3 | Standard accessories | |
10 | Coolant pump | Domestic | 1 | Standard accessories | |
11 | lubrication system | Ruiqing | Domestic | 1set | Standard accessories |
12 | Pneumatic system | Yadeke | 1set | Standard accessories | |
13 | X-direction liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
14 | Y-direction liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
15 | Z-direction liner rail | 35mm | Taiwan HIWIN | 1pair | Standard accessories |
1、Spindle unit 8000rpm
2、Spindle servo motor:speed 8000rpm,power7.5Kw,torque35.8Nm;
3、GSK 218 control system
6、Taiwan HIWIN linear guideway
7、Move the hand vein;
8、Centralized automatic oil lubrication;
10、External cooling system and water tank;
12、Simple oil-water separation device;
13、Full protection sheet metal shield and rail shield;
14、Adjustable block ;
15、Tubular work lights, warning lights;
16、Rigid tapping
Optional accessories:
SYSTEM:Siemens 808D/Fanuc 0i-mf/Mitsubishi M80
Note: Due to the difference in configuration, special ordering, numerical control system and continuous improvement of products, some technical parameters will be affected. Please check according to the actual situation when ordering, inconvenience, please understand!
