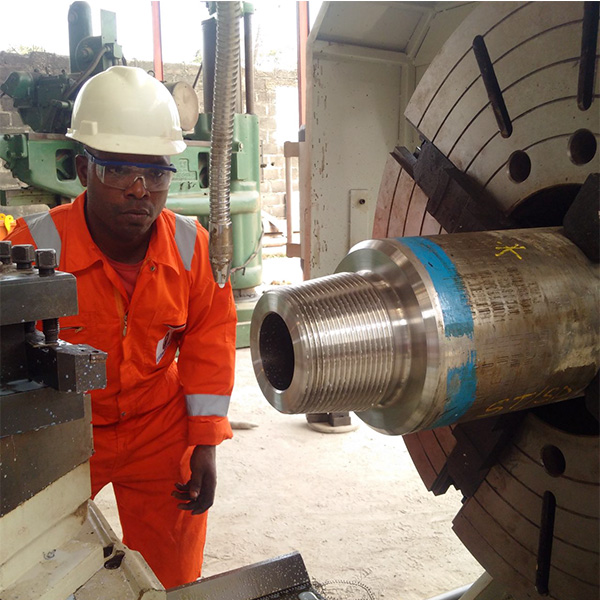

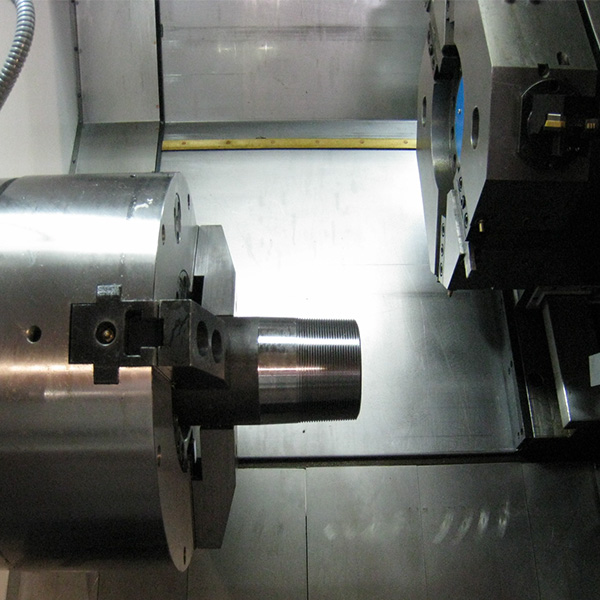

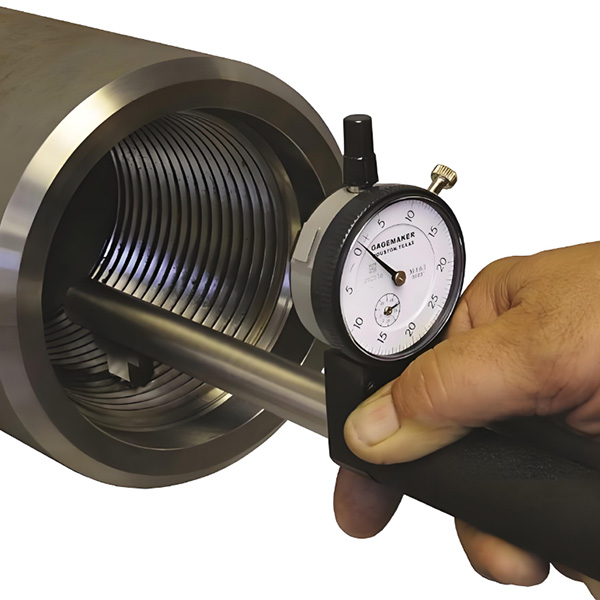

Pipe Thread Cutting

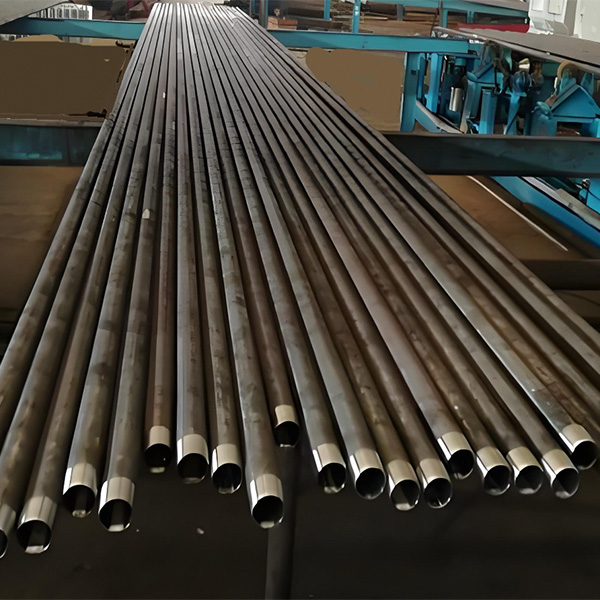

It has all the functions of an ordinary lathe, and is also used for the processing of large-diameter pipe material. It is widely used in Machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries machining operations.

Inquire Now Next Product

Product Description

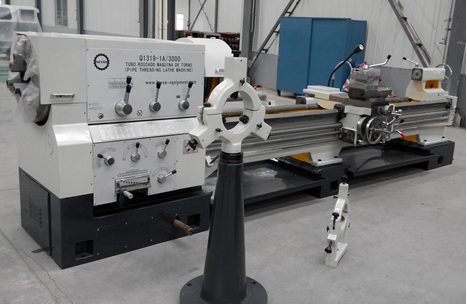

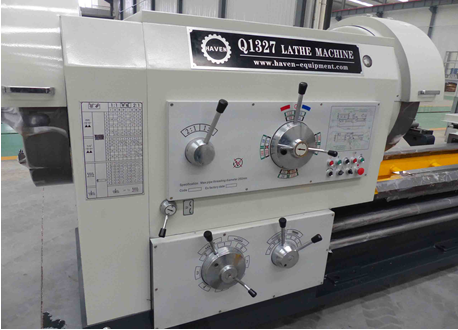

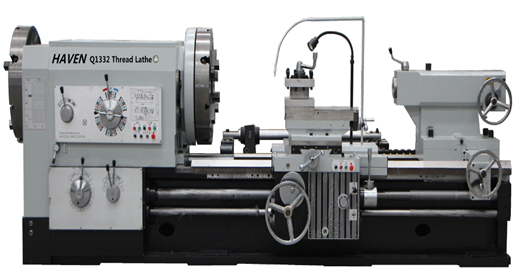

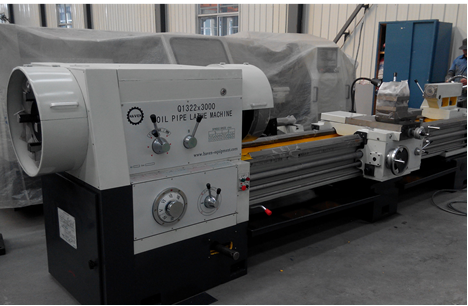

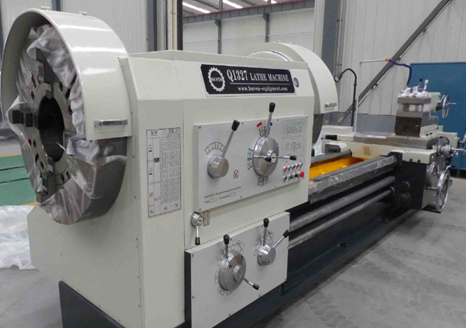

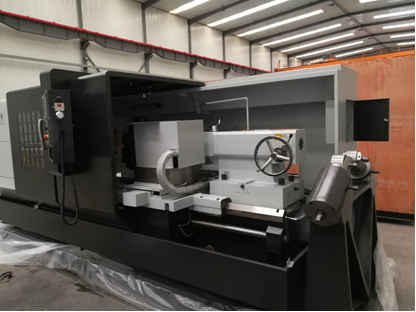

Q13 Series Pipe Thread Lathe Machine

Main Features：HAVEN Q13 Series Pipe Thread Lathe is a kind of horizontal lathe designed for professional processing of thread works. It has all the functions of an ordinary lathe, and is also used for the processing of large-diameter pipe material. It is widely used in Machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries machining operations. The spindle box equipped with dual chucks, and lathe bed is with taper machining device that can process various internal and external diameter , Including metric, imperial, taper thread, etc.

This lathe machine can also process shaft type part, disk parts and cylindrical parts. With help of appropriate tools and accessories, Q13 lathe machine can also process drilling, reaming, tapping and rolling and so on.

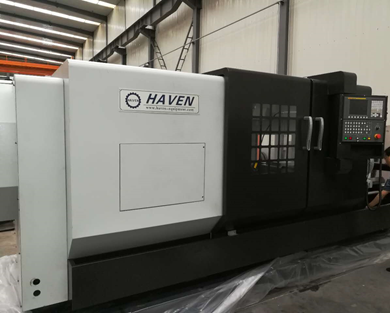

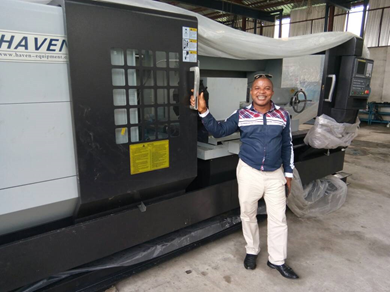

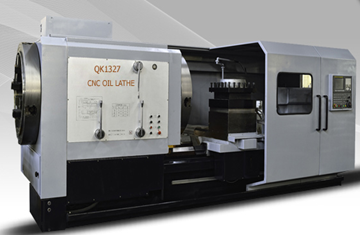

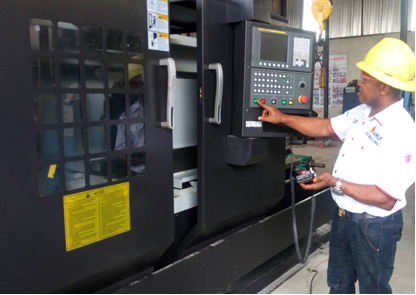

QK CNC pipe lathe machine

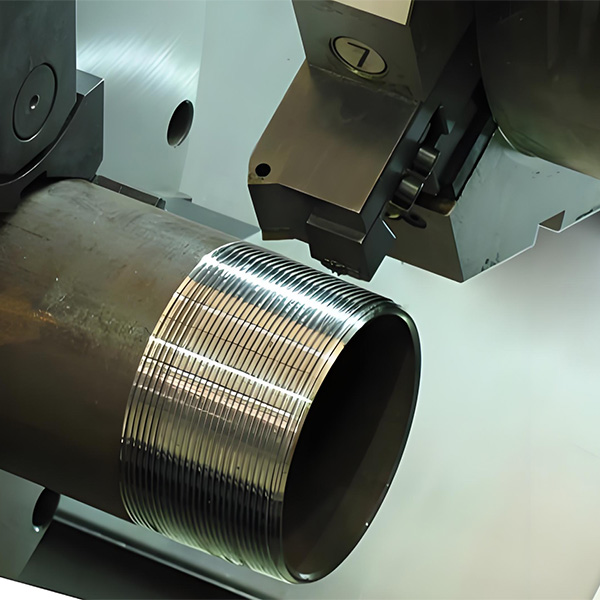

QK CNC pipe threading lathe is a specialized machine tools, pipe processing on petroleum, chemical industry, metallurgy, oil pipe, casing, drill pipe processing requirements of the professional design and manufacture, and is mainly used to process inside and outside the pipethread, the numerical control system, automatic control can be accurately for a variety of internal and external thread (the metric threads, the inch thread, taper pipe) for processing, can also be used as a common CNC lathes, cylindrical inner hole and end surface of workpieceand the conical surface processing.

The machine has a high degree of automation, good efficiency and high precision scope widely characteristics such as simple operation

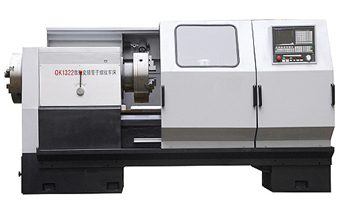

QK1319	QK1322

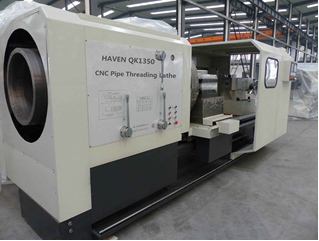

QK1327	QK1350

Products Specification

Q13 Series Pipe Thread Lathe Machine

Type	Unit	Q1319	Q1322	Q1325	Q1327	Q1332
Max. dia. swing over bed	mm	630	630	800	1000	1200
Max. dia. swing over cross slide	mm	340	350	480	610	710
Spindle bore	mm	200	225	255	280	330
Range of machining pipe thread	mm	50-190	50-220	50-250	130-270	190-320
Max. length of work piece	mm	1500/2000/2500/3000/4000/5000/6000/7000/8000/9000
Max. tapper of work piece		1:4
Max. traverse of tapper device	mm	750	750	750	1000	1000
Width of bed	mm	490	550	600	600 or 755	755
Power of spindle motor	Kw	7.5	11	15	22	22
Number and Range of crosswise feeds	r/min	22kinds/0.02-0.45	32kinds/0.04-0.65	22kinds/0.02～0.45	40kinds/0.05-1.5	32kinds/0.05-0.75
Number and range of spindle speed	r/min	12steps/24-300	12steps/20-460	4steps/25-400	12steps/16-380	9steps/7.5-280
Number and range of Longitudinal feeds	mm	26kinds/0.07-1.33	32kinds/0.1-1.46	26kinds /0.07～1.33	40kinds/0.1-3	32kinds/0.1-1.5
Number and range of metric thread	mm	24kinds/1-14	21kinds/1-15	24kinds/1～14	30kinds/1-30	23kinds/1-15
Number and range of inch thread	teeth/inch	40kinds/2-28	26kinds/1-14	40kinds/2-28	27kinds/1-28	22kinds/2-28
Screw pitch	inch	1/2
Saddle rapid traverse	mm/min	2500	2500	2500	3740	3740
Cross slide rapid traverse	mm/min	2000	2000	2000	1870	1870
Max. traverse of cross slide	mm	390	390	390	520	520
Max. traverse of turret	mm	200	200	200	300	300
Size of tool section	mm	30x30	30x30	32x32	45x45	45x45
Amount of movement on cross slide dial	mm/scale	0.05	0.05	0.05	0.05	0.05
Amount of movement on turret	mm/scale	0.05	0.05	0.05	0.05	0.05
Dia. And type of tailstock quill	mm/mores	100/m5#	100/m5#	100/m5#	140/m6#	140/m6#
Traverse of tailstock quill	mm	205	250	250	300	300
Cross amount of movement of tailstock	mm	+/-15	+/-15	+/-15	+/-25	+/-25
Chuck	mm	4-jaw 520Manual type	4-jaw 520Manual type	4-jaw 520Manual type	4-jaw 800Manual type	4-jaw, 800mm, Electric and ManualComposed Type

QK CNC pipe lathe machine

Main features

The usual brand-name accessories:

1) Famous brand precision bearing;

2) Famous brand auto centralized lubricating system;

3) Famous brand servo motor;

4) Famous brand electric tool post;

5) Famous brand encoder;
6) Famous brand ball-screw;
7) Low-voltage apparatus of Siemens and France Schneider;
8) Domestic brand-name machine tool accessories;

9) Famous brand lighting and cooling system;

10) Famous brand Hand - held electronic pulse wheel

Standard accessory:

CNC system

Manual 4-jaw chuck 2 pcs

Chuck safety guard 2 pcs

Coolant system 1 set

Work lamp 1 pc

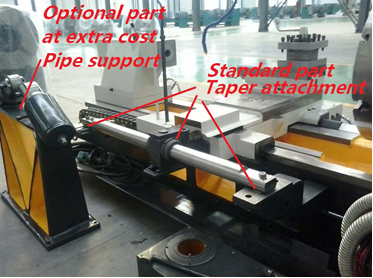

Taper turning attachment 1 pc

Rear roller support 1 pc

Operation Manual 1 pc

Tool and tool box 1 pc

Foundation bolts 1 set

Optional CNC system of famous brand:

1) Siemens 808D SL servo

2) Japan FANUC 0i－mate－TD

3) Guangzhou CNC GSK980TDc

Main specification

Type	Unit	QK1319	QK1322	QK1327	QK1332	QK1338	QK1343	QK1350
Max. dia. swing over bed	mm	630	630	1000	1000	1000	1000	1200
Max. dia. swing over croos slide	mm	340	340	610	610	610	610	710
Spindle bore	mm	200	225	280	330	390	440	510
Range of machining pipe thread	mm	50-190	50-220	130-270	190-320	190-380	270-430	330-500
Max. length of work piece	mm	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
Max. traverse of tapper device	mm	750	750	1000	1000	1000	1000	1000
Width of bed	mm	490	550	755	755	755	755	755
Power of spindle motor	Kw	7.5	11	22	22	22	22	37
Number of feeds and screw pitch	mm	0.001-40
Spindle speed	r/min	12step/24-300	12step/20-460	12step/16-380	9step/7.5-280	9step/6-205	9step/4.9-180	9step/6-205
X/Z maximum travel	mm	X 320; Z1250/2750		X 500; Z 1250/2750
X/Z rapid travel speed	Mm/min	4000
X/Z servo motor power(kw/N.m)	teeth/inch	X 1.5/10 Z 2.3/15		X 2.3/15 Z 4.7/30
Position accuracy	mm	0.020
Repeatability position accuracy	mm	0.010
Diameter./ type of tailstock quill		100mm/M5#	100mm/M5#	140mm/M6#	140mm/M6#	140mm/M6#	140mm/M6#	140mm/M6#
Stroke of tailstock quill	mm	205	250	300
Cross of movement of tailstock	mm	+/-15		+/-25
Chuck		4-jaw chuck 520mm		4-jaw chuck 800mm
