Macaroni Tubing

Tubing Pup Joint & Thickening Process Description

Tubing/Short Joint Thickening Process Overview:

The pipe-end upsetting (pier roughening) process involves heating the end of the tubing and feeding it into specialized thickening equipment. This causes plastic deformation at the pipe end, increasing both the wall thickness and the effective length of the thickened section, while keeping the inner diameter unchanged. The result is a stronger pipe end designed to improve thread connection performance.

The external upset process is a compound operation that combines upsetting, expanding, and extruding. Its main purpose is to:

• Enhance the tensile and torque strength of threaded connections

• Increase connection durability

• Reduce the risk of thread failure or pipe breakage

• Extend the lifespan of tubing and reduce operational accidents

The external upset process is a compound operation that combines upsetting, expanding, and extruding. Its main purpose is to:

• Enhance the tensile and torque strength of threaded connections

• Increase connection durability

• Reduce the risk of thread failure or pipe breakage

• Extend the lifespan of tubing and reduce operational accidents

Types of Pup Joints / Short Connectors:

1. Standard Pup Joint (Short Joint)

• NUE (Non-Upset End): Straight thread cut on both ends of the pipe without thickening.

• EUE (External Upset End): Pipe ends are upset (thickened) before threading to increase mechanical strength and torque capacity.

2. Double Male Pup Joint

• Features male threads on both ends

• Unlike standard joints, it does not include a coupling

• Commonly used in special connection scenarios for quick joint operations

3. Full-Length Thickened Pup Joint

• The entire short joint undergoes uniform upsetting

• Provides improved strength and sealing performance

nventory and Available Products:

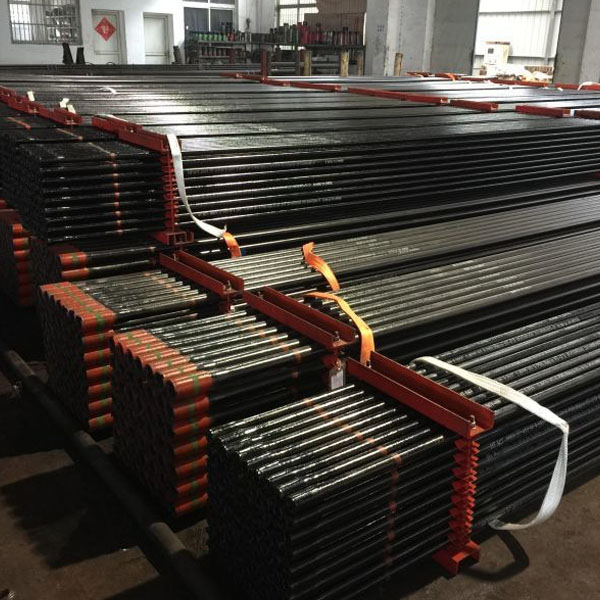

We maintain a stock of API 5CT-compliant oil casings and thickened small-diameter tubing joints ranging from 1.9" to 2-7/8".

Product Name Examples:

• Tubing Coupling

• Thickened Tubing Coupling

• Flat-End Tubing Coupling (NUE Type)

• External Upset Tubing Coupling (EUE Type)

Product Specifications:

• Standards: API SPEC 5CT, API SPEC 5B, API-7

• Material Grades:
  J55, K55, N80, L80-1, L80-SS, L80-3Cr, L80-13Cr, L80-9Cr, Super 13Cr, P110, P110-13Cr, TP110S, etc.

• Outer Diameter Range: 55.88mm – 141.3mm (1.315" – 4-1/2")

• Thread Types:

• NUE (Non-Upset Thread)

• EUE (External Upset Thread)

• SCC (Special Clearance Connection)
