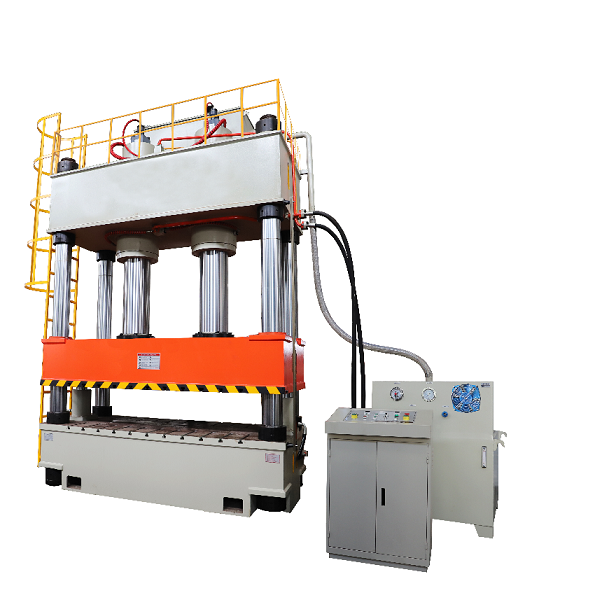

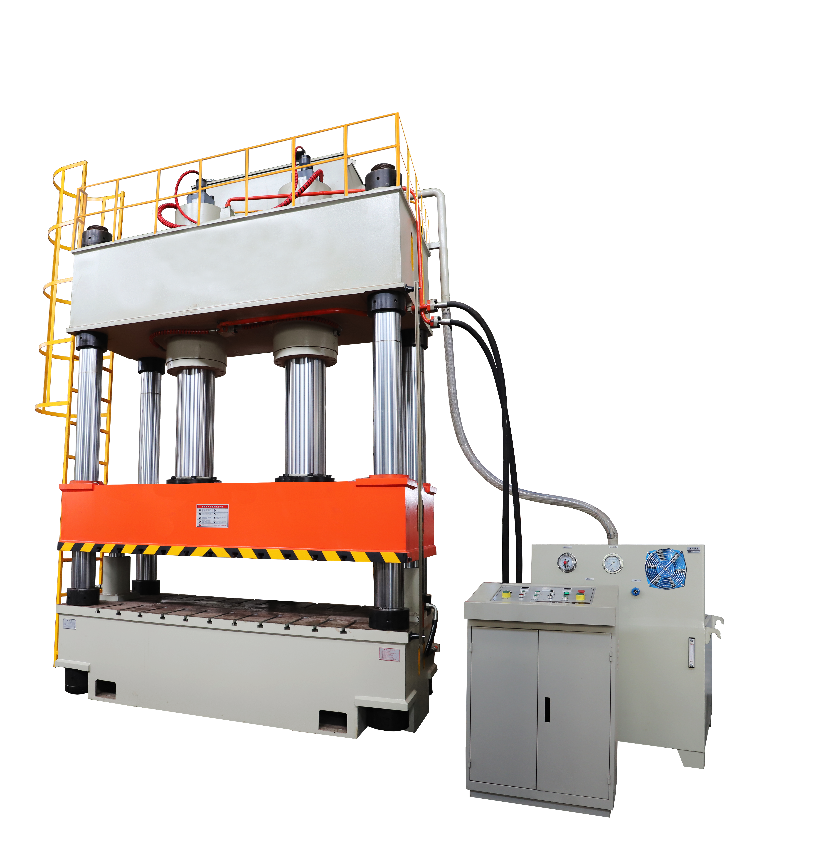

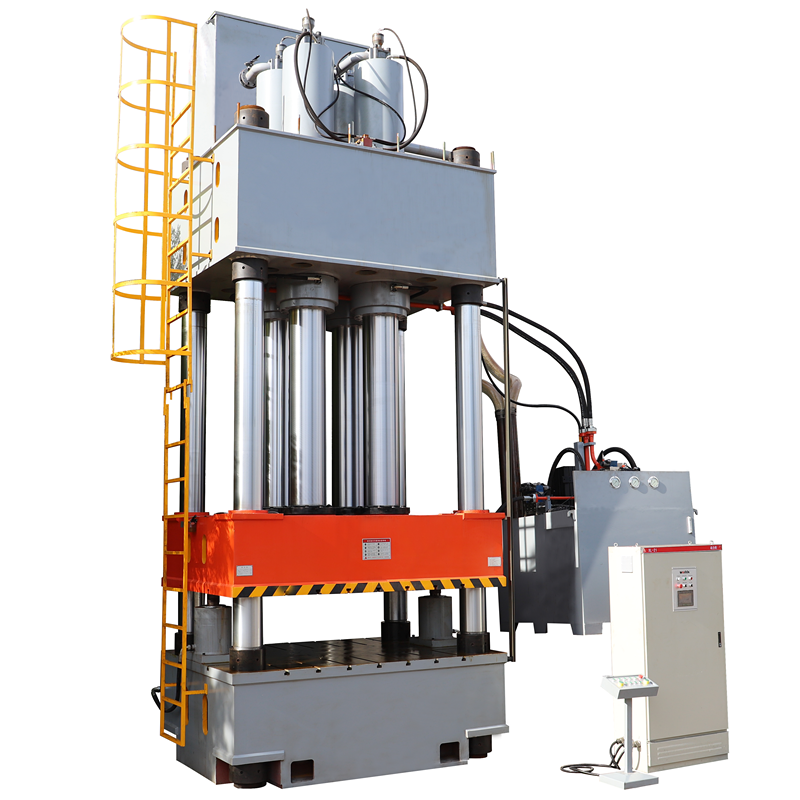

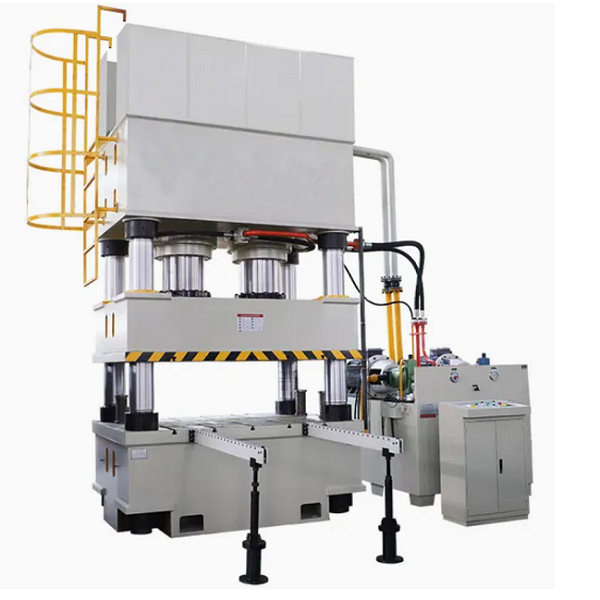

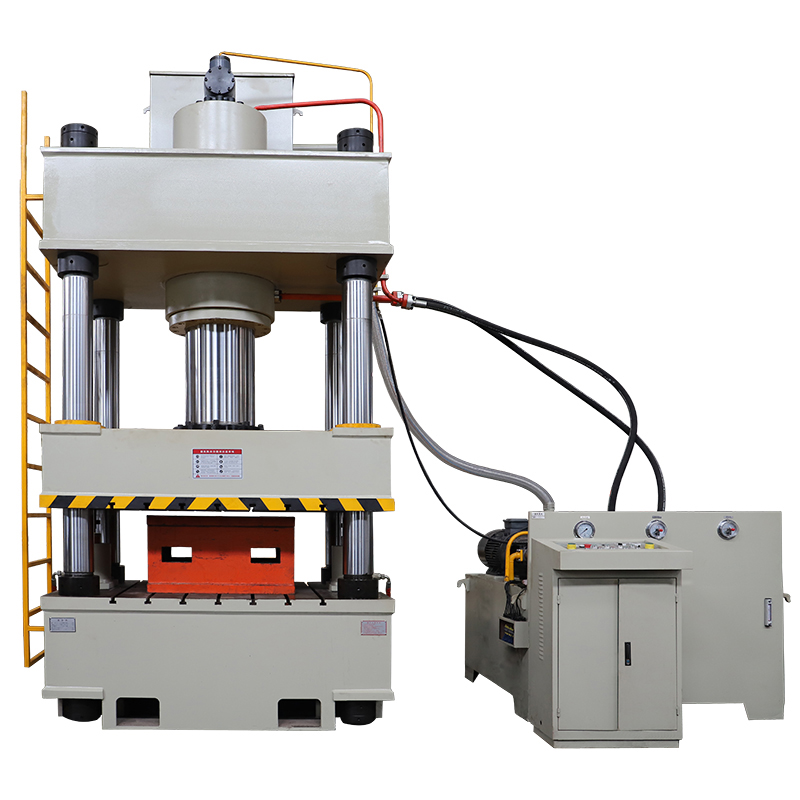

YQ32 Series Four Column Hydraulic Press

CHARACTERISTICS OF FOUR-COLUMN HYDRAULIC PRESS:

1. Four column structure, with good rigidity, high precision, compact structure, and economic applicability;

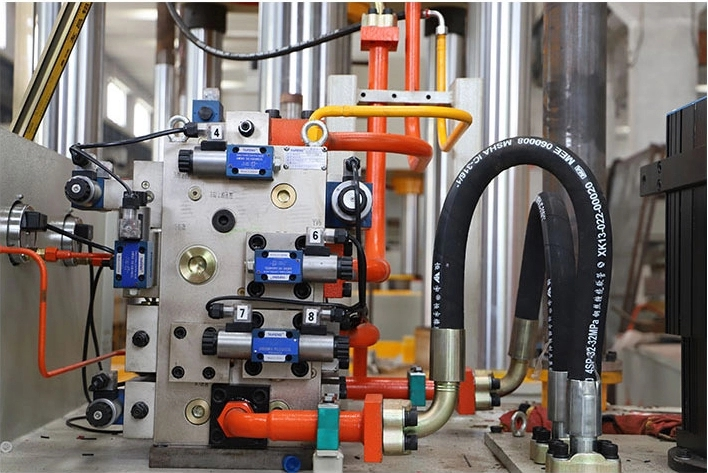

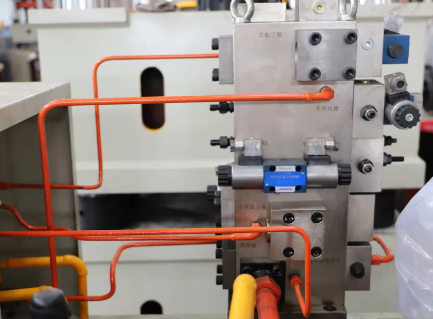

2. The hydraulic control adopts a plug-in valve integrated system, with few leakage points, small impact, and reliable action, which can effectively protect the service life of molds and equipment;

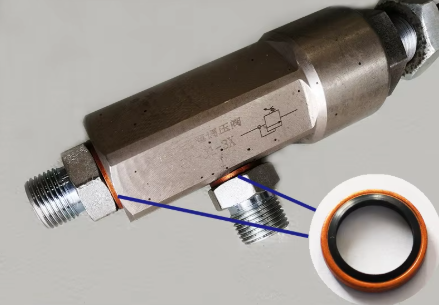

3. Professional oil cylinder sealing components with strong reliability and long service life;

4. Automatic lubrication device for guide rails, fully protecting guide columns and maintaining accuracy;

5. Mechatronics safety devices, such as the support circuit for the lower chamber of the oil cylinder, the interlocking circuit between the upper and lower chambers of the oil cylinder, etc., have good safety;

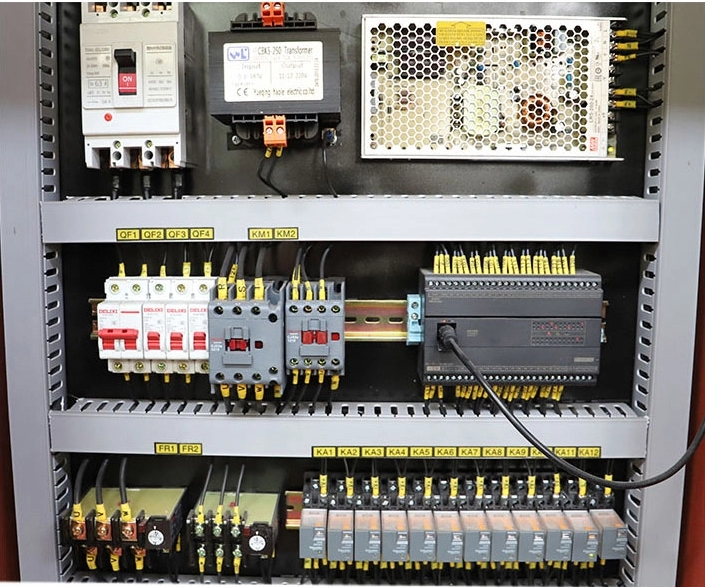

6. The electrical system adopts PLC control, which can achieve one click operation and the process is simple and easy to operate;

7. Implement two molding processes of fixed pressure and fixed distance, with pressure holding delay function;

8. According to different processes, the working pressure and stroke can be adjusted within a certain range, making it simple and easy to operate;

Inquire Now

Product Description

FEATURES:

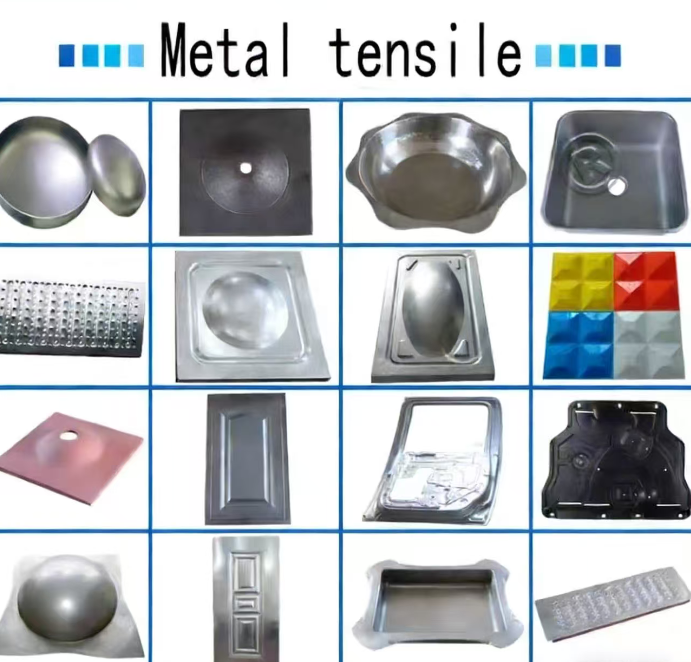

his series of presses is a general-purpose hydraulic press, also known as universal hydraulic press. It is suitable for the stretching, bending, flanging, cold extrusion, punching and other processes of metal materials. It is also suitable for calibration, press-fit, powder products, abrasive products. Molding and press molding of plastic products and insulating materials.

FOUR COLUMN HYDRAULIC PRESS OPTIONAL ACCESSORIES :

1. Mobile workbench;

2. Punching buffer device;

3. Light curtain protection device;

4. Travel, pressure, speed digital display, CNC device;

5. Touch sensitive industrial display screen;

6. Heating and cooling devices for hydraulic systems;

7. Material feeding device;

8. Sliding block limit valve;

9. Mold heating and temperature control device;

10. PLC programmable controller;

11. According to the process, single cylinder, double cylinder, and multi cylinder layouts can be selected;

Products Specification

Product parameter :

Parameters	Unit	YQ32-63T	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B
Nominal Force	KN	630	1000	1000	2000	2000
System Pressure	Mpa	25	25	25	25	25
Slider Max.opening height	mm	700	800	900	1200	900
Slider effective stroke	mm	400	500	600	700	600
Effective worktable size(L.RxF.B)	mm	600*500	700*700	800*800	1000*1000	800*800
You can customize various sizes and specifications,please contact us

Parameters	Unit	YQ32-315A	YQ32-315B	YQ32-400	YQ32-500	YQ32-630
Nominal Force	KN	3150	3150	4000	5000	6300
System Pressure	Mpa	25	25	25	25	25
Slider Max.opening height	mm	800	1000	1200	1200	1500
Slider effective stroke	mm	500	800	800	700	900
Effective worktable size(L.RxF.B)	mm	800*800	1000*1000	1000*1000	1200*1200	1500*1500
You can customize various sizes and specifications,please contact us

Parameters	Unit	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600	YQ32-2000
Nominal Force	KN	8000	10000	12500	16000	20000
System Pressure	Mpa	25	25	25	25	25
Slider Max.opening height	mm	1600	1600	1600	1600	1800
Slider effective stroke	mm	900	900	900	900	1000
Effective worktable size(L.RxF.B)	mm	1500*1500	1500*1500	1600*1600	1600*1600	1600*1600
You can customize various sizes and specifications,please contact us

Finished production :
