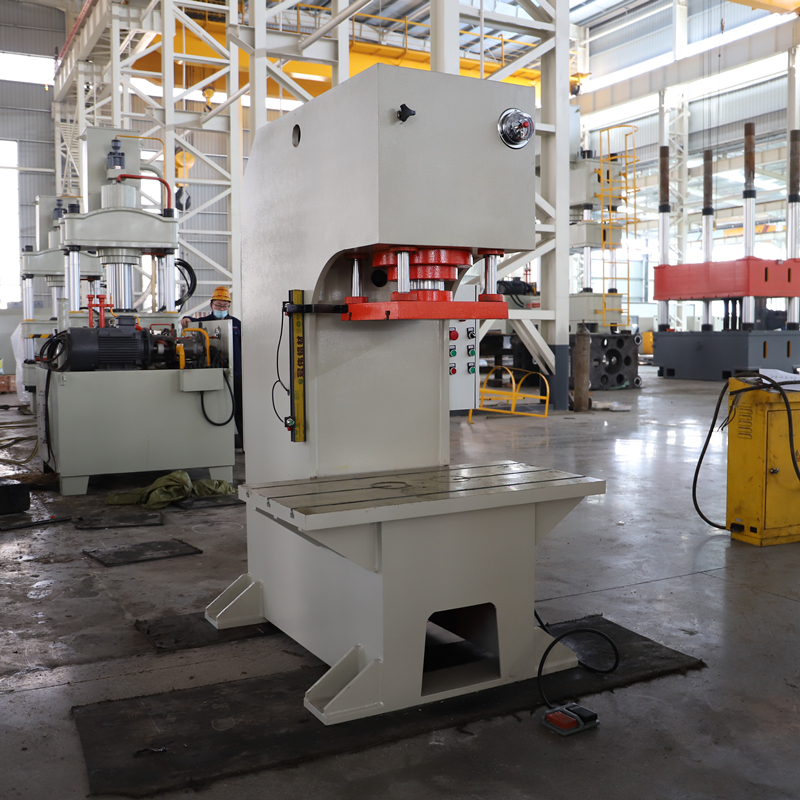

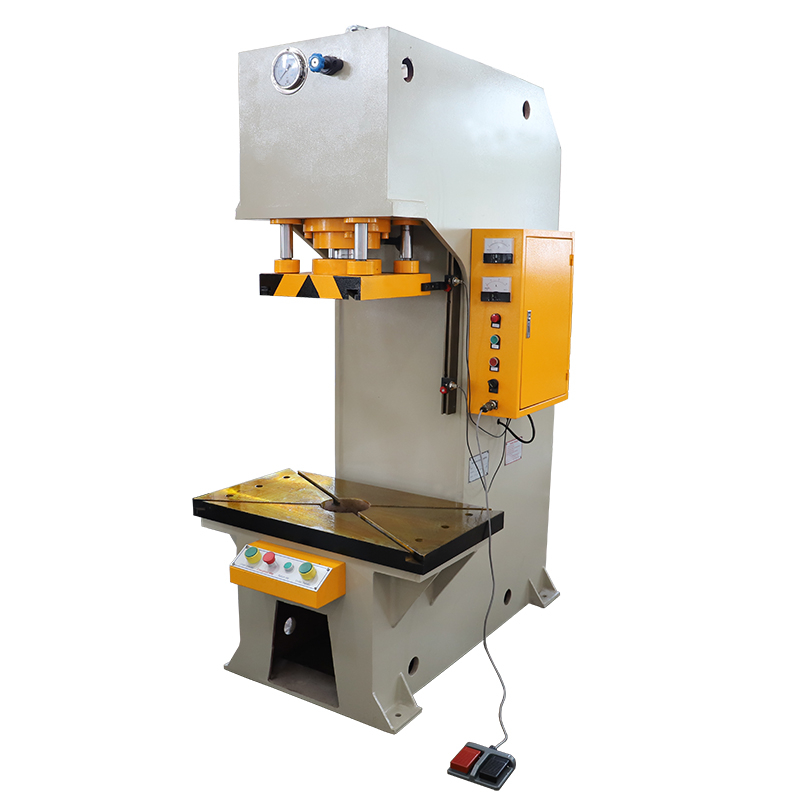

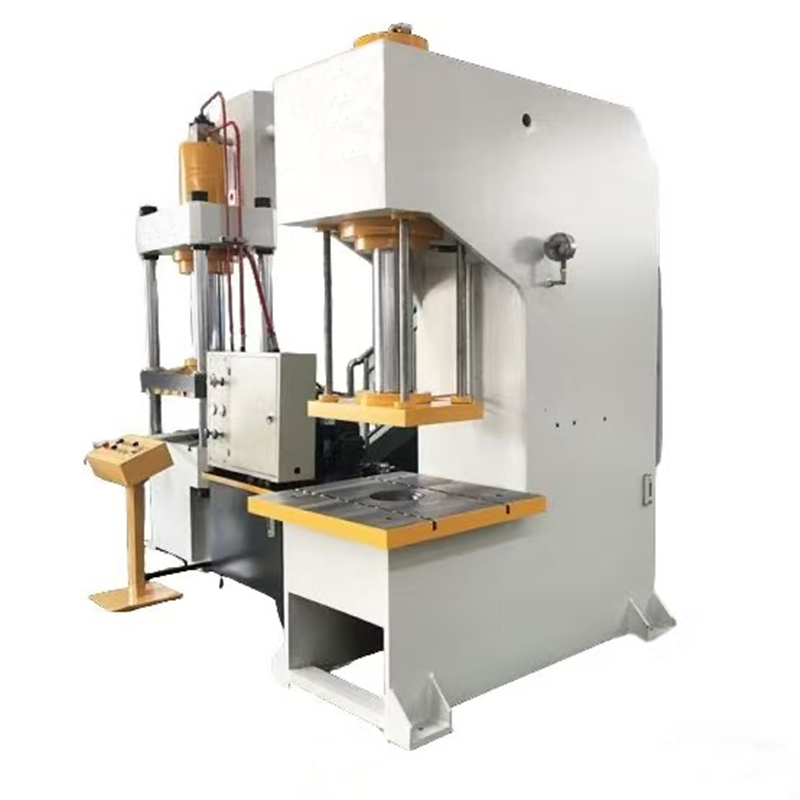

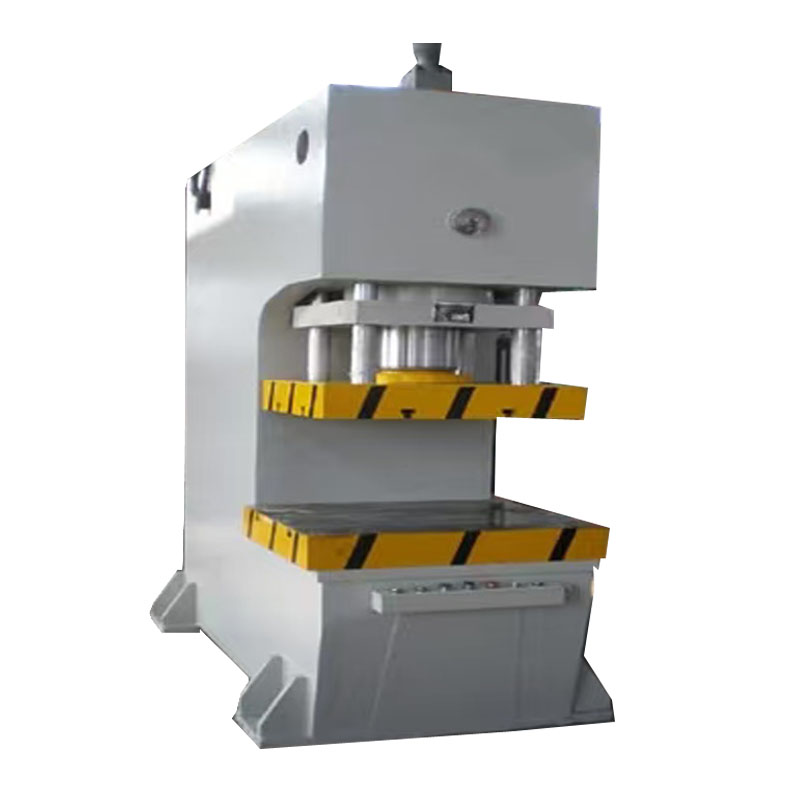

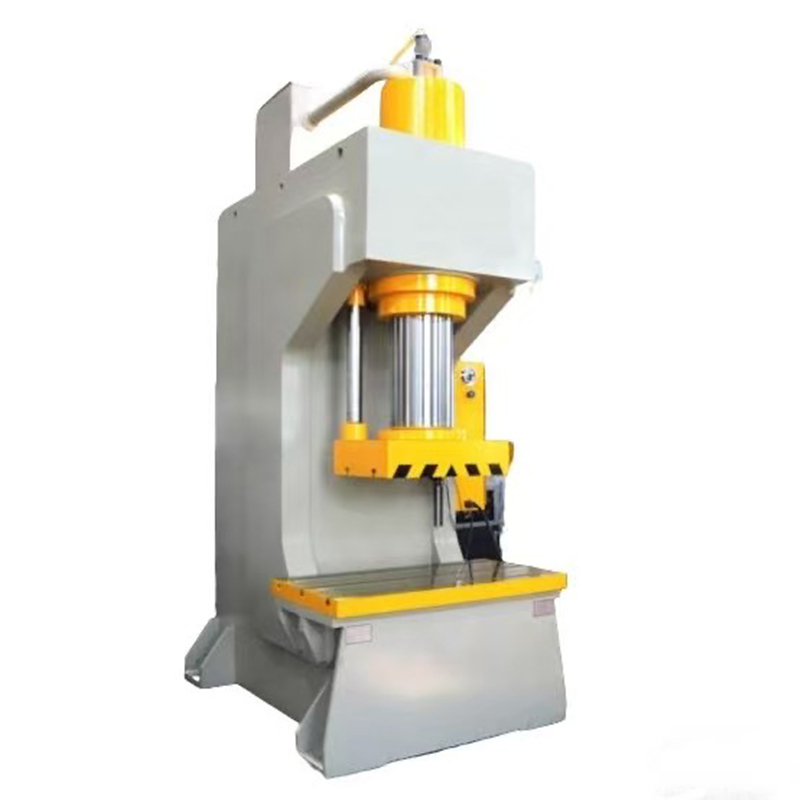

Y41 series Single Column C Frame Hydraulic Press Machine

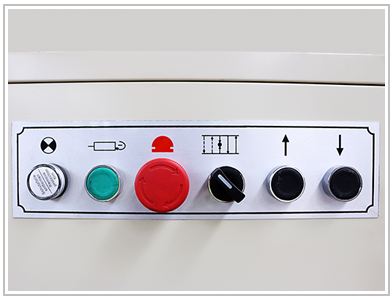

The Y41 single column hydraulic press is a "C" type single column construction with an all steel welded body. The hydraulic system is arranged in the body and the lower part of the working table is equipped with a hydraulic pad, the working pressure stroke can be adjusted within the specified range. The electrical control system is based on a "PC" programmable controller. The machine is controlled centrally by push-buttons and can be operated in an adjustable, manual or semi-automatic manner. This series of hydraulic presses is suitable for drawing, punching, bending, flanging, correction, pressing, hot and cold extrusion of metal materials, and also for pressing and forming of powder products and plastic products.

Inquire Now Next Product

Product Description

Features

This series of hydraulic press has the long table, deep throat, big daylight, speed is fast.in-outmate.fials :Onvenient, adjustment and reliable accurate, complete function, operation simple and so oncharacteristic.

Application fields

This series of hydraulic press are widely used in machinery manufacturing and mounting, adjust-ment, diawing,bending field, is the automobile, engineering machinery, railway, locomotives, metal.lurgical machinery, electric power petroleum machinery and ship machinery industries must beequipped important equipment.

Optional

Adjusting table, pressure maintainhg function, photoelectric protection，SIEMENS PLC with touch screen.

Products Specification

Our Advantages

1.The modified hydraulic press has the characteristics of long working table, deep throat, large opening, fast speed, convenient feeding and discharging, reliable and accurate correction of workpiece, complete functions and convenient operation.

2.This series of hydraulic presses is widely used in press-fitting, straightening, stretching, bending and other processing fields in machinery manufacturing.

3.It can be optionally equipped with calibration table, voltage holding function, and photoelectric protection.

Machine specification(Can be customized)

Item		63T	100T	160T	200T	250T	315T	400T	500T
Nominal force (KN)		630	1000	1600	2000	2500	3150	4000	5000
Max system pressure (Mpa)		25	25	25	25	25	25	25	25
Stroke (mm)		350	500	500	500	500	500	600	500
Open height (mm)		500	800	800	800	800	800	1000	1200
Throat Depth (mm)		250	350	350	400	450	400	500	500
Table size	L–R	600	700	700	900	1000	1250	1250	1500
Table size	F–B	400	600	600	700	800	800	900	900
Worktable height (mm)		700	700	730	810	825	864	945	1000
Diameter of piston rod (mm)		Φ100	Φ190	Φ240	Φ250	Φ300	Φ340	Φ400	Φ450

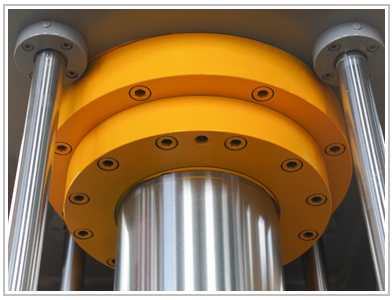

Cylinder Diamete (mm)		Φ160	Φ220	Φ280	Φ300	Φ340	Φ380	Φ450	Φ500
Blanking hole size (mm)		Φ100	Φ150	Φ150	Φ200	Φ200	Φ200	Φ350	Φ350
Speeds (mm/s)	Fast down	75	30	30	40	50	50	50	180
	Working	28	8–15	8–16	8–15	8–15	6–12	10–15	10–15
	Return	50	37	45	45	73	68	57	120

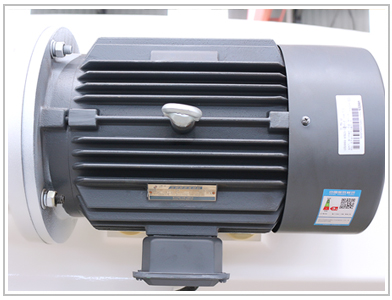

Motor power(Kw)		5.5	5.5	7.5	7.5	11	15	18.5	15*2
