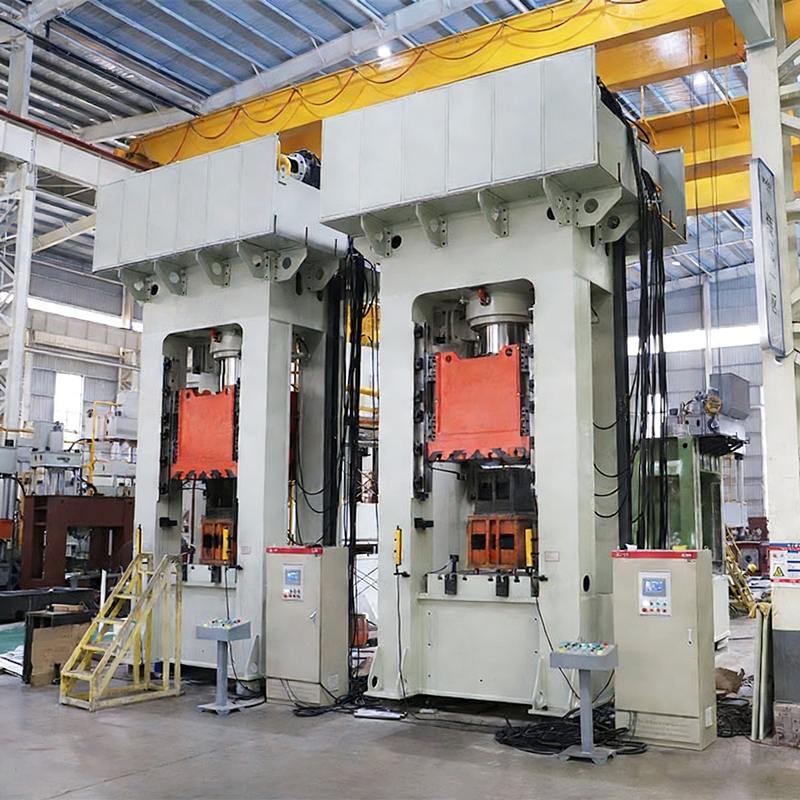

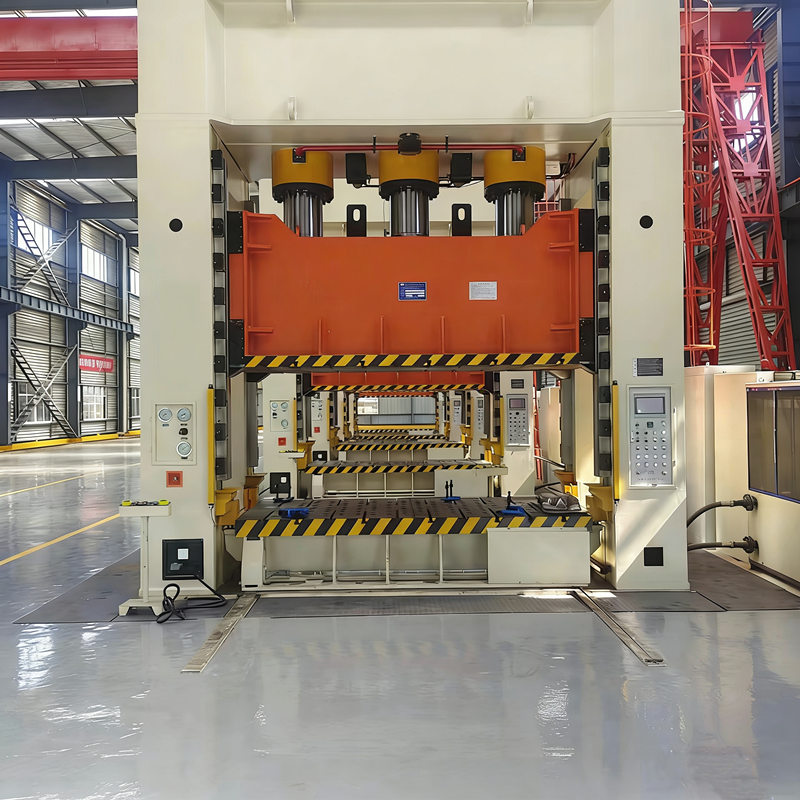

Frame Type Hydraulic Press Machine for sale

Introduce:

The hydraulic press adopts the whole frame or combination frame structure of all steel plate welding, the structure is strong, the bearing capacity is strong, suitable for large-scale workpiece processing, especially in forging, stamping, cold extrusion, straightening, bending, flanging, sheet drawing, powder metallurgy, pressing and other fields. Frame type hydraulic press slider adopts precision guide rail to guide operation, strong shock resistance and side pressure resistance, the whole machine is stable, precise and durable.

It is suitable for various stamping processes such as stretching, punching (punching buffer device should be selected), bending, flanging, cold extrusion, etc. of metal materials, and is also suitable for the pressing and forming of straightening, pressing, powder products and abrasive products, as well as plastic products and insulating materials.

Inquire Now Next Product

Product Description

Performance advantages

1）Strong and stable: The use of high-quality steel manufacturing, strong structure, high stability, to ensure long-term high-intensity work.

2）Precision processing: Advanced processing equipment to ensure the accurate size of each part, perfect assembly, improve production efficiency.

3）Humanized design: consider the operator's comfort and safety, ergonomic design, easy operation, improve work efficiency.

4）High efficiency and energy saving: energy saving and environmental protection, optimize the hydraulic system, reduce energy consumption, reduce environmental pollution, in line with the development trend of modern industry.

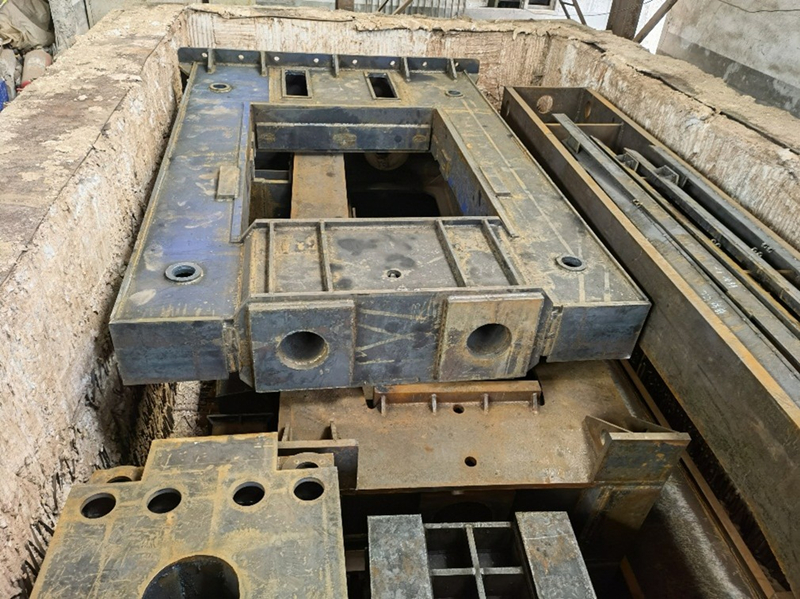

5) Machine welded frame body tempering treatment to eliminate inner stress

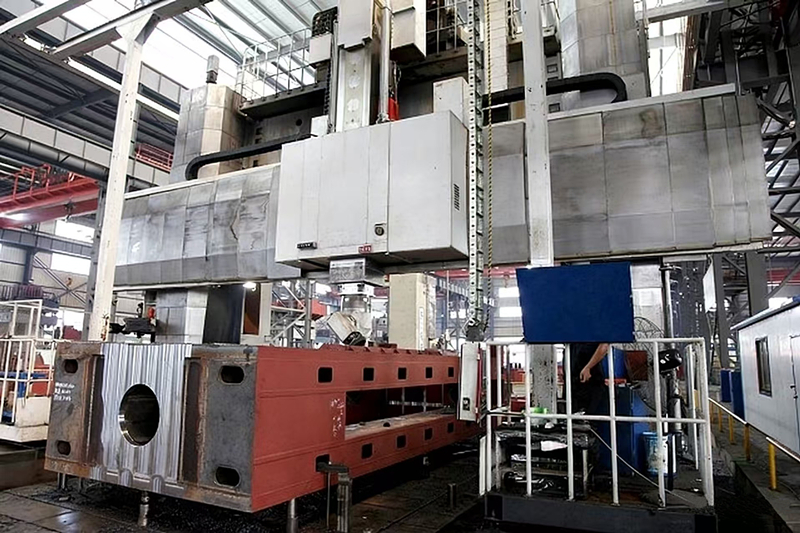

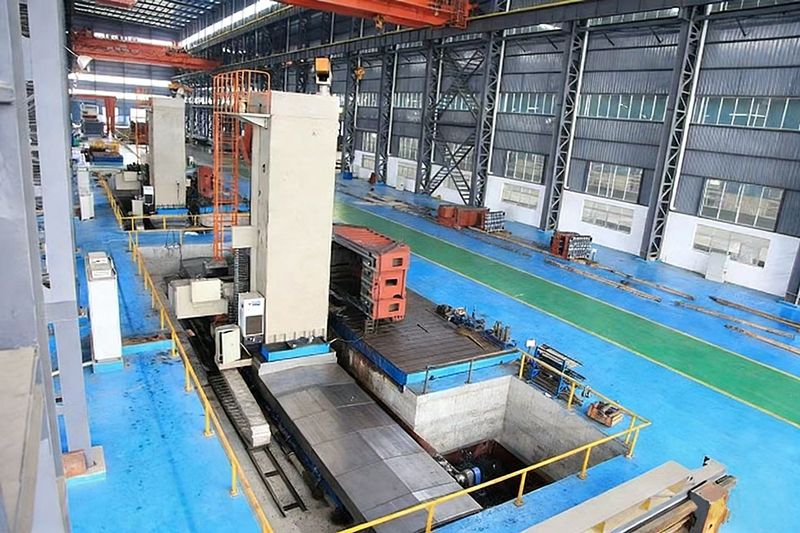

6) The machine body is processed with gantry machining center to achieve high precision.

Products Specification

Main specifications:

Description		Unit	YQK27- 315	YQK27- 400	YQK27- 500	YQK27- 630	YQK27- 800	YQK27- 1000	YQK27- 1250	YQK27- 1600	YQK27- 1800	YQK27- 2400
Rated pressure		KN	3150	4000	5000	6300	8000	10000	12500	16000	18000	24000
Max.pressure of liquid		Mpa	25	25	25	25	25	25	25	25	25	25
Stroke of slide		mm	800	800	900	900	1000	1000	1400	1400	1500	1500
Cushion pressure		KN	1000	1600	2000	2500	3000	4000	5000	5000	5500	6000
Stroke of cushion		mm	300	300	300	350	350	350	400	400	450	550
Daylight		mm	1250	1250	1500	1500	1600	1600	2000	2000	2000	2000
Speed of slide	Descent	mm/s	100-150	100-150	100-150	150~200	150~200	150~200	150~200	150~200	250~300	250~300
	Pressing	mm/s	8~12	10-15	10~15	10~15	10~15	15~20	15~20	15-25	15~35	15~35
	Return	mm/s	60	60	70	70	70	100	100	120	250	250
Size of table	L-R	mm	1600	1600	2400	3000	3000	3600	4500	4500	5000	5000
Size of table	F-B	mm	1200	1200	1400	1500	2000	2000	2500	2500	2800	2800
Size of cushion	L-R	mm	1200	1200	1900	2200	2200	2800	3500	3500	4000	4000
Size of cushion	F-B	mm	800	800	1000	1000	1500	1500	1800	1800	2000	2000
Main motor		KW	22	22	2×22	45	45+22	2×45	2×45+22	3×45	3×45	4×45
