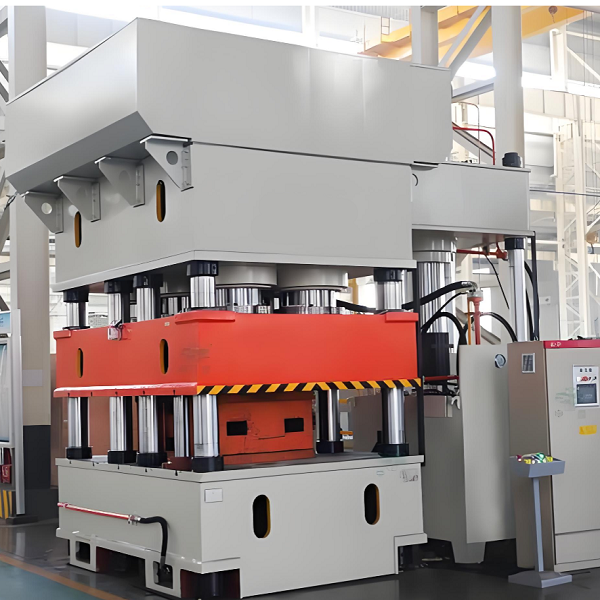

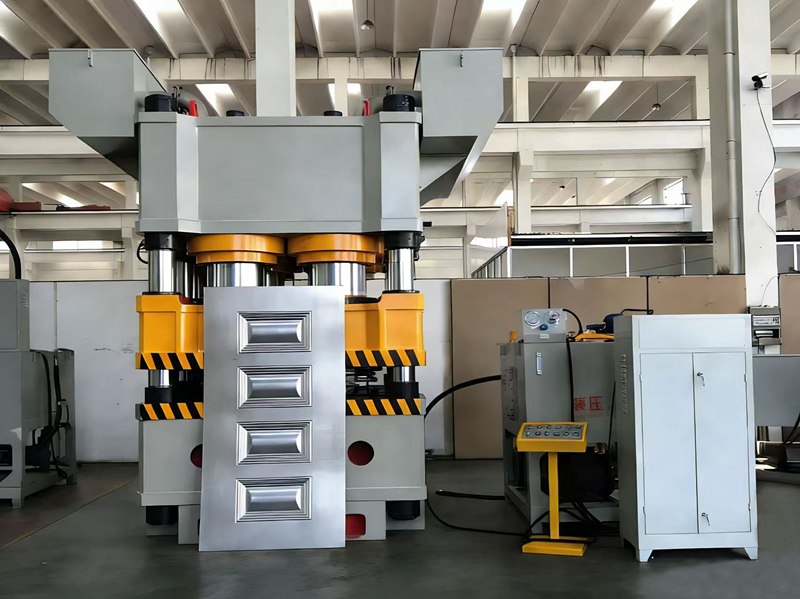

Y78 Series Steel Door Panel Embossing Hydraulic Press Machine

Features of steel door press machine

* Economical and Practical, Hydraulic control adopts to insert set valve intergrated system,decrease let out point.Movement reliability,durable and long life span.It is constant pressure to realize with calm in the first place and calm producedure two develop technology,have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control.It can realization manual,Semi-automatic,automatic 3 operate form.

Inquire Now Next Product

Product Description

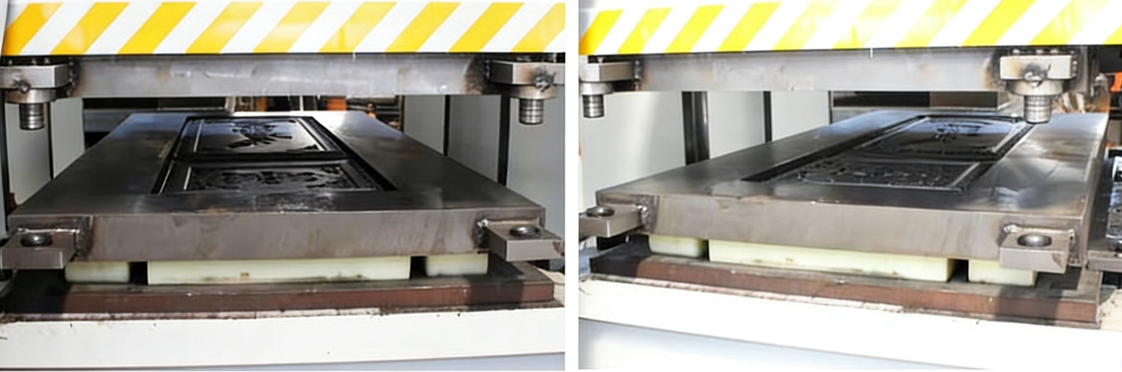

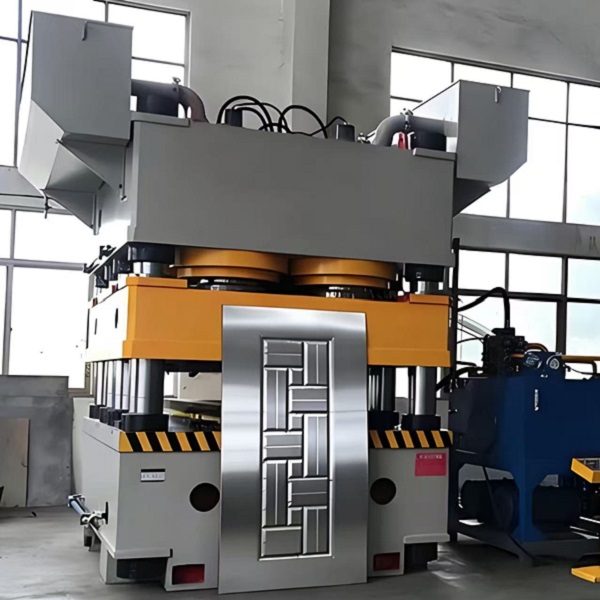

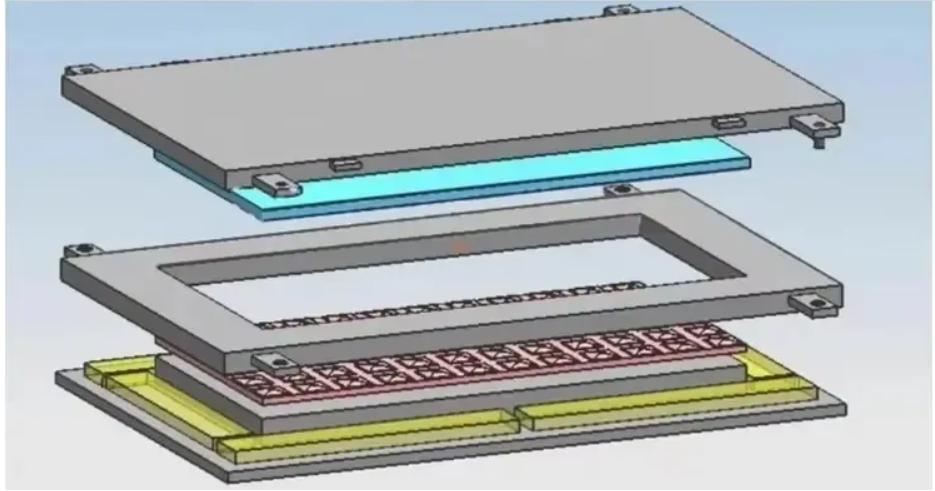

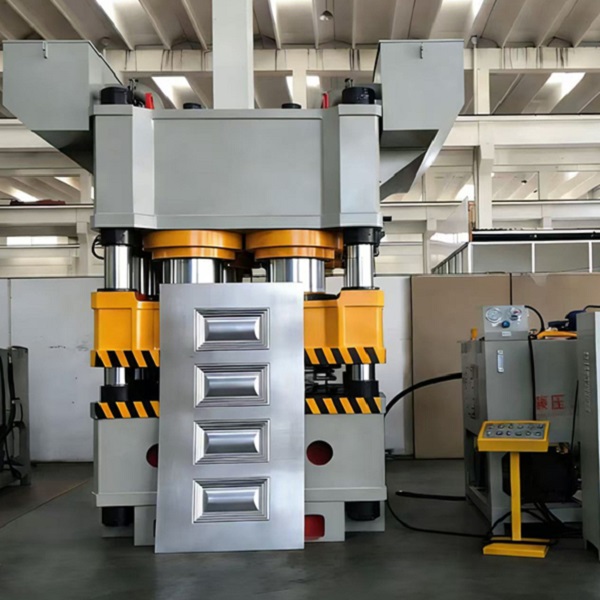

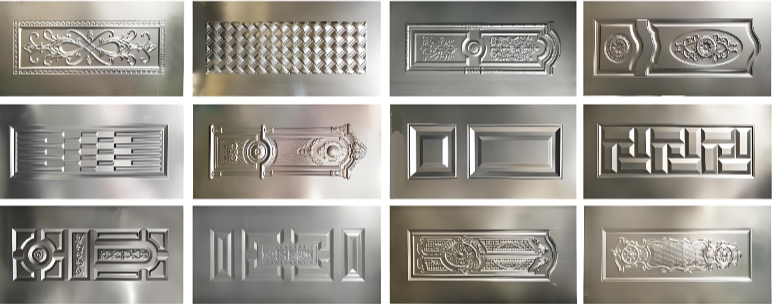

* Steel Door Panel embossing press machine for door skin making.Steel door embossing press machine is a piece of equipment used to create designs or patterns on the surface of a door. stainless steel, metal and other plates will be placed in the mould of the door embossing machine, and the pressure of the machine will be used to press the plates into various flower patterns. A door embossing machine usually consists of a metal plate or mould on which the desired design or pattern is engraved. The metal plate is mounted on the machine's mould and the machine then applies pressure to the door plate to create the embossed design. Door embossing machine, according to the embossing pattern, can be configured with a variety of models of moulds.The machine can be operated manually or with semi-automatic or automatic control devices.

* This series of hydraulic press adopts PLC electrical control systems, has automatic adjustment, manual and semi-automatic three modes of operation, constant pressure and constant stroke two processes crafts. When constant pressure model, there is pressure-keep and automatic return action, in the middle of the table is equipped with ejector device, in addition to eject the product,can also be used as a hydraulic cushion parts used to stretch craft, pressure and stroke is adjustable according to process equipment.

Products Specification

Characteristic:

Performance characteristics

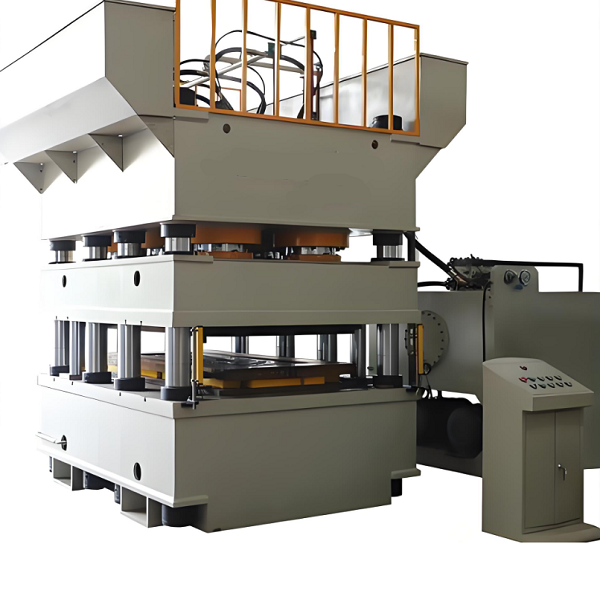

1, Four-column structure, good rigidity, high precision, compact structure, economic application;

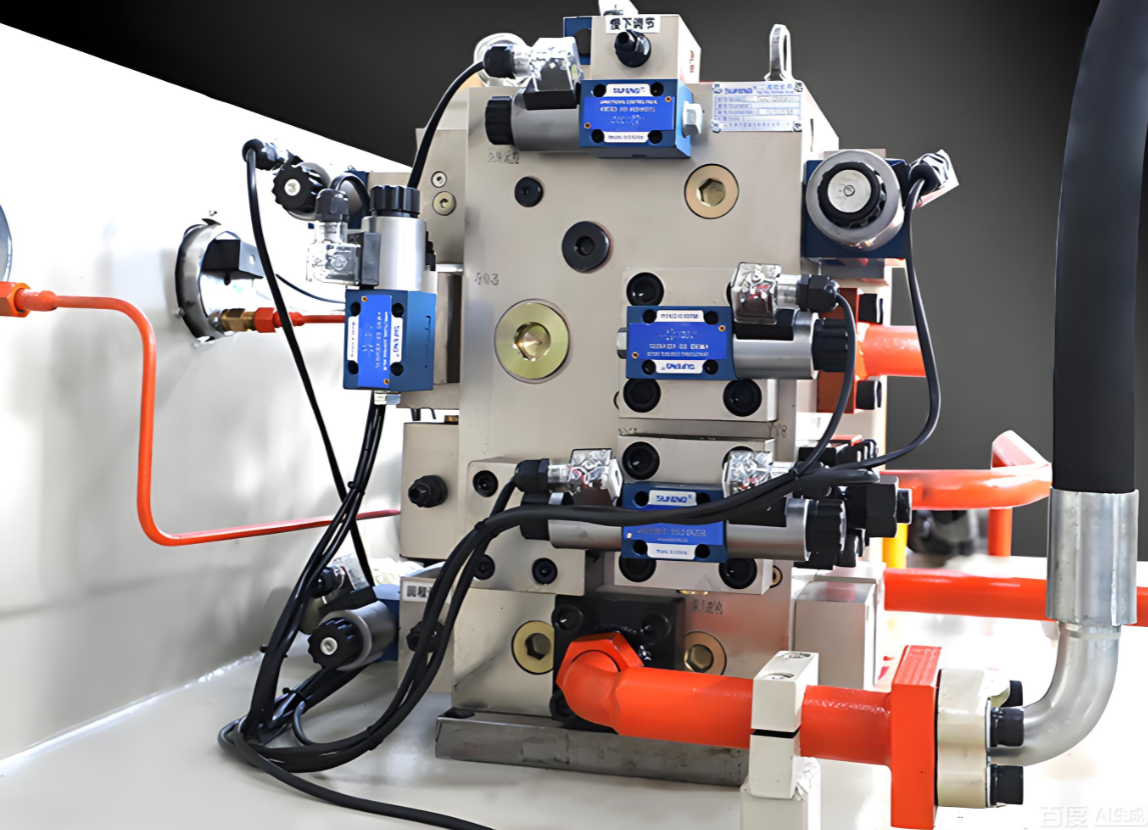

2, Hydraulic control using cartridge valve integrated system, less leakage point, small impact, reliable action, can effectively protect the service life of the mold and equipment;

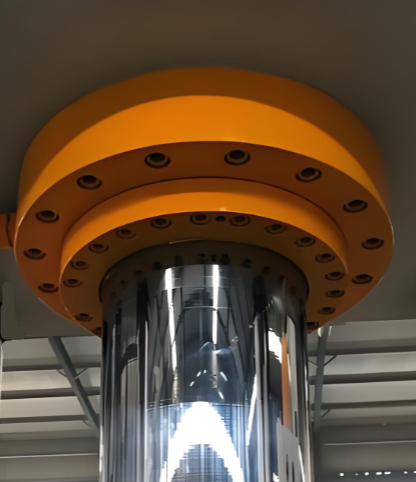

3, Professional cylinder sealing components, strong reliability, long life;

4, Guide rail automatic lubrication device, fully protect the guide column, maintain accuracy;

5, Mechatronics safety devices, such as: cylinder lower cavity support loop, cylinder upper and lower cavity interlock loop, etc., have good safety;

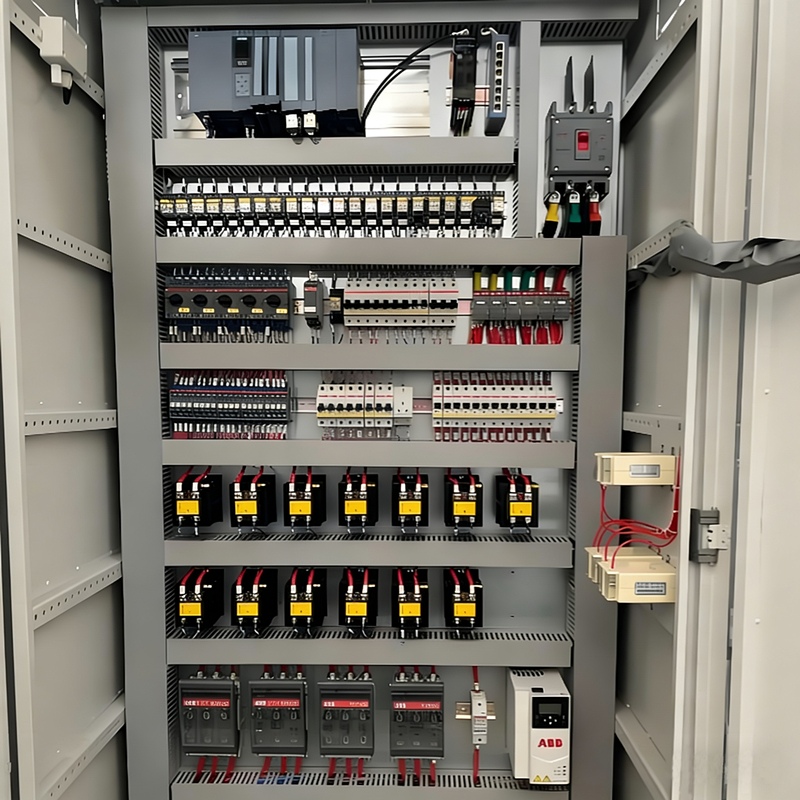

6, The electrical system adopts PLC control, can achieve one-click operation, the process is simple and easy to operate;

7, Can achieve constant pressure, fixed range two kinds of molding process, with the function of holding the rolling time;

8, According to different processes, the working pressure, stroke can be adjusted in a certain range, simple and easy to operate;

Main parameters:

Parameter		unit	Y78-800T	Y78-1200T	Y78-1500T	Y78-2000T	Y78-2800T	Y78-3600T
Nominal Force		KN	8000	12000	28000	36000	28000	36000
Max hydraulic pressure		MPA	25	25	25	25	25	26
Effective Table size	Left-Right	mm	1300	1300	1300	1300	1400	1600
Effective Table size	Front-Rear	mm	2200	2200	2200	2200	2400	2600
Slider stroke		mm	400	400	400	400	400	400
Max. open height		mm	500	500	500	500	500	500
Slider speed	Down	mm/s	100	100	100	100	100	120
	Work	mm/s	18	18	15	10	10	10
	Return	mm/s	80	80	80	80	80	100
Motor power		KW	30	37	37	45	60	90

Main configuration and details:

Touch screen + Double button
