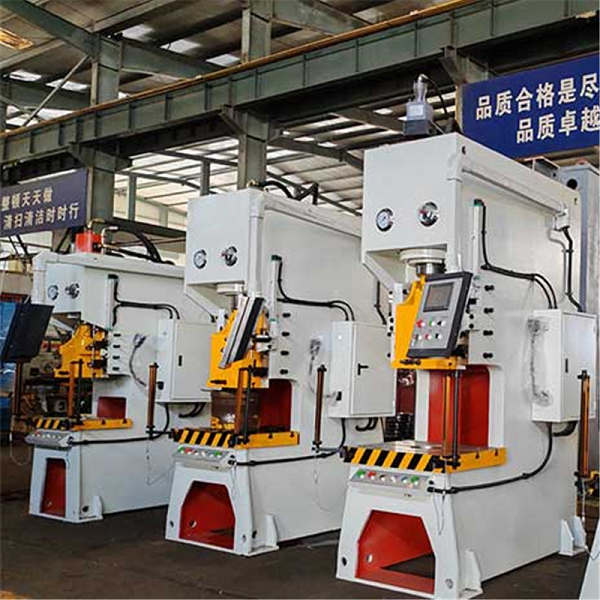

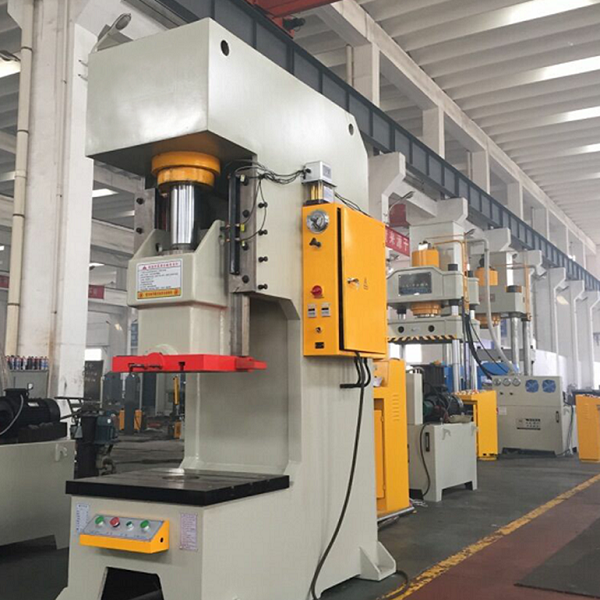

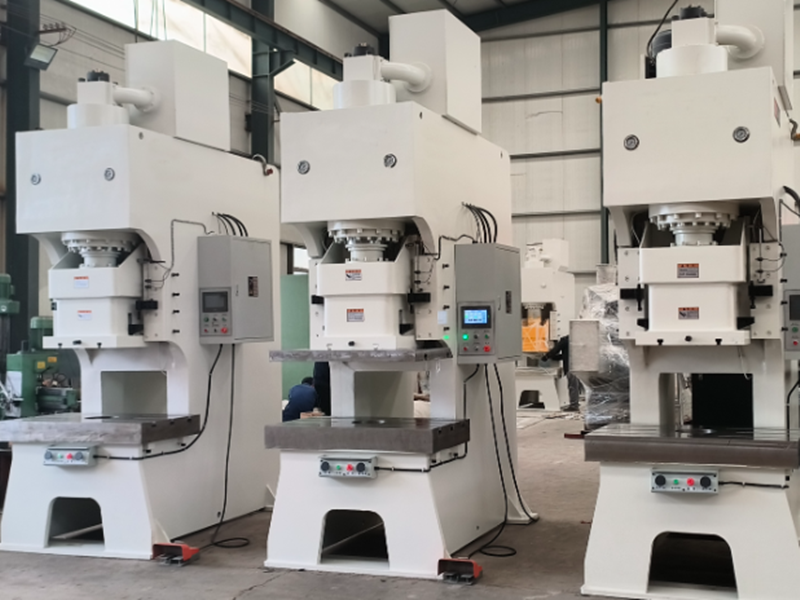

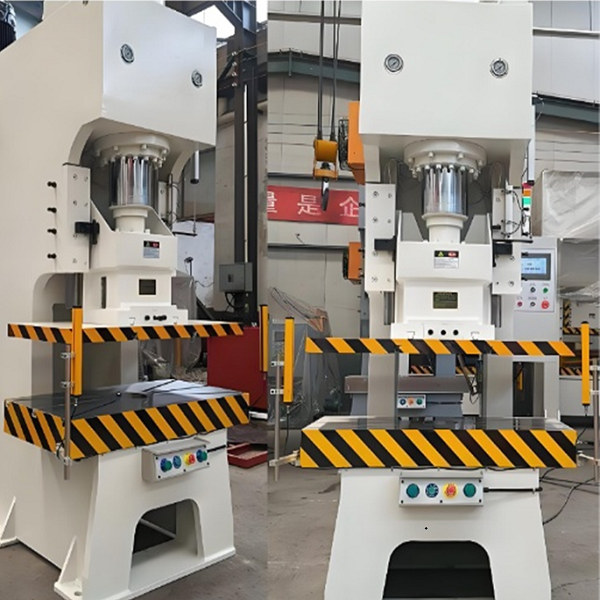

Y21 Series Hydraulic Power Press

Introduce:

Hydraulic punching machines offer outstanding advantages, making them particularly suitable for scenarios requiring flexible processing. Their core strength lies in the precise adjustability of pressure, stroke, and speed, enabling them to handle both thick plates and complex parts while also performing specialized processes like shallow drawing. In terms of safety, the light curtain protection can promptly detect hazards and shut down, making them more reliable than mechanical punching machines. Additionally, they feature low noise levels, easy integration with automated equipment, and higher cost-effectiveness at high tonnage. To ensure continuous operation of hydraulic punching machines, cooling devices for the hydraulic system can be installed at high power levels.

Grinding of oil cylinder and piston rod, chrome plating treatment, high smoothness. The machine frame welded with quality steel and stress relief, ensure the machine working precision.

Inquire Now Next Product

Product Description

Hydraulic power press structure

Hydraulic presses are a replacement for mechanical presses that combine the advantages of punch presses and single-column hydraulic presses. It can be punched, cut, cut, pressed, stretched or formed. Really achieve a multi-purpose machine.

The hydraulic power press consists of a mechanical body, a hydraulic system, an electrical control system and an auxiliary part.

1)The main part is composed of a Machine body, a master cylinder, air cooling and a limit device.

2) The Machine body structure is made of Q235 high-quality steel plate welded structure. After welding, it is annealed to eliminate internal stress and is shot blasting. The slider and table pad have T-slots, and T-slot bolts can be used to install the mold (T-slot and center-to-center dimensions are subject to customer confirmation).

3) Slider

The slider is cast from high-quality castings and then subjected to stress relief treatment at 200°. The slider is placed in the middle of the Machine body, and the upper plane is connected to the master cylinder; the lower plane of the slider is machined with a T-shaped groove for fixing the mold; The block adopts a rectangular guide rail to ensure the precision of the slider guiding, good rigidity and good precision retention. The slider has good rigidity and can meet the requirements of the fixed range pressing.

4) Hydraulic cylinder

The hydraulic cylinder of the machine is a piston cylinder, the cylinder is connected with the sliding block, the cylinder is mounted on the frame, the cylinder is locked by the cylinder lock, and the surface of the piston rod is wear-resistant. The cylinders are sealed with imported seals and have a long service life. The sealing performance is reliable.

5) Hydraulic system

The hydraulic system is a device that generates and distributes working fluid and allows the host to perform various actions. The fuel tank is a steel plate welded piece with a closed structure. The box is equipped with a filter, and the wall of the box is provided with a window for cleaning the oil tank; a liquid level gauge is provided, and the oil tank is equipped with an integrated body and an oil pump motor unit. The main hydraulic components used in the hydraulic system of the machine:

6) Oil pump unit

The system uses a 4-stage motor to drive a YCY14-1B axial piston pump through the coupling to supply pressurized oil to the hydraulic system.

The main oil pump adopts domestic constant power axial piston pump. The biggest feature of this pump is that as the system pressure increases, the flow rate decreases in proportion, keeps the power constant, and saves energy.

7) hydraulic integrated control valve

The hydraulic integrated control valve adopts the domestic two-way cartridge valve for centralized control, and has the functions of pressure regulation, reversing, pressure maintaining, unloading, support, fast and slow speed conversion, and overpressure protection. The lower cylinder control block of the master cylinder is provided with a secondary anti-skid block falling device and a safety valve. When the slider stops at any position, the device automatically closes to ensure the reliability and safety of the slider; when the lower cavity is due to the valve block When the card is dead and closed, the bypass safety valve acts as a draining oil in time to avoid a safety accident.

8) Filling valve

The filling valve is installed on the top of the main cylinder. When the slider is descending rapidly by its own weight, the oil coming from the pump cannot be supplied to the upper chamber of the main cylinder in time. At this time, the upper chamber of the main cylinder forms a negative pressure to open the main valve of the filling valve to make the liquid filling. The oil in the cylinder flows into the main chamber in a large amount, so as to achieve the speed requirement of the slider to descend rapidly. When the slider returns, the control oil first opens the pre-discharge small valve core, so that the upper chamber of the main cylinder is relieved of pressure, and then the liquid filling is started. The main valve of the valve causes the oil in the upper chamber of the main cylinder to be drained back into the flushing tank, and then flows into the fuel tank through the returning oil pipe.

9) Electrical system

The entire electrical system is divided into a power section and a control section.

10) Electric part

The three-phase four-wire AC 380V power supply is composed of an automatic air switch, a circuit breaker, a thermal relay, an AC contactor and a three-phase squirrel-cage induction motor for driving the oil pump. The motor is started by Y-△, which is safe and reliable.

All electric parts are from China famous brand.

Products Specification

Main specifications:

Item		Unit	Model
Item		Unit	Y21-25	Y21-40	Y21-63	Y21-80	Y21-100	Y21-125	Y21-160	Y21-200
Nominal force		KN	250	400	630	800	1000	1250	1600	2000
Maximum pressure of hydraulic system		MPa	25	25	25	25	25	25	25	25
Maximum stroke of slider		mm	150	150	200	200	200	260	260	260
Slider Speed	Quick down	mm/s	300	300	270	270	270	260	260	260
	Work	mm/s	15~40	20~40	15~30	12~25	12~25	12~25	10~25	10~20
	Return	mm/s	220	240	250	200	200	200	200	180
Maximum open height		mm	300	360	400	430	460	500	500	530
Stroke adjustment		mm	stepless	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Depth of Throat		mm	200	220	250	270	285	300	320	335
Workbench height		mm	700	700	730	750	750	800	900	900
Slider Dimension	Left-Right	mm	300	360	400	460	480	560	600	660
	Front-Rear	mm	200	250	300	330	360	400	450	480
	Hole Dia	mm	40	40	50	50	50	60	60	60
Workbench Dimension	Left-Right	mm	600	700	800	900	960	1000	1100	1200
	Front-Rear	mm	360	400	460	500	530	560	600	630
	Hole Dia.	mm	100	120	160	160	160	160	200	200
	Thickness	mm	60	70	80	90	100	120	140	150
Machine Dimensions	Left-Right	mm	900	1000	1070	1150	1200	1250	1400	1450
	Front-Rear	mm	1050	1250	1450	1700	1750	1900	2100	2250
	Height	mm	2200	2400	2650	2900	3000	3250	3500	3600
Power of motor		KW	4	5.5	7.5	11	11	15	18.5	22

Standard Accessory:

(1)PLC + Suspension type operation panel

(2)Double hand type switch button or Pedal type switch

(3)Main electric parts are Schneider brand

(4)The motor and seals part are from China famous brand

Special Accessory at extra cost:

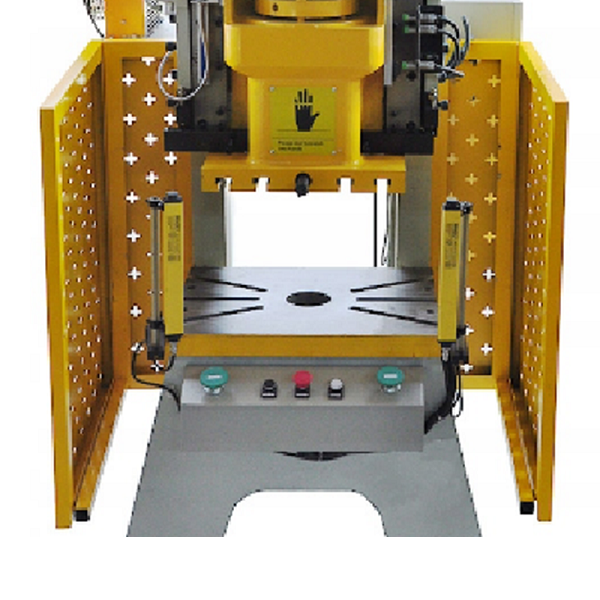

1)Photoelectric protection

2)CNC control system is available at extra cost

3)EC standrad safety guard as per custoer's requirement
