Do You Know the Kinds of Shearing Machines?

Dec. 06, 2021

Shearing machines, they use shear pressure to cut off a section of a sheet. Shearing or die reducing makes use of a procedure that reduces stock without involving a melting or melting process and without forming chips. Shaanxi Haven Equipment Co., Ltd show you some types of shear machines.

Shears of various capabilities are readily available on the marketplace as well as overload defense. Shearing is generally utilized to divide big flat supply such as sheet, plate, and strip. Straight blade shearing is made use of to reduce square and also flat materials of the desired shape and size, mostly rectangular and square, but likewise for triangular and also other straight-sided shapes. It can cutting little lengths at an angle to reduce the essential force needed.



Hydraulic Shearing


The fee owner is curved to create an arc point contact to offer straightness in the sheared material. When reducing plates smaller sized than 20 mm, the shear angle of the maker can not be altered due to the fact that the product is currently twisted as well as distorted. Because of blade movement, the maker can not utilize all 4 edges of the blade to cut sheet metal.


Do You Know the Kinds of Shearing Machines?cid=3

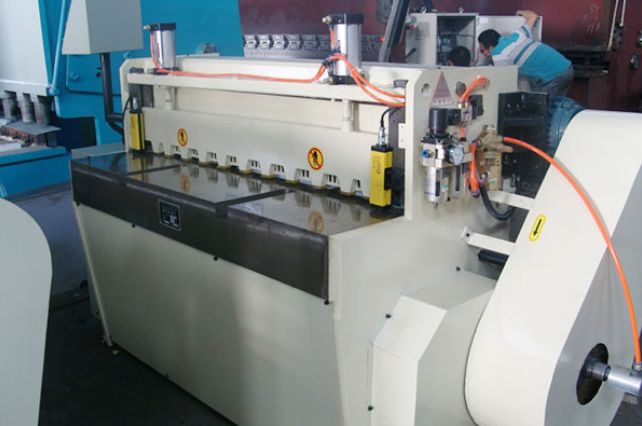

Precision Shearing Machine QH11D series



Hydraulic swing beam


The shear described has a compression cylinder driven by a hydraulic system while moving the steel plate and also appropriate & left cylinders for driving the blades backwards and forwards. The space in between both blades is 0.04 mm. The accuracy error between the blade and the void is more than 0.1 mm, which is two times as poor as the guillotine device.



Hydraulic entrance shears


The rear overview of the maker is held back by bearings with rear compression spring pads, eliminating front and also rear guides. Straight device owners are made use of to make sure straightness as well as greater accuracy of the sheared product. The shearing angle of the head cutter can be quickly adjusted.

This equipment can make use of all 4 edges, and the upper and also lower blades are rectangular. This machine is developed to make it angle smaller to reduce the contortion of sheet metal and successfully boost the reducing speed.



CNC shears


These are especially created to manage various sizes with high stamina and also durability. Continuous production is accomplished with the help of cold rolling, galvanizing as well as cutting to the wanted dimension. Usually, roof product dimensions prolong from an extremely slim 32 to an extremely thick 18, and also as the gauge dimension rises, so does the weight of the maker.

For industrial usage, these devices are automated and hydro-pneumatic to reduce the force required to cut the product. They are particularly made to clamp as well as reduce products while having clean straight sides and also minimal damages to the item.



We are specialized in manufacture and export the Hydraulic machine tools, Laser equipment and the Lathe machine, and we have more than 25 years of export experience, please send us a message today and get great cooperations.
