Dec. 10, 2024
CNC machining centers are essential tools in modern manufacturing, allowing for precise and efficient production of complex parts. Whether you're involved in automotive, aerospace, medical device manufacturing, or metalworking, selecting the right CNC machining center is crucial to achieving high-quality results while maximizing productivity. This guide will walk you through key factors to consider when choosing a CNC machining center that best suits your specific needs.
A CNC (Computer Numerical Control) machining center is a versatile machine that automates machining processes like drilling, milling, turning, and grinding using computer-controlled commands. These centers are used to create parts with high precision, and their capabilities range from simple operations to highly complex, multi-axis tasks. Machining centers can be classified based on their configuration, the number of axes, and their specific features.
There are different types of CNC machining centers, such as vertical, horizontal, and universal, each offering different advantages depending on the type of work you need to accomplish. Understanding these distinctions is essential for making the right decision.
When selecting a CNC machining center, it’s important to know the type that will best suit your manufacturing needs. Here are the primary types:

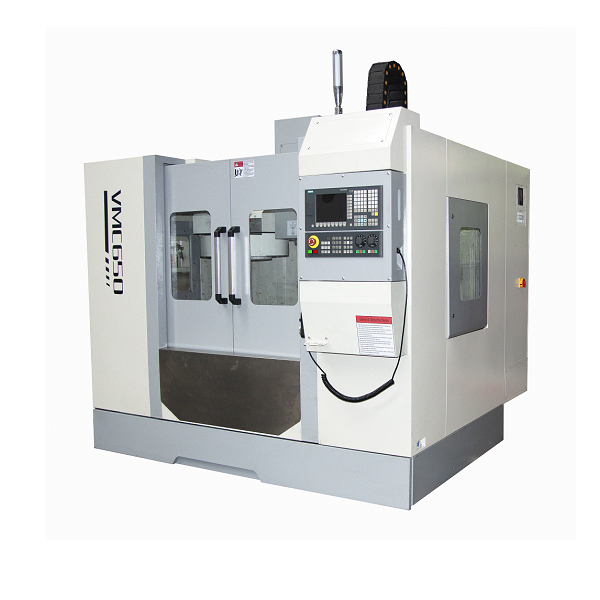

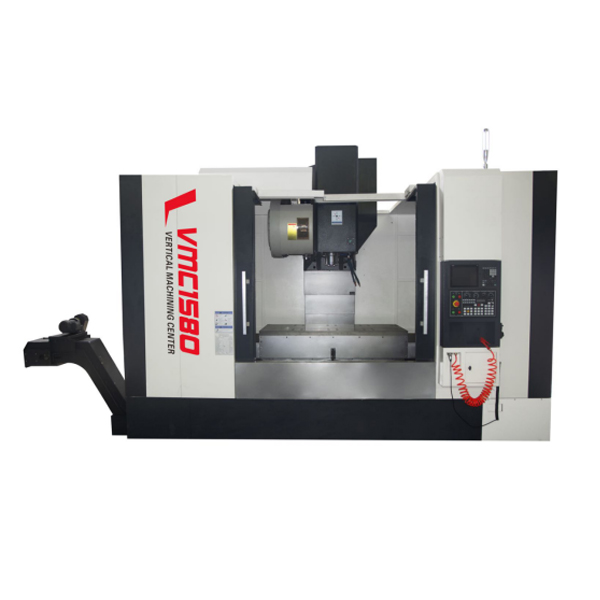

Vertical CNC machining centers feature a vertically oriented spindle, making them ideal for operations such as drilling, boring, and milling. These are perfect for working with smaller, simpler parts or for projects that require a high degree of accuracy in cutting materials like metal, plastic, and composites. Vertical machining centers are popular in industries like automotive and aerospace due to their cost-effectiveness and versatility.
Horizontal CNC machining centers have horizontally mounted spindles, making them better suited for high-volume production of parts that need multiple sides machined. These machines are equipped with multiple tool holders, which allow for continuous, efficient operation. Horizontal machining centers are ideal for mass production and industries requiring high precision, such as mold making and heavy machining.
Universal CNC machining centers combine the capabilities of both vertical and horizontal machining centers. They are designed for multi-directional cutting and are capable of performing complex machining tasks. Universal machines are versatile and can handle a wide range of operations, making them suitable for industries that require flexibility and the ability to process large or intricate parts.
The number of axes a CNC machining center has determines the complexity of the parts it can create and the range of motion the machine has. Here’s a breakdown of the most common CNC axes:
In a 3-axis CNC machine, the tool moves along three different axes (X, Y, and Z) to create the desired part. These machines are great for simple to moderately complex parts, making them an excellent choice for most small- to medium-scale manufacturing operations. They are easy to use, cost-effective, and can handle many of the basic tasks such as drilling, milling, and simple surface cutting.
In a 4-axis CNC machine, the tool can move along the three axes plus an additional rotational axis (A-axis). This additional movement allows for more complex machining operations such as cutting parts from multiple angles without needing to reposition the workpiece. 4-axis machines are ideal for producing intricate components used in industries like aerospace, medical, and automotive where multi-sided machining is required.
5-axis CNC machining centers offer the most flexibility and precision by adding two additional rotational axes to the basic three (A and B axes). This setup allows for complex, highly detailed parts to be created with greater precision and fewer setups. 5-axis machines are best for intricate parts that need to be worked on from multiple angles in a single operation. Industries that require highly sophisticated components, such as aerospace and medical device manufacturing, rely heavily on 5-axis machining centers.
The size of the CNC machining center you choose will depend on the size of the parts you need to manufacture. Consider both the working area (the size of the table and the available space for holding materials) and the tool capacity. Larger machines allow you to process bigger parts and accommodate multiple setups, while smaller machines are better suited for precision machining of smaller components.
Here are key factors to consider when assessing the size and capacity:
Workpiece Size: Ensure the machine can handle the maximum size of the parts you plan to create.
Table Size: Larger tables provide greater flexibility for placing multiple parts at once, reducing setup time.
Tool Capacity: Consider the number of tools the machine can hold and whether it can handle the range of tools needed for your tasks.
The control system and software interface of your CNC machining center are crucial to its performance. Most modern CNC machines come with user-friendly interfaces that allow for easy programming, setup, and operation. The choice of software can affect the machine’s capabilities, precision, and ease of integration with other systems. Popular control systems include Siemens, FANUC, and Heidenhain, each offering different features depending on the machine’s complexity and application.
Some CNC machining centers also support CAD/CAM (Computer-Aided Design/Computer-Aided Manufacturing) software, which allows you to design and simulate parts before production. Make sure the machine you choose supports the software and programming standards that best fit your operations.
CNC machines are complex and require regular maintenance to ensure optimal performance. Choose a manufacturer that provides excellent customer service, reliable technical support, and accessible spare parts. Additionally, some machines come with built-in diagnostics or maintenance alerts to help monitor performance and identify issues early, reducing downtime.
The cost of CNC machining centers can vary greatly depending on the machine’s type, size, and features. Smaller, 3-axis machines are generally more affordable than larger, multi-axis systems. While initial costs may be high, investing in a quality machine can result in increased productivity, reduced labor costs, and improved part quality, making it a wise long-term investment.
When setting a budget, consider the following factors:
Machine Cost: Basic models may be more affordable but may not offer the same precision or capabilities as more advanced machines.
Operating Costs: Consider energy consumption, tooling costs, and maintenance expenses when budgeting for the machine.
Return on Investment (ROI): Factor in the potential savings and profit the machine can generate by increasing production efficiency and reducing waste.
Different industries have specific requirements for CNC machining centers. For example:
Aerospace: Requires high-precision, multi-axis machines capable of handling complex materials like titanium and composites.
Automotive: Demands high-volume production and cost-effective machines capable of machining a variety of materials and part sizes.
Medical Devices: Needs CNC centers that offer tight tolerances and the ability to process biocompatible materials with precision.
Ensure that the CNC machining center you choose can meet the specific demands of your industry and is capable of producing the necessary part types.
If your projects require simple to moderately complex parts, a 3-axis machine will likely meet your needs at a lower cost. However, if you're working with intricate designs, multi-sided parts, or need high precision, a 5-axis machine will provide greater flexibility and efficiency.
Vertical CNC machining centers are best suited for smaller parts and applications where vertical cutting is required. Horizontal machining centers are more efficient for high-volume production, multi-sided machining, and parts requiring precise cutting in several directions.
Regular maintenance includes checking and replacing the tools, cleaning the machine, ensuring the coolant system is functioning properly, and inspecting the machine for wear and tear. Consult the manufacturer’s maintenance guide and schedule regular servicing to prevent downtime.
By understanding the different types of CNC machining centers and assessing your specific needs, you can make an informed decision that will help improve productivity, reduce costs, and ensure high-quality output in your manufacturing processes.
