Can You Cut Pipe Threads on a Lathe?

Yes, you can cut pipe threads on a lathe. Thread cutting on a lathe involves using a threading tool and following specific procedures to ensure accurate and clean threads. Here’s a basic overview of how pipe threads can be cut on a lathe:

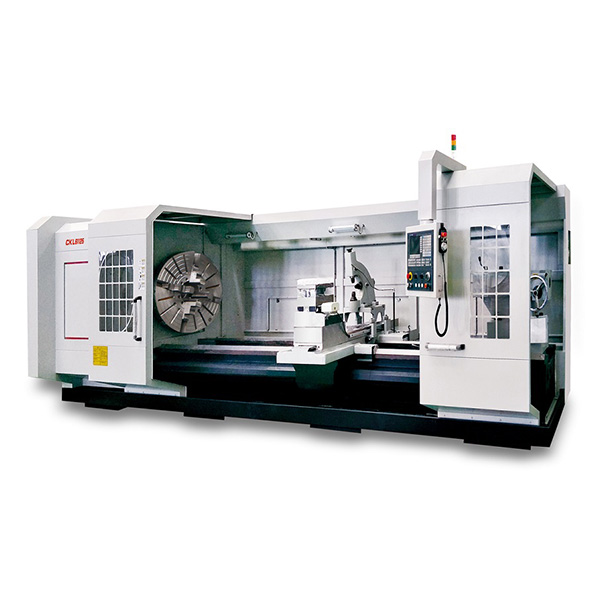

CKL Series Heavy Duty CNC Lathe Machine

Steps to Cut Pipe Threads on a Lathe

1. Choose the Right Material and Setup:

- Ensure that the lathe is suitable for threading, and the pipe material is appropriate for threading.

- Use a chuck to hold the pipe securely, ensuring it is properly aligned with the lathe’s spindle.

2. Select the Correct Threading Tool:

- You’ll need a threading tool that matches the desired thread profile. For standard pipe threads like NPT (National Pipe Thread), a V-profile threading tool with the correct angle (typically 60 degrees for NPT threads) is used.

3. Set the Lathe to the Proper Thread Pitch:

- Use the lathe's threading dial or change gears to select the proper pitch (threads per inch or TPI). For pipe threads, ensure the lathe is set to the appropriate pitch for the specific thread type.

4. Position the Tool and Take Initial Cuts:

- Position the threading tool at the correct depth using the compound rest, ensuring the tool’s cutting edge is perpendicular to the workpiece.

- Make light passes initially to cut the threads, gradually increasing the depth with each pass. Use the lathe’s carriage and lead screw to control the tool’s movement.

5. Check Thread Depth and Fit:

- Use a thread gauge or test the fit with a mating pipe to ensure the threads are cut to the proper depth and profile.

- Make adjustments as needed and take additional finishing cuts if necessary.

6. Deburr the Threads:

- Once the threads are cut, remove the workpiece from the lathe and deburr the edges to remove any sharp burrs or imperfections.

Important Considerations

- Lubrication: Apply cutting oil or lubricant during the threading process to prevent tool wear and produce smoother threads.

- Pipe Threads: Be mindful that pipe threads, such as NPT, are tapered, so setting the tool depth and angle accurately is crucial for proper threading.

- Taper Attachment: For tapered threads, like NPT, you may need to use a taper attachment on the lathe or adjust the compound slide to the correct taper angle.

By following these steps and using the right tools, you can cut precise pipe threads on a lathe for various applications, including plumbing, hydraulics, and industrial fittings.
