JL21-45 Power Press: Features, Applications, and Advantages

In modern metal fabrication and stamping industries, power press machines play a critical role in improving production efficiency, precision, and safety. Among the many types of presses available today, the JL21 series open back fixed table press stands out for its robust construction, advanced control systems, and reliable performance.

The JL21-45 power press, in particular, is widely used in sheet metal processing, automotive components manufacturing, hardware production, and appliance parts fabrication. Designed with a strong welded steel frame and advanced safety features, this press machine ensures both durability and operational stability.

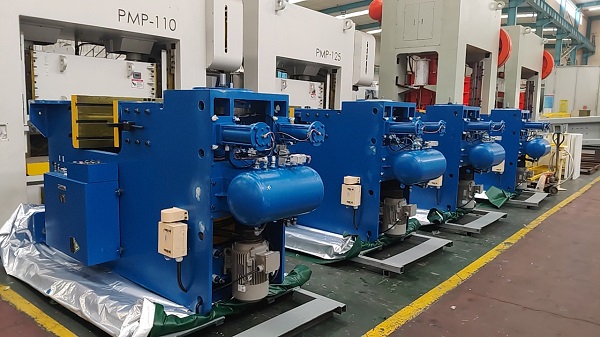

Recently, a new batch of JL21-45 power press machines with customized opening height has been prepared for shipment, demonstrating growing demand for flexible, high-performance stamping equipment in global manufacturing markets.

What Is a JL21 Series Open Back Fixed Table Power Press?

A JL21 power press is a type of mechanical stamping press designed for sheet metal forming, punching, blanking, bending, and shallow drawing operations.

The machine belongs to the category of open back fixed table presses, also known as C-frame presses, which provide convenient access to the working area and allow easy integration with automation equipment.

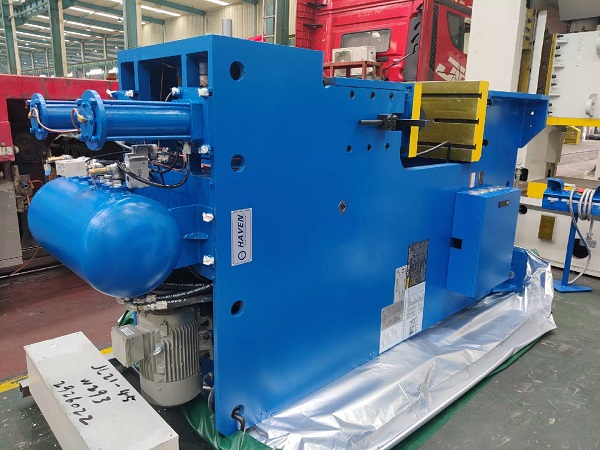

Key Characteristics of Open Back Fixed Table Presses

Open back presses offer several advantages for industrial production:

• Easy die installation and adjustment

• Convenient material feeding

• Better visibility during operation

• Compatibility with automated feeding systems

• Efficient space utilization in factories

Because of these benefits, open back fixed table power presses are widely used in industries such as automotive manufacturing, electrical appliances, metal hardware production, and construction components fabrication.

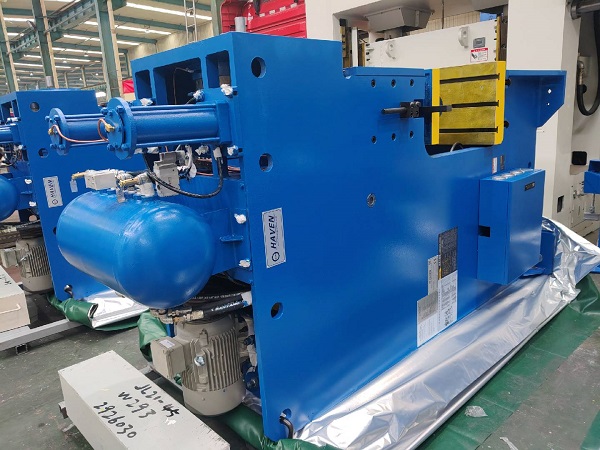

Key Features of the JL21 Series Power Press

The JL21 series open back fixed table press integrates durable mechanical design with modern automation and safety technologies. Below are some of the major features that make this series highly reliable in industrial applications.

High-Strength Steel Welded Frame

The JL21 press adopts a steel welded frame with high intensity, which significantly improves the structural rigidity of the machine.

Benefits of this design include:

• Higher resistance to deformation

• Greater machine stability during stamping

• Longer service life

• Reduced vibration during operation

A rigid frame is essential for maintaining precision stamping accuracy, especially in high-speed production environments.

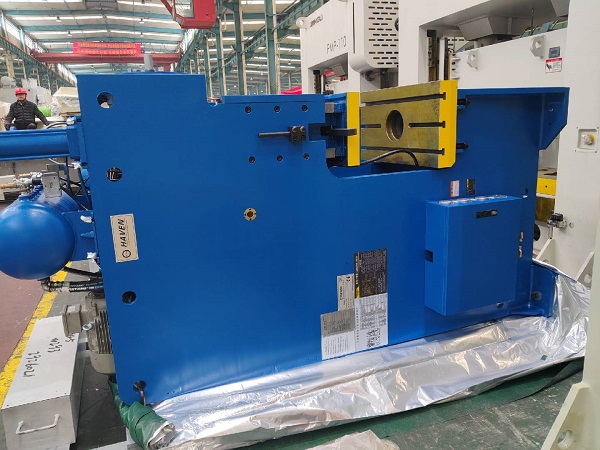

Combined Dry Pneumatic Friction Clutch

The machine uses a combined dry pneumatic friction clutch system, which ensures smooth and reliable power transmission.

Advantages of this clutch system include:

• Quick engagement and disengagement

• Lower maintenance requirements

• Improved operational safety

• Stable torque transmission

This technology helps the power press machine operate efficiently even during continuous production cycles.

Adjustable Cylinder-Type Stroke

The cylinder-type adjustable stroke system allows operators to modify the stroke length according to different stamping requirements.

Key benefits include:

• Flexibility for multiple production tasks

• Improved die compatibility

• Higher operational efficiency

• Reduced machine wear

This feature makes the JL21 series suitable for a wide range of metal forming processes, from light punching to more complex stamping operations.

Multi-Face Slide Guide Design

The slide guide system is critical for maintaining alignment and precision in a power press.

The JL21 series uses different guide designs depending on the model:

• JL21-25: six-face guide structure

• JL21-45 and larger models: eight-face guide structure

This multi-face guide system offers:

• Enhanced sliding stability

• Higher positioning accuracy

• Reduced mechanical wear

• Improved die life

As a result, manufacturers can achieve consistent stamping quality across large production volumes.

Hydraulic Overload Protection System

Overload protection is essential for preventing damage to both the press machine and the dies.

The JL21 series includes a hydraulic overload protector, which automatically releases pressure when the machine experiences excessive load.

Benefits include:

• Protection for stamping dies

• Reduced repair costs

• Increased machine lifespan

• Enhanced operator safety

This safety feature is especially valuable in high-volume metal stamping production lines.

Automatic Lubrication System

Proper lubrication is crucial for maintaining mechanical performance and reducing wear.

The JL21 press includes an automatic oil circuit lubrication system that continuously supplies lubrication to critical components.

Key advantages include:

• Reduced manual maintenance

• Lower friction between moving parts

• Longer component life

• Stable machine performance

For smaller models like JL21-25, the system uses electrical lubrication control, ensuring consistent lubrication during operation.

Electrical Die Height Adjustment with Digital Display

One of the superior features of the JL21-45 power press is its electrical die height adjustment system with digital display.

This feature allows operators to:

• Adjust die height quickly

• Monitor adjustments accurately

• Reduce machine setup time

• Improve production efficiency

The digital display ensures precise adjustment, which is essential for maintaining consistent stamping quality.

Lifting Balance Cylinder

The JL21 series includes a lifting balance cylinder that helps balance the slide weight.

Benefits include:

• Reduced mechanical load on the drive system

• Smooth slide movement

• Improved machine lifespan

• Enhanced operational stability

This component is especially useful for presses handling heavy stamping dies.

International Brand Electrical Components

To ensure reliability, the machine integrates international brand electrical components, including:

• PLC control systems

• AC contactors

• Air circuit breakers

• control buttons

These components enhance the machine’s automation capability, durability, and safety performance.

Integrated Electrical Interface

The JL21 press includes an integrated interface with electrical cam, which simplifies machine control and improves synchronization between mechanical movements and electronic systems.

This integration allows:

• precise control of stamping cycles

• easy system diagnostics

• compatibility with automation equipment

Optional Equipment for JL21 Power Press

To meet different production requirements, the JL21 series offers several optional configurations.

Air Cushion System

The machine can be equipped with an air cushion system, which may include:

• air bag type cushion

• cylinder type cushion

This feature is useful for deep drawing operations and precision stamping.

Automatic Feeding Device

The press can also be paired with automatic feeding systems, such as:

• roll feeders

• servo feeders

• automatic material feeding shafts

These devices significantly improve production efficiency and automation.

Light Curtain Safety System

A light curtain safety device can be installed to protect operators during machine operation.

If the light beam is interrupted, the machine automatically stops, preventing potential accidents.

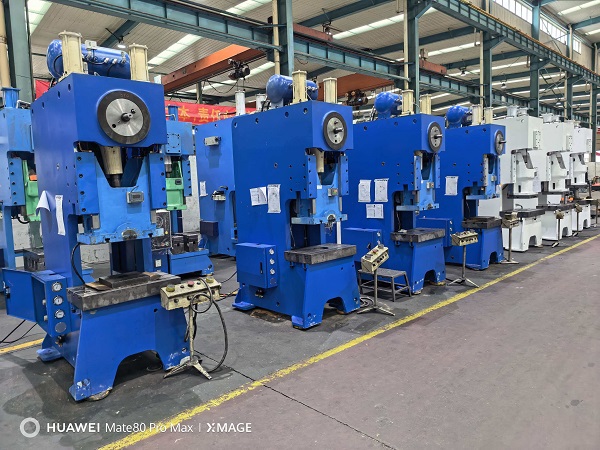

Applications of JL21-45 Power Press Machines

Because of its versatility and robust design, the JL21-45 open back fixed table press is widely used across many industries.

Automotive Parts Manufacturing

The press is commonly used for producing:

• brackets

• body panels

• mounting components

• structural metal parts

High precision and repeatability make it ideal for automotive stamping operations.

Electrical Appliance Industry

Manufacturers of home appliances rely on power presses for producing:

• metal housings

• internal brackets

• mounting plates

• ventilation components

The JL21 power press ensures consistent part quality and high production efficiency.

Hardware and Tool Production

The machine is widely used to produce:

• hinges

• metal clips

• fasteners

• brackets

• tool components

These applications require reliable punching and forming performance, which the JL21 series delivers.

Construction Hardware Manufacturing

In the construction sector, the press can manufacture:

• structural connectors

• metal fittings

• reinforcement plates

• building hardware components

Its strong frame and overload protection system make it suitable for heavy-duty stamping work.

Why Manufacturers Choose Haven Power Press Solutions

Selecting the right power press supplier is essential for ensuring long-term production reliability. Many manufacturers prefer working with Haven because of its focus on equipment quality, machine stability, and customized manufacturing solutions.

With extensive experience in industrial press machinery, Haven offers stamping equipment designed to meet the demands of modern manufacturing environments, including flexible machine configurations and reliable performance.

Conclusion

The JL21-45 power press is a powerful and reliable solution for modern metal stamping operations. With its high-strength welded frame, pneumatic friction clutch, adjustable stroke system, and advanced safety features, the machine delivers exceptional performance across a wide range of industries.

Its electrical die height adjustment, hydraulic overload protection, and automation-ready design further enhance production efficiency and operational safety.

As global manufacturing continues to demand higher productivity and precision, machines like the JL21 series open back fixed table press will remain essential for efficient and scalable metal processing operations.

For manufacturers seeking durable, high-performance stamping equipment, the JL21-45 press represents a dependable investment for long-term production success.
