Hydraulic Shearing Machine — Working Principle and Classification

Hydraulic shearing machines are industrial tools used to cut and shape a variety of materials, including metals, plastics, and textiles. They work by applying hydraulic pressure to a blade, which is then used to cut through the material. This article will explore the working principle of hydraulic shearing machines, as well as their classification.

Working Principle of Hydraulic Shearing Machines

Hydraulic shearing machines work by using a hydraulic system to generate the force needed to cut through the material being processed. The hydraulic system consists of a motor, a pump, a valve, and a hydraulic cylinder. The motor drives the pump, which generates the hydraulic pressure that powers the hydraulic cylinder. The valve controls the flow of hydraulic fluid to the cylinder, enabling the operator to control the speed and force of the cutting action.

The hydraulic cylinder is responsible for driving the shearing blade. When the operator activates the machine, hydraulic fluid is pumped into the cylinder, causing it to extend and push the blade down onto the material being cut. The force of the hydraulic pressure, combined with the sharpness and durability of the blade, enables the shearing machine to cut through even the toughest materials.

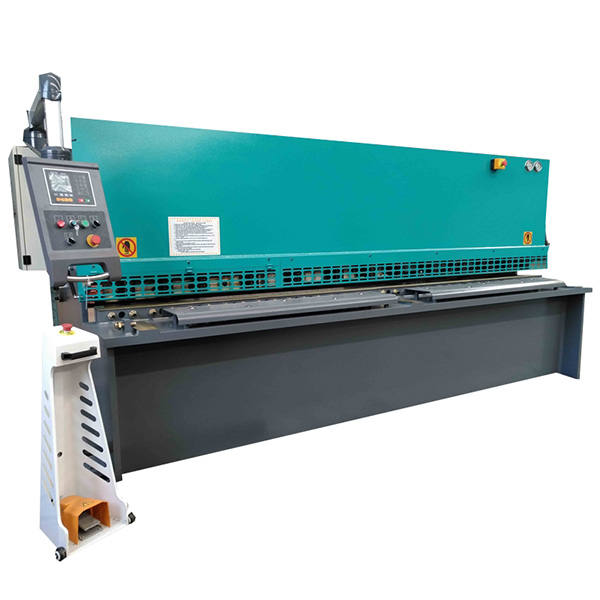

Steel Plate Bend And Cutting Machine

Classification of Hydraulic Shearing Machines

There are two main types of hydraulic shearing machines: swing beam and guillotine. Each type has its own unique characteristics and advantages.

Swing Beam Shearing Machines

Swing beam shearing machines are named for their swinging cutting beam, which moves back and forth to perform the cutting action. The blade is mounted on the end of the beam, and it moves downward to make the cut. This design allows for a high degree of accuracy and repeatability, as well as the ability to handle large sheets of material.

One of the key advantages of swing beam shearing machines is their ease of use. They are relatively simple to operate, and their cutting action is smooth and predictable. They are also highly versatile, able to handle a wide range of materials and thicknesses. However, they may not be the best choice for high-volume production, as they typically have a slower cutting speed than guillotine shearing machines.

Guillotine Shearing Machines

Guillotine shearing machines are named for their blade design, which resembles a guillotine. The blade is mounted on a vertical ram, which moves up and down to perform the cutting action. This design allows for a faster cutting speed than swing beam shearing machines, making them ideal for high-volume production environments.

Another advantage of guillotine shearing machines is their cutting accuracy. The vertical blade design allows for a straighter, more precise cut than swing beam shearing machines, which may be prone to deflection and bending. Guillotine shearing machines are also more compact than swing beam machines, making them a good choice for shops with limited space.

However, guillotine shearing machines may not be as versatile as swing beam machines, as they may not be able to handle thicker materials as well. They may also be more complex to operate, and their cutting action may be less smooth and predictable than that of a swing beam machine.

In conclusion, hydraulic shearing machines are an essential tool for many industrial applications. They work by using a hydraulic system to generate the force needed to cut through a variety of materials, and they come in two main types: swing beam and guillotine. Each type has its own unique characteristics and advantages, so it is important to carefully consider the specific needs of your application when choosing a hydraulic shearing machine.
