Jan. 28, 2026

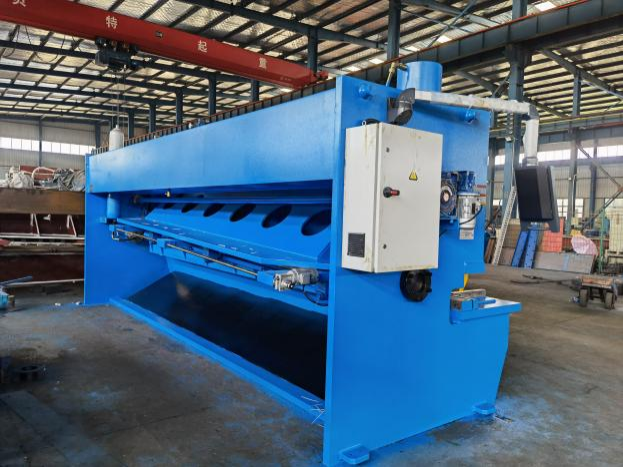

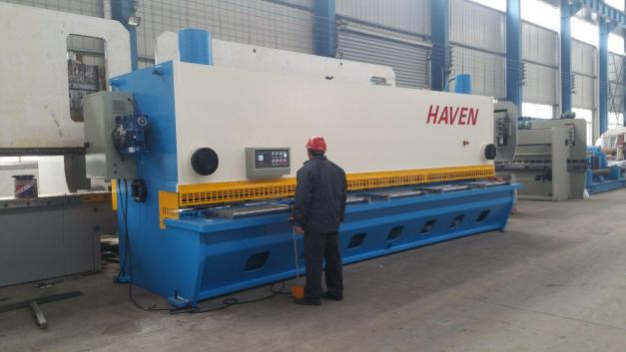

The Hydraulic Guillotine Shearing Machine Model QC11Y-20×6000 is a heavy-duty metal cutting solution designed for industrial applications that require high accuracy, stability, and long-term reliability. Equipped with the E21 control system, this Hydraulic Shearing Guillotine Cutting Machine is suitable for cutting a wide range of metal sheets, including carbon steel, mild steel, and stainless steel.
With a strong welded frame, high-quality hydraulic components, and precise control, this machine is widely used in metal fabrication workshops, steel structure factories, machinery manufacturing plants, and other industrial environments where efficiency and cutting quality are essential.
Hydraulic system：Atos.
Electro parts： Siemens.
Major motors：nanjing kongte
Sealings：Valqua from Japan or DZ from Taiwan
Oil pumps：From Shanghai.
Blades: From Shanghai.
Operation system：E21 by EUSTUN.
1 、The guillotine shearing machine is of high quality steel welding, good rigidity and precision.
2 、The frame of the machine is fixed.
3 、The blade clearance can be changed easily and fast.
4 、The back gauge can be adjusted electrically and you can read the exact value.
5 、You can pre-set the times you want to cut because the machine can count the numbers itself, so it ’s easy to use.
6 、It is easy to set the cutting line for the lighting.
| Items | Special | Value | Unit |
| QC11Y-20×6000 | |||
| 1 | Max thickness | 20 | mm |
| 2 | Max width | 6000 | mm |
| 3 | Plate rigidity | 450 | N/mm2 |
| 4 | Shearing angle | 1°~3° | |
| 5 | Stroke times | 3-8 | min-1 |
| 6 | Uprights distance | 6270 | mm |
| 7 | Blade length | 6150 | mm |
| 8 | Major motor | 37 | kw |
| 9 | Back barrier stroke | 1000 | mm |
| 10 | Oil pump displacement | 80 | ml/r |
| Item | Name | Brand |
| 1 | Oil cylinder | China Brand |
| 2 | Cylinder Seals | Japan NOK |
| 3 | Gear pump | China Brand |
| 4 | Hydraulic system | Jiangsu Huadun |
| 5 | Motor | Siemens |
| 6 | Low voltage circuit breakers and contactors | Schneider/Siemens |
| 7 | Cylinder joint | German JS |
| 8 | Upper and Lower Blades | Shanghai Blades |
| 9 | E21S | CNC System Eston |
| No. | Name | QTY. |
| 1 | Foot pedal | 1 |
| 2 | Plate support | 1 |
| 3 | Foot bolts | 1 |
| 4 | Cushion | |
| 5 | Spring cushion | 4 |
| 6 | Nut | 4 |
| 7 | Wearing parts | 1 |
| 8 | Oil gun | 1 |
| 9 | E21S ESTUN controller |
Stable hydraulic system with reliable performance
Easy operation with E21 control system
High cutting accuracy and smooth cutting surface
Suitable for thick and wide metal plates
Low maintenance cost and long service life
These advantages make the QC11Y-20×6000 an ideal Hydraulic Shearing Machine for modern metal processing industries.
This Hydraulic Guillotine Shearing Machine is widely used in:
Steel structure fabrication
Construction machinery manufacturing
Metal processing workshops
Shipbuilding and heavy equipment industries
Industrial component and enclosure production
It is designed to meet the needs of both medium and large-scale manufacturers.
As a professional metal forming equipment supplier, Haven focuses on providing reliable and cost-effective hydraulic shearing solutions for global customers. The QC11Y-20×6000 model reflects strict quality control standards and practical industrial design, ensuring stable operation and high productivity.
Choosing this hydraulic shearing machine means investing in long-term reliability and consistent cutting performance. Haven equipment is trusted by customers who require precision, durability, and efficiency in daily production.
