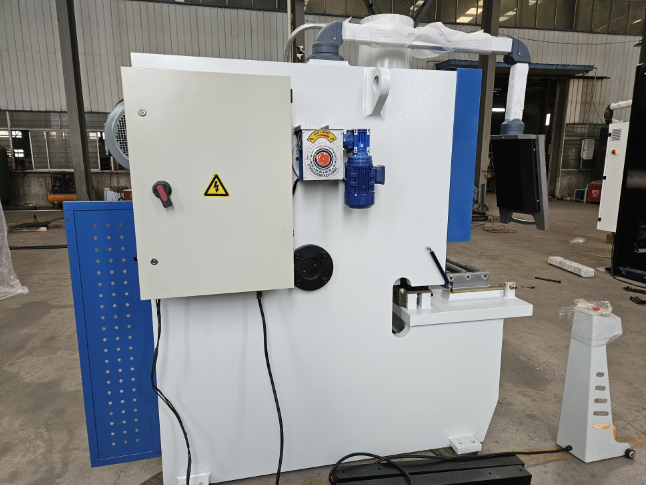

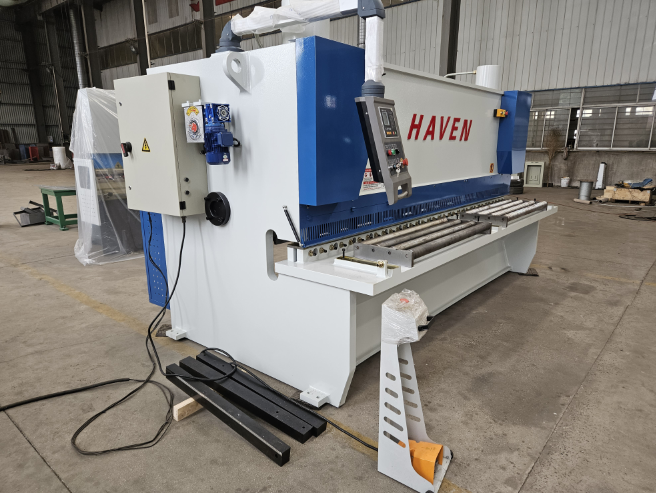

Hydraulic Guillotine Shearing Machine in Stock for Sale

Feb. 22, 2024

Haven has an in-stock hydraulic guillotine shearing machine that can be shipped within 7-10 days or within a month if customised. For more information about Haven hydraulic guillotine shearing machine, click here.

Type	Cutting Thickness (mm)	Cutting Width (mm)	Stroke Number (/min)	Travel of Back gauge (mm)	Shearing Angle (0)	Depth of Throat (mm)	Power of Main motor (kw)	Overall Dimensions (mm)
4x2000	4	2000	14	350	0.5-1.5	80	5.5	2600x1350x1840
4x2500	4	2500	14	350	0.5-1.5	80	5.5	3100x1350x1845
4x3200	4	3200	14	600	0.5-1.5	80	5.5	3800x1500x1900
4x4000	4	4000	12	600	0.5-1.5	80	7.5	4650x1700x1950
4x5000	4	5000	12	600	0.5-1.5	80	7.5	5650x1750x2000
6x2500	6	2500	14	600	0.5-1.5	80	7.5	3100x1725x1960
6x3200	6	3200	12	600	0.5-1.5	80	7.5	3850x1750x1980
6x4000	6	4000	10	600	0.5-1.5	80	7.5	4650x1780x2075
6x5000	6	5000	8	600	0.5-1.5	80	7.5	5650x1830x2250
6x6000	6	6000	8	600	0.5-1.5	80	7.5	6650x189-x2380
8x2000	8	2000	12	600	0.5-1.5	80	7.5	2700x1725x1960
8x2500	8	2500	12	600	0.5-1.5	80	7.5	3200x1725x1960
8x3200	8	3200	12	600	0.5-1.5	80	7.5	3900x1750x1980
8x4000	8	4000	10	600	0.5-1.5	80	11	4700x1850x2075
8x5000	8	5000	7	600	0.5-2.0	80	15	5805x2000x2500
8x6000	8	6000	7	600	0.5-2.0	100	15	6805x2115x2715
10x2000	10	2000	10	600	0.5-2.0	120	11	2695x1800x2210
10x2500	10	2500	10	600	0.5-2.5	120	11	3195x1800x2210
10x3200	10	3200	8	600	0.5-2.5	120	11	3895x1800x2240
10x4000	10	40000	6	600	0.5-2.5	120	15	4695x1930x2275
10x5000	10	5000	5	600	0.5-2.5	120	15	5905x2115x2715
10x6000	10	6000	5	600	0.5-2.5	120	15	6905x2215x2800
12x2000	12	2000	10	600	0.5-2.5	120	11	2695x1800x2210
12x2500	12	2500	10	600	0.5-2.5	120	15	3195x1800x2210
12x3200	12	3200	8	600	0.5-2.5	120	15	3895x1800x2240
12x4000	12	4000	6	600	0.5-2.5	120	15	4710x1950x2485
12x5000	12	5000	5	600	0.5-2.5	120	18.5	5905x2115x2800
13x6000	13	6000	4	600	0.5-2.5	120	18.5	7000x2300x3100
16x2500	16	2500	8	600	0.5-2.5	120	15	3215x1880x2340
16x3200	16	3200	7	600	0.5-2.5	120	15	3915x1880x2445
16x4000	16	4000	6	600	0.5-2.5	120	15	4715x1950x2590
16x4500	16	4500	6	600	0.5-3.0	120	15	4715x1950x2590
16x5000	16	5000	5	600	0.5-3.0	120	22	6000x23003000
16x6000	16	6000	4	600	0.5-3.0	120	37	7000x2300x3100
20x2500	20	2500	6	600	0.5-3.0	120	22	3215x1890x2465
20x3200	20	3200	5	600	0.5-3.0	120	30	4120x1890x2780
20x4000	20	4000	4	600	0.5-3.0	120	30	4925x2150x2900
25x2500	25	2500	5	600	0.5-3.5	120	30	3435x2000x2710
30x3200	30	3200	4	600	0.5-3.5	120	37	4120x2200x2980
30x4500	30	4500	4	600	0.5-3.5	120	37	5500x2300x3320
