Hydraulic Shearing Machine and Conventional Shearing Ｍachine

A shearing machine is an industrial machine with a turntable and blades that is used to cut hard iron and metal bars. The term "shear" refers to the application of a high pressure tool to a metal bar once to remove a portion of the metal. All metal shears use the same cutting technology, which has a fixed upper blade, a lower blade and an adjustable gap that separates the two. When force is applied to the upper blade, it forces the lower blade to cut the metal in half.

Shears are classified according to the shape of their blades, linear or circular.

Linear shears are used to cut metal thicker than 2mm, and they cut thinner metal by hydraulic power operation or by manually operated machines.

Round shears are used to cut round blanks and rings from metal and are operated by electric motors. The best types of metals for shearing are bronze, aluminum, brass and mild steel. Metal shearing is both economical and simple, making it the preferred choice in industry and even in the home.

Types of shearing machines

1Table shear

The term table shear is used because the machine is mounted on a table to increase its mechanical capacity. It is used to cut rough shapes of medium sized metals. However, small table shears are equipped with ground blades that are light weight, easy to clean and fast to cut.

2Guillotine

This means that the machine is manually or foot-driven, sometimes mechanically. The material being cut is first squeezed by a ram, a moving blade drops and shears the metal. A power shear consists of a shearing table, a clamping device, a metering device, and lower and upper blades.

3Electric shears

This type of shear is electric and can cut large pieces of metal, regardless of size. Or, they can be powered by a hydraulic system to cut metal that is too bulky for transport.

4Throat

This means that the metal being cut can move freely around the cutting blade, so it is flexible. It is used for complex cuts and curves.

Advantages of hydraulic shearing machine

1, Hydraulic shears are fast and accurate and can easily cut large amounts of metal in a factory.

2, Hydraulic shears are cost effective as they do not require as much maintenance as mechanical models.

3, Hydraulic shears are usually compact machines, so they take up less space even though they exert the same pressure as mechanical shears.

4, Hydraulic shears hold the metal in place with cramps while cutting, thus ensuring smooth cuts or even 90 degree cuts. There is a wide range of hydraulic shears on the market to suit all sizes of metal.

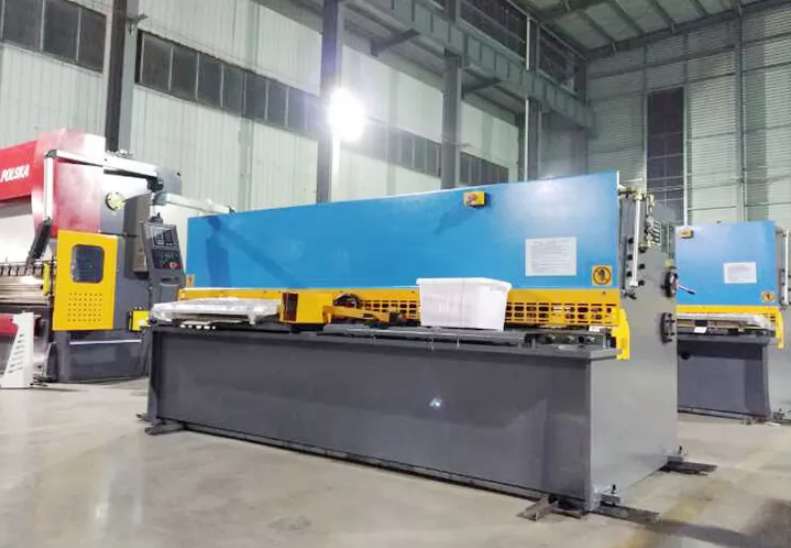

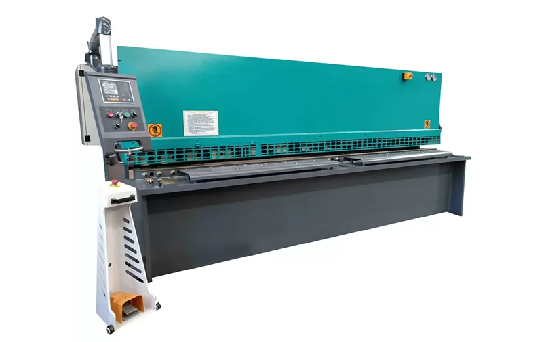

The frame structure of HAVEN's shears is made of all-steel welded; the four corners and eight sides of right-angle guide rails are highly accurate and rigid, with hydraulic preload. Hydraulic system adopts two-way plug-in integrated valve, which can be equipped with stroke digital display, photoelectric protection device and moving table. Shearing machine with the upper slider under the hydraulic pad double-action function, working pressure stroke can be pressed in the specified range. The process needs to be adjusted, easy to operate, and the keypad is centralized. Please contact our experts to get the quote and suggestions.
