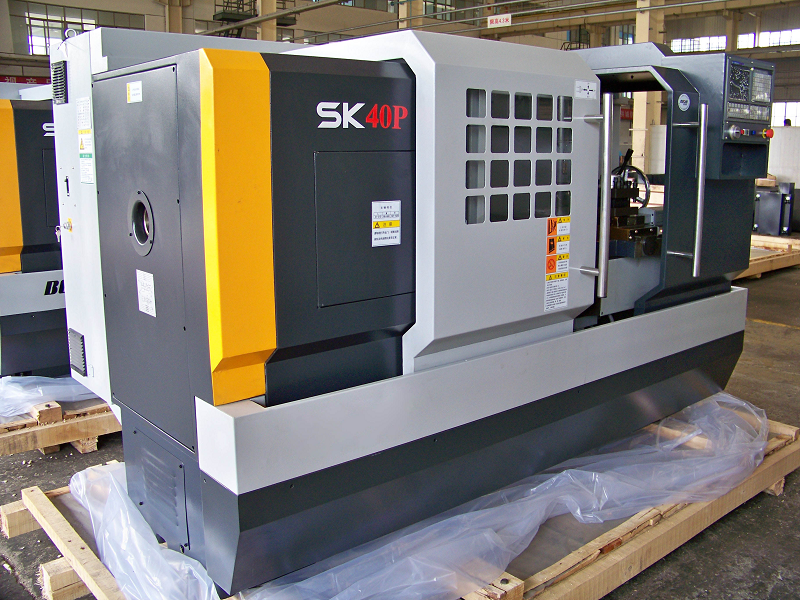

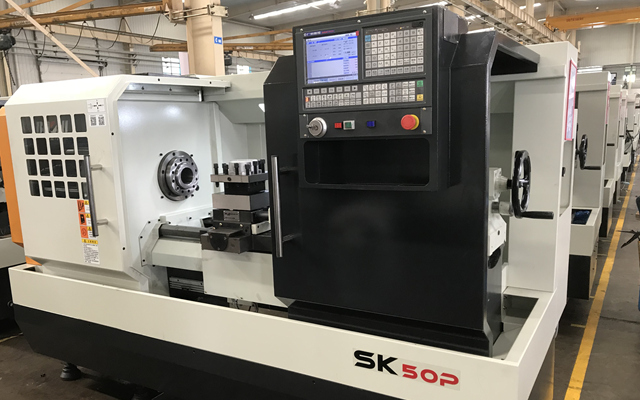

SK40P Series horizontal CNC lathes that spindle speed are changed mechanically in three gears together with control of a frequency changer. The lathe has 4 types (750, 1000, 1500, 2000). Equipped with 4-station (standard)/ 6-station turret (optional), the lathes are available for different cuttings. The sliding door ensures the operator’s safety. CNC systems such as GSK 980T,FANUC 0i TF(5),etc. is provided on request. The lathes can perform internal and external cylindrical turning, arbitrary taper turning, arc turning, facing and threading. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.

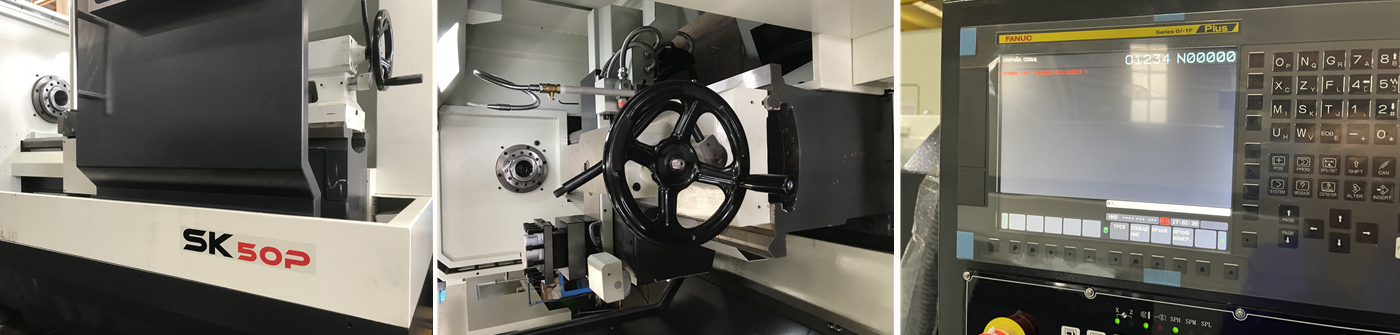

(1) HEADSTOCK (HRB SPINDLE BEARINGS)
(2) MACHINE-BED (FLAT-BED TYPE).
(3) TAILSTOCK (STANDARD: MANUAL TAILSTOCK)
(4) CARRIAGE AND DRIVE (AC SERVO MOTOR, BALL SCREWS)
(5) CROSS SLIDE AND DRIVE (AC SERVO MOTOR, BALL SCREWS)
(6) TOOL POST (STANDARD: 4-STATION TOOLPOST)
(7) COOLING PUMP
(8) LUBRICATION UNIT
(9) CHUCK (STANDARD: 250MM 3-JAW MANUAL CHUCK)
(10) SEMI-CLOSED SHIELDING COVER
(11) SPINDLE DRIVE UNIT (SERVO SPINDLE MOTOR)
Item | SK40P | SK50P |
Max. swing over bed (mm) | φ400 | φ500 |
Max. swing over slide (mm) | φ200 | φ280 |
Max. turning dia. (mm) | φ400/350 * | φ500/350 * |
Max. work length (mm) | 710/620; 960/870; 1460/1370; 1960/1870;2960/2870 | |
Max. turning length (mm) | 570/500; 820/750; 1320/1250; 1820/1750;2820/2750 | |
Spindle taper hole (mm) | φ77 | φ77 |
Spindle nose | ISO702/ⅠA2-8 | |
Spindle speed (r/min) | 3 gear stepless 21-1620 H:162-1620 M:66-660 L:21-210 | |
Taper hole of spindle | Metric 1:20 | |
Max. output torque of spindle (N.m) | 800 | |
Max. rapid traverse (m/min) | X-axis: 6(See OPERATOR’S MANUAL---ELECTRICAL PARTS for details) | |
Z-axis: 8(See OPERATOR’S MANUAL---ELECTRICAL PARTS for details) | ||
Pitch of screw (mm) | X direction: 5 Z direction: 6 | |
Capacity of turret | 4(standard)/6(optional) | |
Width of tool block(mm) | 162X162 | 200X200 |
Max. permissible tool section (mm ×mm) | 25×25 | |
Travel of turret (mm) | X direction: 300/235(6-station) | |
Z direction: 600/850/1350/1850/2850 | ||
Dia. of tailstock quill (mm) | φ75(φ80 hyd. tailstock) | |
Taper of tailstock quill (MT No.) | MT No.5(MT No.3 hyd. tailstock with live spindle) | |
Max. travel of tailstock quill(mm) | 150(130 hydraulic tailstock) | |
Cross travel of tailstock (mm) | ±15 | |
Main motor | 7.5kW frequency inverting motor | |
Coolant pump | LDPB2-15 180W 3m3/h | |
V belt | B1829 4 pcs | B1905 4 pcs |
Note *: data after “/” is for lathe equipped with horizontal 6-station turret (swing dia. of tool disk is assumed φ360). |
Dimension (L×W×H) mm× mm× mm | 750 | 2450×1450×1670 | ||||
1000 | 2700×1450×1670 | |||||
1500 | 3200×1450×1670 | |||||
2000 | 3700×1450×1670 | |||||
3000 | 4700×1500×1690 | |||||
Packing size (L×W×H) cm× cm× cm | 750 | 308(325) **×186×225 | ||||
1000 | 313(330) **×186×225 | |||||
1500 | 363(380) **×186×225 | |||||
2000 | 413(430) **×186×225 | |||||
3000 | 504(536) **×186×230 | |||||
Net weight of machine kg | Machine | 750 | 1000 | 1500 | 2000 | 3000 |
2050 | 2100 | 2150 | 2200 | 3500 | ||
Thru-hole of hollow chuck | φ52(with reference to thru-hole of chuck) | |||||
Note **: data in parentheses is for lathe equipped with hydraulic station. |
1.GSK980 TD or FANUC 0i-TF(5) NC controller;
2, Servo spindle motor ;
3, X,Z axis servo motor;
4. 250mm manual chuck;
5. manual tailstock;
6. 4-sation toolpost;
7, Auto lubrication system;
8, Auto coolant system;
9, work light;
10. installation damping pads;
11,technical documents;
6-staiton turret(USD750.00);
20--120mm Steady rest.
EXCUTIVE STANDARD:JB/T 8324.1-96
1. POSITION ACCURACY X/Z:(mm) 0.024/0.032(≤1000)、 0.036(1500)、 0.04(2000)
2. REPEATABLE POSITION X/Z:(mm) 0.010/0.013(≤1000)、 0.016(1500)、 0.020(2000)
3. BACKLASH(X/Zmm): 0.011/0.016
4. ROUNDNESS:(mm): 0.004
